Leak Proof Multi Head Combination Weigher for Small Particle&Powder
Discover the Kenwei Leak Proof Multi Head Combination Weigher for Small Particle & Powder. This advanced multihead weigher machine ensures high-precision weighing, leak-proof performance, and efficiency. Ideal for various industries needing accurate combination weigher solutions.
Model
JW-A10
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A10-1-4
Weighing Range
20-1000g
Accuracy
X(0.5)
Max Speed
65P/M
Hopper Volume
1.6L/2.5L
Control Panel
7”Touch Screen
Options
Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1000V/ 50/60Hz /12A
Packing Dimension(mm)
1620(L)X1100(W)X1110(H)
Gross Weight
380kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Equipped with a high-precision, high-standard specialized load cell.
● The program recovery function effectively minimizes operational failures and enables multi-segment weight calibration, ensuring accurate measurements.
● The non - automatic product pause function enhances weighing stability, guaranteeing more reliable and consistent weighing results.
● The linear amplitude can be adjusted independently, providing greater flexibility and customization for different applications.
● Multilingual support caters to the needs of global markets, facilitating seamless operation and communication worldwide.
● With a capacity of 100 programs, it can meet diverse weighing requirements. Additionally, the user-friendly help menu simplifies the operation process, making it accessible to users with varying levels of expertise.
Mechanical Character

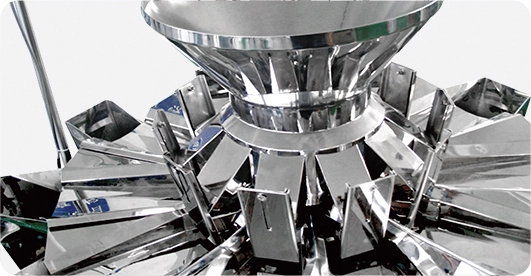

The multi-mouth feeder efficiently distributes products into each linear feeder pan, ensuring a smooth and consistent feeding process.

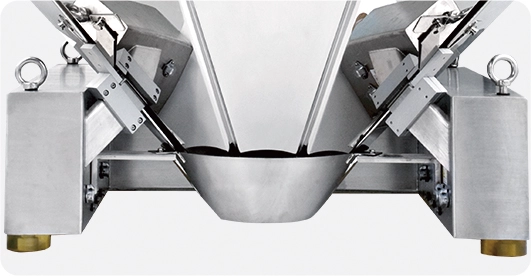

The uniquely designed U-shaped linear feeder pans are engineered to prevent leakage, providing a reliable and mess-free operation.

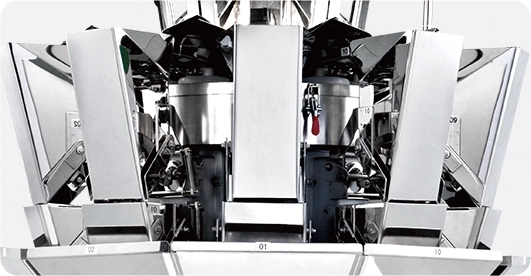

The standardized mold manufacturing process, coupled with uniform design principles, significantly improves the interchangeability of spare parts, facilitating maintenance and reducing downtime.
The thickened aluminum central support structure reinforces the machine's stability, enabling the hoppers to reach equilibrium in a much shorter time.
The availability of a weighing - based material detection system allows for precise control over feeding duration and material thickness, thereby guaranteeing high - accuracy weighing resul
Technical Specification
|
Model |
JW-A10 |
JW-A14 |
|
Identify Code |
A10-1-4 |
A14-1-4 |
|
Weighing Range |
20-1000g |
20-1500g |
|
Accuracy*1 |
X(0.5) |
X(0.5) |
|
Max Speed*2 |
65P/M |
120P/M |
|
Hopper Volume |
1.6L/2.5L |
|
|
Control Panel |
7''Touch Screen |
|
|
Options |
Timing Hopper/Printer/Reject Device |
|
|
Driving System |
Step Motor |
|
|
Power Requirement |
220V/1000V/50/60Hz/10A |
220V/1500W/50/60Hz/12A |
|
Packing Dimension(mm) |
1620(L)x1100(W)x1110(H) |
1700(L)x1100(W)x1265(H) |
|
Gross Weight |
380kg |
490kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | ||
| *2: Depends on product shape, product density, target weight, etc. | ||
Application
It is ideally suited for accurately weighing small granular substances, including but not limited to rice, sugar, fine tea leaves, and detergent powder.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Price and payment
Are the prices for Kenwei machines negotiable?
Prices are generally fixed, but depending on the order volume, long-term partnerships, or special circumstances, we may offer discounts or promotional pricing. Please contact our sales team to discuss your specific situation.
How is the price of Kenwei machines determined?
The price of Kenwei machines depends on several factors, including the type of machine, customization requirements, production volume, and any additional features or integrations. We provide tailored quotes based on your specific needs and requirements.
About Cooperation Process
How does Kenwei ensure the quality of its machines?
Kenwei has a stringent quality control system in place. Each machine is rigorously tested for precision, speed, and reliability before it is shipped.
About Solution suggestions
Can Kenwei solutions be used for both manual and automated packing lines?
Yes, Kenwei machines can be used in both manual and automated packing lines. We can provide integrated systems that work alongside manual labor or fully automated systems depending on your production requirements.
About products customization
How do I request a custom-built Kenwei machine?
To request a customized machine, simply contact our sales or engineering team.
