Multihead Weigher with Two-Layer Screw Feeding for Sticky Food Weighing
The Kenwei Two-Layer Screw Feeding Multihead Weigher is a high-precision solution designed specifically for sticky food products. This advanced system combines two-layer screws to gently handle and accurately weigh even the most adhesive foods, minimizing product waste. Featuring a 14-head multihead weigher, it ensures both speed and accuracy. Ideal for packaging lines, this machine enhances productivity for items such as chocolates, pastes, and gummies. Its design effectively addresses material sticking issues, making it the preferred choice for efficient packaging of sticky foods in the confectionery and snack industries.
Model
JW-A14
MOQ
1set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A14-2-8
Weighing Range
10-200g
Accuracy
X(0.5)
Max Speed
50P/M
Hopper Volume
1L
Control Panel
10.1'' Touch Screen
Options
Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1500W/ 50/60Hz /10A
Packing Dimension(mm)
1750(L)x1130(W)x1590(H)
Gross Weight
490kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● High-precision special load cell ensures exceptional accuracy and performance.
● Modular electric board with intelligent multiple sampling modes enhances weighing precision.
● Intelligent fault alarm system for easy maintenance and quick troubleshooting.
● High-speed staggered discharge function effectively prevents material blockages.
● New, highly integrated modular design utilizing CAN bus technology for improved efficiency.
● Modbus industrial standard communication protocol enables seamless integration between the multihead weigher and packaging machine.

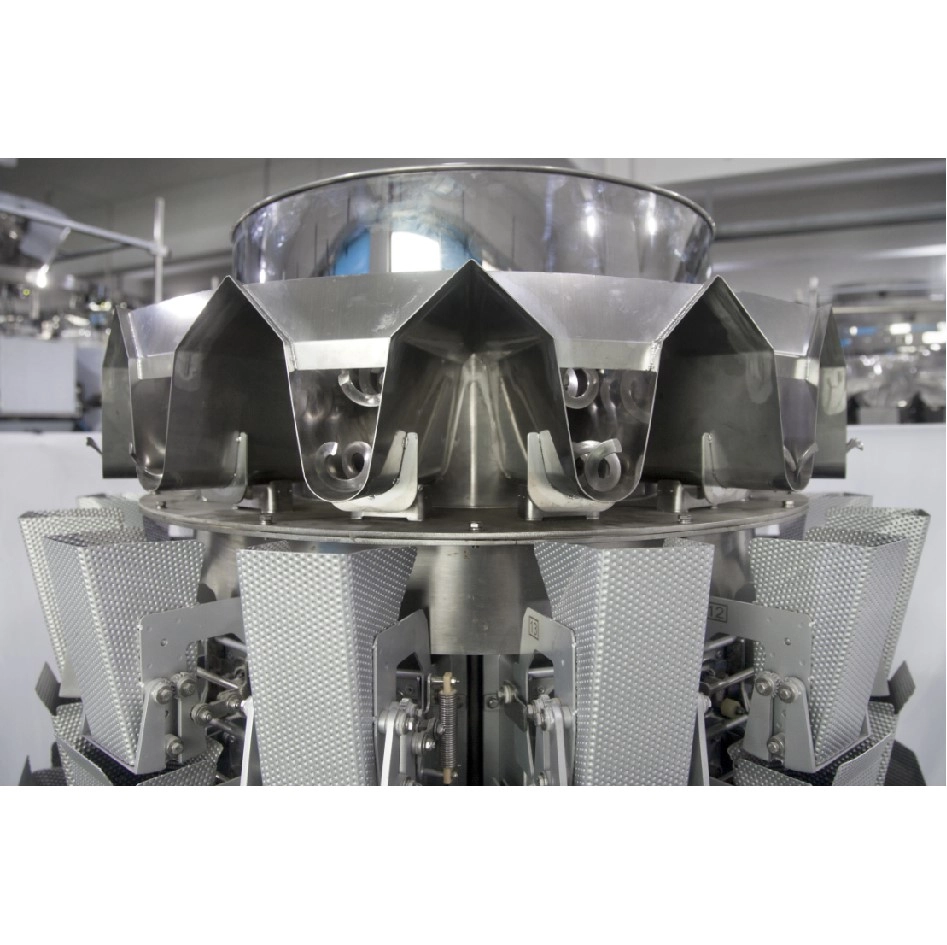

Mechanical Character

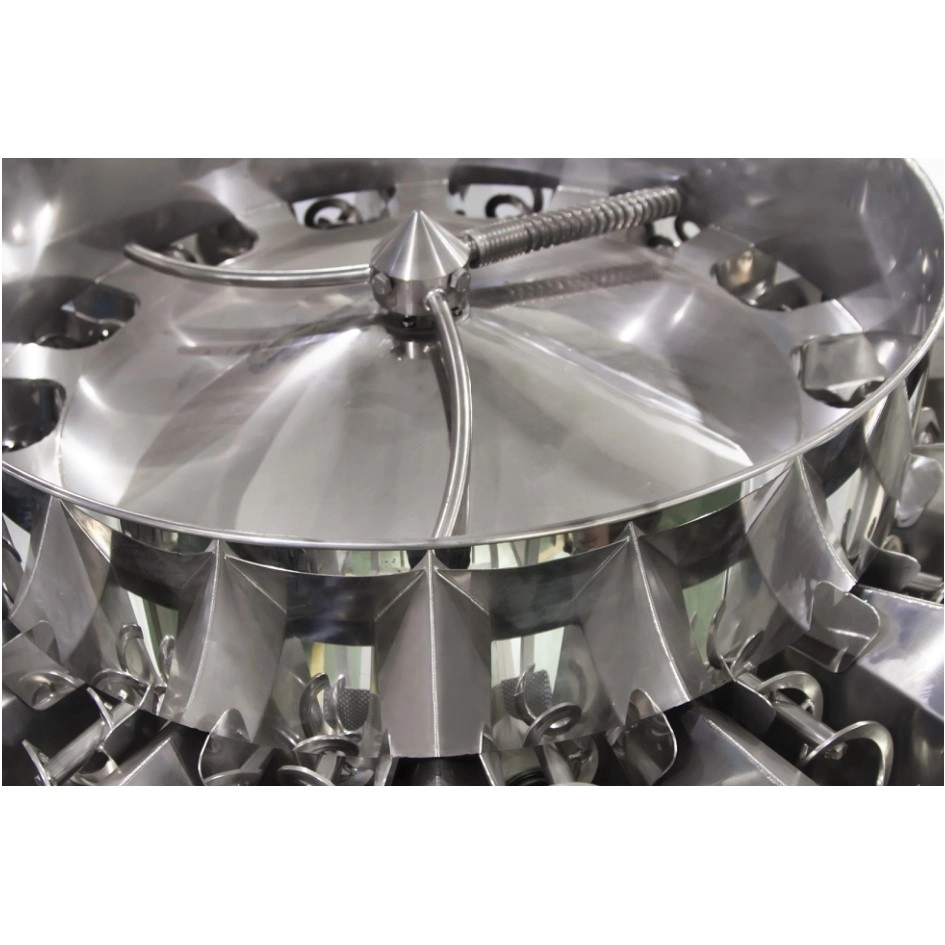

The two-layer screw feeding system allows for precise material control, making it ideal for various viscous materials.

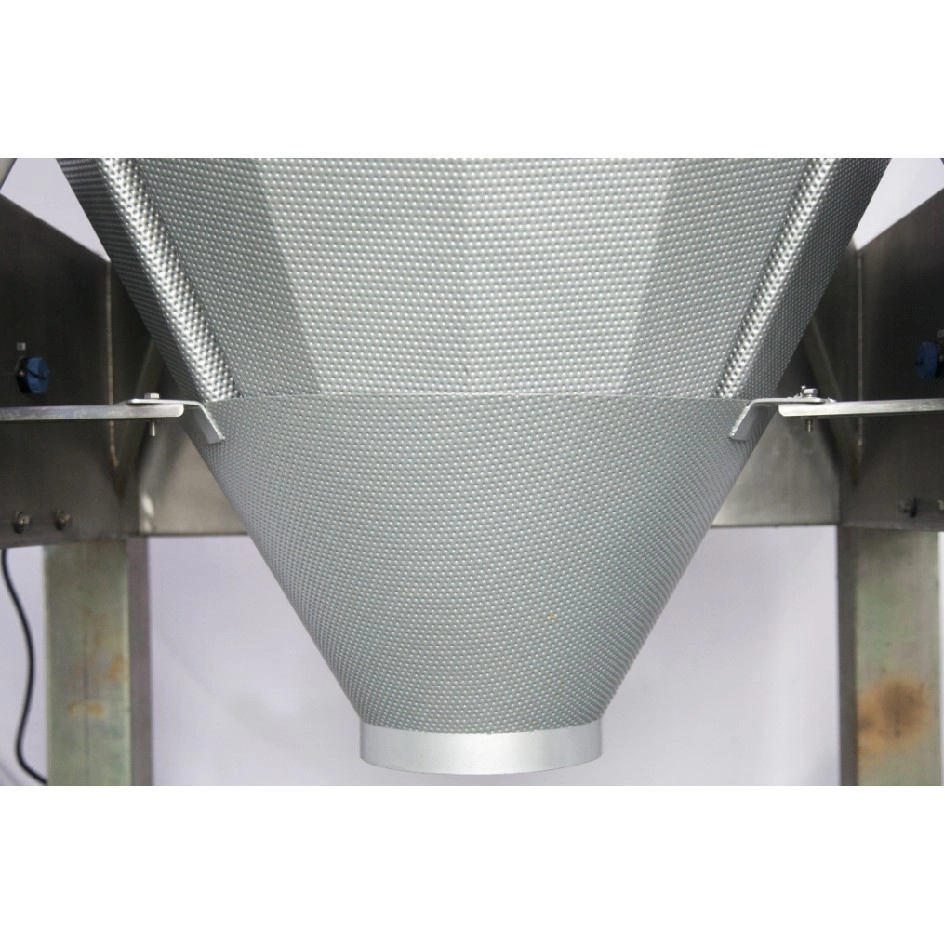

An IP65 waterproof case is used, with a small dimple plate for material contact, and a 60-degree feeding chute ensures smooth material flow.

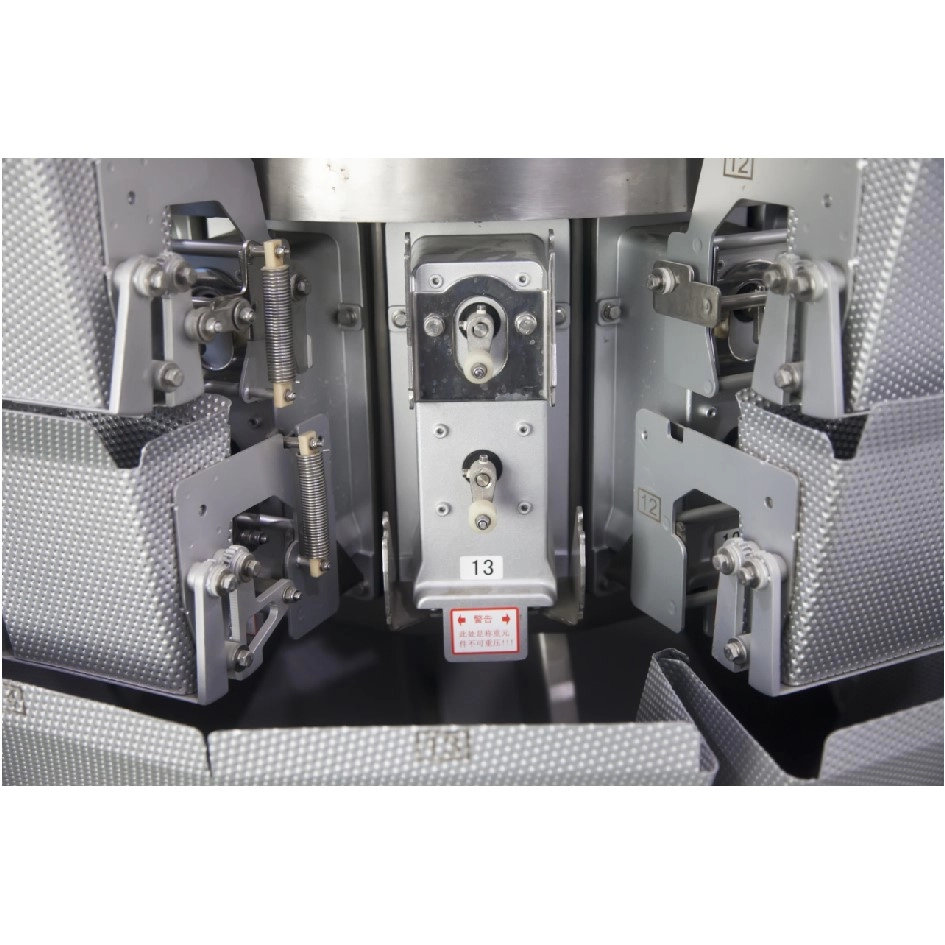

The scraper hopper effectively prevents material from sticking to the hopper, ensuring smooth operation.
Dual-point material inspection improves accuracy and control over material thickness.
Technical Specification
| Model |
JW-A14 |
| Identify Code |
A14-2-8 |
| Weighing Range |
10-200g |
| Accuracy*1 |
X(0.5) |
| Max Speed*2 |
50P/M |
| Hopper Volume |
1L |
| Control Panel |
10.1" Touch Screen |
| Options |
Timing Hopper/Printer/Reject Device |
| Driving System |
Step Motor |
| Power Requirement |
220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) |
1750(L)x1130(w)x1590(H) |
| Gross Weight |
490kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
The Kenwei 14-head multihead weigher provides an effective solution for the challenges of weighing and packing sticky foods. It is perfect for weighing materials with poor flowability, including mustard, pickles, small fish, and other similar products.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Product choice
What types of products does Kenwei offer?
Kenwei specializes in high-precision and high-speed automated machinery for weighing, packaging, and quality control. Our main products include: multihead weigher, linear weigher, checkweighers,food metal detector,vertical packing machine and packing machine accessories.
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
About Solution suggestions
How can Kenwei solutions help reduce waste in my production process?
Kenwei solutions improve accuracy in weighing, packaging, and quality control, reducing the chances of overfill or underfill. This leads to less product waste and higher operational efficiency.
About products customization
Can I customize the size of Kenwei machines?
Yes, we can tailor the dimensions of our machines to fit your available space and production layout. Whether you need compact machines or larger equipment, we can accommodate your size requirements.
Can Kenwei machines be customized for different industries?
Yes,According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on.
