Multi Head Combination Weigher with Intelligent Feeding Control

Kenwei Multi Head Combination Weigher with Intelligent Feeding Control ensures high-speed, precise, and efficient weighing. Ideal for food and non-food industries, this advanced combination weigher boosts productivity and accuracy for all your multihead weigher needs.

Model
JW-A14
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A14-1-8
Weighing Range
10-1500g
Accuracy
X(0.5)
Max Speed
60P/M
Hopper Volume
1.6L/2.5L
Control Panel
7'' Touch Screen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1500W/ 50/60Hz //12A
Packing Dimension(mm)
1700(L)X1110(W)X1265(H)
Gross Weight
490kg
Get a free quote



Material 304 stainless steel Certification CE, OIML, SGS
Availability OEM/ODM Delivery Time 7-30days
Start Port Zhongshan port Supply Ability 500 sets/year



Feature

● High-Precision Load Cells: Equipped with specialized load cells designed for exceptional accuracy and high standards of performance.
● Program Recovery Function: Minimizes operational disruptions by supporting multi-segment weight calibration and ensuring seamless recovery after any failure.
● Automatic Product Pause: The no-product auto-pause feature enhances weighing stability and accuracy by preventing erroneous readings when there are no products on the scale.
●Adjustable Linear Amplitude: Independently adjustable linear amplitude for more consistent and uniform feeding, ensuring better weighing performance.
● Multi-Language Support: Offers 15 languages, making it ideal for diverse global markets.
● Capacity for 100 Programs: Easily accommodates a wide range of weighing requirements with a user-friendly interface, including a touch-screen help menu for simplified operation.

Multi Head  Combination Weigher with Intelligent Feeding Control-8 - Kenwei
Multi Head  Combination Weigher with Intelligent Feeding Control-7 - Kenwei
Multi Head  Combination Weigher with Intelligent Feeding Control-5 - Kenwei
Multi Head  Combination Weigher with Intelligent Feeding Control-6 - Kenwei

Mechanical Character

01 - Kenwei
Dual Software Integration: Comes with both weighing and counting software to streamline operations and improve efficiency.
02 - Kenwei
Automatic Vibration Adjustment: Vibration time is automatically regulated to ensure a smooth feeding process and enhance combination accuracy.
03 - Kenwei
Additional MCU Support: An extra microcontroller (MCU) assists the motherboard CPU in monitoring and controlling the feeding process, significantly boosting weighing precision.
04 - Kenwei

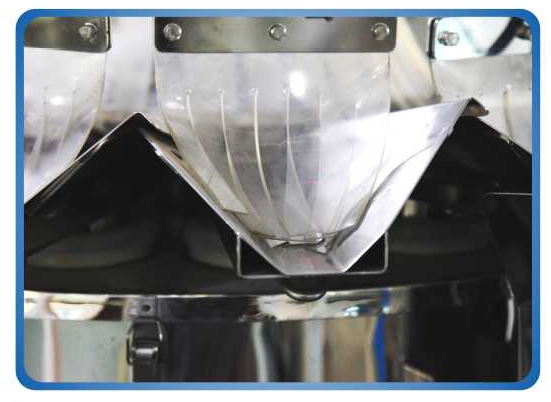

Wide V-Shaped Feeder Pan: Features a wide V-shaped feeder pan with an independent photo sensor on top, a more uniform and consistent feeding process
05 - Kenwei
Durable Cast Aluminum Enclosure: The thickened cast aluminum machine case enhances the machine's strength and reduces the sample stabilization time.
06 - Kenwei
Optional Material Detection for Weighing: Allows for precise control over feeding time and material thickness, ensuring highly accurate weighing results.

Technical Specification

Model

JW-A10

JW-A14

Identify Code

A10-1-8

A14-1-8

Weighing Range

10-1000g

10-1500g

Accuracy*1

X(0.5)

X(0.5)

Max Speed*2

30P/M

60P/M

Hopper Volume

1.6L/ 2.5L

Control Panel

7”Touch Screen

Options

Dimple Plate/Timing Hopper/Printer/Reject Device

Driving System

Step Motor

Power Requirement

220V/1000W/50/60Hz/10A

220V/1500W/50/60Hz/12A

Packing Dimension(mm)

1620(L)x1100(W)x1110(H)

1700(L)x1100(W)x1265(H)

Gross Weight

380kg

490kg

*1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E)
*2: Depends on product shape, product density, target weight, etc.



Application

Multi Head  Combination Weigher with Intelligent Feeding Control-9 - Kenwei

It is ideal for counting applications, such as pepper, fruit, jelly, small packs, tomatoes, potatoes, onions, large-shell nuts, and more.

Frequently Asked Questions

We've Got Answers

Browse some answers to our most common questions, or you can drop us a line to ask something else.

About Product choice
What is the average lifespan of Kenwei products?

Kenwei machines are built for durability and longevity. With proper maintenance, our products are designed to last for many years, even under heavy usage. We offer maintenance services and support to help extend the lifespan of your machines.

How do I choose the right product for my business?

Choosing the right machine depends on several factors:

Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).

Production Capacity: Consider the volume of products you need to process and the speed requirements.

Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.

About Cooperation Process
How to operate it?

Many languages are available for global markets. There are not only detailed instructions, but also machine video for reference learning.

About After Sales Support
What after-sales support does Kenwei offer?

Kenwei provides comprehensive after-sales support, including product installation, training, maintenance, troubleshooting, and technical assistance. Our team is dedicated to ensuring your machines operate at their best throughout their lifecycle.

About Solution suggestions
Can Kenwei provide a solution for mixed-product weighing?

Yes, Kenwei’s multi-head weighers are ideal for mixed-product weighing. They can handle a variety of products in different shapes and sizes, ensuring that the correct portions are weighed and packaged quickly.
