Palletizer SystemPalletizer System
Boost efficiency with Kenwei's advanced Palletizer System. Ideal for automating packaging lines, it integrates seamlessly with check weighers, packing machines, and food packaging machinery for reliable, precise palletizing solutions.
Palletizer system JW-B33

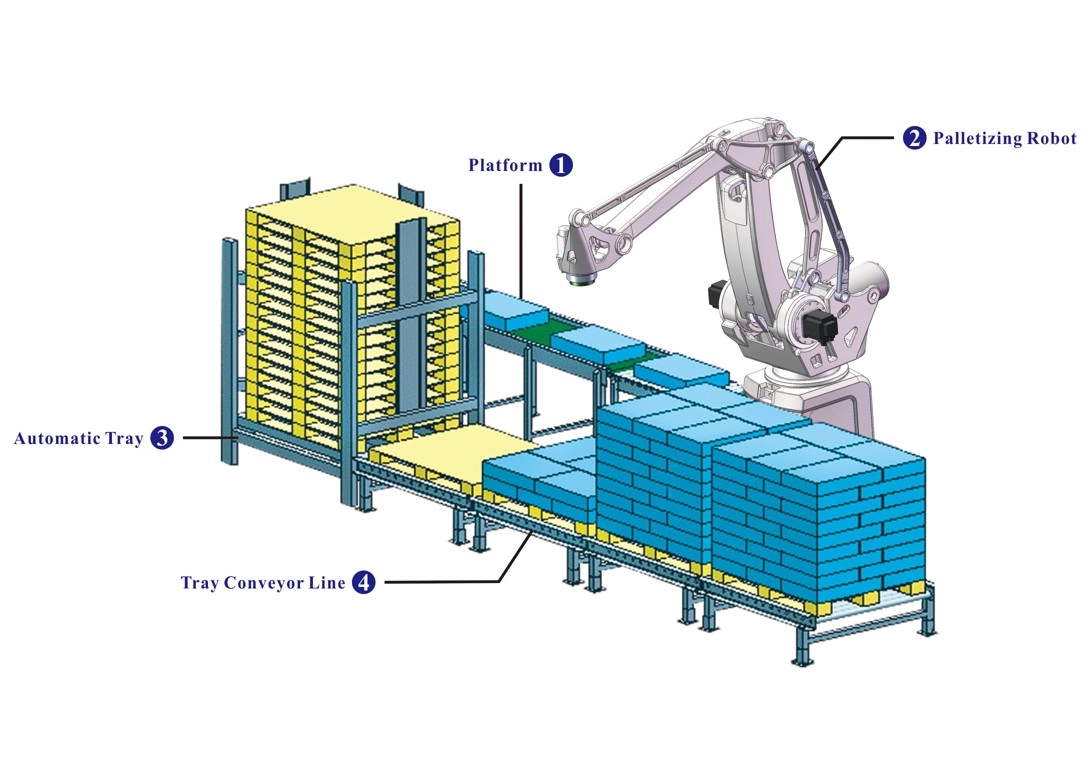

System components
An automatic tray, tray conveyor line, platform, and palletizing robot for efficient material handling and automated packaging processes.

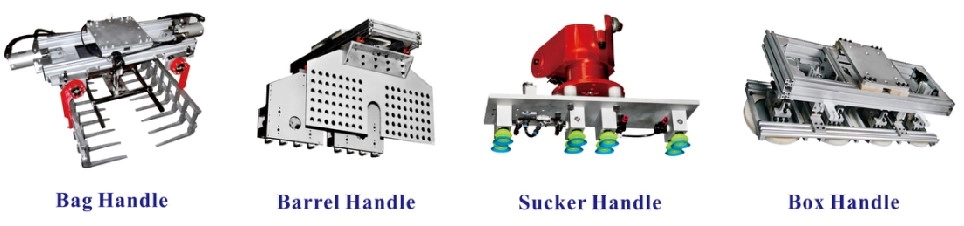

Matching handle
Optional bag handle, barrel handle, suction cup handle, box handle
Features
-
-
-
-
● Designed for use in the palletizing industry.
-
● Innovative, new design for improved performance.
-
● High-speed operation, meeting demanding productivity requirements.
-
● Network control system with extensive external interfaces and additional functions.
-
● Fully open, stand-alone system supporting a wide range of applications.
-
● IASUN robot virtual workstation with CAD model reconstruction and CDA model-based free teaching operation for enhanced usability.
-
● Supports visual, power, and other smart sensor data for intelligent operation.
-
● Cost-effective solution with high-quality, low-cost spare parts.
-
● Responsive and localized customer service for timely support.
-
-
-
General Purpose Industrial Robots
|
structure type |
Four-axis palletizing |
Four-axis palletizing |
|
|
load capacity |
160 Kg |
300 kg |
|
|

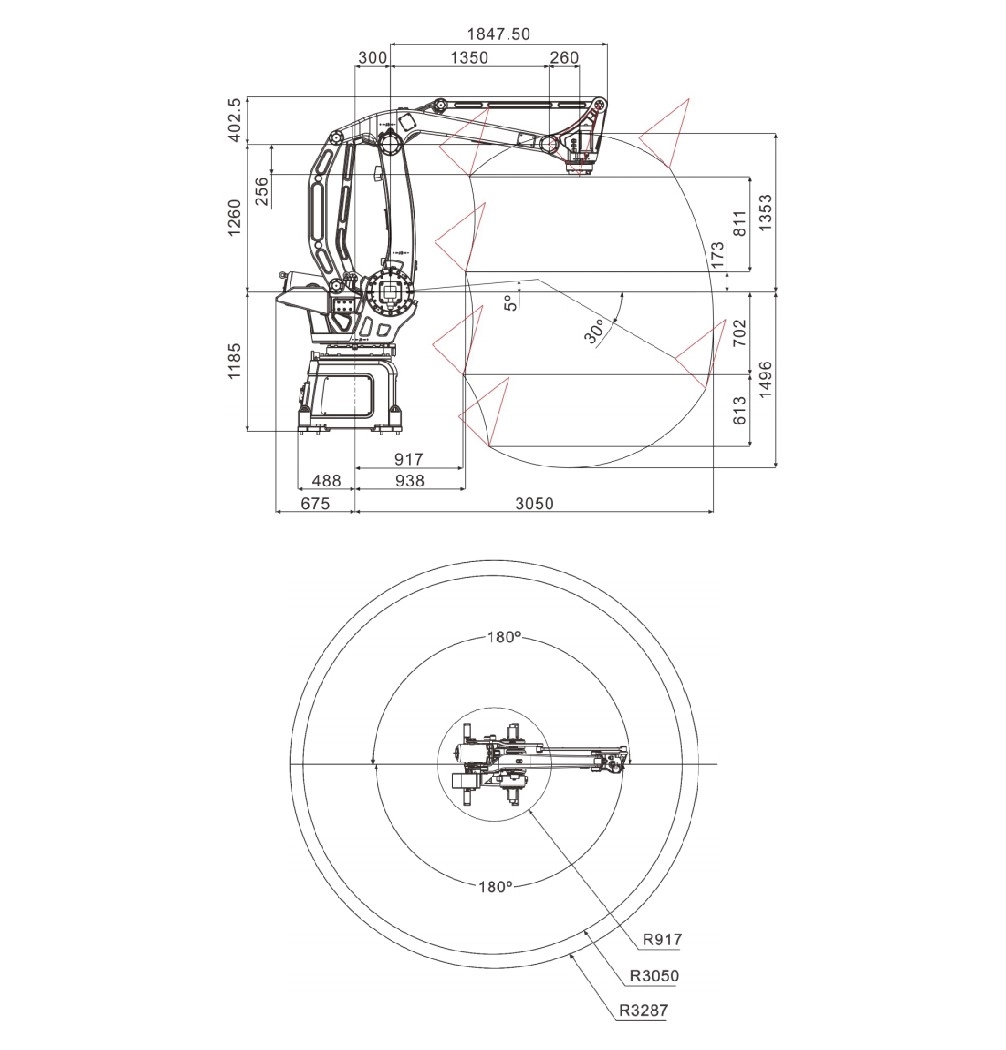

The scope of work (Horizon) |
3050mm |
3050mm |
|
|
Repeatability |
±0.5mm |
±0.5mm |
|
|
Degrees of freedom |
4 |
4 |
|
|
Maximum motion range of per axis |
S-axis (turn) |
±185° |
±185° |
|
L-axis (lower arm) |
+45°, —85° |
+45°, —85° |
|
|
U-axis (upper arm) |
+20°, —120° |
+20°, —120° |
|
|
4 axis |
±360° |
±360° |
|
|
Maximum speed of per axis |
S-axis (turn) |
120°/s |
85°/s |
|
L-axis (lower arm) |
120°/s |
90°/s |
|
|
U-axis (upper arm) |
120°/s |
90°/s |
|
|
4 axis |
300°/s |
190°/s |
|
|
Body weight |
1900 Kg |
||
|
battery capacity |
5KVA |
||
|
Protection grade (wrist) |
IP65 |
||
|
Reserved signal line (1 axis → 3 axes) |
32 core, single core diameter 0.2mm² |
||
