Examples of mixing/counting packaging system with multihead weigher
Discover Kenwei's efficient counting and packaging system solutions with multihead weighers. Explore real-world examples of accurate, high-speed packaging for various industries. Optimize your production with advanced, reliable technology.
Examples of mixing/counting packaging system with multihead weigher

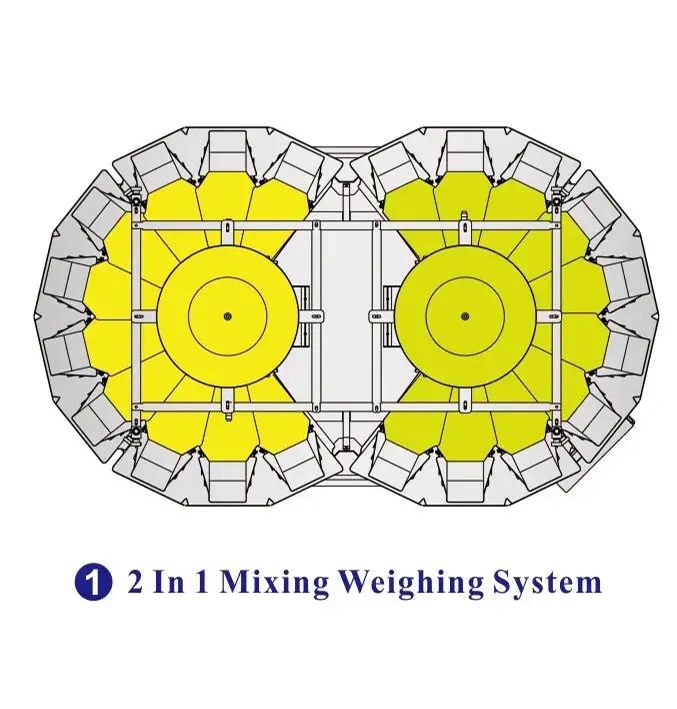

2-in-1 mixing weighing system
Configuration: 8 type 20 head weigher
Total weight accuracy control: ± 1g
The total weight of the formula: 10-1500g
The 20-head multihead weigher with distributed hoppers is engineered for precise dual-material weighing. It comes with 10 hoppers dedicated to the primary material, offering a high accuracy of ±1g. This ensures that any inconsistencies in the formula weighing are automatically corrected, keeping the overall weight accuracy within ±1g. The secondary material is evenly distributed across another 10 hoppers, with a control accuracy of ±1.5g. The formula weighing system ensures exceptional precision and reliable performance, providing consistent and accurate results.

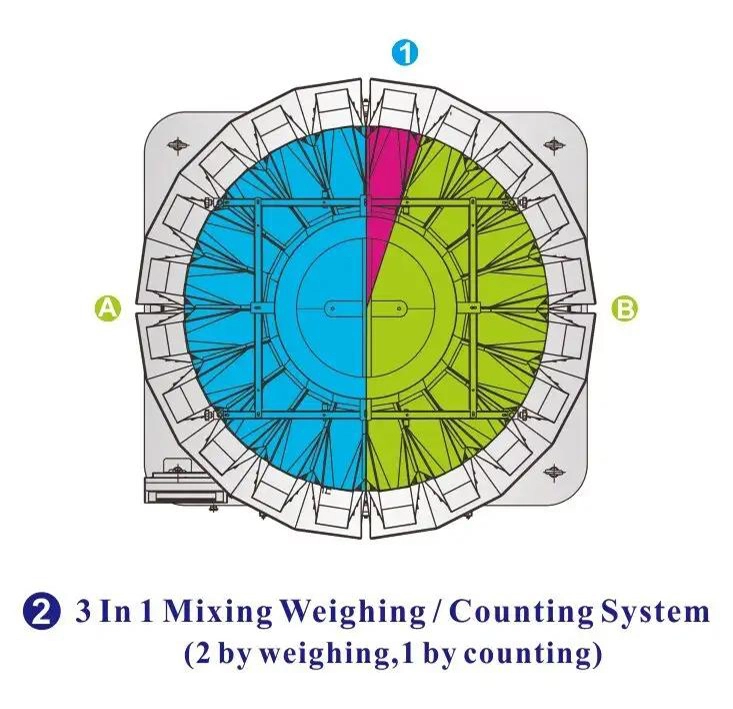

3-in-1 mixing weighing and counting system
Configuration: O type 20 head weigher
Total weight accuracy control: ± 1g
The total weight of the formula: 10-1500g
The 20-head multihead weigher with distributed hoppers is ideal for precise weighing of two materials. It features 10 hoppers (±1g) for the primary material, which automatically corrects any errors in the formula weighing, ensuring the total weight remains accurate within ±1g. The secondary material is distributed across 9 hoppers, with a control accuracy of ±1.5g. The formula weighing system ensures high precision and reliable results, effectively managing the weighing process for both materials.
The 20-head multiheadweigher with distributed hoppers for piece counting features a single hopper (±0) for each material. Each material is carefully distributed into one hopper and is precisely fed using a vibrating rotary feeder for accurate counting. This system ensures high precision in material handling, regardless of weight accuracy.

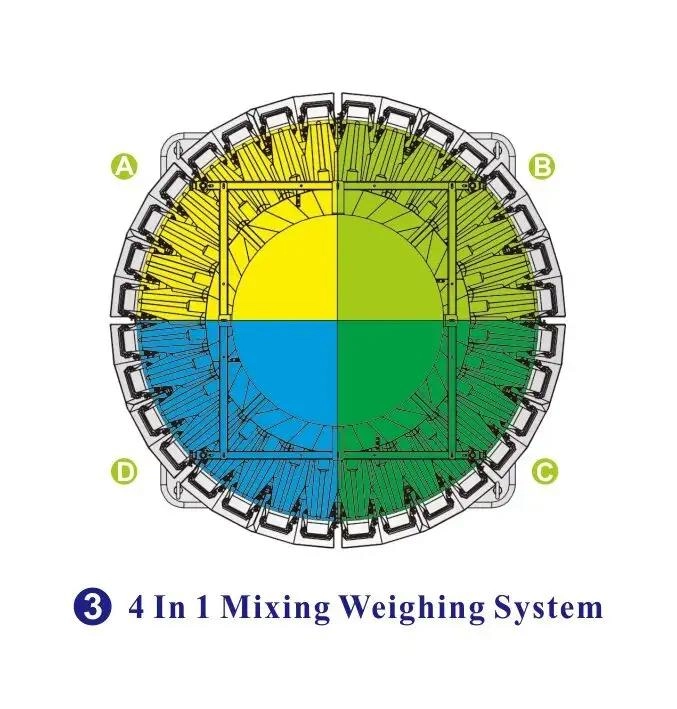

4-in-1 mixing weighing system
Configuration: 32 head weigher
Total weight accuracy control: ± 1.5g
The total weight of the formula: 5-240g
The 32-head multihead weigher with distributed hoppers is designed for precise weighing of four materials. It features four sets of 8 hoppers (±1.5g) for accurate distribution of each material. The primary material is evenly distributed across 8 hoppers, automatically compensating for errors in the formula weighing, ensuring the total weight accuracy within ±1.5g. The remaining three materials are also distributed across 8 hoppers, each with a control accuracy of ±1.5g. This system ensures precise formula weighing and maintains high control over the weighing process.

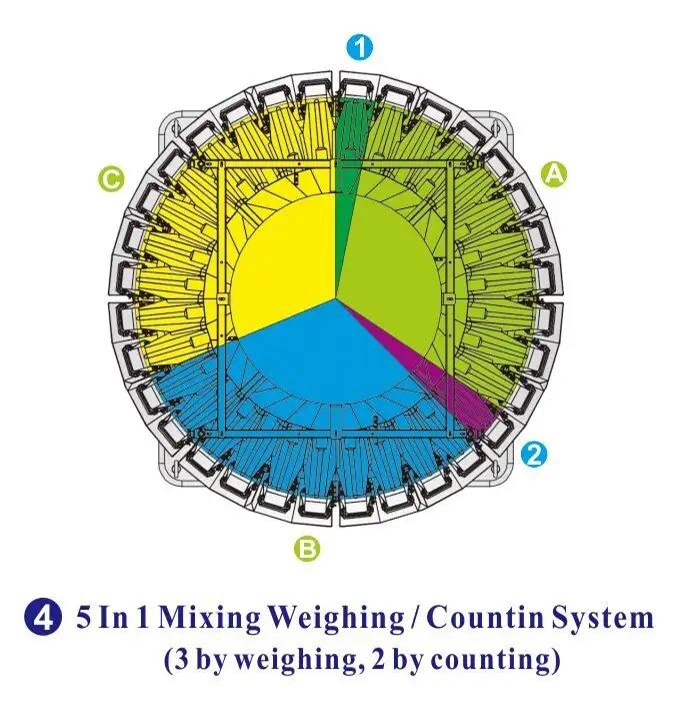

5-in-1 mixing weighing and counting system
Configuration: 32 head weigher
Total weight accuracy control: ± 1g
The total weight of the formula: 5-180g
The 32-head multihead weigher with distributed hoppers is designed for precise weighing of three materials. It features three sets of 10 hoppers with accuracies of ±1g, ±1.5g, and ±1.5g, respectively. The primary material is distributed across 10 hoppers, automatically compensating for errors in formula weighing and ensuring the total weight accuracy remains within ±1g. The other two materials are distributed into 10 hoppers each, with a control accuracy of ±1.5g. This advanced system ensures precise formula weighing and maintains high control over weighing accuracy.
The 32-head multihead weigher with distributed hoppers for counting two materials features one hopper (±0) for each material. Each material is carefully distributed into its respective hopper and fed with high precision using a vibrating rotary feeder for accurate counting. This system ensures precise material handling, independent of weight accuracy.

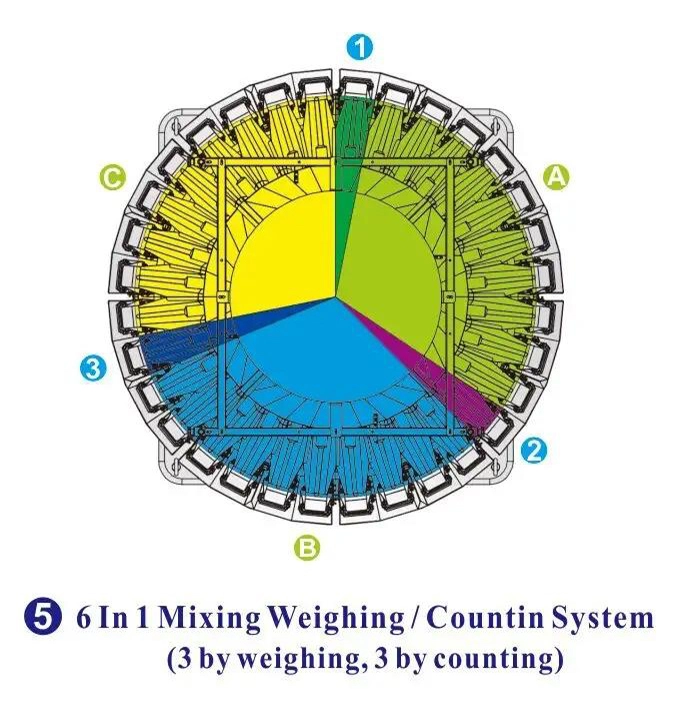

6-in-1 mixing weighing and counting system
Configuration: 32 head weigher
Total weight accuracy control: ± 1g
The total weight of the formula: 5-180g
The distributed hoppers of 32 head multihead weigher for 3 material are 10 hoppers (+1g), hoppers (+1.5g) and 9hoppers (+1.5g). The main material is distributed 10 hoppers as the main material automaticallycompensate for other formula weighing accuracy error, which ensure accuracy of the total weight within+1g, other 2 materials are distributed 10 hoppers with accuracy of+1.5g and 9 hoppers with accuracy ol+1.5g, formula weighing accuracy control is well.
The distributed hoppers of 32 head multihead weigher for counting 3 materials are 1 hopper (± 0), 1 hopper (± 0) and1 hopper (± 0), each of the material is distributed to one hopper and fed by counting vibration rotary feederin high precision (the weight accuracy is not considered)

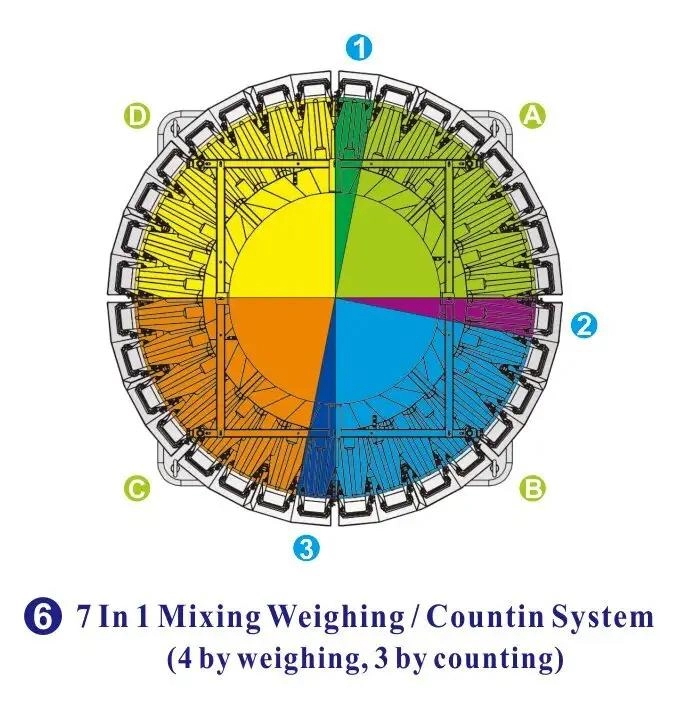

7-in-1 mixing/weighing/counting system
Configuration: 32 head weigher
Total weight accuracy control: ± 1.5g
The total weight of the formula: 5-240g
The distributed hoppers of 32 head multihead weigher for 4 materials are 7 hoppers (± 2g), 7 hoppers (±2g), 7 hoppers(+2g) and 8 hoppers (1.5g).The main material is distributed 8 hoppers as the main material automatically compensate for other formula weighing accuracy error, which ensure accuracy of the total weight within+1.5g, other 3 materials are distributed 7 hoppers with accuracy of ±2g, formula weighing accuracy controlis well.
The distributed hoppers of 32 head multihead weigher for counting 3 materials are 1 hopper (± 0), lhopper (±0) andI hopper (±0). each of the material is distributed to one hopper and fed by counting vibration rotary feederin high precision (the weight accuracy is not considered)
