Belt Feeding Multihead Weigher with 3-Layer Hopper for Accurate Weighing Precision
The three-layer belt feeding weigher features a compact linear case design and a three-layer hopper structure, optimizing space efficiency. By using belt feeding instead of traditional vibration feeding, this weigher is particularly effective for handling viscous materials such as mustard pickles, pickles, small fish, and other low-fluidity products. To solve the issue of material sticking, the weigher is equipped with a springless scraper hopper, making cleaning faster and more convenient. Ideal for sticky materials and those with poor fluidity, this product provides reliable support for efficient weighing and packaging operations.
Model
JW-A8
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A8-4-4
Weighing Range
20-300g
Accuracy
X0.5)
Max Speed
50P/M
Hopper Volume
1L
Control Panel
10.1'' Touch Screen
Options
Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1500W/ 50/60Hz /7A
Packing Dimension(mm)
2000(L)x900(W)x1100(H)
Gross Weight
280kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● High-precision, high-resolution load cell for exceptional weighing accuracy.
● Modular electric board with intelligent multiple sampling for enhanced precision.
● Intelligent fault alarm system for easy maintenance and troubleshooting.
● High speed staggered discharging function, effectively prevent blocking materials.
● Advanced modular design incorporating CAN bus technology for improved efficiency.
● Modbus industry-standard communication protocol for seamless integration between the multihead weigher and packaging machine.
Mechanical Character

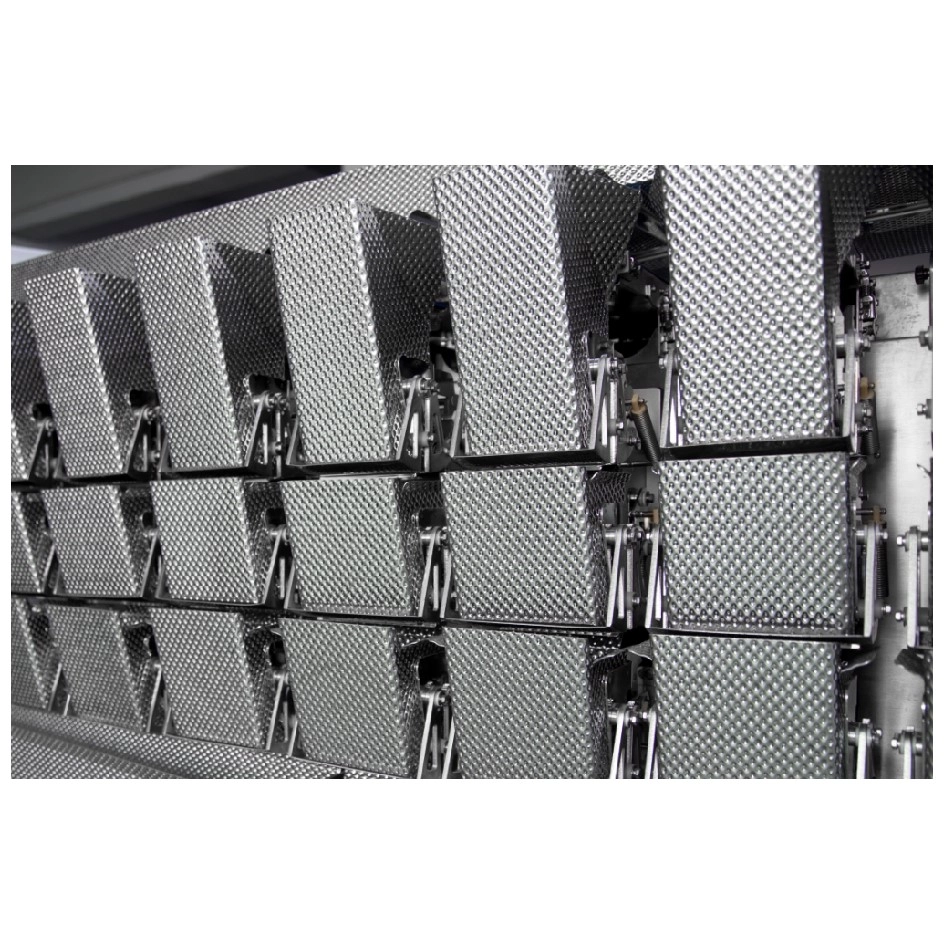

The linear frame arrangement and the three-layer hopper structure layout effectively reduce the space occupied area and make the layout of the whole machine more convenient and flexible.
Modular design method enhances the interchangeability of parts and reduces maintenance costs.

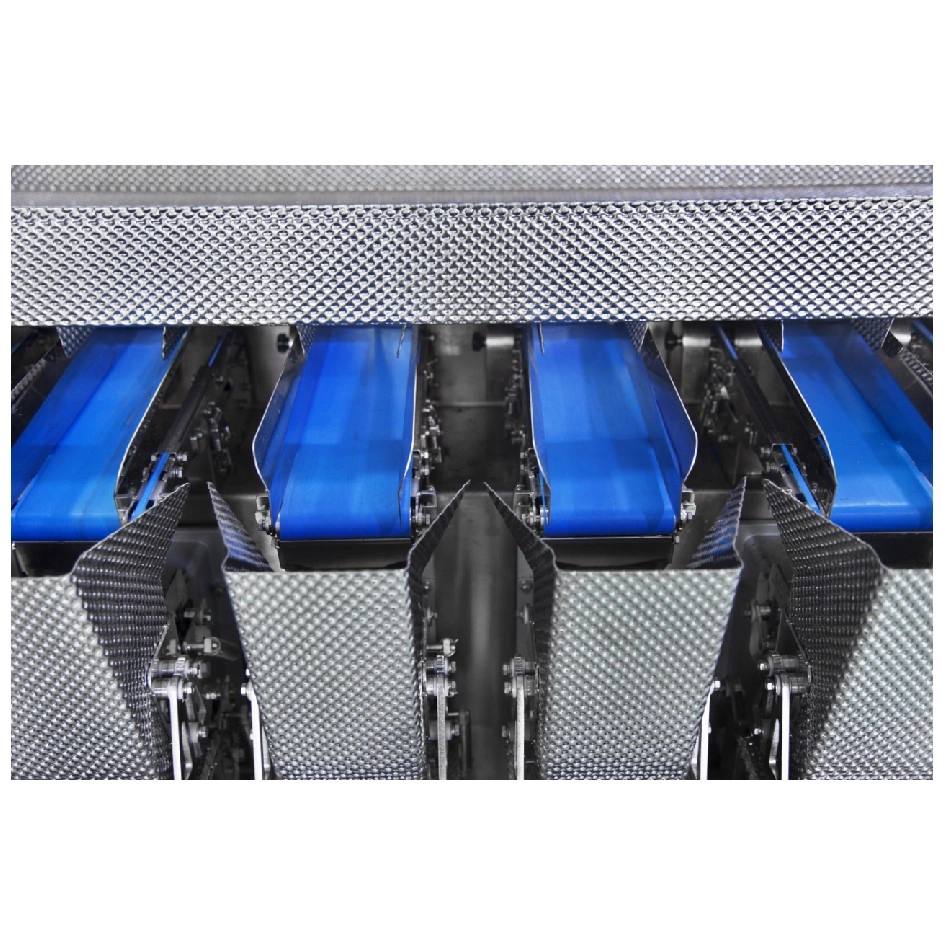

The belt feeding method replaces the traditional vibrating feeding method, even for super viscous materials.

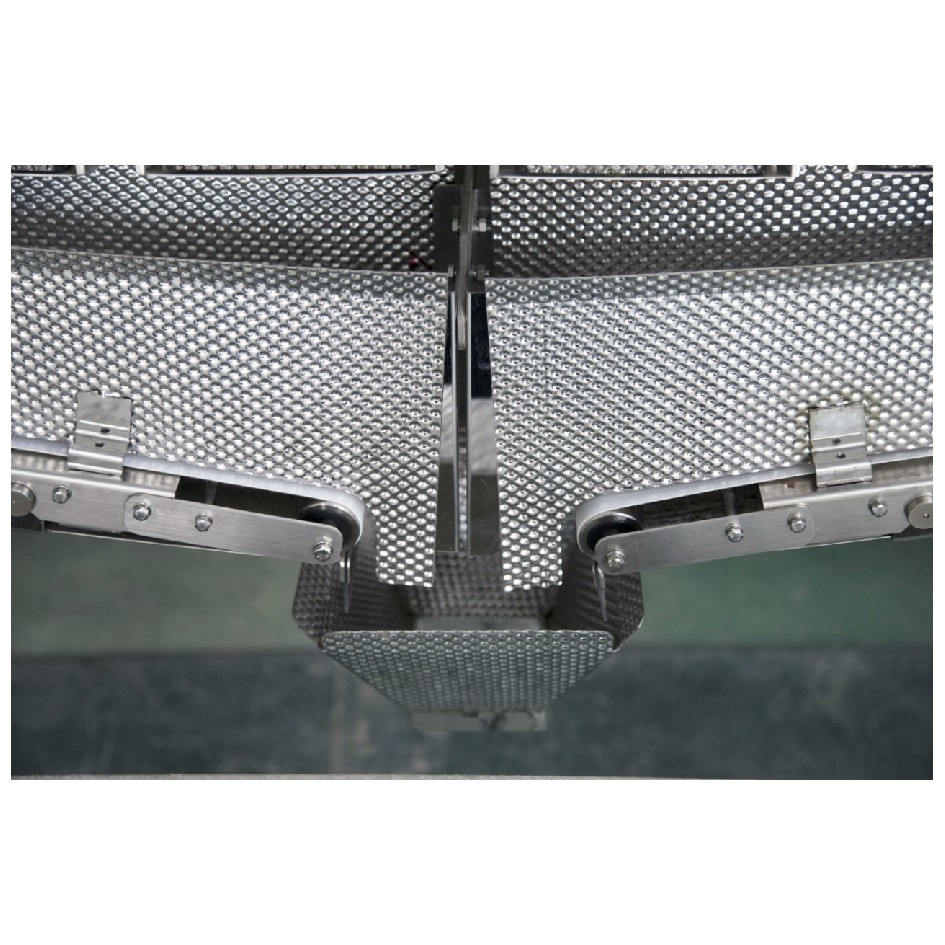

The belt-type material collection method makes material collection easier and more efficient.

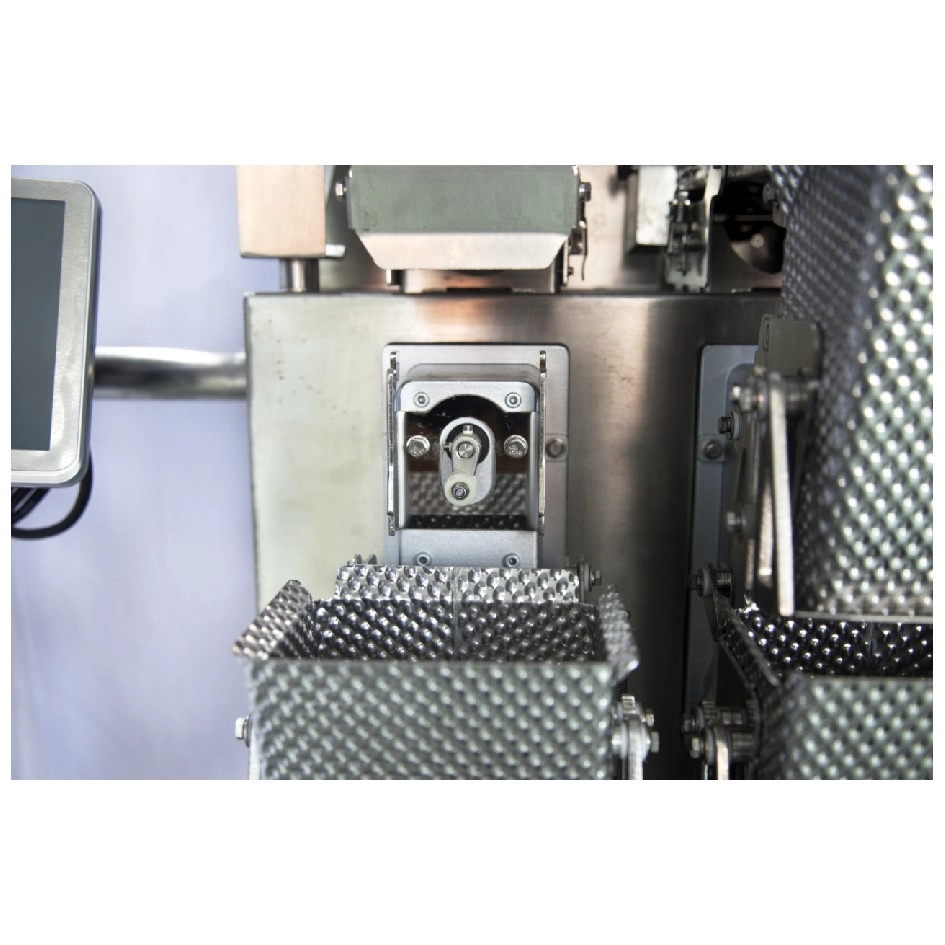

The scraper-type hopper can effectively solve the sticking phenomenon of super viscous materials.
Technical Specification
|
Model |
JW-A8 |
|
Identify Code |
A8-4-4 |
|
Weighing Range |
20~300g |
|
Accuracy *1 |
X(0.5) |
|
Max. Speed *2 |
50P/M |
|
Hopper Volume |
1L |
|
Control Panel |
10.1" Touch Screen |
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|
Driving System |
Step Motor |
|
Power Requirement |
220V / 1500W / 50/60Hz / 7A |
|
Packing Dimension (mm) |
2000(L)x900(W)x1100(H) |
|
Gross Weight |
280kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
It is ideal for the precise weighing of sticky materials with poor fluidity, such as mustard, dried radish, lotus root slices, bamboo shoot slices, and pickles.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Solution suggestions
How do Kenwei’s machines improve my production efficiency?
Kenwei machines enhance efficiency by automating the weighing, packaging, and quality control processes. Our high-speed, high-precision machines ensure accurate measurements, reduce human error, and increase throughput, leading to faster production times and lower operational costs.
Can Kenwei solutions be adapted for different product packaging types?
Yes, Kenwei solutions can handle a variety of packaging types, including bags, boxes, pouches, and bottles. We can customize machines to suit your packaging format, ensuring compatibility with your packaging equipment.
About Product choice
What types of products does Kenwei offer?
Kenwei specializes in high-precision and high-speed automated machinery for weighing, packaging, and quality control. Our main products include: multihead weigher, linear weigher, checkweighers,food metal detector,vertical packing machine and packing machine accessories.
About Cooperation Process
Does Kenwei offer installation and training?
Yes, Kenwei provides installation services and comprehensive training to ensure that your team can operate the machinery efficiently. Our engineers can travel to your facility for on-site installation, and we also offer remote training options if needed.
How to operate it?
Many languages are available for global markets. There are not only detailed instructions, but also machine video for reference learning.
