Automatic 10-Head Multihead Weigher for Cheese Packaging
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Equipped with high-precision, high-standard load cells to ensure exceptional weighing accuracy and reliability.
● Program recovery function helps minimize operational errors and supports multi-section weight calibration for enhanced performance.
● Auto-pause function activates when no product is detected, improving weighing stability and accuracy.
● Independently adjustable linear amplitude allows for more uniform and consistent product feeding.
● Supports up to 15 languages, meeting the needs of diverse global markets.
● Up to 100 preset programs accommodate various weighing requirements, while the user-friendly touchscreen interface with help menu ensures easy and efficient operation.

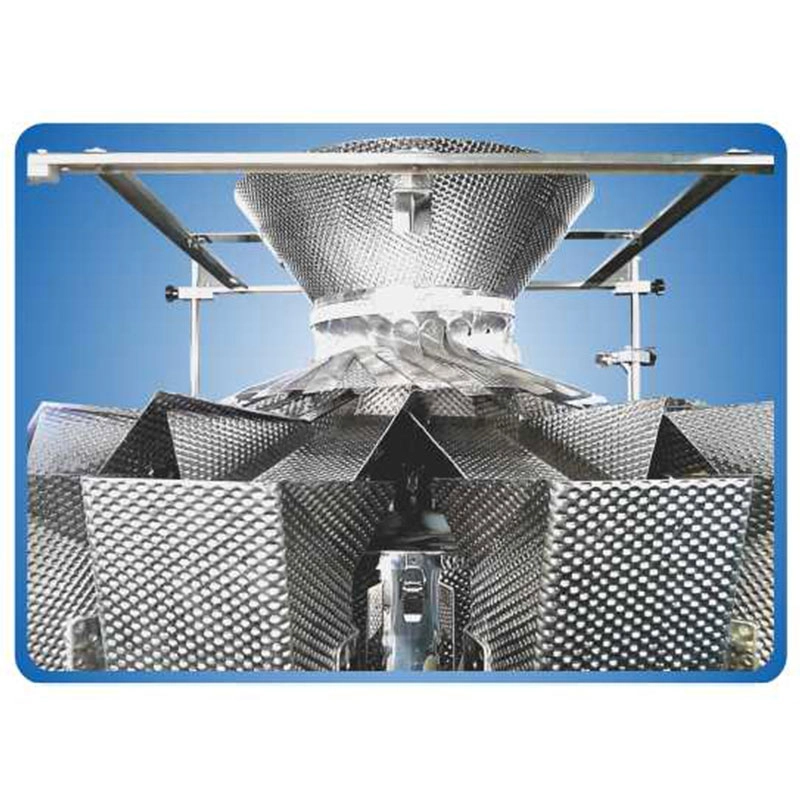

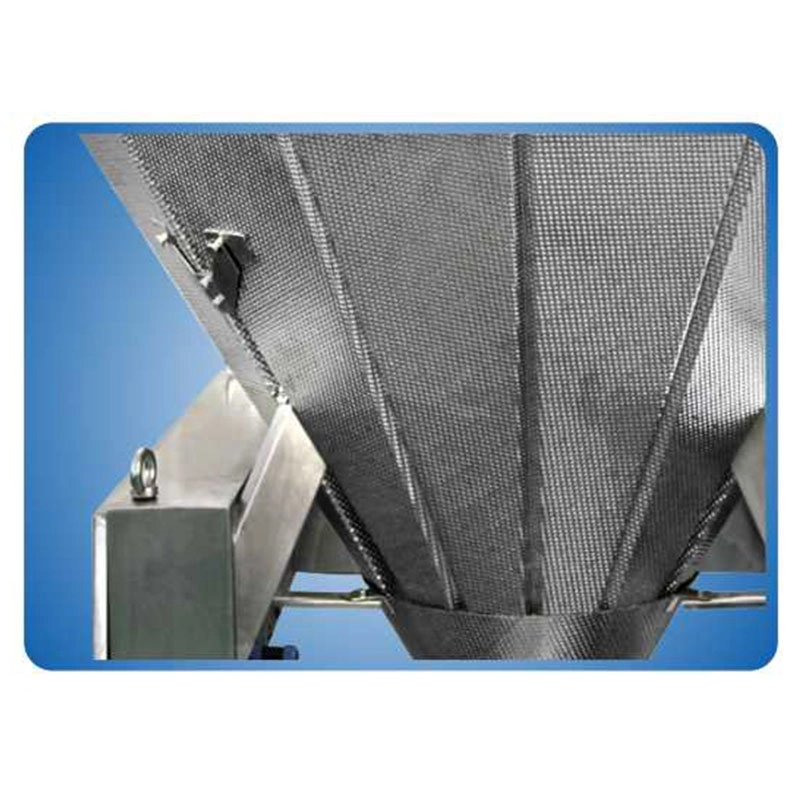

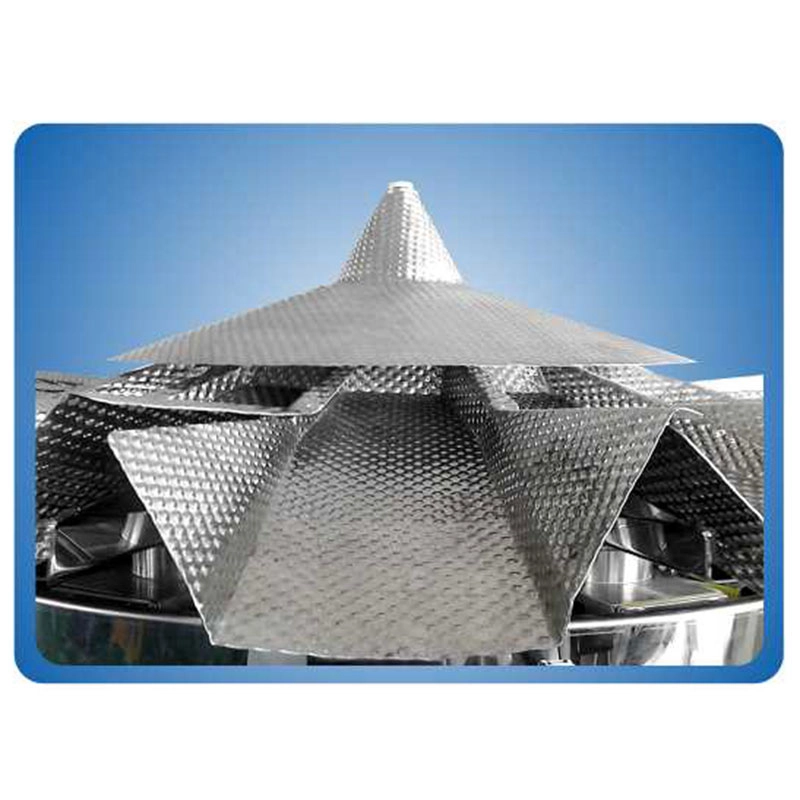

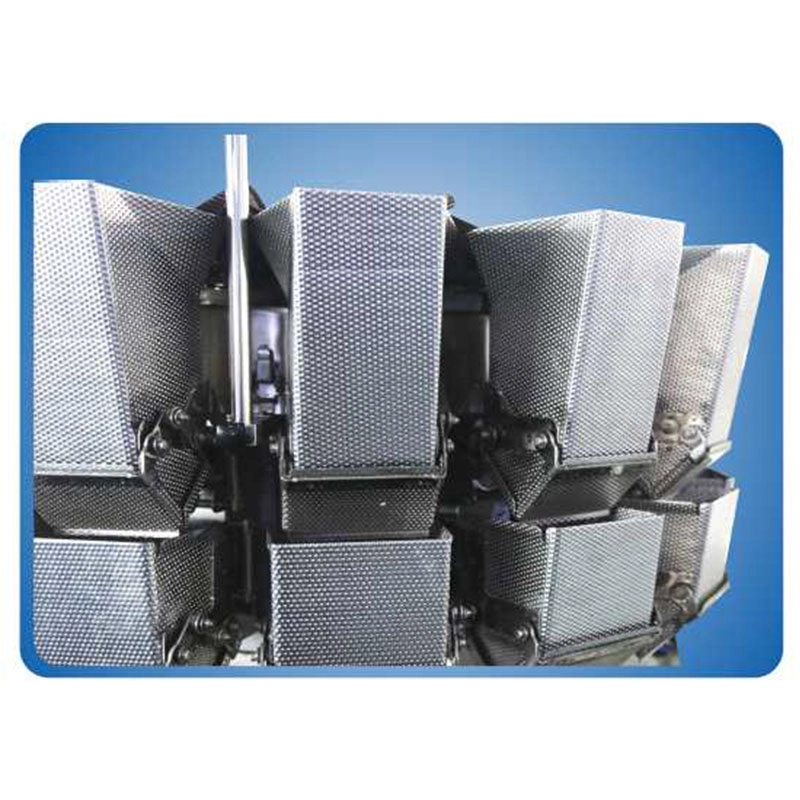

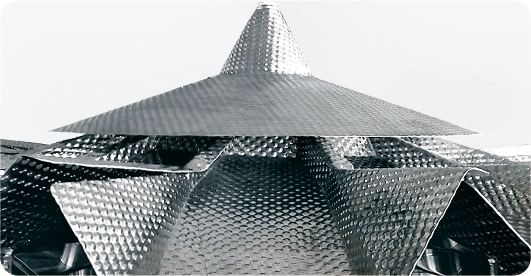

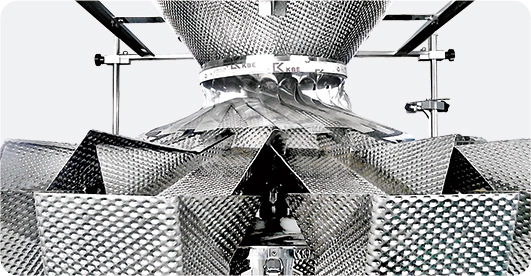

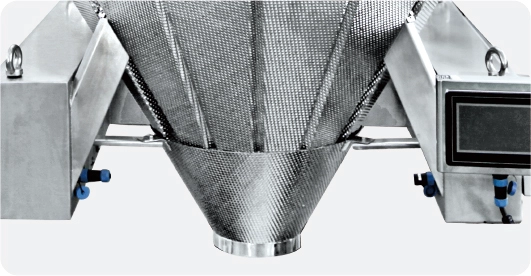

Mechanical Character
Technical Specification
|
Model |
JW-A10 |
JW-A12 |
JW-A14 |
|
Identify Code |
A10-1-12 |
A12-1-12 |
A14-1-12 |
|
Weighing Range |
10-1000g |
10-1500g |
10-1500g |
|
Accuracy *1 |
X(0.5) |
X(0.5) |
X(0.5) |
|
Max. Speed *2 |
60P/M |
100P/M |
100P/M |
|
Hopper Volume |
1.6L/2.5L |
||
|
Control Panel |
7”Touch Screen |
||
|
Options |
Timing Hopper/Printer/Reject Device |
||
|
Driving System |
Step Motor |
||
|
Power Requirement |
220V/1000W/50/60Hz/10A |
220V/1200W/50/60Hz/10A |
220V/1500W/50/60Hz/10A |
|

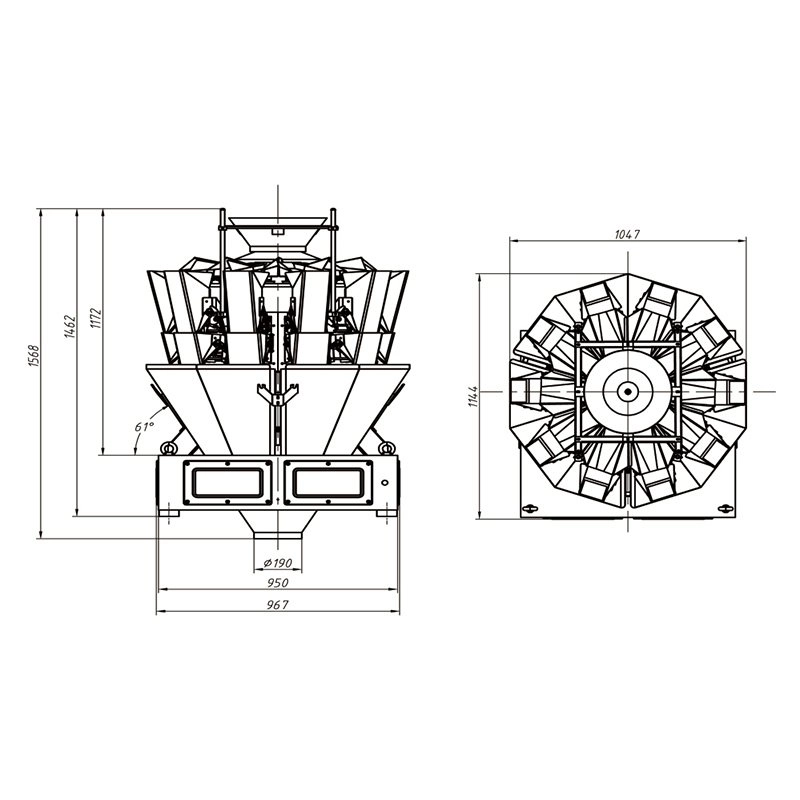

Packing Dimension(mm) |
1620(L)x1100(W)x1420(H) |
1700(L)x1100(W)x1130(H) |
1750(L)x1130(W)x1420(H) |
|
Gross Weight |
380kg |
450kg |
490kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |||
| *2: Depends on product shape, product density, target weight, etc. | |||
Application

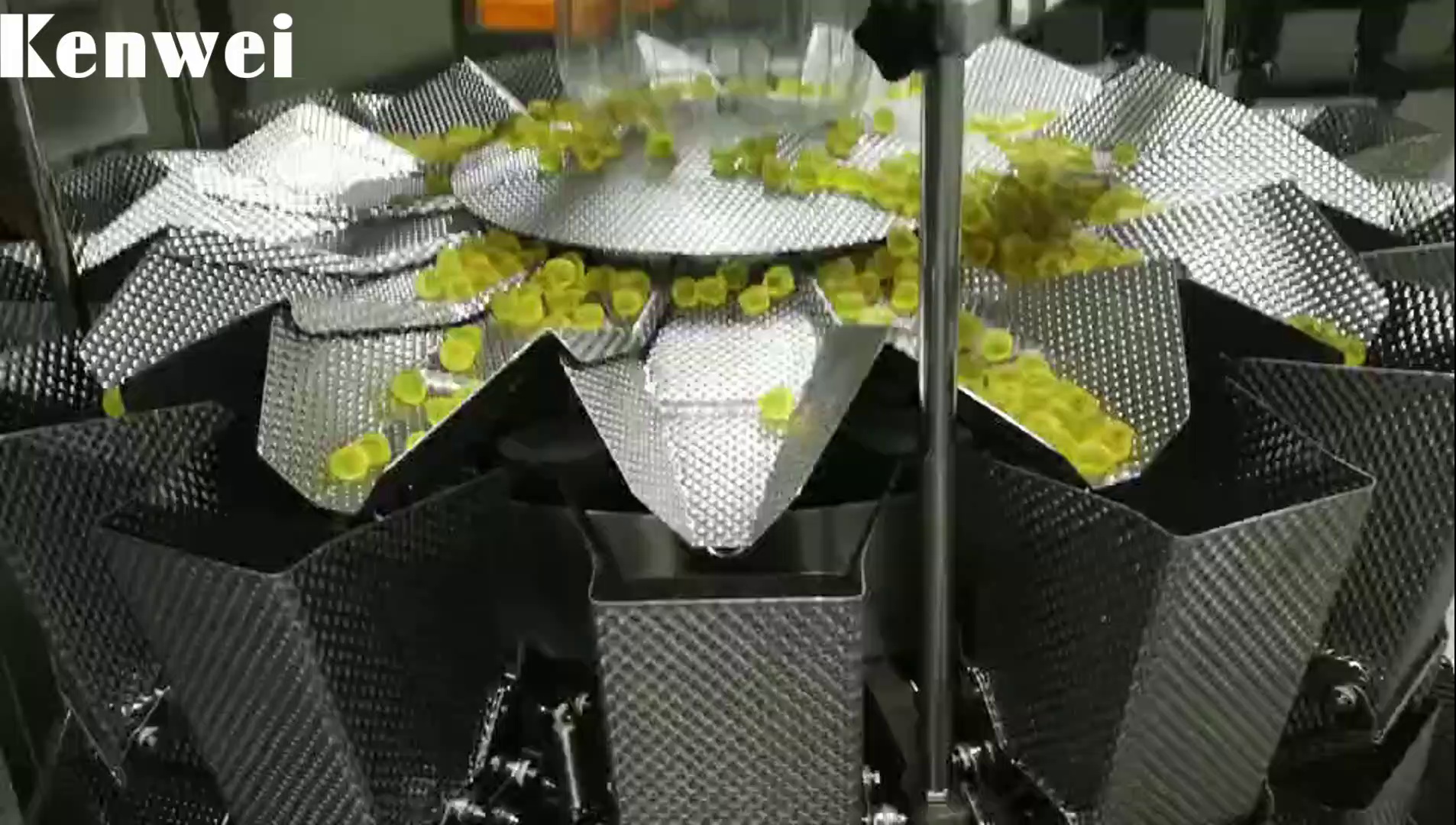

Ideal for weighing soft and sticky food products — including cheese, jelly candy, cotton candy, preserved fruits, and candied fruits — ensuring high accuracy and smooth product flow during operation.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Solution suggestions
Can Kenwei machines handle products with irregular shapes or sizes?
Yes, multi-head weighers are particularly effective for handling products with irregular shapes and sizes.
How do Kenwei’s machines improve my production efficiency?
Kenwei machines enhance efficiency by automating the weighing, packaging, and quality control processes. Our high-speed, high-precision machines ensure accurate measurements, reduce human error, and increase throughput, leading to faster production times and lower operational costs.
About Cooperation Process
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About Logistics
How are large machines handled during shipping?
Large machines are typically shipped via sea freight using containerized shipping.
