High-Precision 10/14 Head Multihead Weigher for Tea and Snack Food Packaging
This multihead weigher is equipped with advanced weighing technology and a large 5L hopper, making it perfect for high-volume production environments. It ensures precise weight measurement, significantly reducing product omissions and waste. Capable of handling a diverse range of products such as snacks, confectionery, and frozen foods, it combines high speed and reliability, processing up to 80 packages per minute.Constructed from robust stainless steel, the weigher meets stringent hygiene standards and is easy to clean, making it an excellent choice for food and other packaging applications.
Model
JW-AM14
MOQ
1SET
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
AM14-1-17
Weighing Range
100-3000g
Accuracy
X(1)
Max Speed
80P/M
Hopper Volume
5L
Control Panel
7''TouchScreen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1500W/50/60Hz/12A
Packing Dimension(mm)
2200(L)X1500(W)X1370(H)
Gross Weight
805kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● High-precision load cells with advanced standards for accurate weighing.
● Program recovery feature minimizes operational failures and supports multi-segment weight calibration.
● Independent adjustment of linear amplitude for enhanced flexibility.
● Multi-language support to cater to global markets.
● Capacity for 100 programs to meet diverse weighing needs, complemented by a user-friendly help menu for easy operation.
Mechanical Character

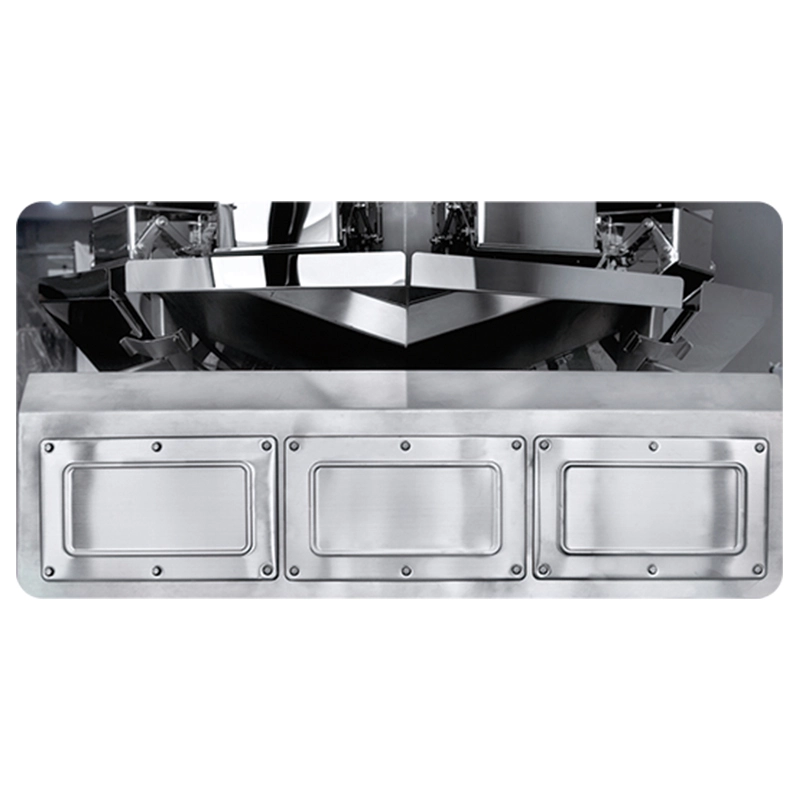

New Ⅱ Series machine design featuring a sleek and elegant appearance.

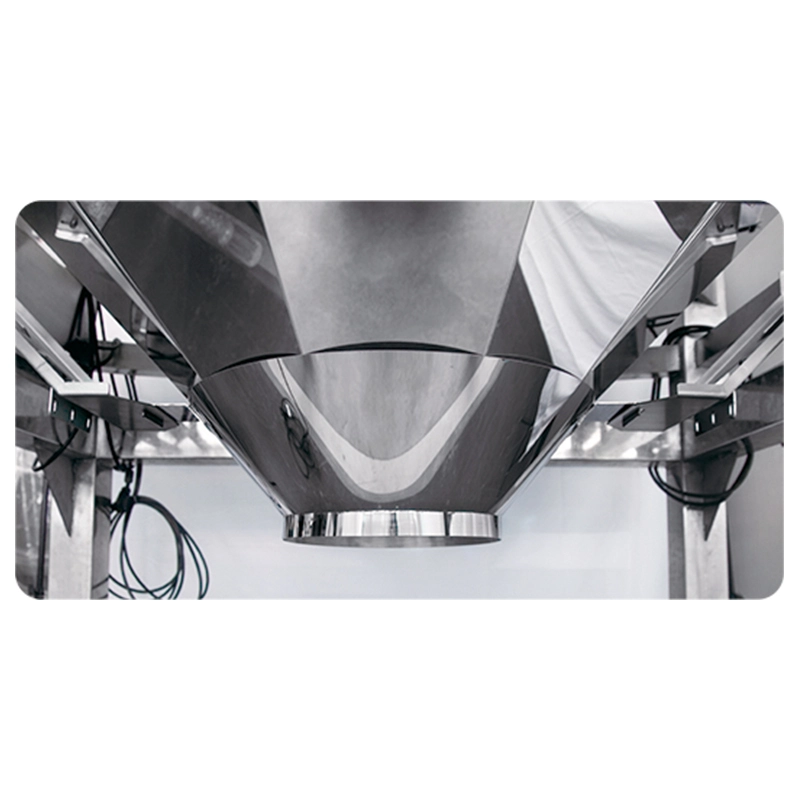

Easily movable in-feed and discharge funnels for convenient cleaning.

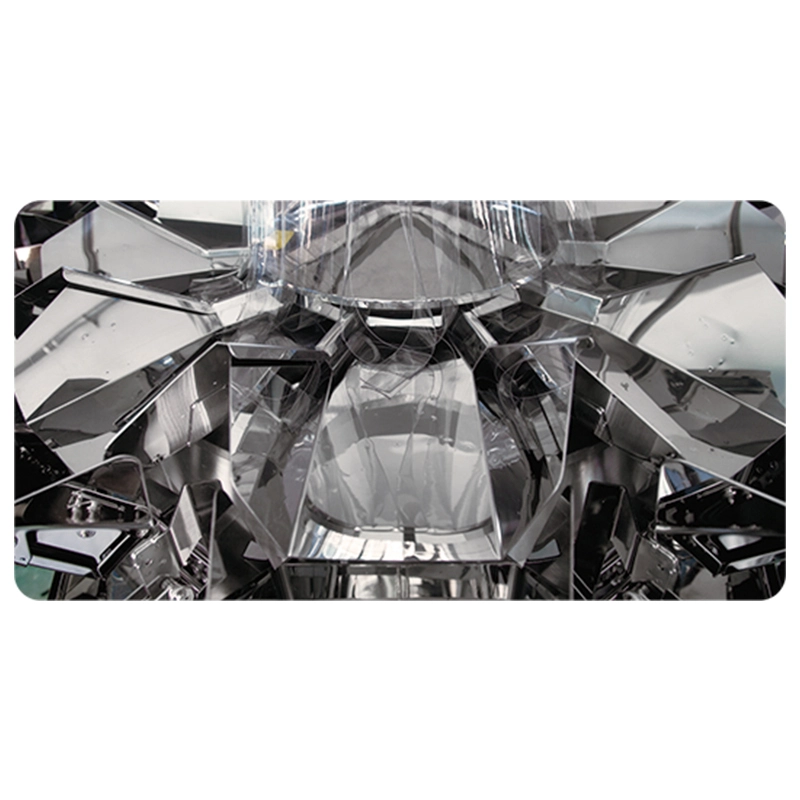

Adjustable-speed rotary top cone, ideal for feeding different types of products.
Upgraded linear vibrator enhances material flowability for smoother operation.
A wide range of optional accessories to meet diverse weighing requirements.
Technical Specification
| Model | JW-AM10 | JW-A14 |
| Identify Code | AM10-1-17 | AM14-1-17 |
| Weighing Range | 100~3000G | 100~3000G |
|
Accuracy *1 |
X(1) | X(1) |
|
Max. Speed *2 |
50P/M | 80P/M |
| Hopper Volume | 5L | |
| Control Panel | 7"Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Powder Requirement | 220V/1500W/50/60Hz/10A | 220V/1500W/50/60Hz/12A |
| Packing Dimension(mm) | 2270(L)X1480(W)X1300(H) | 2200(L)X1500(W)X1370(H) |
| Gross Weight | 640KG | 805KG |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | ||
| *2: Depends on product shape, product density, target weight, etc. | ||
Application
This multihead weigher is perfect for weighing smaller particles like Chinese medicine tablets, tea, coffee beans, chocolate beans, currants, snacks, hardware, and plastic particles, as well as for precise quantitative weighing of larger target weights and high-capacity materials.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About After Sales Support
How do I claim warranty service?
To claim warranty service, please contact our customer support team with your machine’s product code and a description of the issue. If applicable, we may request photos or videos of the issue to facilitate troubleshooting.
About Cooperation Process
What is the lead time for product delivery?
The lead time depends on the complexity of the order and the level of customization required. Typically, our products are shipped within 4-8 weeks after receiving the order confirmation. However, this can vary, and we will provide an estimated delivery date when you place your order.
How to operate it?
Many languages are available for global markets. There are not only detailed instructions, but also machine video for reference learning.
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About Solution suggestions
How do Kenwei’s machines improve my production efficiency?
Kenwei machines enhance efficiency by automating the weighing, packaging, and quality control processes. Our high-speed, high-precision machines ensure accurate measurements, reduce human error, and increase throughput, leading to faster production times and lower operational costs.
