Precision Leak-Proof Multihead Weigher with 3L Hopper for Accurate Small Particle Weighing
The Precision Leak-Proof Multihead Weigher with a 3L hopper is designed for accurate quantitative weighing of small particles like salt, sugar, millet, seeds, and coffee beans. Featuring a leak-proof 3.0L hopper, multi-angle dividing hopper for even material distribution, and a deep U-shaped vibrating plate to prevent leakage. The cast aluminum middle seat enhances strength and reduces weighing stabilization time, making it ideal for fine material applications with high accuracy requirements.
Model
JW-A14
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A14-1-21
Weighing Range
10~1500g
Accuracy
X(0.5)
Max Speed
120P/M
Hopper Volume
3L
Control Panel
7
Options
Dimple Plate/ Timing Hopper/ Printer/ Reject Device
Driving System
Step Motor
| Material | 304 stainless steel | Certification | CE, OIML |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 4000 sets/year |
Feature
-
● Equipped with a high-precision, high-resolution sensor for accurate weighing.
-
● Factory parameter setting recovery supports multi-segment weight calibration for flexible use.
-
● Automatic pause function ensures stable weighing when no material is detected.
-
● Independent adjustment of each line's amplitude during operation for uniform material feeding.
-
● Supports multiple languages, user-friendly, and suitable for global markets.
-
● Stores up to 100 sets of parameter settings, supports various material requirements, and includes help menus for easy learning and operation.
Mechanical Character

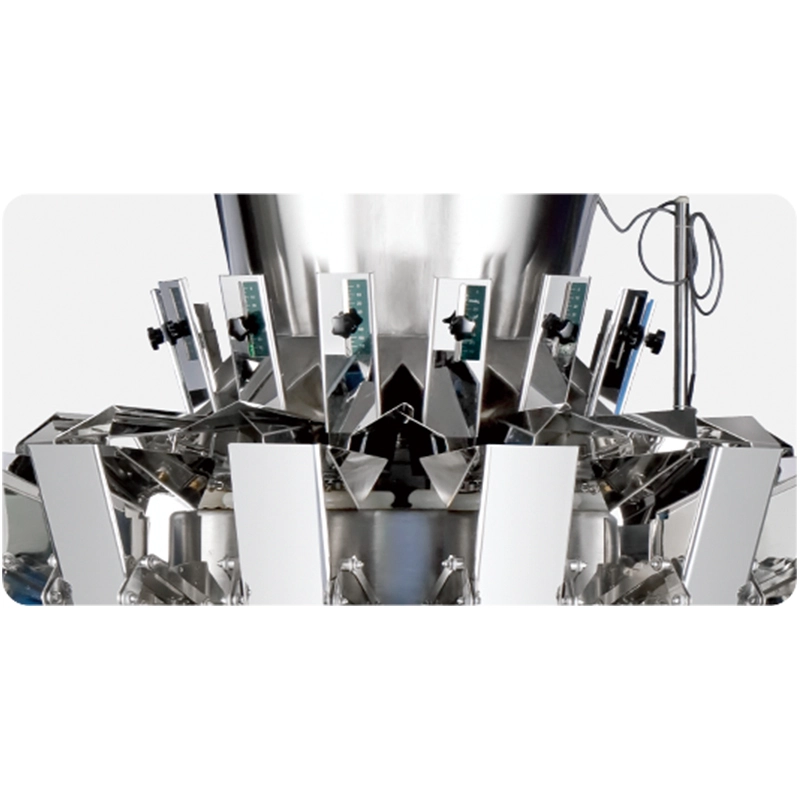

Custom-designed 3.0L hopper with a leak-proof feature, ideal for fine materials and providing higher weighing accuracy.

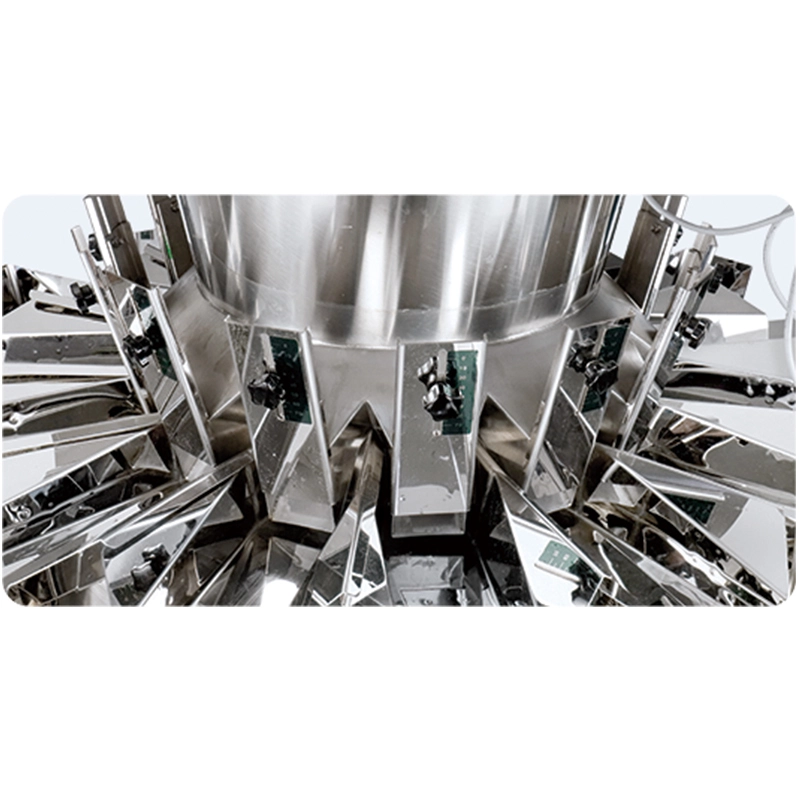

Multi-angle dividing hopper ensures even distribution of materials across each vibrating plate line.

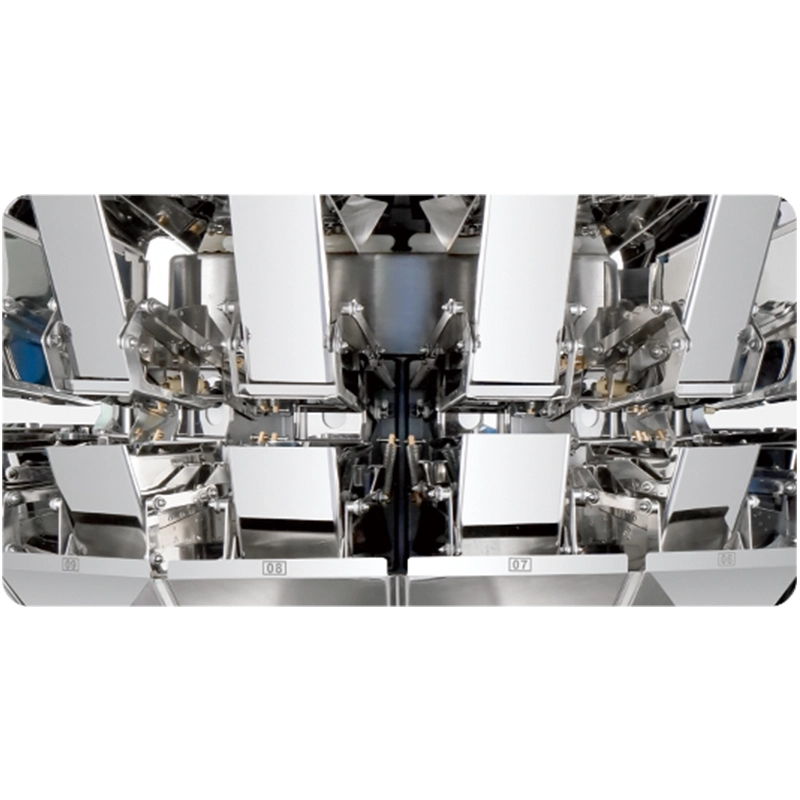

Unique deep U-shaped vibrating plate prevents material leakage from both sides.

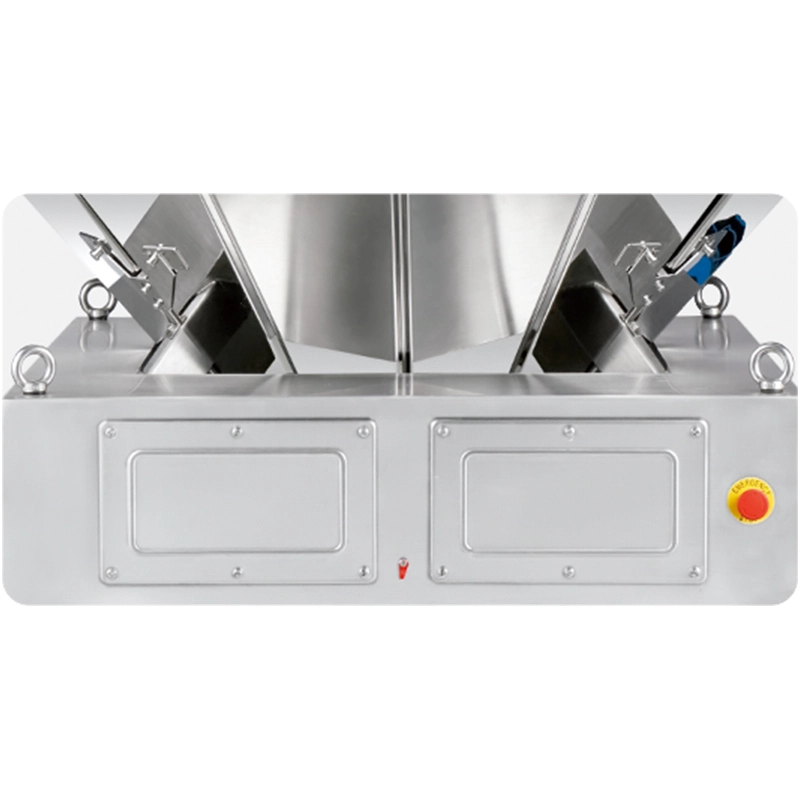

Reinforced cast aluminum middle seat improves machine strength, reducing weighing stabilization time for enhanced performance.
Technical Specification
|
Model |
JW-A10 |
JW-A14 |
|
Identify Code |
A10-1-21 |
A14-1-21 |
|
Weighing Range |
10~1000g |
10~1500g |
|
Accuracy *1 |
X(0.5) |
X(0.5) |
|
Max. Speed *2 |
60P/M |
120P/M |
|
Hopper Volume |
3.0L |
|
|
Control Panel |
7" Touch Screen |
|
|
Options |
Dimple Plate/ Timing Hopper/ Printer/ Reject Device |
|
|
Driving System |
Step Motor |
|
|
Power Requirement |
220V / 900W / 50/60Hz / 8A |
220V / 1100W / 50/60Hz / 10A |
|
Packing Dimension (mm) |
1620(L)x1100(W)x1110(H) |
1700(L)x1100(W)x1265(H) |
|
Gross Weight |
380kg |
490kg |
| *1: Please refer to national standard GB/T27738-2011 or international recommendation OIML R61 2004 (E) of international Legal Metrological Organization 61 | ||
| *2: Depends on product shape, product density, target weight, etc | ||
Application
Ideal for precise, leak-proof quantitative weighing of small particles like salt, sugar, millet, seeds, monosodium glutamate, chicken essence, coffee beans, and more, meeting high accuracy requirements.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Cooperation Process
Can Kenwei customize equipment to meet my specific needs?
Yes! We offer customized solutions for all of our machines. Our team will work closely with you to understand your specific requirements and create a solution that meets your needs in terms of size, functionality, speed, and other factors.
About Solution suggestions
Can Kenwei solutions be adapted for different product packaging types?
Yes, Kenwei solutions can handle a variety of packaging types, including bags, boxes, pouches, and bottles. We can customize machines to suit your packaging format, ensuring compatibility with your packaging equipment.
How do Kenwei’s machines improve my production efficiency?
Kenwei machines enhance efficiency by automating the weighing, packaging, and quality control processes. Our high-speed, high-precision machines ensure accurate measurements, reduce human error, and increase throughput, leading to faster production times and lower operational costs.
About Product choice
Are Kenwei’s products suitable for small-scale or large-scale operations?
Yes! We offer machines that are scalable to meet the needs of both small and large-scale operations.
About products customization
How long does it take to deliver a customized Kenwei machine?
The lead time for customized machines can vary based on the complexity of the customization, as well as production schedules. Generally, it takes 4-6 weeks to deliver a fully customized machine after design approval.
