24-Head Multihead Weigher with Memory Bucket for Accurate Weighing
The three-layer, 24-head multihead weigher features an innovative memory bucket for temporary storage of weighing materials. This increases the combination probability and significantly improves the accuracy of the weighing process. The machine, with a separate main vibration disc, supports up to six different mixture formulas, achieving a maximum weighing speed of 240 bags per minute. This high-performance design enhances efficiency and boosts economic benefits.
Model
JW-A24
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A24-4-1
Weighing Range
12-1000g
Accuracy
X(0.5)
Max Speed
60*4P/M
Hopper Volume
0.5L
Control Panel
10.1''Touch Screen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
110/220V/2800W/50/60Hz/13A
Packing Dimension(mm)
2100(L)x1480(W)x1130(H)
Gross Weight
650kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● High-precision special load cell ensures superior accuracy and performance.
● Intelligent fault alarm system for easy maintenance and quick issue resolution.
● High-speed staggered discharge function effectively prevents material blockages.
● Automatic compensation in mixing weighing mode for enhanced accuracy.
● Modular electric board with intelligent multiple sampling modes improves weighing precision.
Mechanical Character
The universal hopper weighing unit improves part interchangeability across the entire machine.

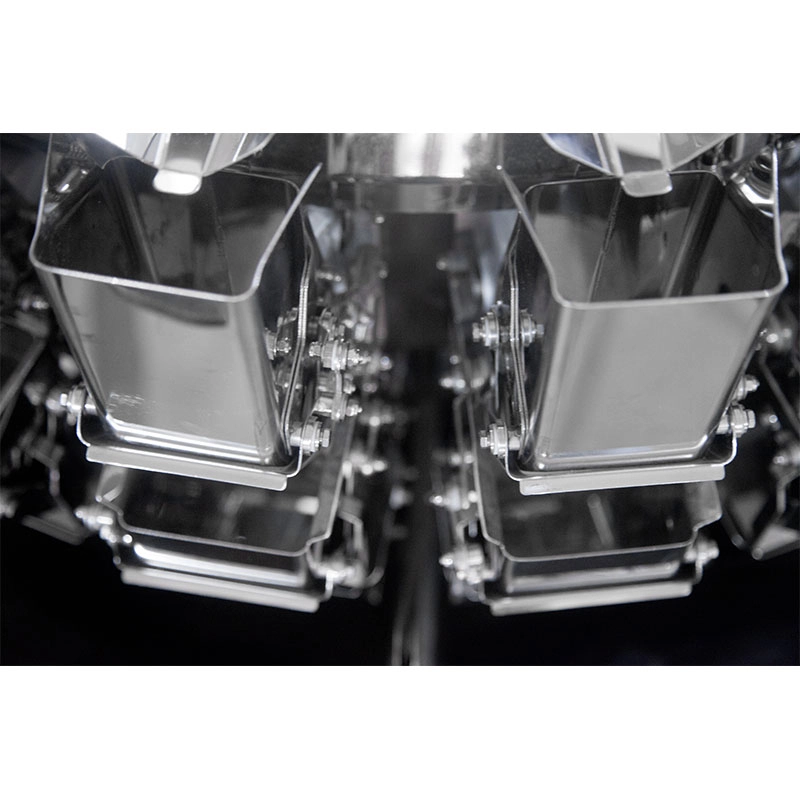

Equipped with a memory bucket, it temporarily stores weighing materials, increasing combination probability and enhancing weighing precision.
Featuring a separate main vibration plate, the machine supports up to six different mixed material formulas.
The independent main vibration unit controls the feeding thickness for various materials.
The integrated welding of the chassis and middle seat significantly boosts the machine's strength, reducing hopper stabilization time.
Technical Specification
| Model |
JW-A24 |
| Identify Code |
A24-4-1 |
| Weighing Range |
12~1000g |
| Accuracy*1 |
X(0.5) |
| Max Speed*2 |
60x4/75x3P/M |
| Hopper Volume |
0.5L |
| Control Panel |
10.1”Touch Screen |
| Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System |
Step Motor |
| Power Requirement |
110/220V/2800W/50/60Hz/13A |
| Packing Dimension(mm) |
2100(L)x1480(W)x1130(H) |
| Gross Weight |
650kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
This machine is ideal for weighing a wide range of products, including seeds, peanuts, nuts, almonds, raisins, candy, pistachios, potato chips, dumplings, and other granular, sheet, strip, or round-shaped materials. It ensures accurate and efficient weighing, making it perfect for food, snack, and confectionery industries.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Cooperation Process
Can Kenwei customize equipment to meet my specific needs?
Yes! We offer customized solutions for all of our machines. Our team will work closely with you to understand your specific requirements and create a solution that meets your needs in terms of size, functionality, speed, and other factors.
What is the lead time for product delivery?
The lead time depends on the complexity of the order and the level of customization required. Typically, our products are shipped within 4-8 weeks after receiving the order confirmation. However, this can vary, and we will provide an estimated delivery date when you place your order.
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About products customization
Can I customize the size of Kenwei machines?
Yes, we can tailor the dimensions of our machines to fit your available space and production layout. Whether you need compact machines or larger equipment, we can accommodate your size requirements.
About Price and payment
Are the prices for Kenwei machines negotiable?
Prices are generally fixed, but depending on the order volume, long-term partnerships, or special circumstances, we may offer discounts or promotional pricing. Please contact our sales team to discuss your specific situation.
