Noodle Multihead Weigher for Strip and Long Products Weighing
The Noodle Combination Weigher is designed with a pattern board material that prevents product stickiness in the hopper, making it ideal for weighing soft, long strip items like noodles. Equipped with drying and dewatering devices, this weigher also features an IP65-rated waterproof chassis, protecting the electrical components from moisture. With its advanced design, this multihead weigher guarantees consistent, high-speed performance, making it the perfect choice for efficient and accurate production lines in the food industry.
Model
JW-A10
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A10-1-6
Weighing Range
10-1000g
Accuracy
X(0.5)
Max Speed
30P/M
Hopper Volume
2.5L
Control Panel
7”Touch Screen
Options
Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
200V/1000W/50/60/Hz/10A
Packing Dimension(mm)
1620(L)X1100(W)X1420(H)
Gross Weight
380kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● High-precision load cells designed to meet strict quality standards.
● Program recovery feature reduces operational disruptions and supports multi-segment weight calibration for enhanced accuracy.
● Automatic product pause function improves weighing stability and precision.
● Independently adjustable linear amplitude ensures optimal feeding consistency.
● Supports multiple languages, catering to global markets.
● With a capacity of 100 programs, it meets diverse weighing requirements and features an intuitive help menu for easy operation.
Mechanical Character
Ideal for products with a maximum length of 300mm.
Features an IP65-rated cabinet design with dimple plates for food-contact parts, ensuring hygiene and durability.
Built-in air pressure system protects electronic components from humidity damage.

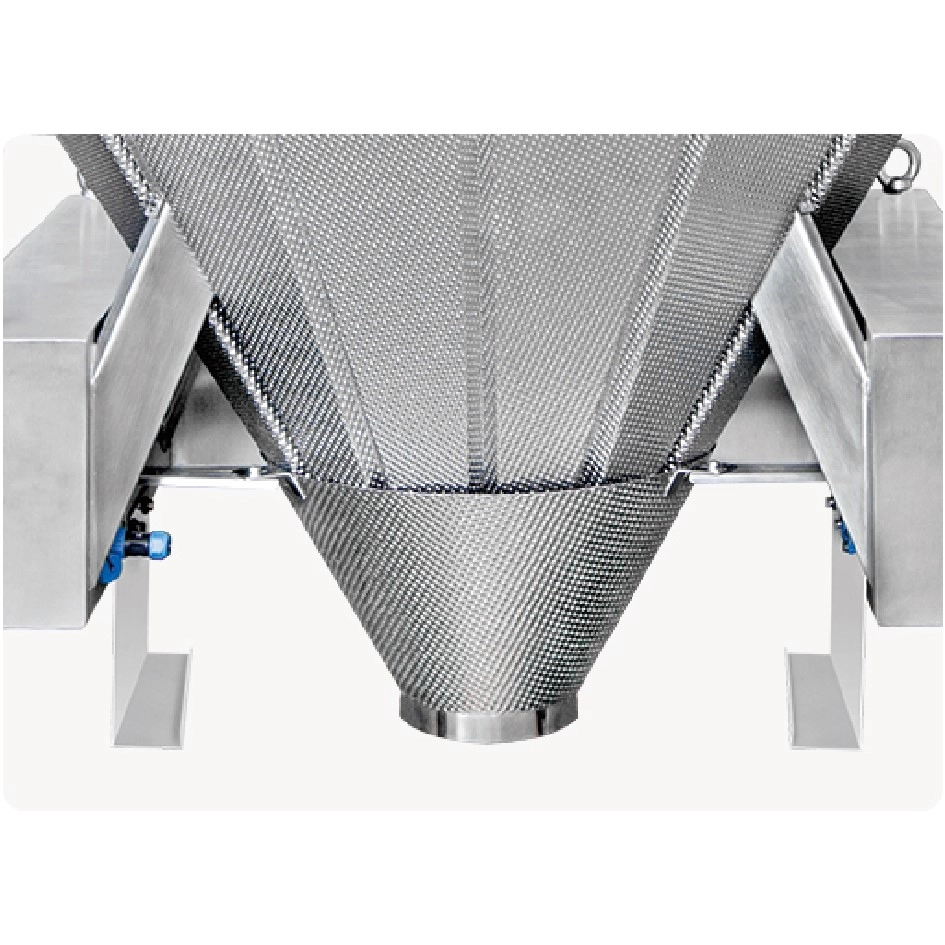

60° steep discharge chute ensures smooth and efficient product discharge.

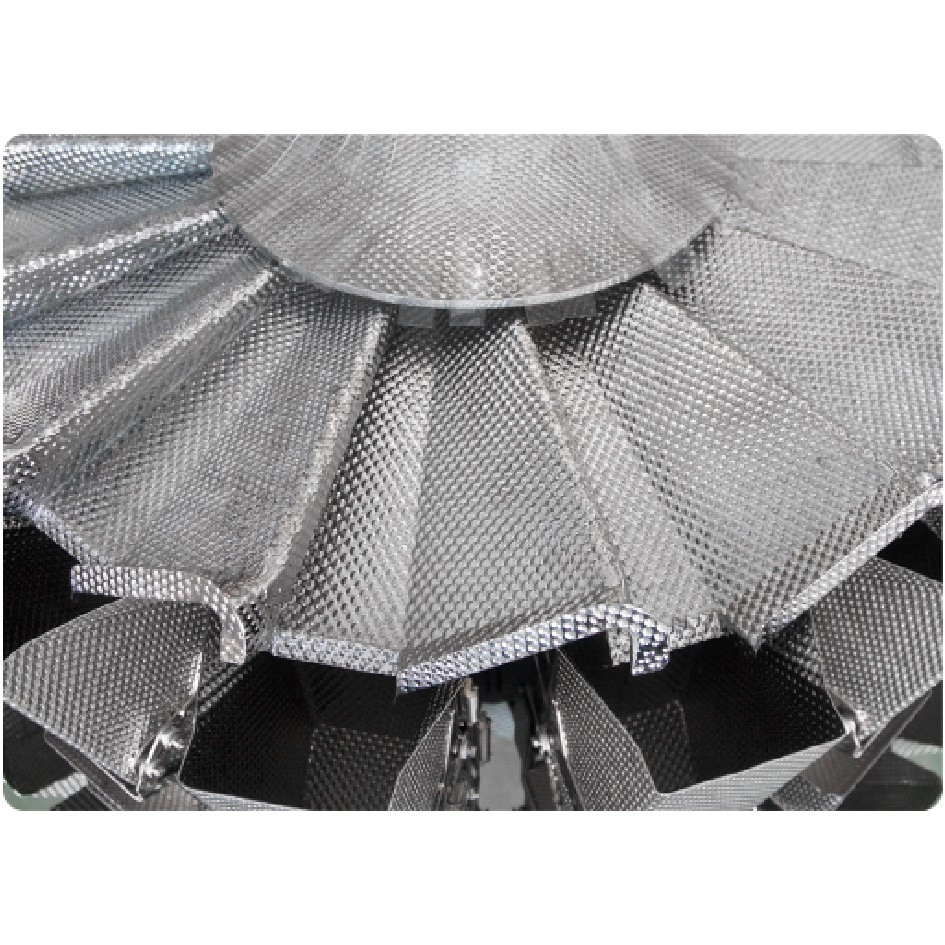

Adjustable rotary top cone ensures even feeding into each linear pan.
Reinforced aluminum middle frame enhances machine strength, reducing hopper stabilization time.
Technical Specification
|
Model |
JW-A10 |
JW-A14 |
|
Identify Code |
A10-1-6 |
A14-1-6 |
|
Weighing Range |
10-1000g |
10-1500g |
|
Accuracy*1 |
X(0.5) |
X(0.5) |
|
Max Speed*2 |
30P/M |
60P/M |
|
Hopper Volume |
2.5L |
|
|
Control Panel |
7” Touch Screen |
|
|
Options |
Timing Hopper/Printer/Reject Device |
|
|
Driving System |
Step Motor |
|
|
Power Requirement |
200V/1000W/50/60/Hz/10A |
220V/1500W/ 50/60Hz /12A |
|
Packing Dimension(mm) |
1620(L)X1100(W)X1420(H) |
1750(L)X1160(W)X1420(H) |
|
Gross Weight |
380kg |
490kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | ||
| *2: Depends on product shape, product density, target weight, etc. | ||
Application
This multihead weigher is perfect for weighing soft strip products like noodles, rice noodles, bean sprouts, and other similar items. It ensures accurate measurements and consistent performance, ideal for food packaging lines. This system minimizes product waste while maximizing efficiency and speed.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Solution suggestions
How can Kenwei solutions help reduce waste in my production process?
Kenwei solutions improve accuracy in weighing, packaging, and quality control, reducing the chances of overfill or underfill. This leads to less product waste and higher operational efficiency.
Can Kenwei solutions be used for both manual and automated packing lines?
Yes, Kenwei machines can be used in both manual and automated packing lines. We can provide integrated systems that work alongside manual labor or fully automated systems depending on your production requirements.
About Product choice
What is the difference between a multi-head weigher and a linear weigher?
Multi-head Weigher: Ideal for high-speed and high-precision weighing of products with irregular shapes or varying sizes. It provides multiple weighings in parallel for faster processing.
Linear Weigher: It is suitable for powder and granule. It is typically slower than a multi-head weigher but is effective for certain types of applications that require more continuous flow or controlled weighing.
What is the average lifespan of Kenwei products?
Kenwei machines are built for durability and longevity. With proper maintenance, our products are designed to last for many years, even under heavy usage. We offer maintenance services and support to help extend the lifespan of your machines.
About Cooperation Process
How does Kenwei ensure the quality of its machines?
Kenwei has a stringent quality control system in place. Each machine is rigorously tested for precision, speed, and reliability before it is shipped.
