JW-B28 Multihead Weigher Mixing & Weighing System for Food Packaging | High-Speed, Accurate, Automated
The Kenwei JW-B26 Single Multihead Weigher Mixing and Packaging System offers fully automated operation, completing feeding, weighing, filling, date printing, and product output with high accuracy and speed. Ideal for granules, slices, irregular shapes, and mixed products like candy, nuts, snacks, pet food, and even small hardware. Its versatility and precision make it a perfect solution for diverse packaging needs.
Model
JW-B28
MOQ
1 SET
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Weighing Range
10~1000g
Accuracy
± 0.5-1.5g
Hopper Volume
1.6/2.5L
Control Panel
7.0'' Touch Screen
Driving System
Step Motor
Power Requirement
220V/4500W/50/60HZ/10A
Product Type
weighing and packaging
Packing Speed
65-120 Bags/Min
Max weight(Kg)
1200
| Supply Ability | 1000sets/year | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 30days |
| Start Port | Zhongshan port | ||
Feature

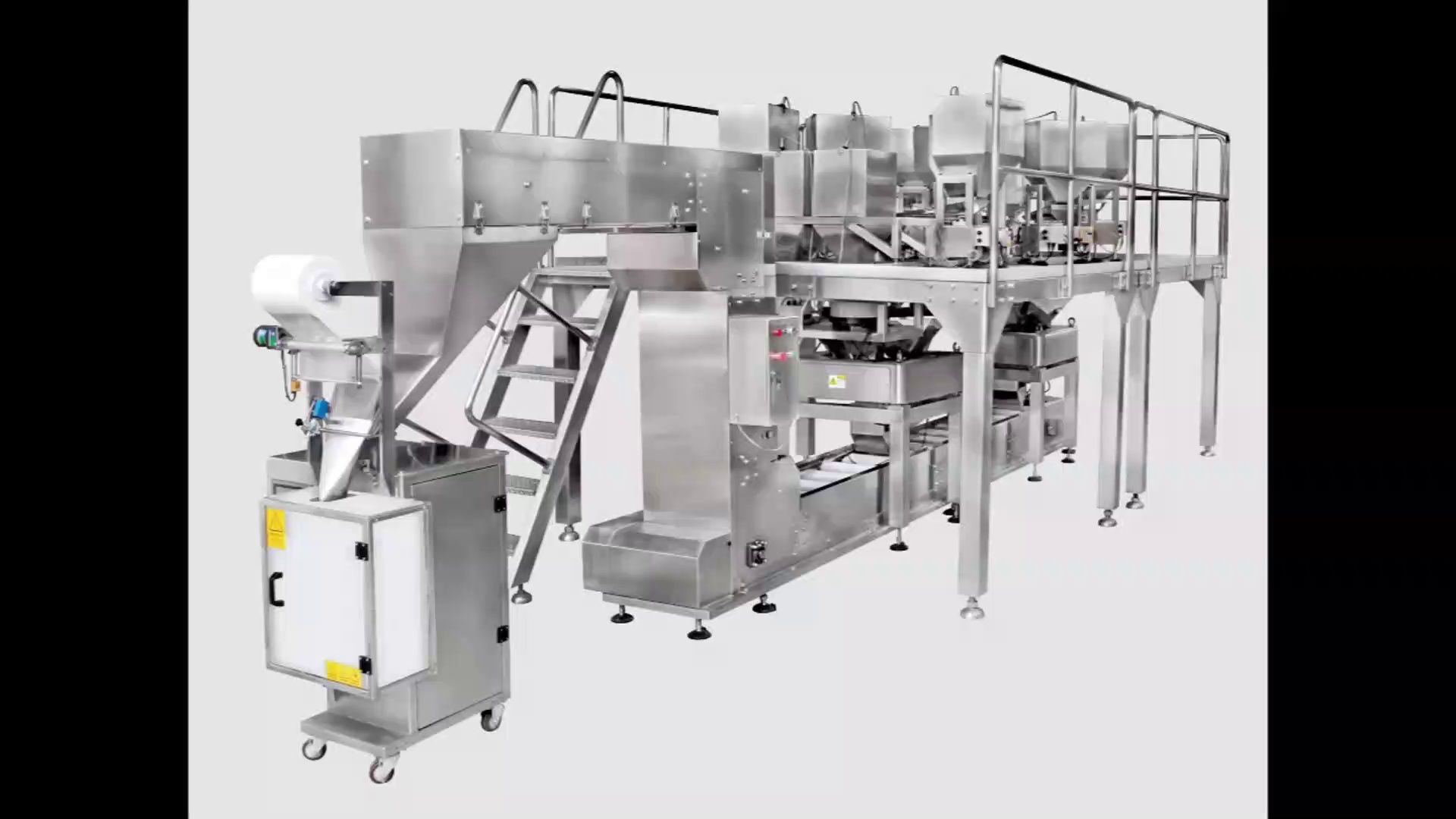

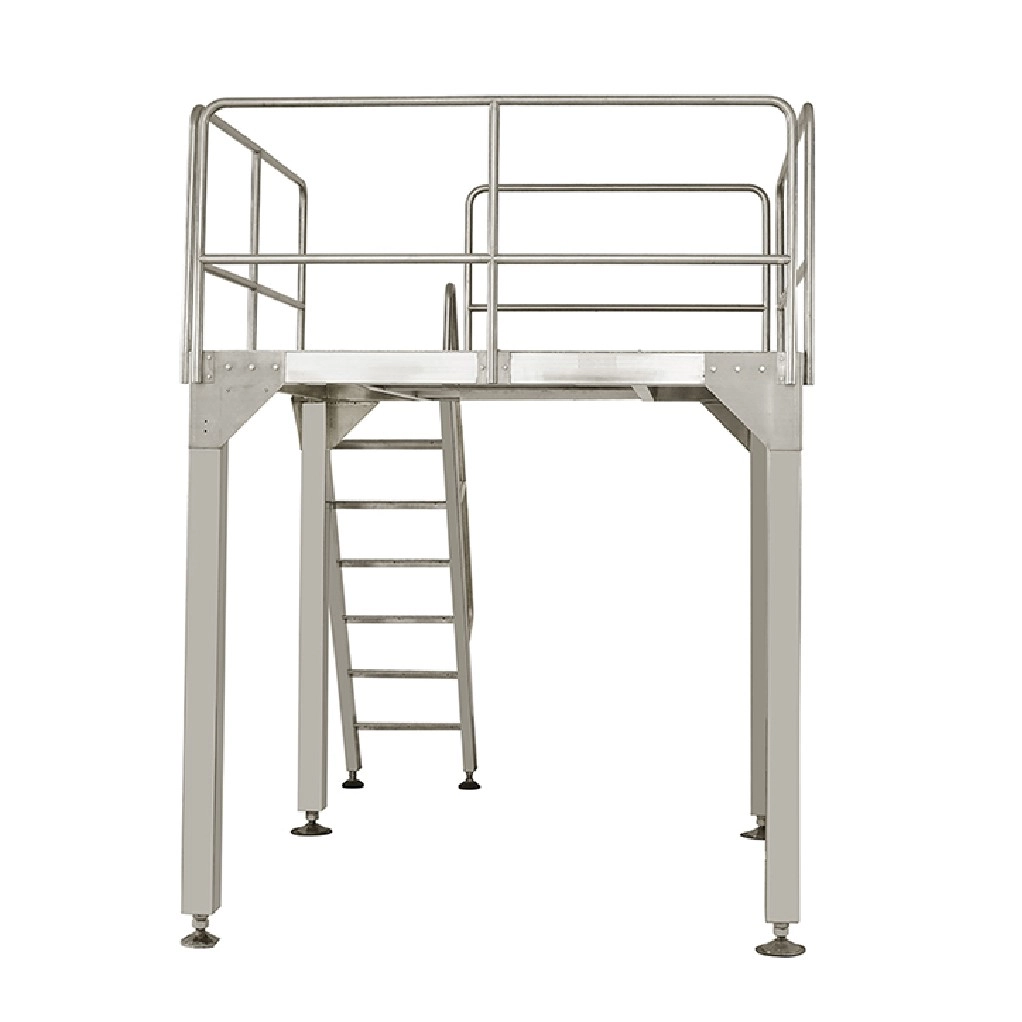

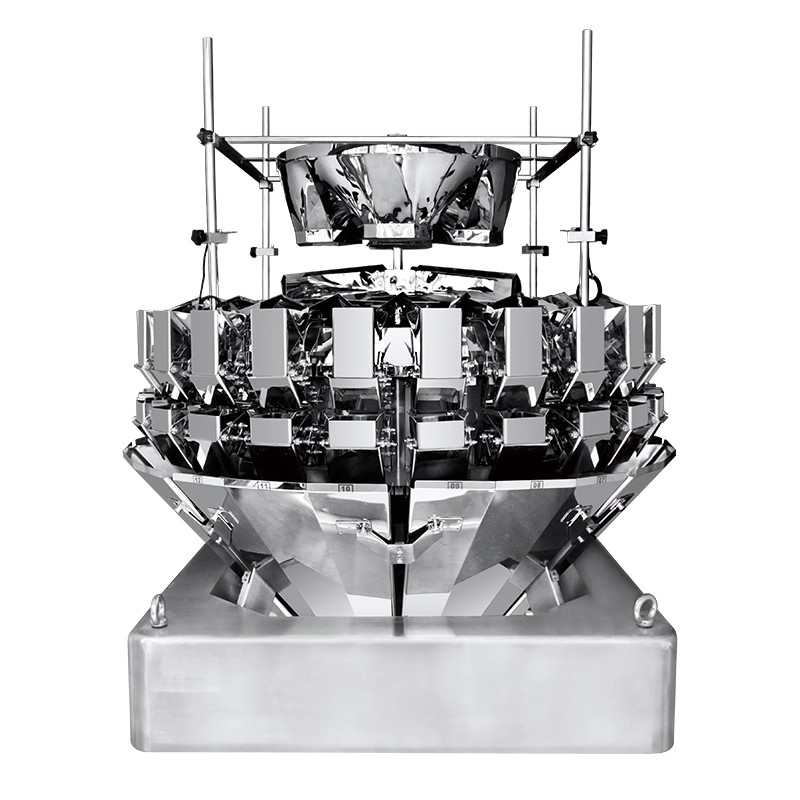

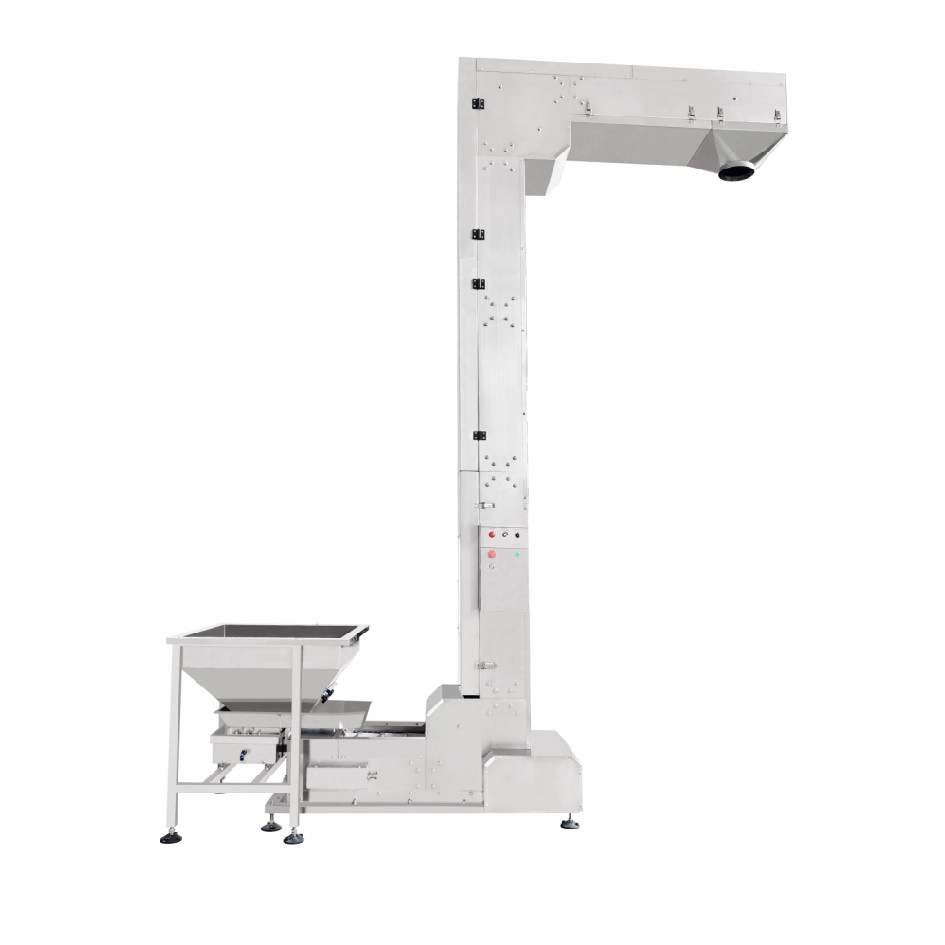

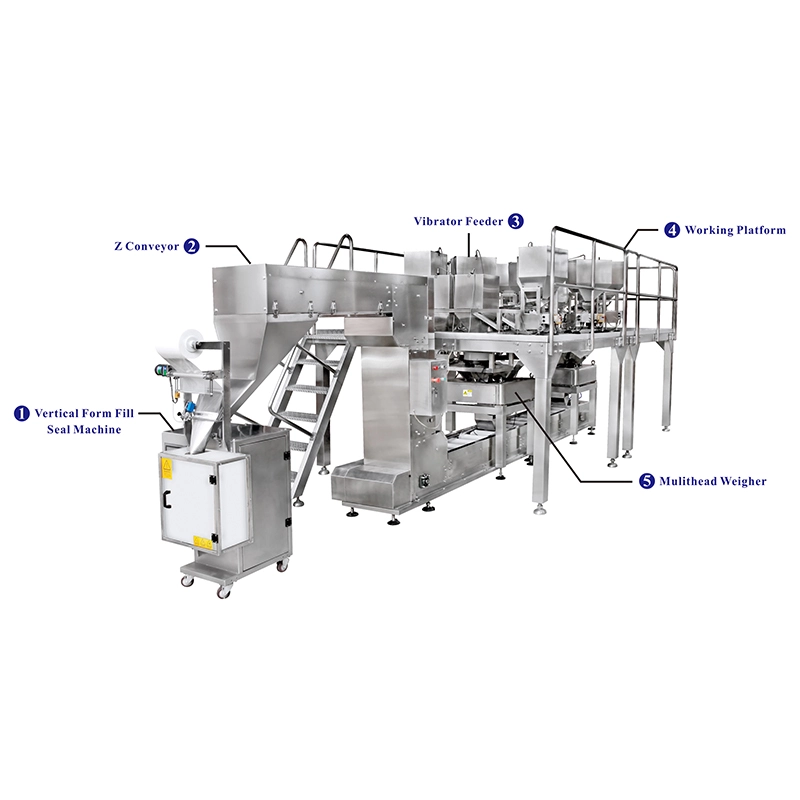

System including: a vibrator feeder, Z bucket conveyor, working platform, multi-head weigher, vertical form fill seal (VFFS) machine, finished products conveyor, and a dropper metal detector.
-
-
-
-
● Fully automatic system for feeding, weighing, bag filling, date printing, and finished product output.
-
● High-precision mixing formula with an advanced motherboard control system that ensures accurate total weight through complementary functionality.
-
● Compatible with a wide variety of materials.
-
-
-
Application
It is suitable for accurately weighing granules, slices, and products with rolled or irregular shapes, including candies, seeds, jellies, French fries, coffee granules, peanuts, puffed snacks, biscuits, chocolate, nuts, pet food, and frozen feed. It is also ideal for weighing small hardware items and plastic components.
Packing Puch
The weighing and packaging system is compatible with various bag types, as illustrated in the figure on the right.
System Model
| System | Model | Max Speed | Max Capacity |
| 2-in-1 mixing weighing system | 2 units mini 10 head weigher | 60p/min | 400g |
| 3-in-1 mixing weighing system | 3 units mini 10 head weigher | 80p/min | 600g |
| 4-in-1 mixing weighing system | 4 units mini 10 head weigher | 60p/min | 800g |
| 5-in-1 mixing weighing system | 5 units mini 10 head weigher | 60p/min | 1000g |
| 6-in-1 mixing weighing system | 6 units mini 10 head weigher | 60p/min | 1200g |
| 7-in-1 mixing weighing system | 7 units mini 10 head weigher | 60p/min | 1400g |
| 8-in-1 mixing weighing system | 8 units mini 10 head weigher | 60p/min | 1600g |
More Mixing Formula Weighing Systems
Optional Equipment
Check Weigher
Used for checking the weight of products, removing unqualified items, and classifying and recording product statistics.
Horizontal Metal Detector
Detects both magnetic and non-magnetic metals mixed with products during the production process, ideal for post-packaging detection.
Dropped Metal Detector
Detects both magnetic and non-magnetic metals in products during production. This device is designed for pre-packaging detection and is positioned between the bottom of the weigher and the top of the VFFS feeding funnel, saving space but increasing the system's height.
Combined Check Weigher And Metal Detector
Combines check weighers and metal detectors to verify product weight, detect metal contamination, and remove unqualified products, offering cost savings, as well as reducing setup and maintenance time.
Rotary Collecting Table
Used to gather products from the production line, ideal for production lines that require manual handling or additional packaging steps.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About After Sales Support
What after-sales support does Kenwei offer?
Kenwei provides comprehensive after-sales support, including product installation, training, maintenance, troubleshooting, and technical assistance. Our team is dedicated to ensuring your machines operate at their best throughout their lifecycle.
About Product choice
Are Kenwei’s products suitable for small-scale or large-scale operations?
Yes! We offer machines that are scalable to meet the needs of both small and large-scale operations.
About Cooperation Process
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About Solution suggestions
Can Kenwei solutions be adapted for different product packaging types?
Yes, Kenwei solutions can handle a variety of packaging types, including bags, boxes, pouches, and bottles. We can customize machines to suit your packaging format, ensuring compatibility with your packaging equipment.
