3 Head Linear Weigher Packaging Machine for Small Granules
Kenwei’s 3 Head Linear Weigher Packaging Machine offers precise weighing and efficient packaging for small granules. Ideal for diverse industries, this linear weigher ensures high accuracy and speed, enhancing productivity with reliable performance on your production line.
Model
JW-AX3
MOQ
1set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
AX3-2-1
Weighing Range
50-4000g
Accuracy
X(1)
Max Speed
30P/M
Hopper Volume
6L
Control Panel
7”Touch Screen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement
220V/500W/50/60HZ/3A
Packing Dimension(mm)
1200(L)X1050(W)X1050(H)
Gross Weight
180kg
Max Mixing Products
3
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● New highly integrated modular control system ensures stable performance and easy maintenance.
● Automatic amplitude adjustment function simplifies debugging and improves operation efficiency.
● Capable of weighing multiple materials simultaneously to achieve mixed-product packaging.
● Parameters can be adjusted during operation according to production needs, providing greater flexibility and ease of use.
●Stepless vibration feeding system ensures more uniform material flow and supports a wider weighing range.
Mechanical Character
The machine is made of stainless steel, ensuring a clean, hygienic, and durable structure.

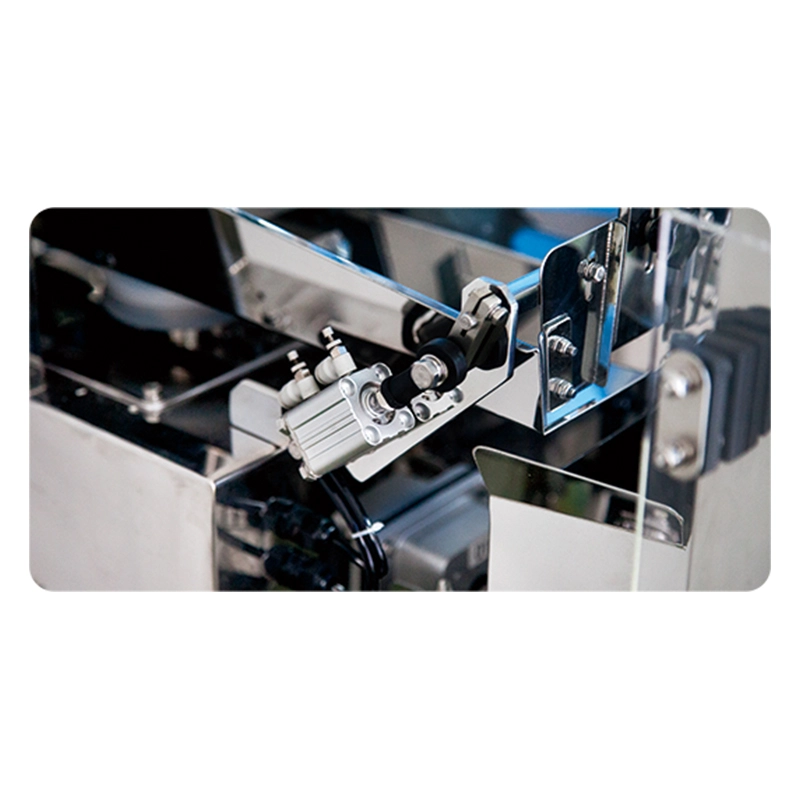

The discharge end of the vibration pan is equipped with a pneumatic gate, enabling precise, small-flow feeding and effectively improving weighing accuracy.

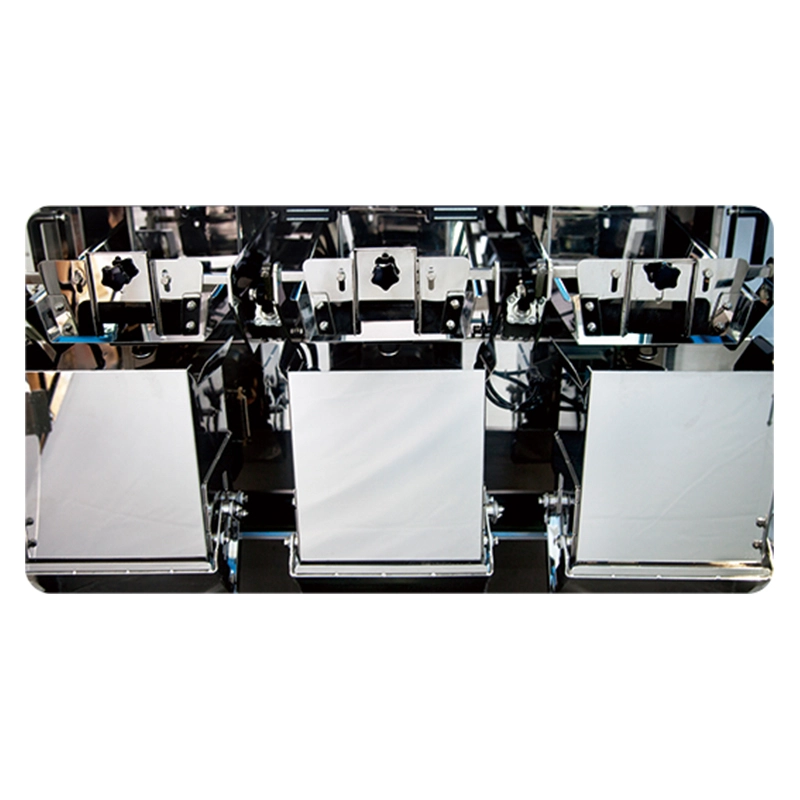

All contact parts — including the stopper, discharge funnel, vibrator pan, and weighing hopper — can be quickly disassembled for easy cleaning and maintenance.
Technical Specification
|
Model |
JW-AX3 |
|
Identify Code |
AX3-2-1 |
|
Weighing Range |
50-4000g |
|
Accuracy *1 |
X(1) |
|
Max. Speed *2 |
30P/M |
|
Hopper Volume |
6L |
|
Parameters Press No. |
100 |
|
Max Products Mixed |
3 |
|
Control Panel |
7”Touch Screen |
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|
Power Requirement |
220V/500W/50/60HZ/3A |
|
Packing Dimension(mm) |
1200(L)X1050(W)X1050(H) |
|
Gross Weight |
180kg |
|
*1: Can refer to the national standard GB / T27738-2011 or the International Legal Organization No. 61 International Recommendation OIML R61 2004 (E). |
|
| *2: Depends on product shape, product density, target weight, etc. | |
Application
Three heads linear weigher is ideal for weighing and packaging small granular materials, such as sugar, salt, rice, seeds, sesame, coffee, and various seasoning powders, with high precision and efficiency.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About products customization
Can I customize Kenwei machines to suit my specific needs?
Yes, Kenwei offers a wide range of customization options to ensure that our machines meet your production requirements.
Can I customize the size of Kenwei machines?
Yes, we can tailor the dimensions of our machines to fit your available space and production layout. Whether you need compact machines or larger equipment, we can accommodate your size requirements.
About After Sales Support
What after-sales support does Kenwei offer?
Kenwei provides comprehensive after-sales support, including product installation, training, maintenance, troubleshooting, and technical assistance. Our team is dedicated to ensuring your machines operate at their best throughout their lifecycle.
About Cooperation Process
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
What is the lead time for product delivery?
The lead time depends on the complexity of the order and the level of customization required. Typically, our products are shipped within 4-8 weeks after receiving the order confirmation. However, this can vary, and we will provide an estimated delivery date when you place your order.
