High speed single head linear weigher for sugar sesame weighing
Kenwei high speed single head linear weigher is perfect for precise sugar and sesame weighing. This linear weigher packaging machine ensures fast, reliable, and accurate performance, making it an ideal choice for automated packaging lines.
Model
JW-AX1
MOQ
1 set
Payment
L/C, T/T
Place of Origin
Guangdong, China
Brand
Kenwei
Identify Code
X1-2-3
Weighing Range
500~4000g
Accuracy
X(1)
Max Speed
12P/M
Hopper Volume
6L
Control Panel
7"Touch screen
Options
Dimple Plate/ Timing Hopper/ Printer/ Reject Device
Power Requirement
220V / 700W / 50/60Hz / 3.2A
Packing Dimension(mm)
1000(L)x640(W)x1200(H)
Gross Weight
90kg
Parameters Press No.
100
Max Mixing Products
1
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 200 sets/year |
Feature
● Advanced, highly integrated modular control system.
● Automatic amplitude adjustment feature for easier debugging.
● Capable of weighing multiple different materials simultaneously for mixed-material packaging.
● Parameters can be adjusted in real-time during operation, making it user-friendly.
● Features a stepless vibration feeder system, ensuring more even material distribution and a wider weighing range.

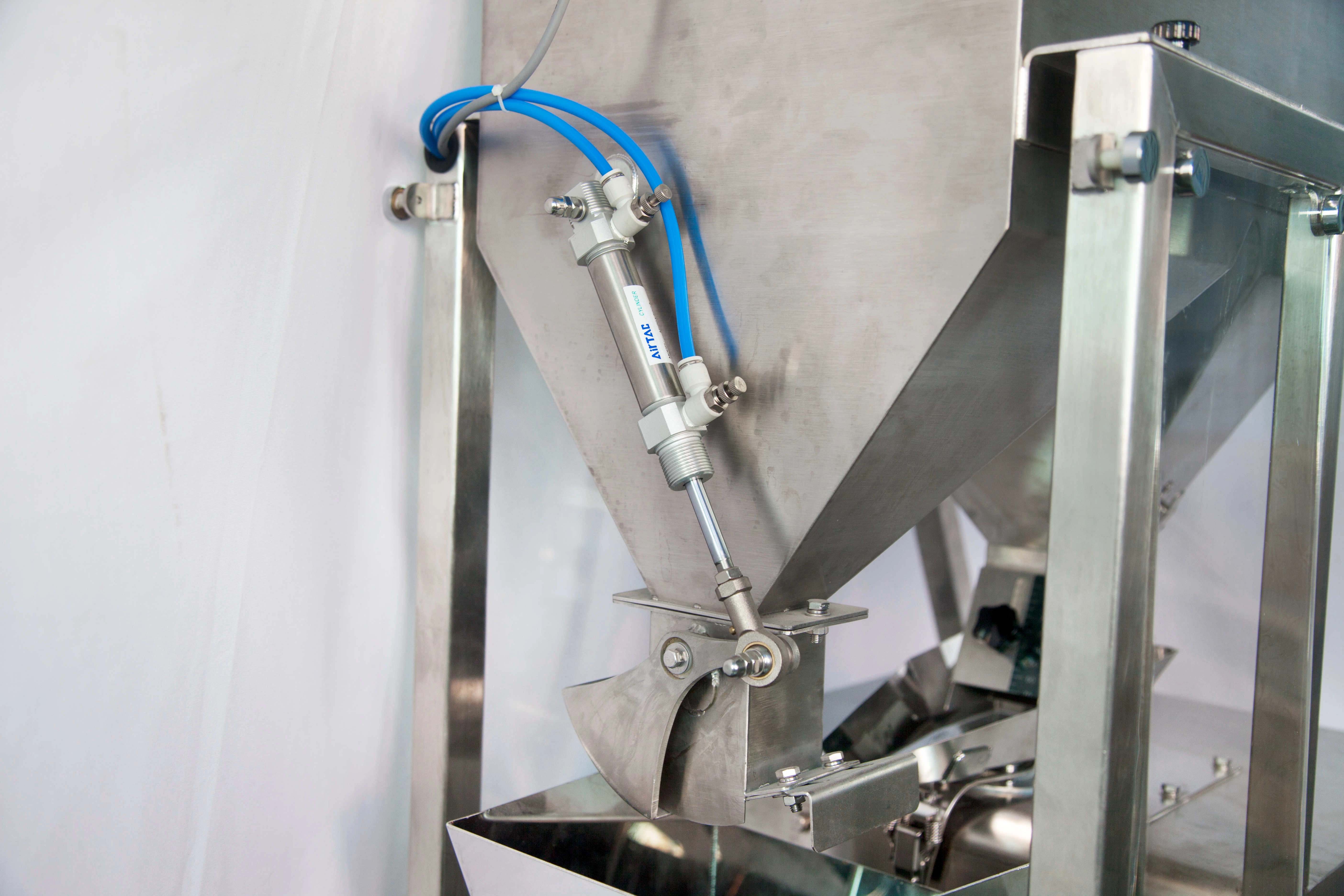

Mechanical Character
The machine is constructed with stainless steel, ensuring cleanliness and hygiene.
Free-fall fast feeding reduces time consumption compared to conventional vibration feeding.

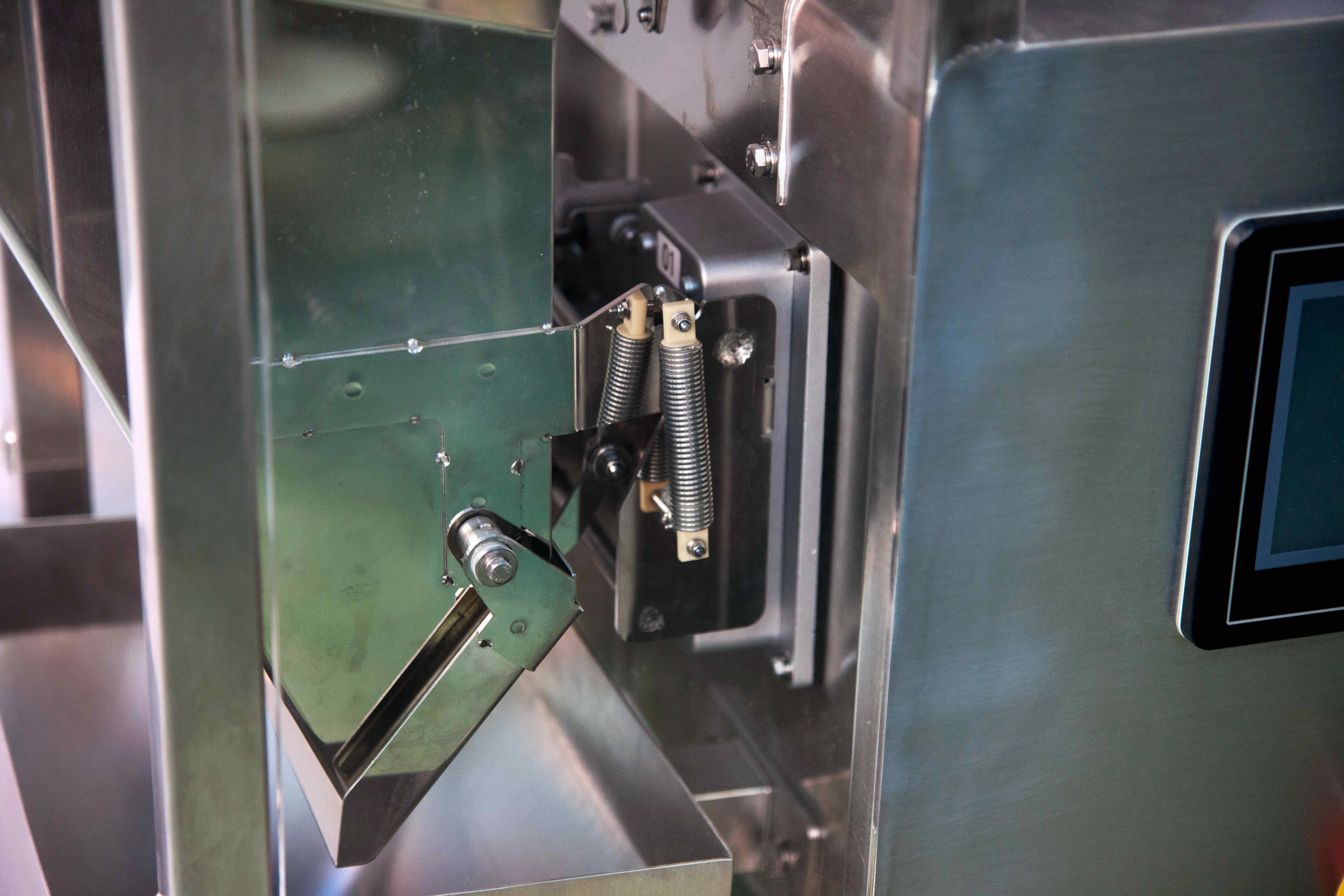

The precision vibrator pan allows for a small, controlled flow of material, enhancing weighing accuracy.
Components that come in contact with materials (such as the stopper, discharge funnel, vibrator pan, and weighing hopper) can be easily disassembled for quick cleaning.
Technical Specification
| Model | JW-AX1 |
| Identify Code | X1-2-3 |
| Weighing Range | 500~4000g |
| Accuracy*1 | X(1) |
| Max Speed*2 | 12P/M |
| Hopper Volume | 6L |
| Parameters Preset No. | 100 |
| Max Products Mixed | 1 |
| Control Panel | 7"Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Power Requirement | 220V/700W/50/60Hz/3.2A |
| Packing Dimension(mm) | 1000(L)X640(W)X1200(H) |
| Gross Weight | 90kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
It is perfect for weighing small granular materials like sugar, salt, seeds, rice, sesame, monosodium glutamate, coffee, seasoning powders, and more.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About products customization
Can Kenwei machines support multiple languages?
Yes, we can customize the software interface to support multiple languages, making it easier for operators from different regions to use the machine.
About After Sales Support
How about the after-sales service?
Warranty :2 years
About Cooperation Process
Does Kenwei offer installation and training?
Yes, Kenwei provides installation services and comprehensive training to ensure that your team can operate the machinery efficiently. Our engineers can travel to your facility for on-site installation, and we also offer remote training options if needed.
About Solution suggestions
How do Kenwei’s machines improve my production efficiency?
Kenwei machines enhance efficiency by automating the weighing, packaging, and quality control processes. Our high-speed, high-precision machines ensure accurate measurements, reduce human error, and increase throughput, leading to faster production times and lower operational costs.
About Product choice
What is the difference between a multi-head weigher and a linear weigher?
Multi-head Weigher: Ideal for high-speed and high-precision weighing of products with irregular shapes or varying sizes. It provides multiple weighings in parallel for faster processing.
Linear Weigher: It is suitable for powder and granule. It is typically slower than a multi-head weigher but is effective for certain types of applications that require more continuous flow or controlled weighing.
