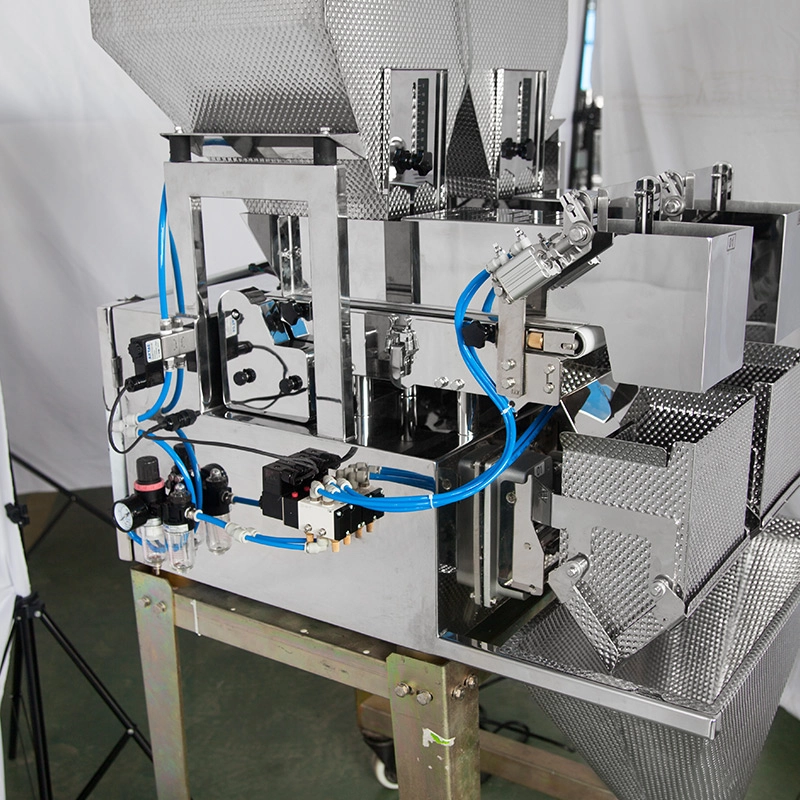

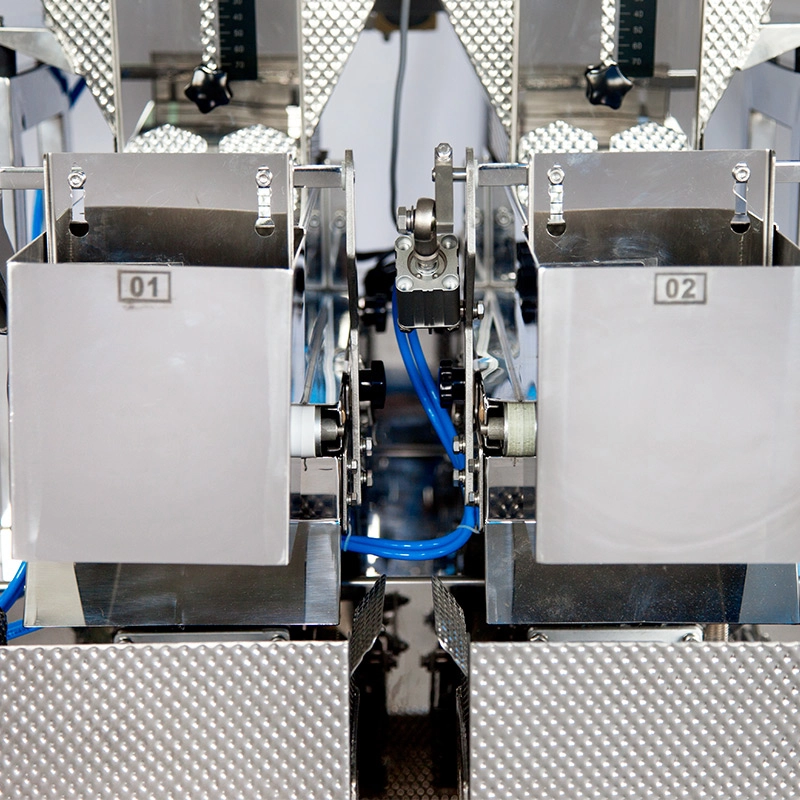

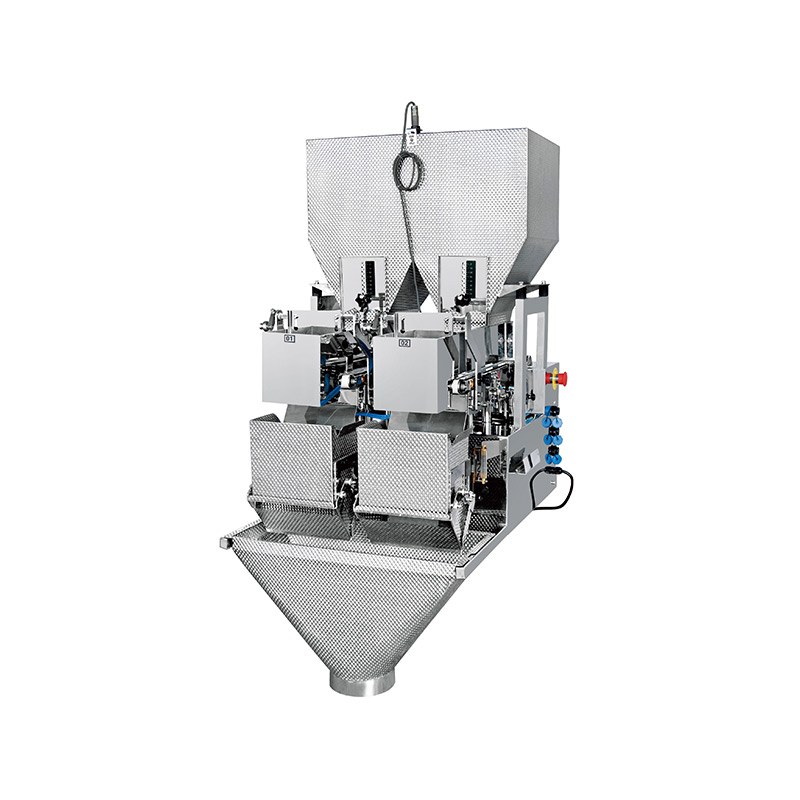

Automatic 2-Head Belt Linear Weigher for Vegetable, Salad, and Fruit Packaging
Kenwei’s Automatic 2-Head Belt Linear Weigher delivers precise, efficient filling for vegetable, salad, and fruit packaging. This 2 head linear weigher machine ensures high accuracy and speed, perfect for your production line. Upgrade with our reliable linear weigher for consistent packaging results.
Model
JW-AX2
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
AX2-2-2
Weighing Range
50-2000g
Accuracy
X(1)
Max Speed
30P/M
Hopper Volume
4.5L
Control Panel
7”Touch Screen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement
220V/500W/50/60HZ/3A
Gross Weight
150kg
Parameters Press No.
100
Max Mixing Products
2
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● User-friendly human–machine interface allows quick and easy access to preset weighing parameters across different weight ranges.
●Controller-to-AD conversion module communication adopts a CAN bus system, enabling the AD module board to perform independent weighing operations for higher precision and reliability.
● Flexible output port design supports customizable signal configurations and includes a built-in signal testing function, making equipment troubleshooting and maintenance more convenient.
●Comprehensive production data recording and statistical functions provide detailed operational insights for improved management and traceability.
Mechanical Character

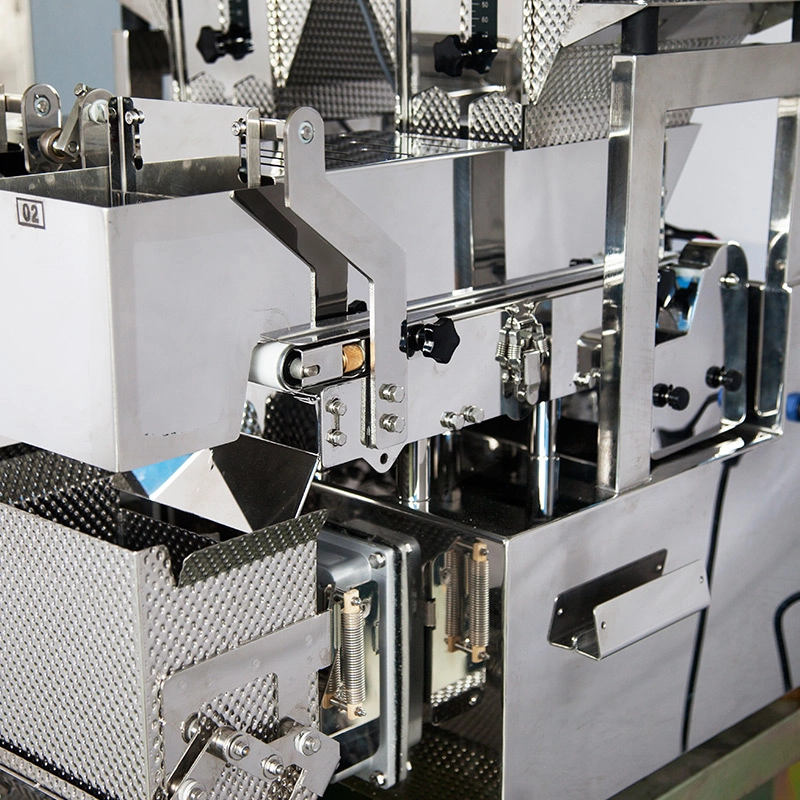

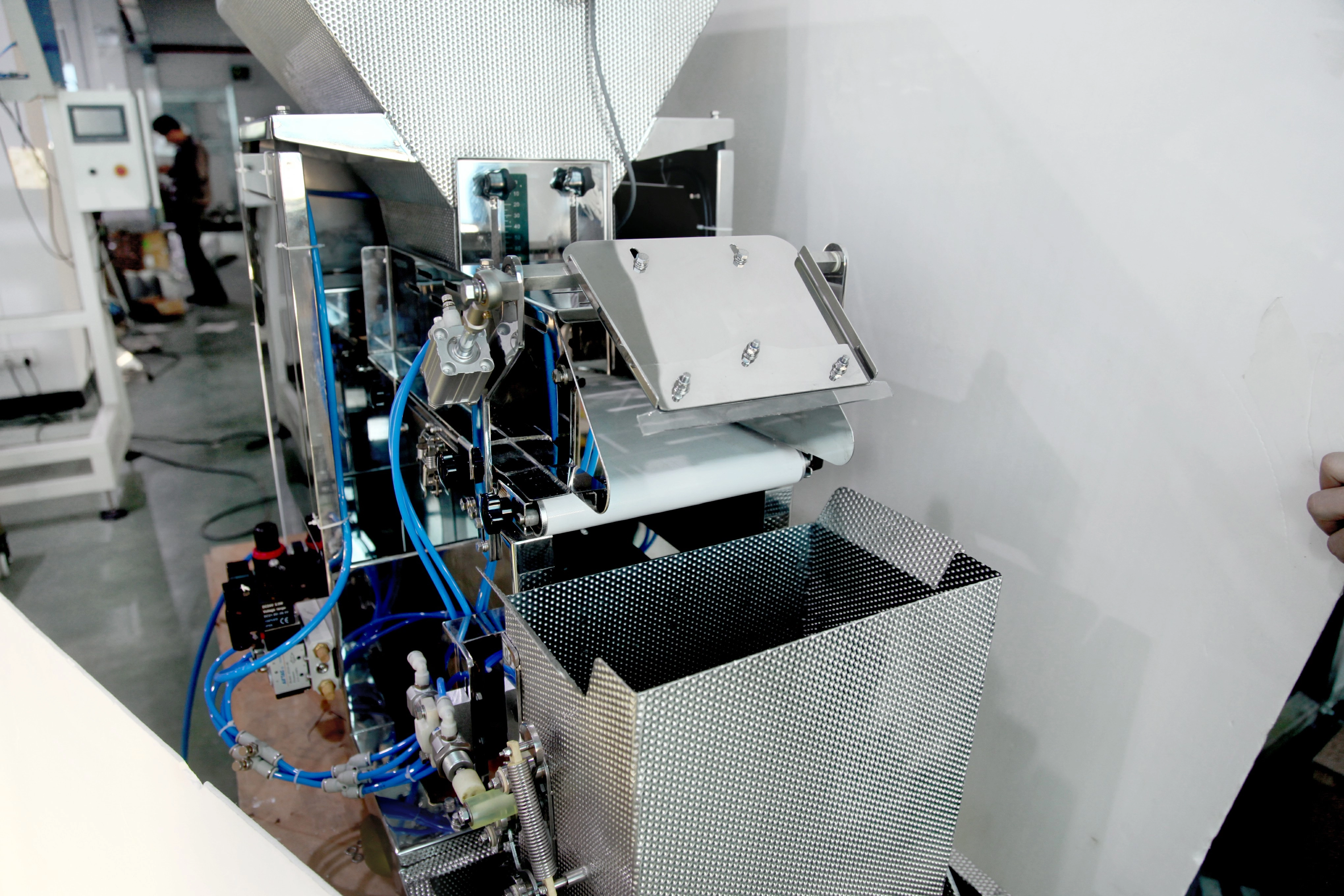

Belt feeding system is suitable for handling fluffy and sticky materials with stable and consistent performance.
Variable-speed motor control enables automatic adjustment of belt speed during the weighing process for optimal flow and accuracy.

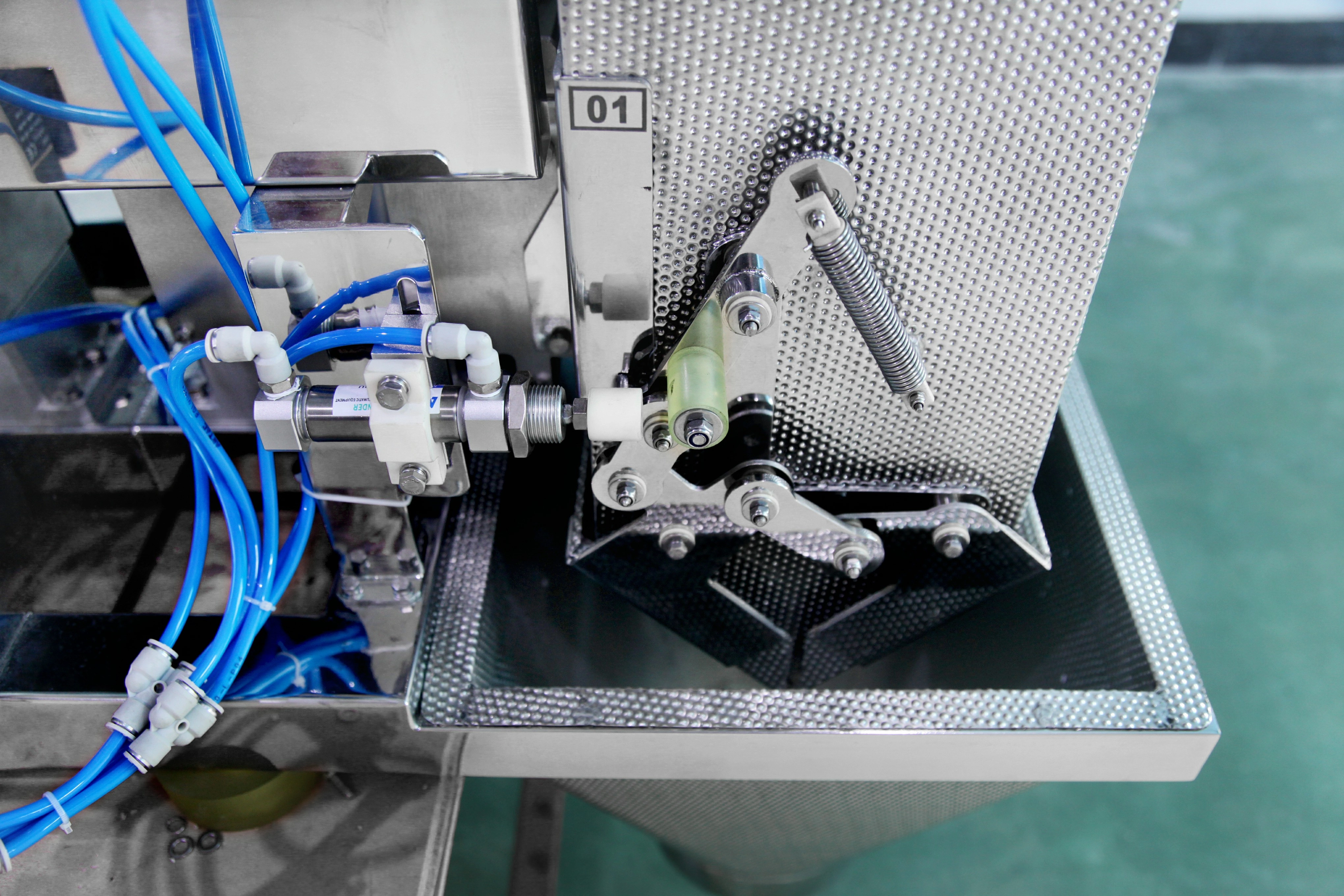

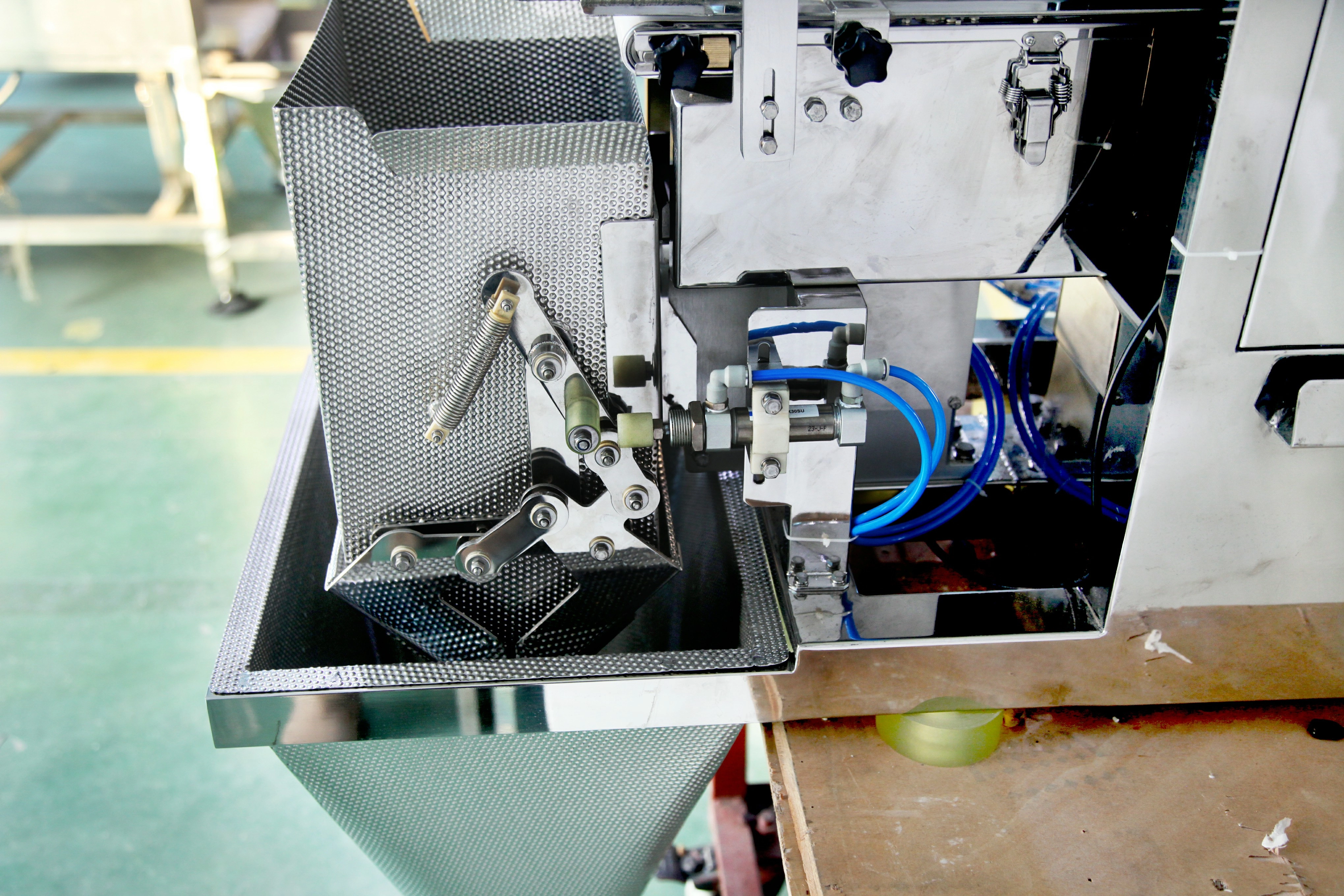

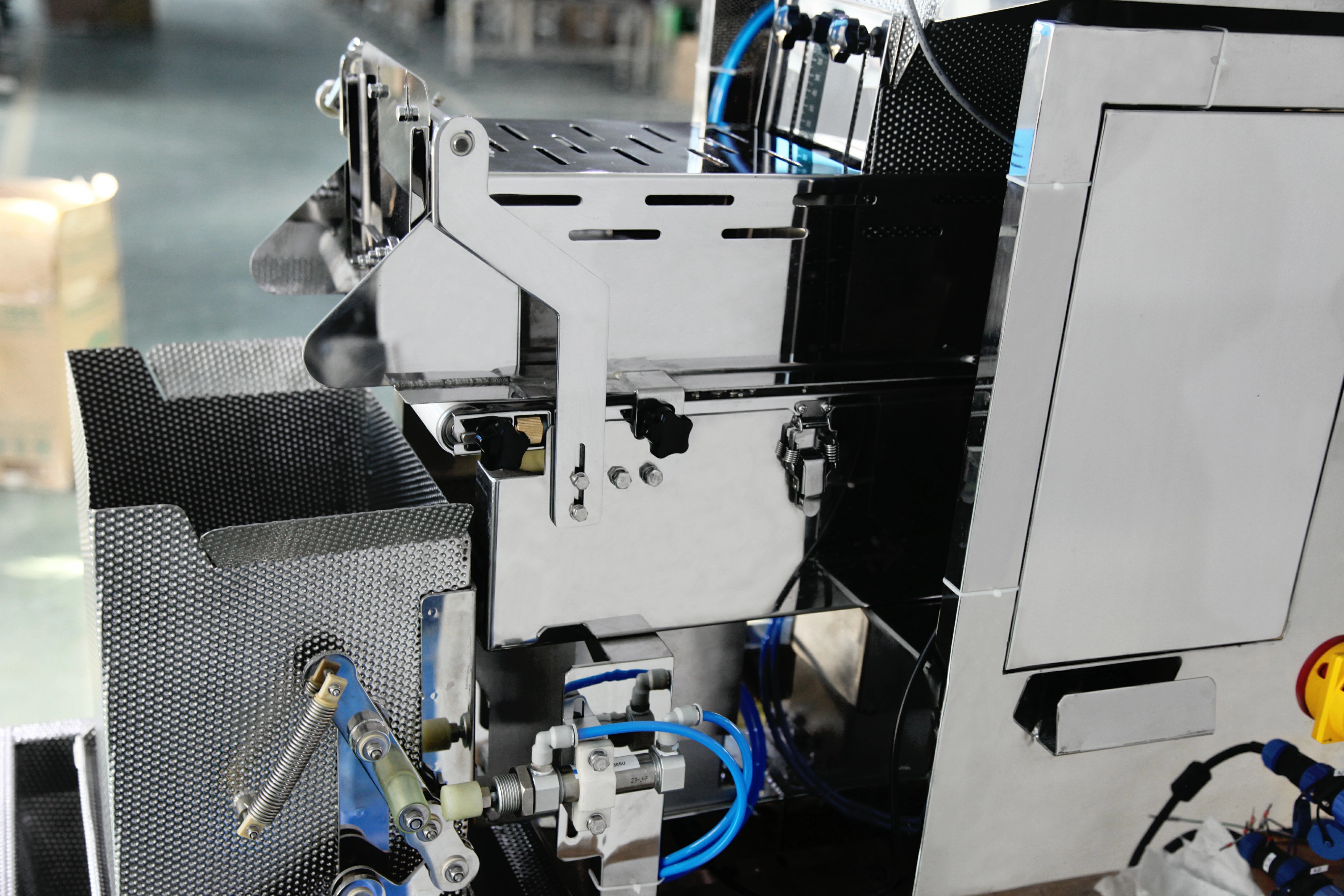

Pneumatic gate at the belt outlet provides precise control for fine feeding, effectively improving weighing precision and consistency.

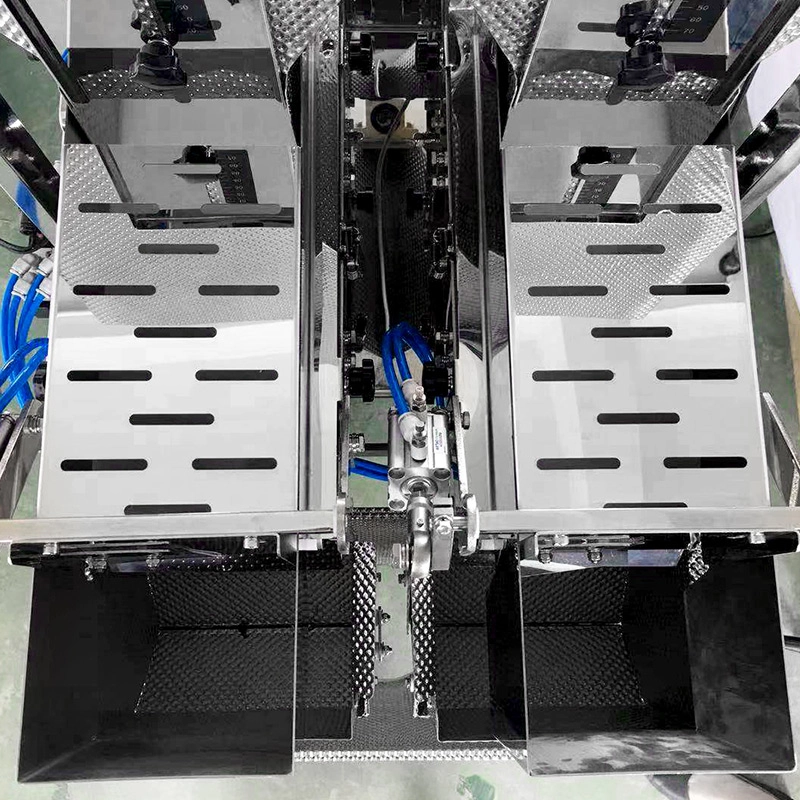

Patterned contact plate design minimizes the contact area with sticky materials, reducing adhesion and ensuring smoother product flow.
Technical Specification
|
Model |
JW-AX2 |
|
Identify Code |
AX2-2-2 |
|
Weighing Range |
50-2000g |
|
Accuracy *1 |
X(1) |
|
Max. Speed *2 |
30P/M |
|
Hopper Volume |
4.5L |
|
Parameters Press No. |
100 |
|
Max Products Mixed |
2 |
|
Control Panel |
7”Touch Screen |
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|
Power Requirement |
220V/500W/50/60HZ/3A |
|
Packing Dimension (mm) |
920(L)X800(W)X1090(H) |
|
Gross Weight |
150kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
Ideal for weighing vegetable salads, fruit salads, and other sticky food products with high accuracy and gentle handling.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About products customization
How do I request a custom-built Kenwei machine?
To request a customized machine, simply contact our sales or engineering team.
Can Kenwei machines be customized for different industries?
Yes,According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on.
About Product choice
What is the difference between a multi-head weigher and a linear weigher?
Multi-head Weigher: Ideal for high-speed and high-precision weighing of products with irregular shapes or varying sizes. It provides multiple weighings in parallel for faster processing.
Linear Weigher: It is suitable for powder and granule. It is typically slower than a multi-head weigher but is effective for certain types of applications that require more continuous flow or controlled weighing.
What types of products does Kenwei offer?
Kenwei specializes in high-precision and high-speed automated machinery for weighing, packaging, and quality control. Our main products include: multihead weigher, linear weigher, checkweighers,food metal detector,vertical packing machine and packing machine accessories.
About Cooperation Process
Can Kenwei customize equipment to meet my specific needs?
Yes! We offer customized solutions for all of our machines. Our team will work closely with you to understand your specific requirements and create a solution that meets your needs in terms of size, functionality, speed, and other factors.
