8-Head Fruit Linear Weigher for Accurate and Efficient Fruit Weighing
The 8-Head Fruit Linear Weigher is designed for accurate weighing of fruits such as cherry, tomatoes, jujube, blue plums, lychees, and plums with diameters between 10-40mm. It features a shatterproof hopper to protect fruits from damage and a waterproof structure for easy disassembly and cleaning. The weigher can be integrated with a boxing conveyor line for seamless weighing and packing, offering efficient automation and reducing labor costs in the packaging process.
Model
JW-AX8
MOQ
1 Set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
X8-2-1
Weighing Range
10~1000g
Accuracy
XIII(1)
Max Speed
45P/M
Hopper Volume
3000ML
Control Panel
7
Options
Customized boxing conveyor line
Power Requirement
220V / 1500W / 50/60Hz / 6.8A
Packing Dimension(mm)
1850(L)x1250(W)x1355(H)
Gross Weight
350kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 2000 sets/year |
Feature

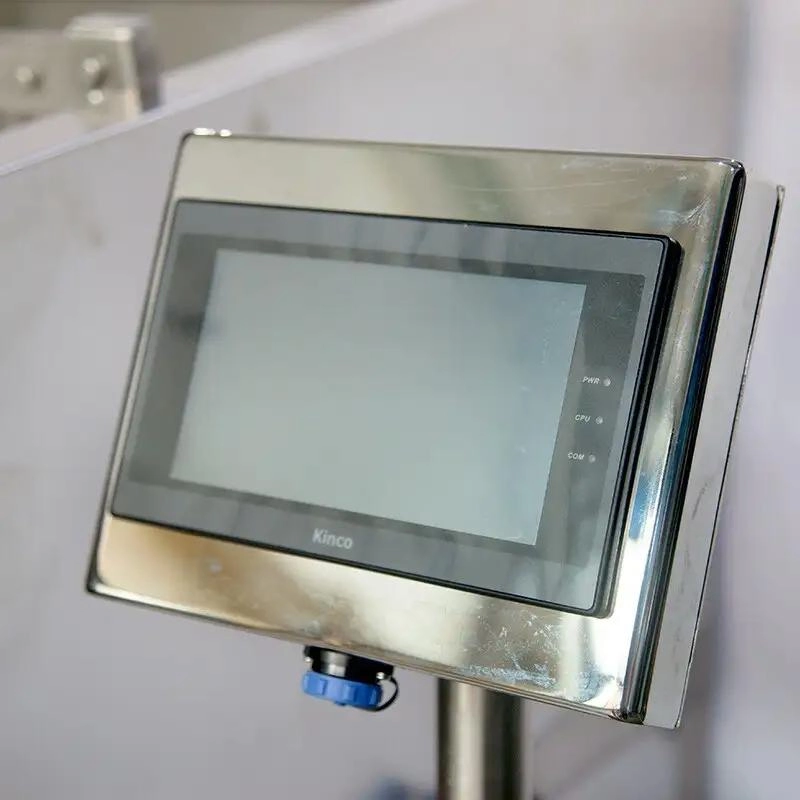

● Features a user-friendly touch screen interface for clear and intuitive operation.
● Multi-language support with easy screen switching enhances operational efficiency.
● Self-learning parameter adjustment simplifies the setup process.
● Production data can be backed up via USB for software upgrades and easier system maintenance.
● Can be integrated with a boxing conveyor line for seamless weighing and packaging.
Mechanical Character

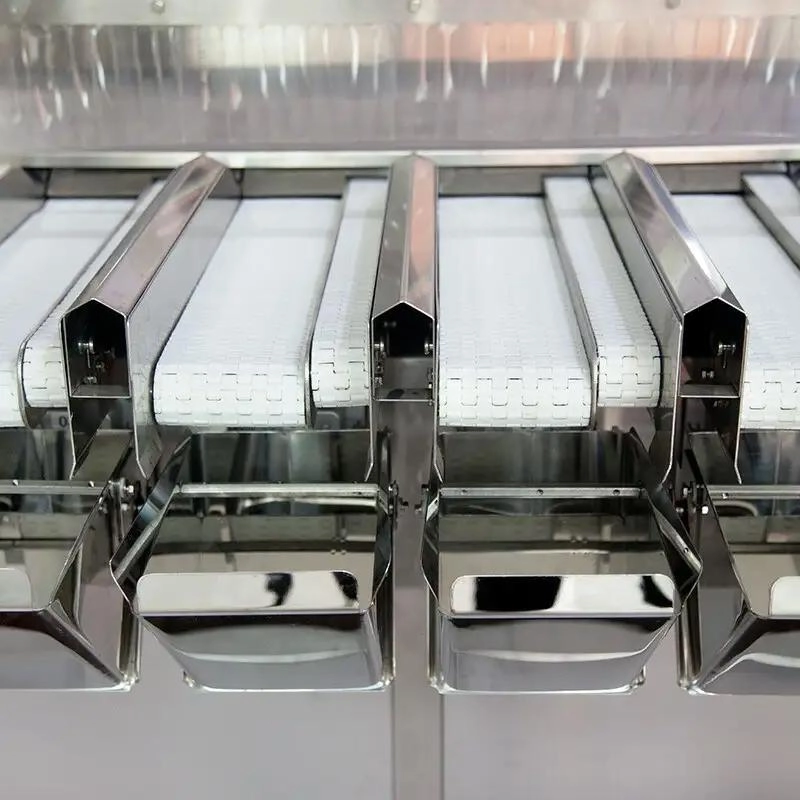

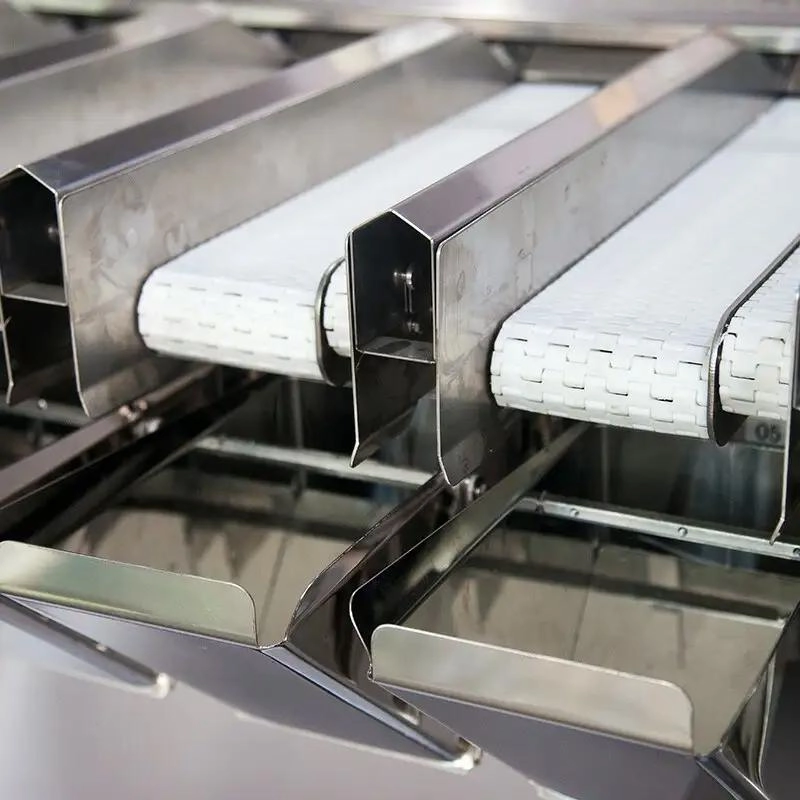

The forward-inclined vibration plate features various sizes of chain plate conveyor lines for efficient feeding into the weighing hopper.

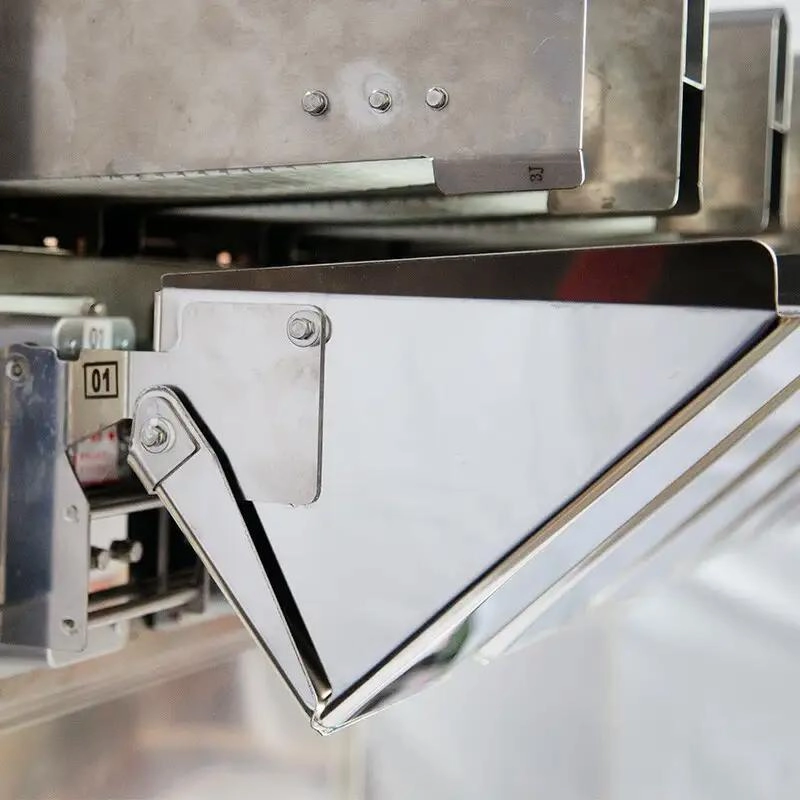

Equipped with a shatterproof hopper to prevent material damage during transportation.
Waterproof design allows the conveyor line to be easily disassembled and cleaned.
Conveniently connects to a boxing conveyor line beneath the weighing hopper for seamless integration.
Technical Specification
| Model | JW-AX8 |
| Identify Code | X8-2-1 |
| Weighing Range | 10~1000g |
|
Accuracy *1 |
XIII(1) |
|
Max. Speed *2 |
45P/M |
| Hopper Volume | 3000ml |
| Control Panel | 7" Touch Screen |
| Options | Customized boxing conveyor line |
| Chain Plate Size | Big chain plate/small chain plate: 100 m/40 mm |
| Parameters Preset No | 100 |
| Power Requirement | 220W/1500W/50/60Hz/6.8A |
| Packing Dimension(mm) | 1850(L)X1250(W)X1355(H) |
| Gross Weight | 350kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004 (E). | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
The fruit linear weigher is designed for weighing a variety of fruits, including cherry tomatoes, jujube, blue plums, lychees, and plums with a diameter ranging from 10-40mm, among other similar materials.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About products customization
Can I customize Kenwei machines to suit my specific needs?
Yes, Kenwei offers a wide range of customization options to ensure that our machines meet your production requirements.
Can I customize the size of Kenwei machines?
Yes, we can tailor the dimensions of our machines to fit your available space and production layout. Whether you need compact machines or larger equipment, we can accommodate your size requirements.
About Cooperation Process
Can Kenwei customize equipment to meet my specific needs?
Yes! We offer customized solutions for all of our machines. Our team will work closely with you to understand your specific requirements and create a solution that meets your needs in terms of size, functionality, speed, and other factors.
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About Product choice
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
