4 Head High-Speed Linear Weigher for Granular Products
The Kenwei 4 Head High-Speed Linear Weigher offers precise, efficient weighing for granular products. This advanced linear weigher machine ensures fast, accurate measurements, boosting production accuracy. Ideal for various industries, it’s a reliable weighing machine to optimize your packaging process.
Model
JW-AX4
MOQ
1Set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
AX4-2-2
Weighing Range
200~4000g
Accuracy
X(1)
Max Speed
48P/M
Hopper Volume
6L
Control Panel
7
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement
220V/500W/50/60HZ/3A
Packing Dimension(mm)
1400(L)X1200(W)X1190(H)
Gross Weight
240kg
Parameters Press No.
100
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● New highly integrated modular control system for improved stability and maintainability.
● Automatic amplitude adjustment for faster and more convenient system tuning.
●Capable of weighing multiple materials simultaneously, enabling mixed-material packaging.
● Operational parameters can be adjusted in real time, enhancing flexibility and ease of use during production.
● Equipped with a stepless vibration feeding system, ensuring more uniform material distribution and a wider weighing range.
Mechanical Character
Constructed entirely from stainless steel, ensuring cleanliness, hygiene, and long-term durability. and mustard.
Free-fall fast feeding significantly reduces feeding time compared with conventional vibration feeding methods.
High-precision vibrator pans enable accurate small-flow feeding, effectively enhancing weighing accuracy..

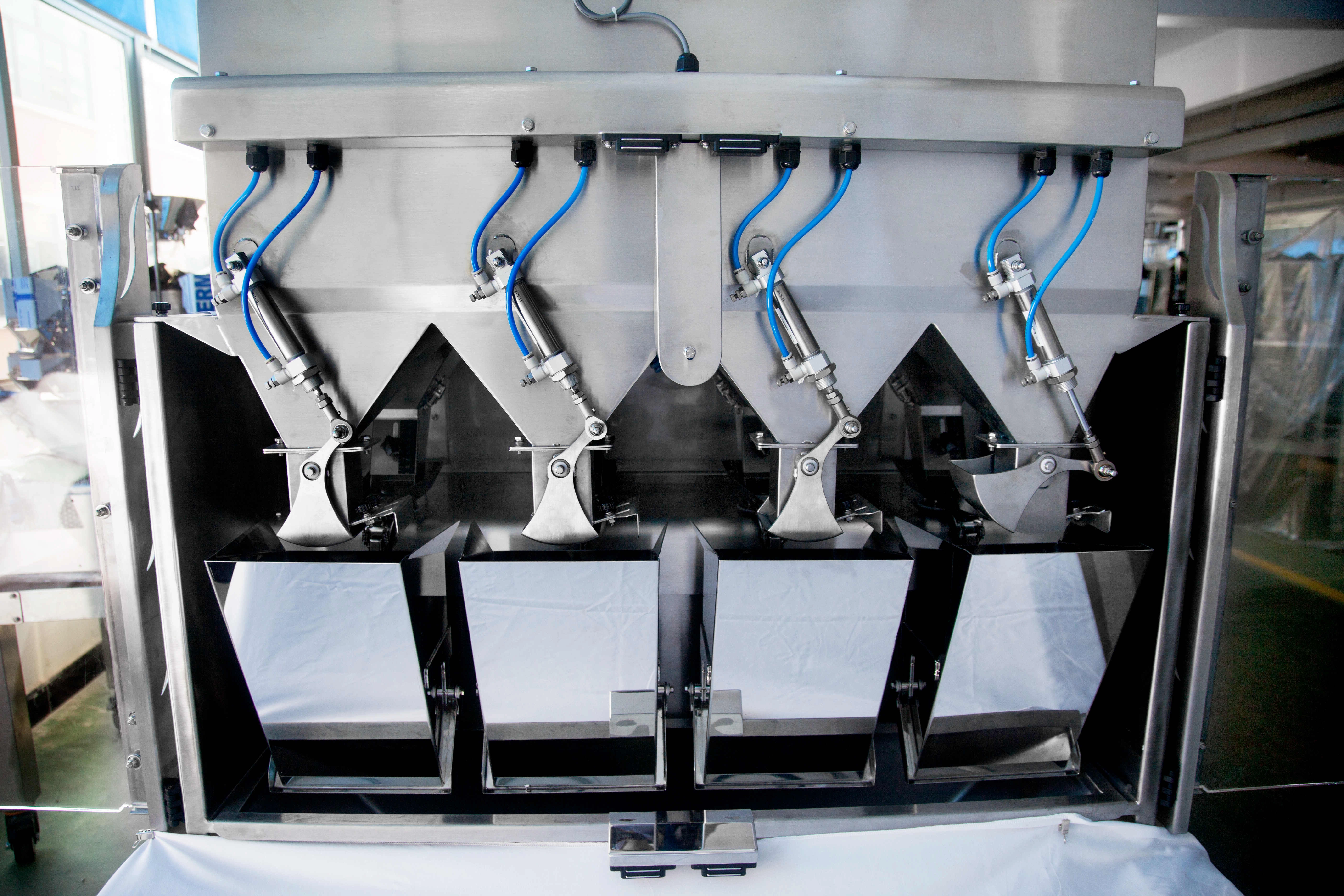

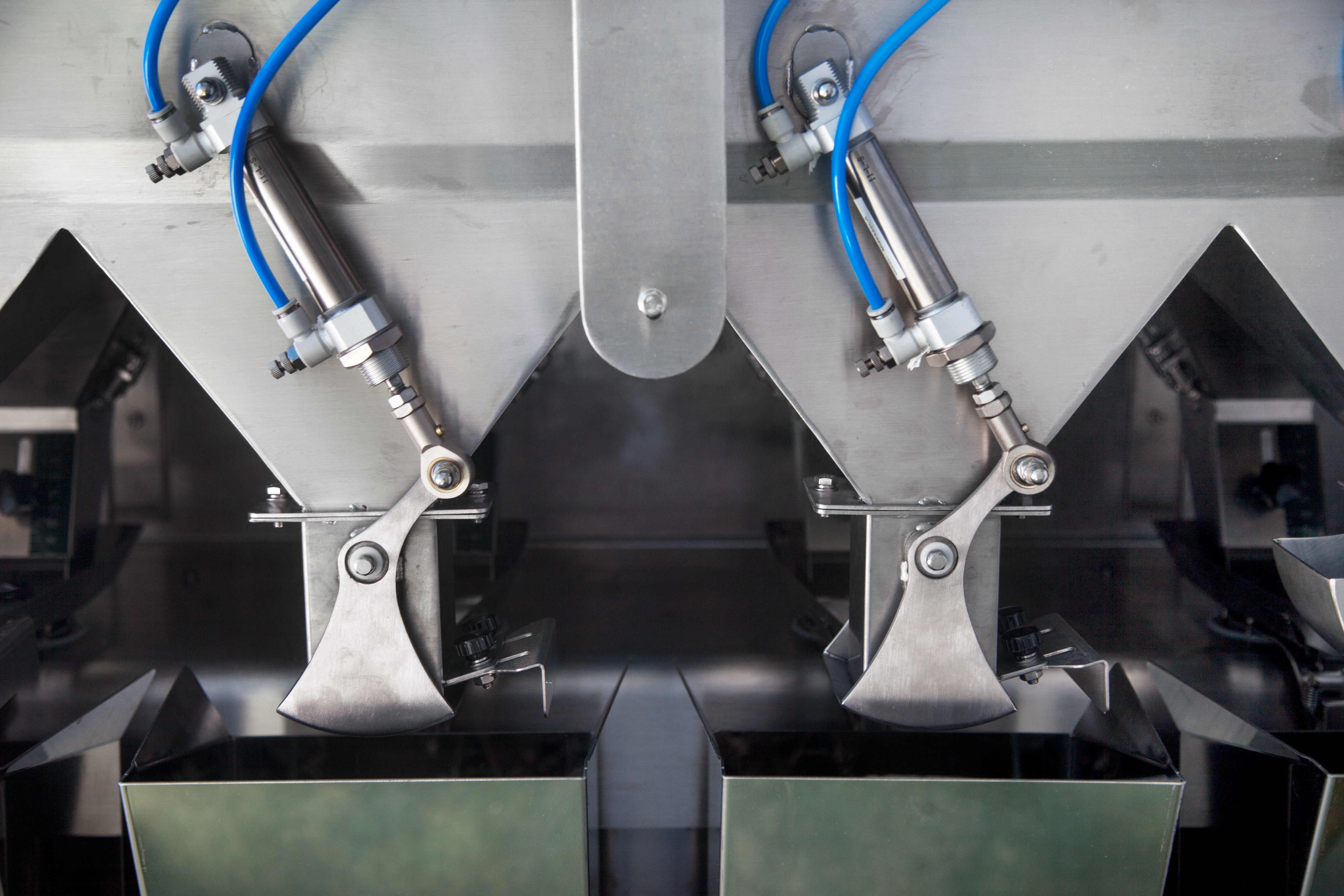

All contact parts—including stoppers, discharge funnels, vibrator pans, and weighing hoppers—can be quickly disassembled, allowing for easy cleaning and maintenance.
Technical Specification
| 10Model | JW-AX1 | JW-AX2 | JW-AX4 |
| Identify Code | X1-2-3 | X2-2-3 | AX4-2-2 |
| Weighing Range | 500~4000g | 500~4000g | 200~4000g |
| Accuracy*1 | X(1) | X(1) | X(1) |
| Max Speed*2 | 12 P/M | 24 P/M | 48 P/M |
| Hopper Volume | 6L | 6L | 6L |
|
Parameters Press No |
100 | 100 | 100 |
|
Max Products Mixed |
1 | 2 | 4 |
| Control Panel | 7"Touch Screen | ||
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | ||
| Power Requirement | 220V/700W/50/60Hz/3.2A | 220V/1000W/50/60Hz/4.5A | 220V/500W/50/60Hz/3A |
| Packing Dimension(mm) | 1000(L)X640(W)X1200(H) | 9000(L)X1200(W)X1200(H) | 1400(L)X1200(W)X1190(H) |
| Gross Weight | 400kg | 170kg | 240kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) |
|||
| *2: Depends on product shape, product density, target weight, etc. |
|||
Application
It is ideal for accurately weighing small granular products, including sugar, salt, seeds, rice, sesame, monosodium glutamate (MSG), coffee, and seasoning powders.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Solution suggestions
What are Kenwei’s primary solutions for industrial weighing and packaging?
Kenwei provides comprehensive solutions for automated weighing and packaging, including multi-head weighers, linear weighers, check weighers, metal detectors, and packing machines. These solutions are tailored to improve speed, accuracy, and efficiency in various industries such as food, pharmaceuticals, and chemicals.
Can Kenwei solutions be used for both manual and automated packing lines?
Yes, Kenwei machines can be used in both manual and automated packing lines. We can provide integrated systems that work alongside manual labor or fully automated systems depending on your production requirements.
About Product choice
Can Kenwei's machines be used in my industry?
Kenwei’s equipment is highly versatile and can be used across a wide range of industries, including:Food,Pharmaceuticals,Chemicals,Plastics and Agriculture.
Plastics If you're unsure whether our products are suitable for your industry, please contact us, and we can provide you with specific solutions tailored to your needs.
What is the difference between a multi-head weigher and a linear weigher?
Multi-head Weigher: Ideal for high-speed and high-precision weighing of products with irregular shapes or varying sizes. It provides multiple weighings in parallel for faster processing.
Linear Weigher: It is suitable for powder and granule. It is typically slower than a multi-head weigher but is effective for certain types of applications that require more continuous flow or controlled weighing.
About Cooperation Process
Does Kenwei offer installation and training?
Yes, Kenwei provides installation services and comprehensive training to ensure that your team can operate the machinery efficiently. Our engineers can travel to your facility for on-site installation, and we also offer remote training options if needed.
