Mini 4 Head Pipe-Type Linear Weigher Machine for Weighing Granules and Powders
Kenwei Mini 4 Head Pipe-Type Linear Weigher Machine offers precise weighing of granules and powders. This Linear Weighing Machine ensures high accuracy and efficiency, ideal for various industries. Reliable and easy to operate, perfect for your production line needs.
Model
JW-AXS4
MOQ
1set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
XS4-2-5
Weighing Range
5~200g
Accuracy
X(1)
Max Speed
20P/M
Hopper Volume
0.5L
Control Panel
7
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement
220V / 530W / 50/60Hz / 2.4A
Packing Dimension(mm)
900(L)x780(W)x990(H)
Gross Weight
90kg
Parameters Press No.
50
Max Mixing Products
4
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● New, highly integrated modular control system for improved performance.
●Parameter settings can be adjusted during operation based on real production conditions, ensuring simple and user-friendly operation.
●Adopts a stepless feeding mode to control material flow in real time, ensuring high weighing accuracy.

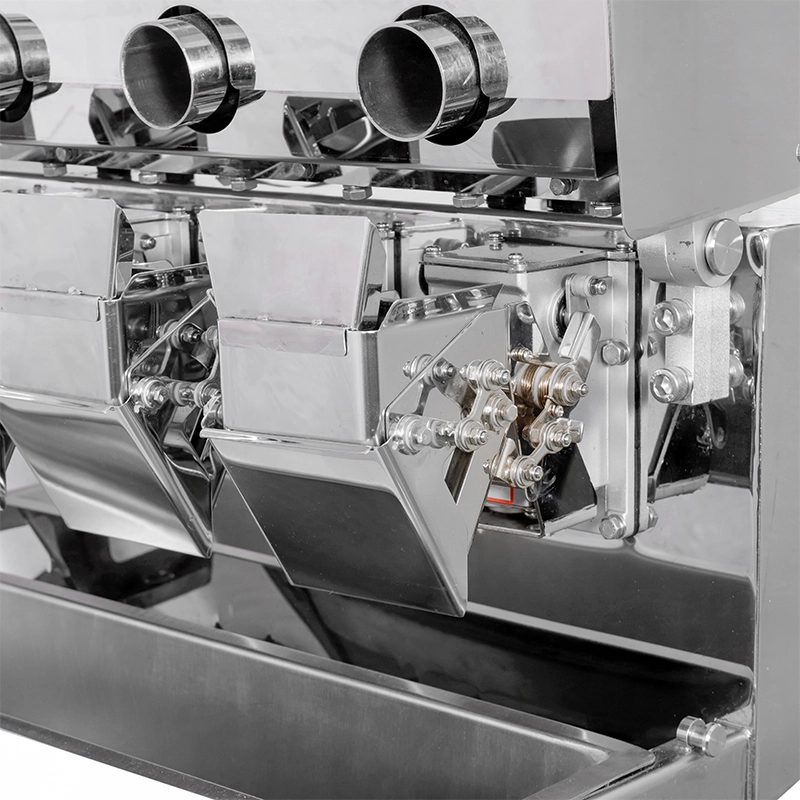

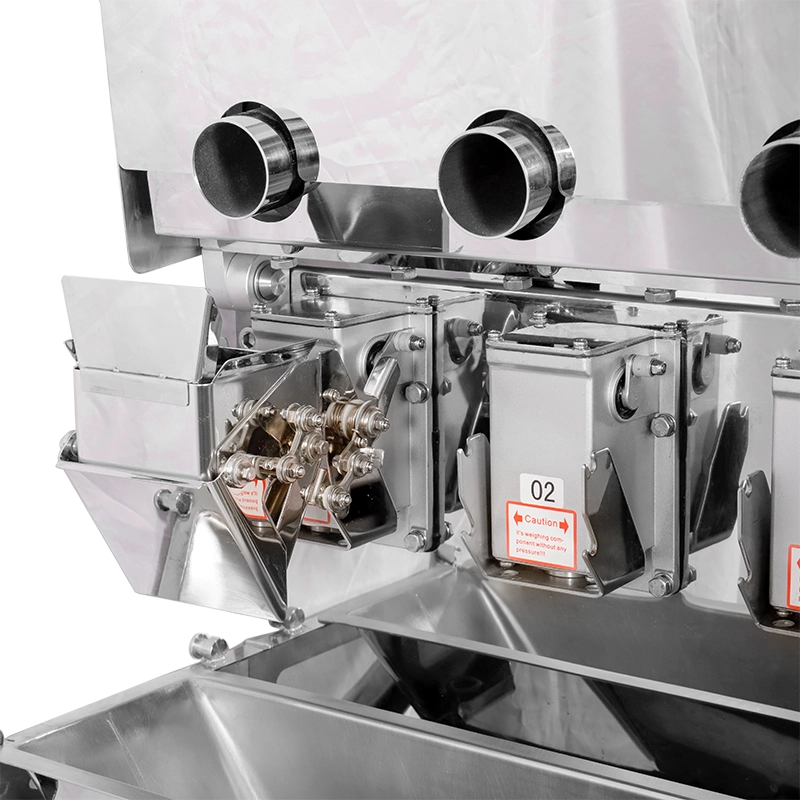

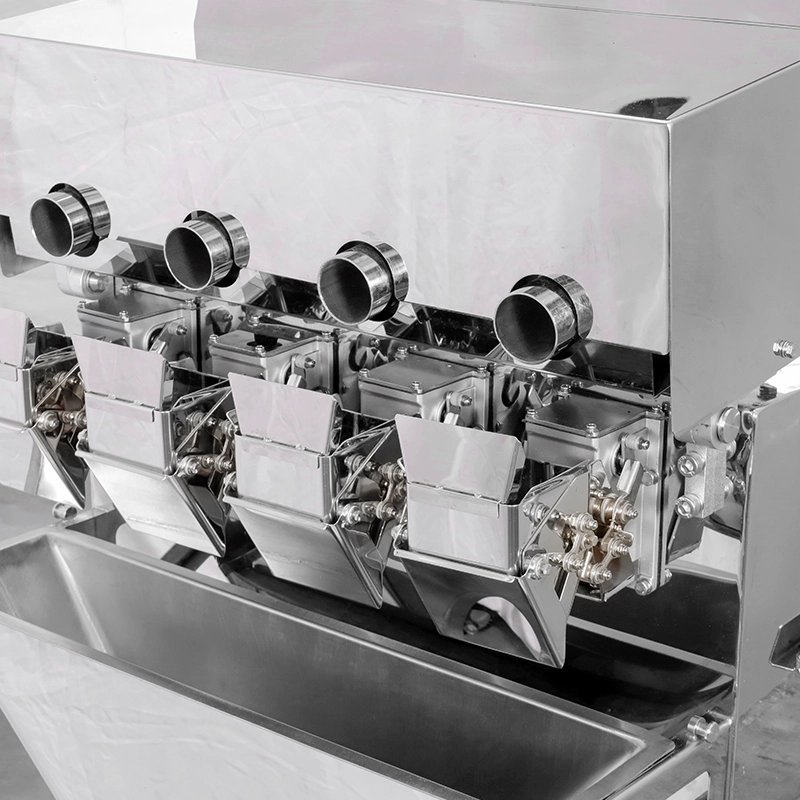

Mechanical Character
The entire machine is made of food-grade stainless steel to ensure hygiene and safety.and mustard.
A customized food-grade conveyor belt is used to meet the application requirements of various materials.
Designed with an easy-to-disassemble structure for convenient maintenance and cleaning.
Equipped with customized high-precision sensors to ensure accurate weighing.
Features independent gates that automatically open and close based on signal feedback.
All material-contact parts can be quickly disassembled for easier and more efficient cleaning.
Technical Specification
|
Model |
JW-AXS4 |
|
Identify Code |
XS4-2-5 |
|
Weighing Range |
5~200g |
|
Accuracy *1 |
X(1) |
|
Max. Speed *2 |
20P/M |
|
Hopper Volume |
0.5L |
|
Parameters Preset No. |
50 |
|
Max Products Mixed |
4 |
|
Control Panel |
7" Touch Screen |
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|
Power Requirement |
220V / 530W / 50/60Hz / 2.4A |
|
Packing Dimension (mm) |
900(L)x780(W)x990(H) |
|
Gross Weight |
90kg |
|
*1: Can refer to the national standard GB / T27738-2011 or the International Legal Organization No. 61 International Recommendation OIML R61 2004 (E). |
|
| *2: Depends on product shape, product density, target weight, etc. | |
Application
It is suitable for weighing tea, dehydrated vegetables, dried flowers, seasonings, chopped Chinese herbs, and other lightweight or dust-prone products.
