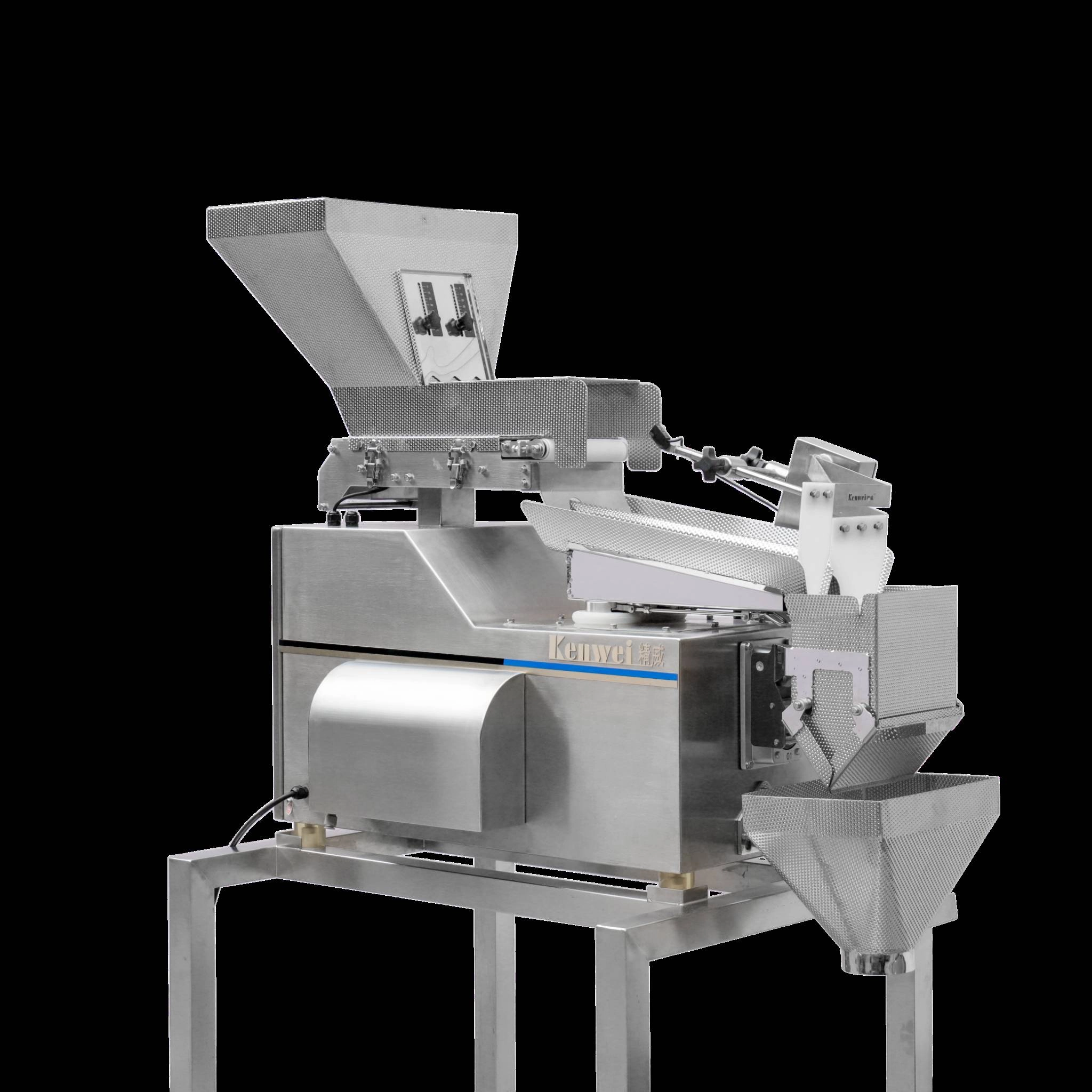

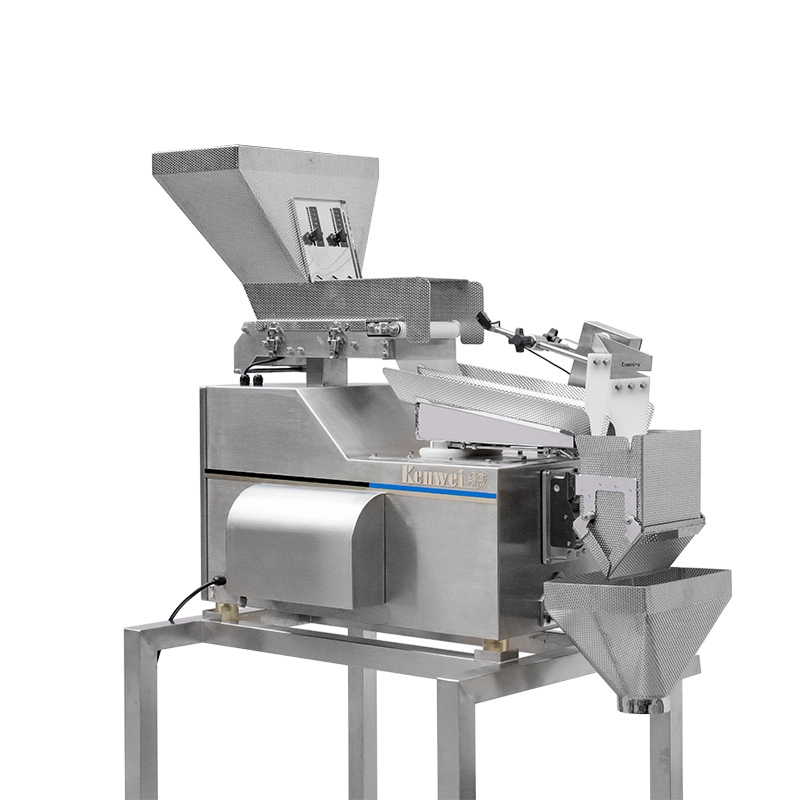

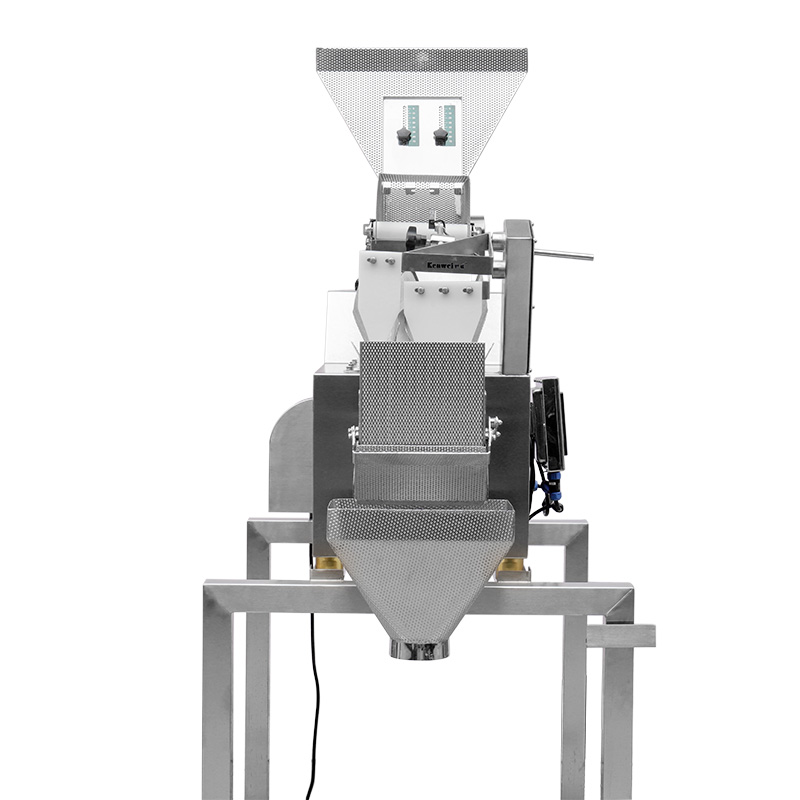

1 Head Linear Weigher with Two-Layer Belt Vibrating
Kenwei 1 Head Linear Weigher with Two-Layer Belt Vibrating ensures high-precision, efficient weighing for diverse products. This Linear Weigher Machine features advanced vibration technology for stable material flow, ideal for accurate batching in packaging lines. Reliable linear weigher performance guaranteed.
Model
JW-AX1
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
X1-2-10
Weighing Range
50~1000g
Accuracy
X(1)
Max Speed
10P/M
Hopper Volume
4.5L
Control Panel
7
Options
Timing Hopper/Printer/Reject Device
Power Requirement
220V / 1200W / 50/60Hz / 6A
Packing Dimension(mm)
1200(L)x660(W)x1050(H)
Gross Weight
110kg
Parameters Press No.
100
Max Mixing Products
1
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Equipped with a brand-new, highly integrated modular control system for enhanced performance.
● Parameter settings can be adjusted during operation according to actual production conditions, ensuring simple and user-friendly operation.

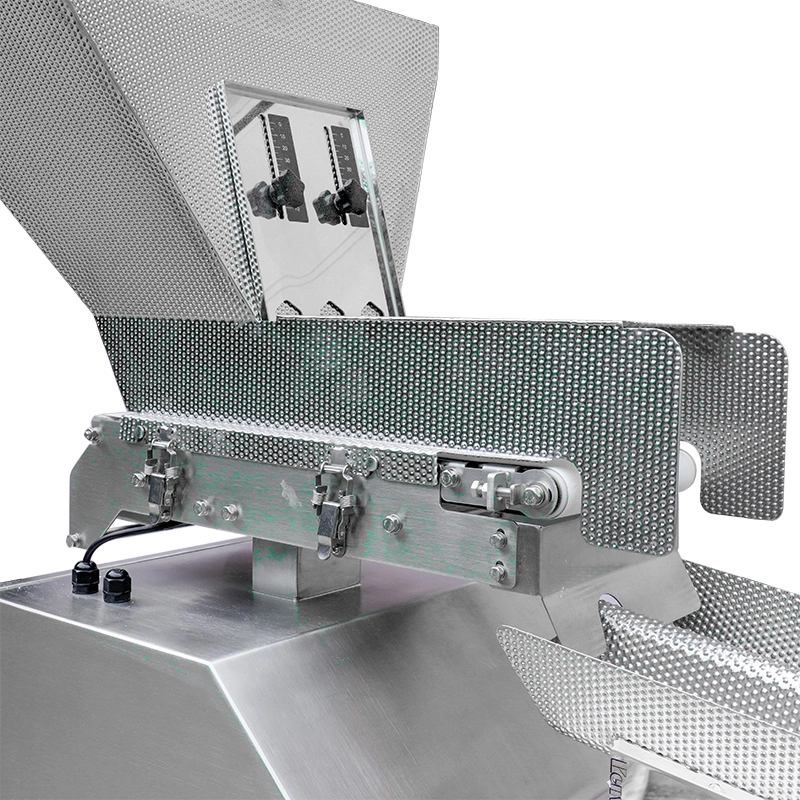

●Adopts a double-layer feeding structure—upper belt feeding and lower vibrating plate feeding—allowing precise control of material thickness on the vibrating plate to ensure accurate feeding.
● Utilizes a stepless feeding mode to control material flow in real time, ensuring high weighing accuracy.
Mechanical Character
The entire machine is constructed from food-grade stainless steel to ensure hygiene and safety.
A customized food-grade conveyor belt is used to meet the diverse application requirements of different materials..
Designed with an easy-to-disassemble structure for convenient maintenance and cleaning.

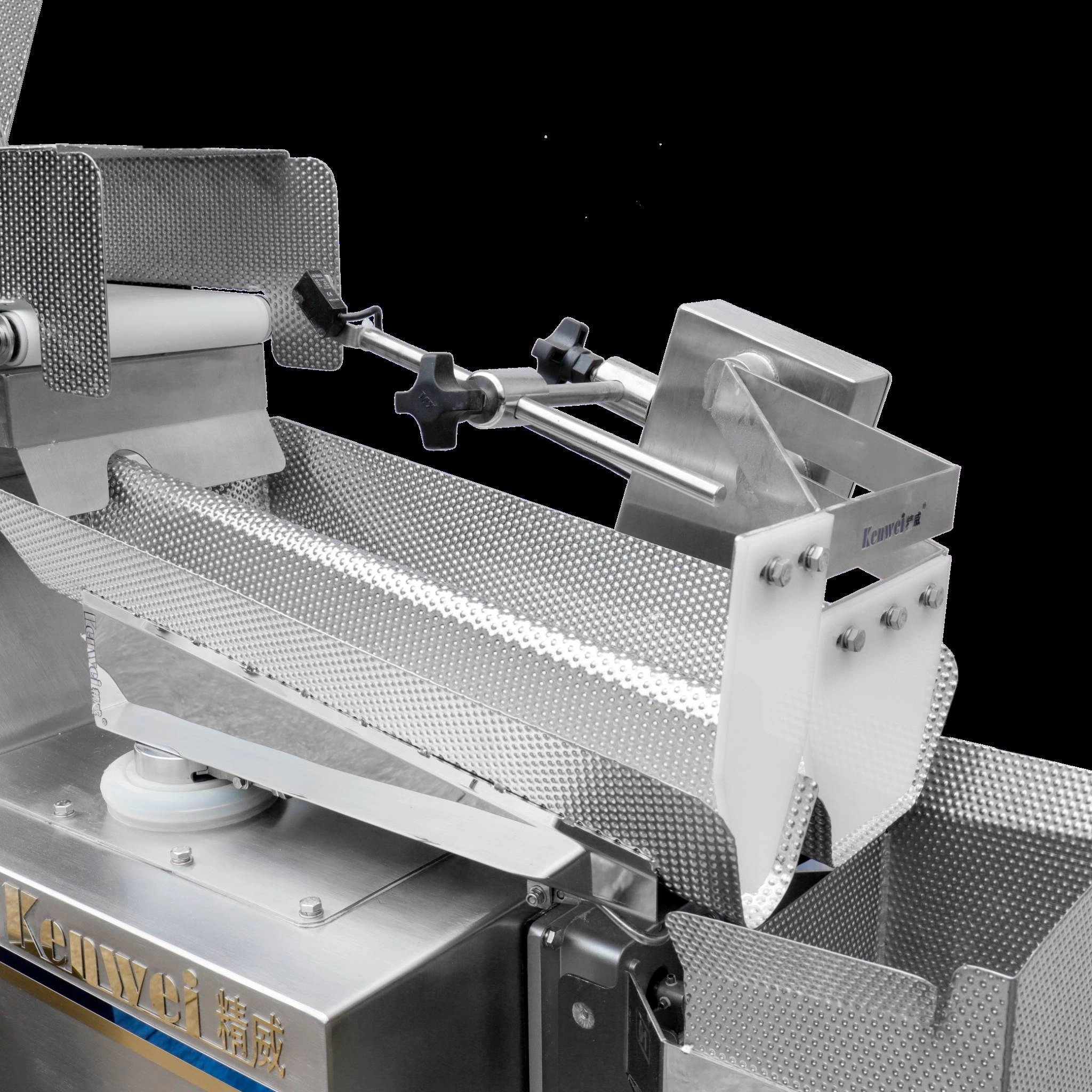

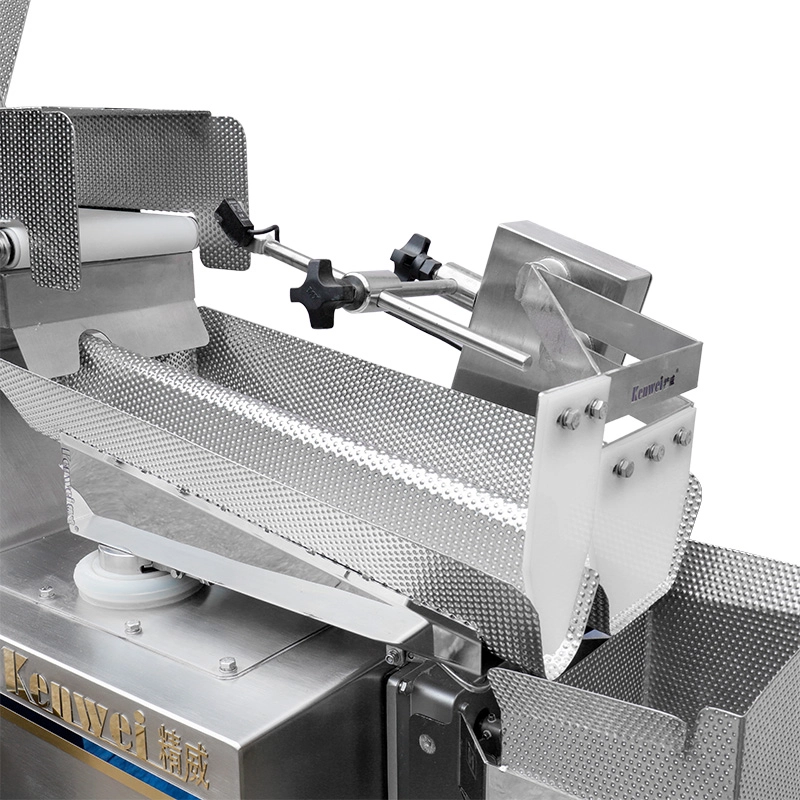

A double-vibration plate feeding system is adopted: the main vibration plate provides fast feeding, while the auxiliary plate delivers precise topping-up to ensure accurate dosing.

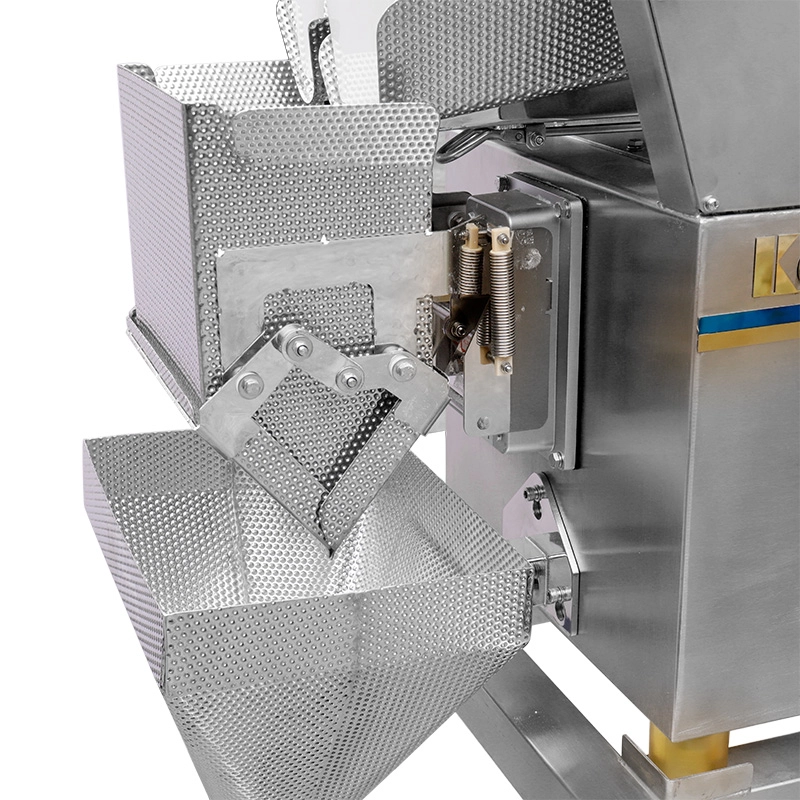

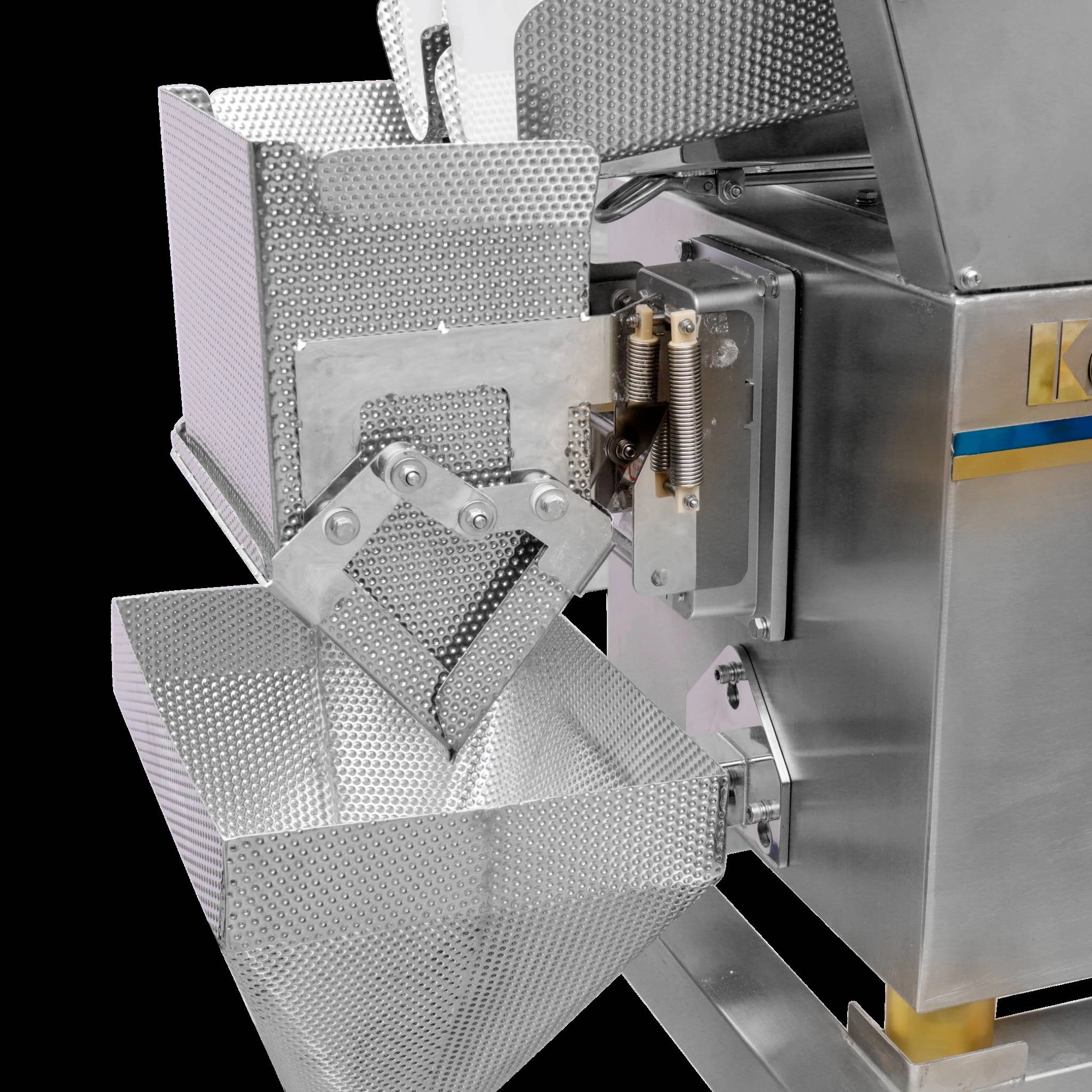

Both the main and auxiliary vibration plates are equipped with independent gates that automatically open and close based on signal feedback.
The front inclined upper hopper design provides an effective anti-bridging solution for sticky materials.
Technical Specification
|
Model |
JW-AX1 |
|
Identify Code |
X1-2-10 |
|
Weighing Range |
50~1000g |
|
Accuracy #1 |
X(1) |
|
Max. Speed #2 |
10P/M |
|
Hopper Volume |
4.5L |
|
Parameters Preset No. |
100 |
|
Max Products Mixed |
1 |
|

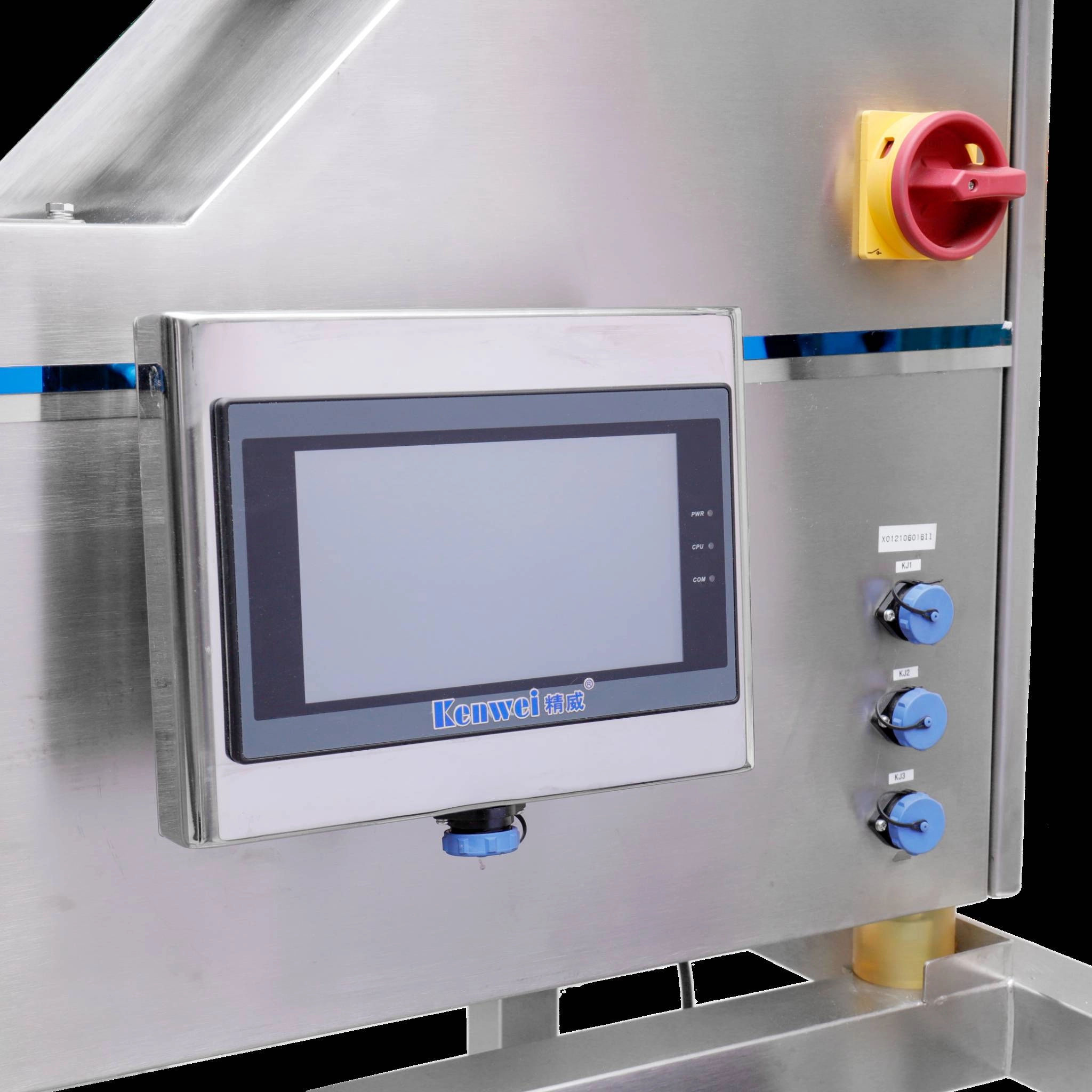

Control Panel |
7" Touch Screen |
|
Options |
Timing Hopper/Printer/Reject Device |
|
Power Requirement |
220V / 1200W / 50/60Hz / 6A |
|
Packing Dimension (mm) |
1200(L)x660(W)x1050(H) |
|
Gross Weight |
110kg |
|
#1: Please refer to national standard GB/T27738-2011 or international recommendation OIML R61 2004 (E) of international Legal Metrological Organization 61. |
|
| *2: Depends on product shape, product density, target weight, etc. | |
Application
It is suitable for the quantitative weighing of materials with poor fluidity and slight viscosity, such as brown sugar, industrial salt, fresh corn kernels, cauliflower, and onion slices, as well as various block, diced, stem-type vegetables and medicinal products.
