Precision Linear Weigher for Weighing Powder & Small Granules
The linear weigher is perfect for precise, quantitative weighing of powdery and small granular materials such as white sugar, salt, monosodium glutamate, chicken essence, milk powder, coffee, seasoning powder, and more. Available in up to 5 different specifications, this linear scale offers a maximum weighing speed of up to 70 bags per minute, making it the top choice for accurately weighing powdery materials in high-speed production environments.
Model
JW-AX2
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
X2-2-1
Weighing Range
20-3000g
Accuracy
X(1)
Max Speed
30P/M
Hopper Volume
4.5L
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement
220V/50/60Hz/5A
Packing Dimension(mm)
920(L)*800(W)*890(H)
Parameters Press No.
100
Max Mixing Products
2
Power
1200W
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature

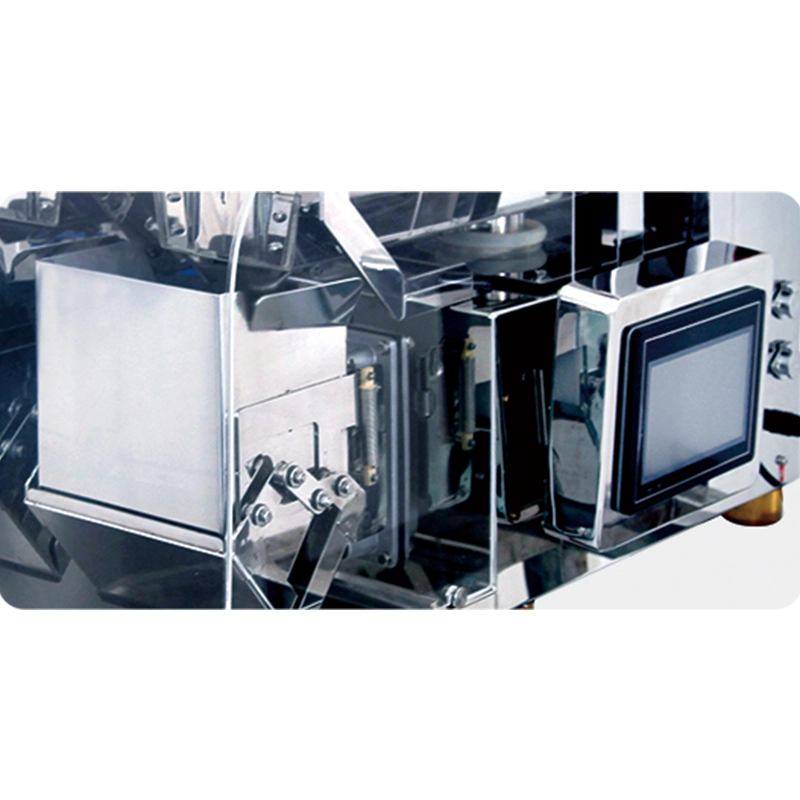

● Advanced new modular control system for enhanced performance.
● Automatic amplitude adjustment for optimal operation.
● Capable of mixing and weighing different products in a single discharge.
● Adjustable parameters for easy customization based on production needs.

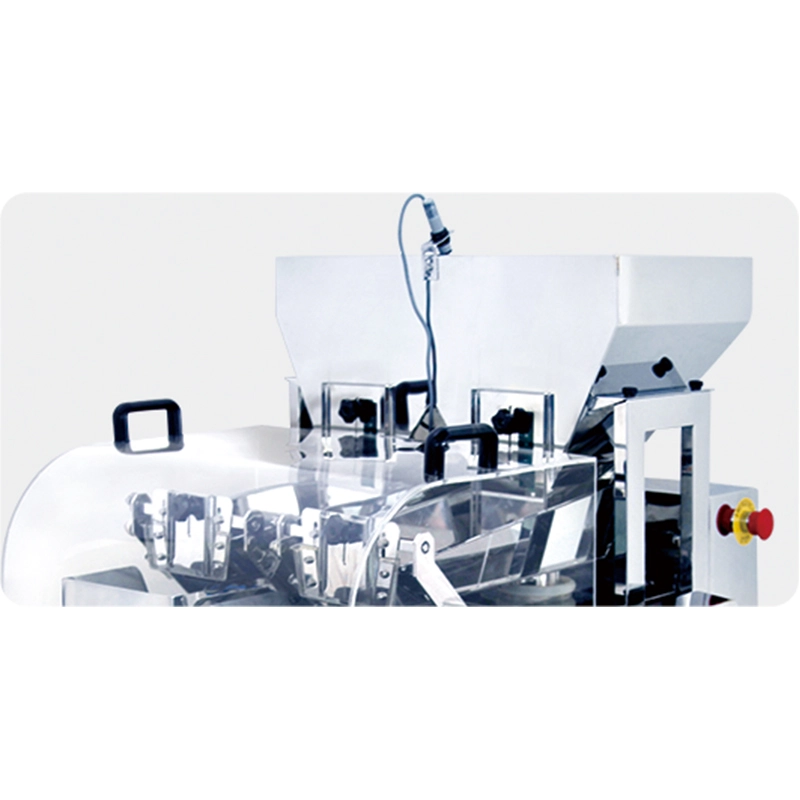

● Features a stepless vibrating feeding system for smoother product flow.
Mechanical Character

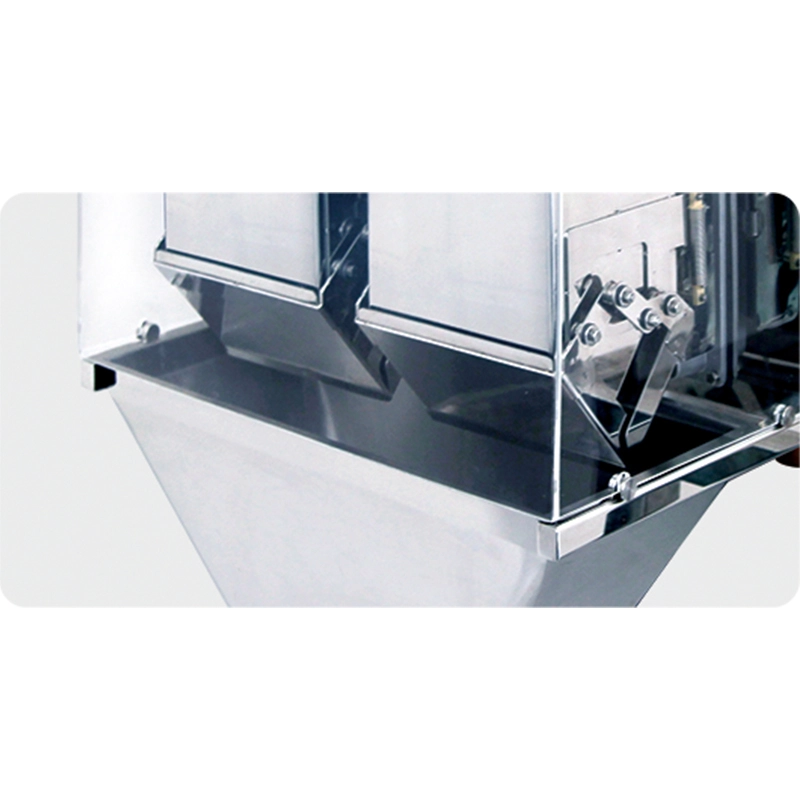

Made with 304SS construction for superior sanitation and durability.

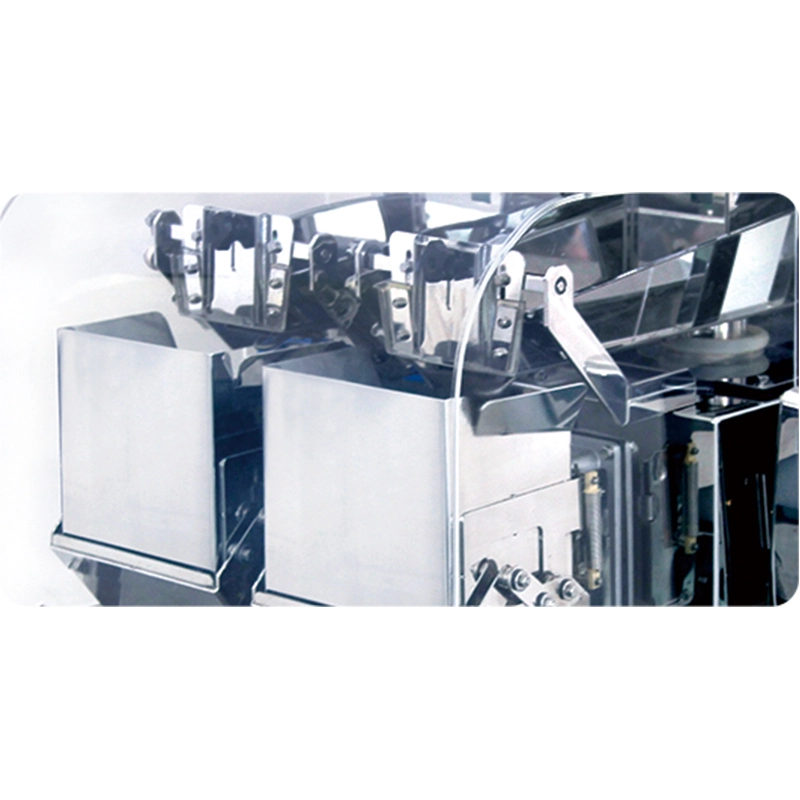

Robust design of the vibrator and feed pan ensures precise and accurate feeding.
Quick-release design for easy maintenance and cleaning of all contact parts.
Technical Specification
|
Model |
JW-AX1 |
JW-AX2 |
JW-AXM2 |
JW-AX4 |
JW-AXS4 |
|
Identify Code |
X1-2-1 |
X2-2-1 |
XM2-2-1 |
X4-2-1 |
XS4-2-1 |
|
Weighing Range |
20-1000g |
20-3000g |
1000-12000g |
20-2000g |
2-300g |
|
Accuracy |
X(1) |
X(1) |
X(1) |
X(1) |
X(1) |
|
Max Speed |
10-15P/M |
30P/M |
25P/M |
55P/M |
70P/M |
|
Hopper Volume |
4.5L |
4.5L |
15L |
3L |
0.5L |
|
Parameters Press No. |
100 |
100 |
100 |
100 |
100 |
|
Max Products Mixed |
1 |
2 |
2 |
4 |
4 |
|
Control Panel |
7”Touch Screen |
||||
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
||||
|
Power Requirement |
220V/700W/50/60HZ/5A |
220V/1200W/50/60HZ/6A |
220V/1200W/50/60HZ/6A |
220V/1200W/50/60HZ/6A |
220V/1200W/50/60HZ/6A |
|
Packing Dimension(mm) |
860(L)X570(W)X920(H) |
920(L)X800(W)X890(H) |
1215(L)X1160(W)X1020(H) |
1080(L)X1030(W)X820(H) |
820(L)X800(W)X700(H) |
|
Gross Weight |
80Kg |
130Kg |
280Kg |
160Kg |
135Kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |||||
| *2: Depends on product shape, product density, target weight, etc. | |||||
Application
Ideal for weighing sliced, rolled, or uniformly shaped products such as sugar, salt, seeds, rice, sesame, monosodium glutamate, milk powder, coffee, seasoning powder, and more. Perfect for efficient and precise weighing of a variety of materials in food processing and packaging.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Cooperation Process
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
About products customization
Can I customize Kenwei machines to suit my specific needs?
Yes, Kenwei offers a wide range of customization options to ensure that our machines meet your production requirements.
About Product choice
What is the average lifespan of Kenwei products?
Kenwei machines are built for durability and longevity. With proper maintenance, our products are designed to last for many years, even under heavy usage. We offer maintenance services and support to help extend the lifespan of your machines.
About Solution suggestions
Can Kenwei provide solutions for high-volume production?
Yes, Kenwei specializes in high-speed, high-throughput machines designed for large-scale operations. Our multi-head weighers, packing machines, and check weighers.
Can Kenwei solutions be adapted for different product packaging types?
Yes, Kenwei solutions can handle a variety of packaging types, including bags, boxes, pouches, and bottles. We can customize machines to suit your packaging format, ensuring compatibility with your packaging equipment.
