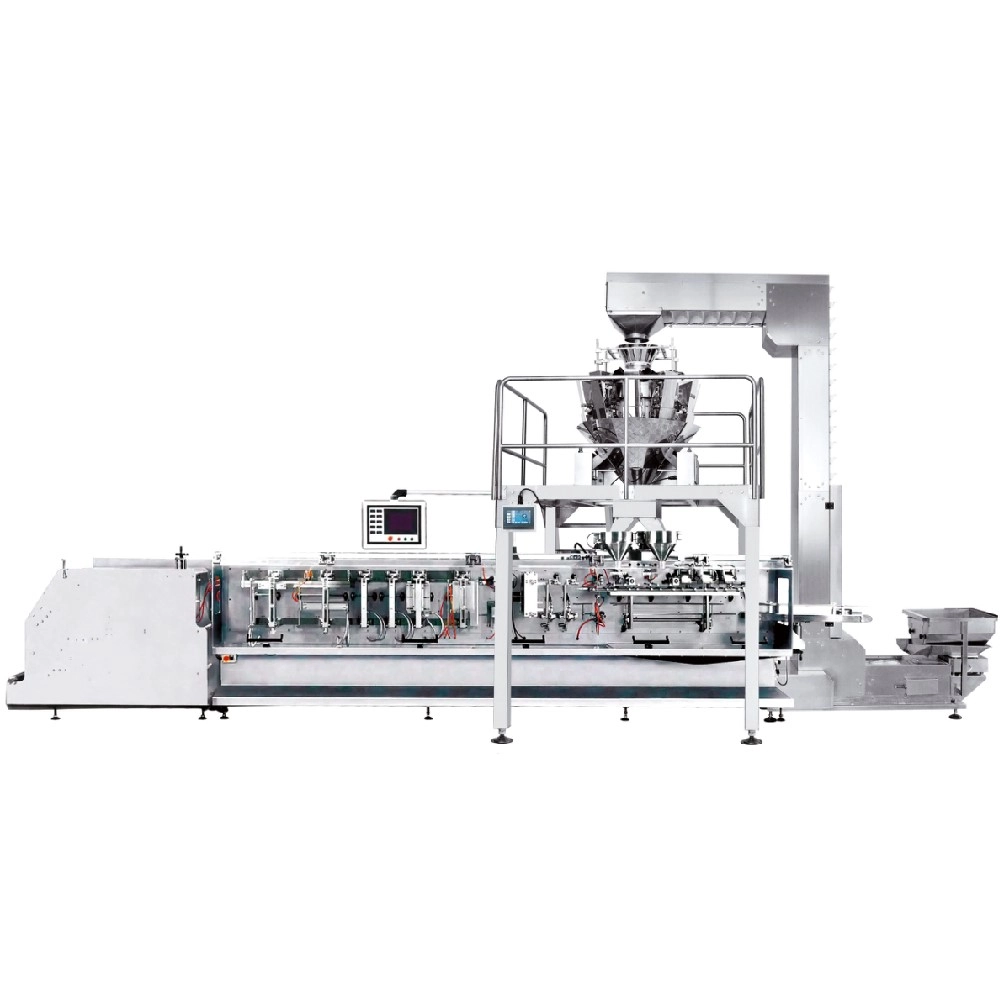

Weighing and packing systems with double inlet pre-made bag packing machines JW-B14
The JW-B14 double inlet pre-made bag packing machine offers a fully automatic solution for feeding, weighing, filling, date printing, and output. With high speed and ±0.1g accuracy, it supports a wide range of products—granules, slices, irregular shapes like candy, coffee beans, pet food, and more. Designed for pre-made bags, it ensures stable performance, efficient production, and attractive bag appearance.
Model
JW-B14
MOQ
1set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Weighing Range
50~2000g
Accuracy
±0.1g
Hopper Volume
1.6/2.5 L
Control Panel
7.0'' Touch Screen
Driving System
Step Motor
Power Requirement
220V/1500W/50/60HZ/10A
Speed(m/min)
20~60bags/min
Max weight(Kg)
1200
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
-

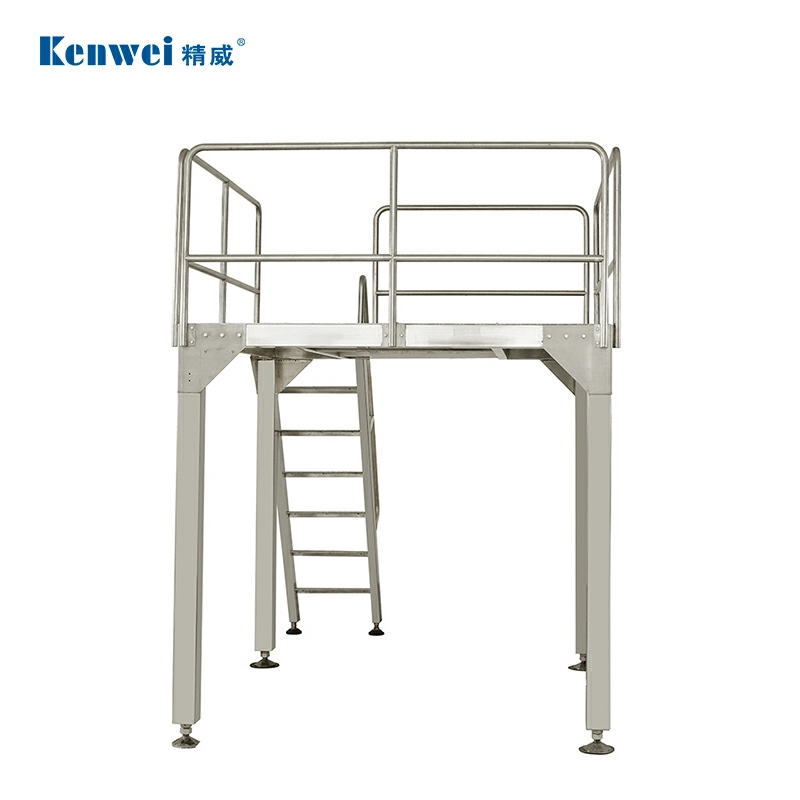

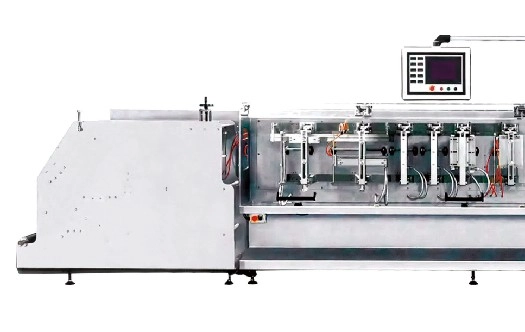

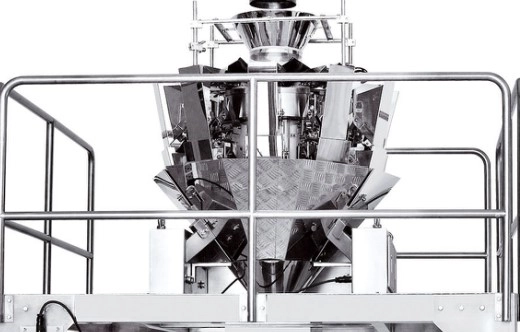

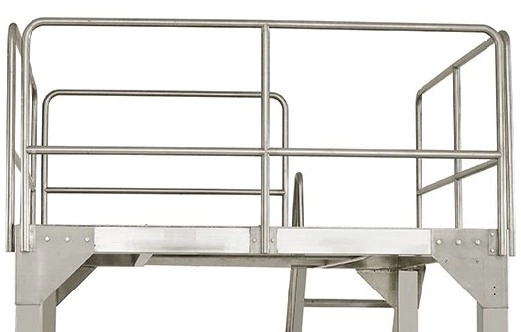

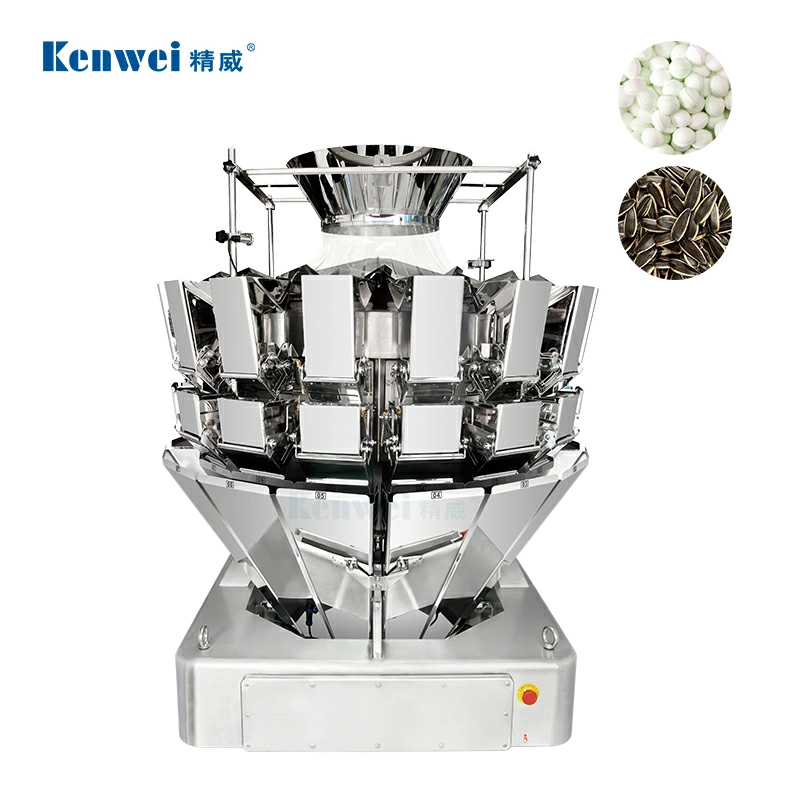

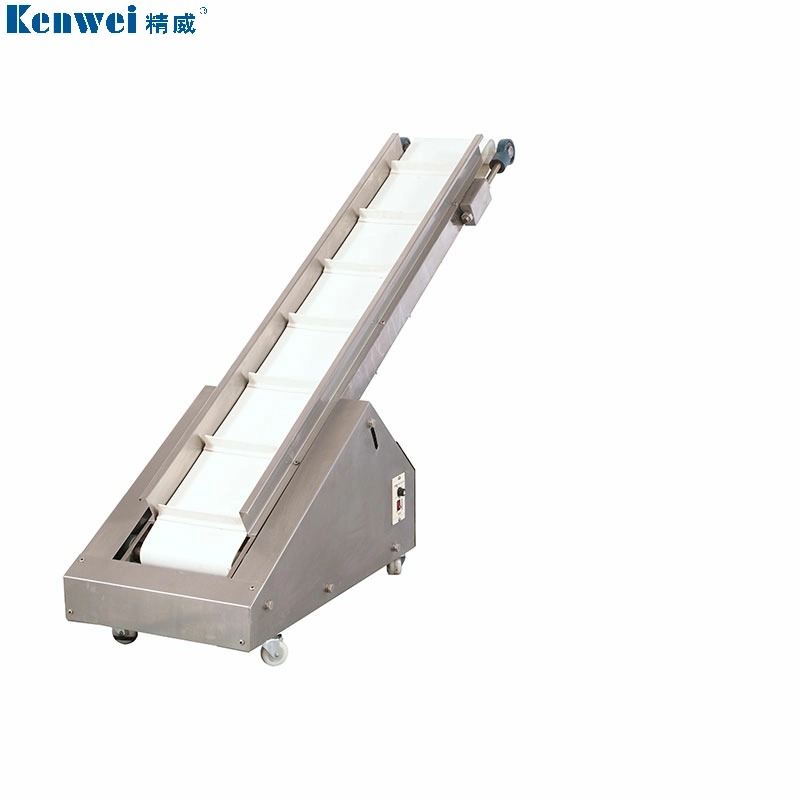

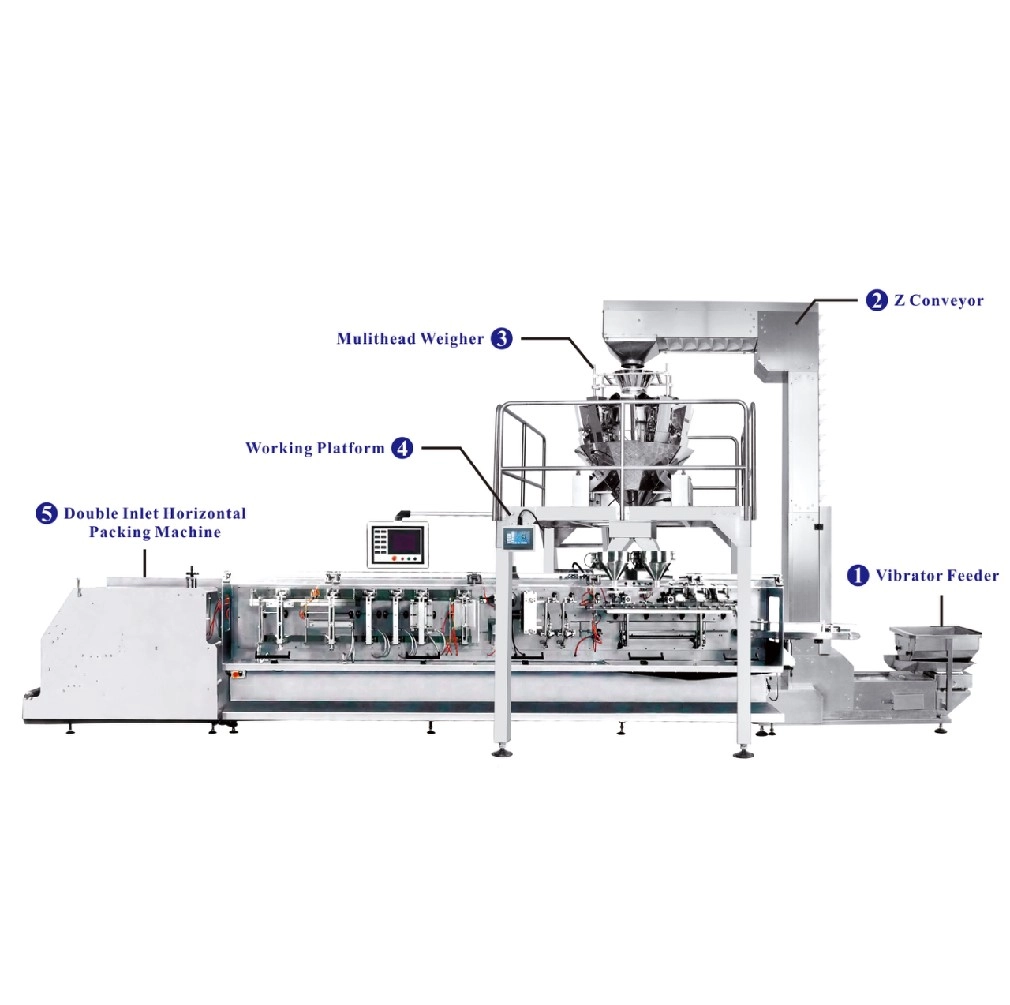

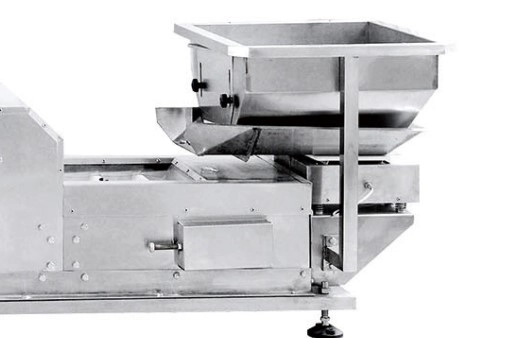

● System Including: vibrator feeder, Z conveyor, working platform, multi-head weigher, and double-inlet horizontal packaging machine.
-
-
● Fully automatic process, covering feeding, weighing, date printing, and finished product output.
-
● Versatile and suitable for a wide range of materials.
-
● Delivers high precision and exceptional efficiency.
-
● Ensures stable operation, high-speed performance, and efficient production with aesthetically pleasing pre-made bags.
-

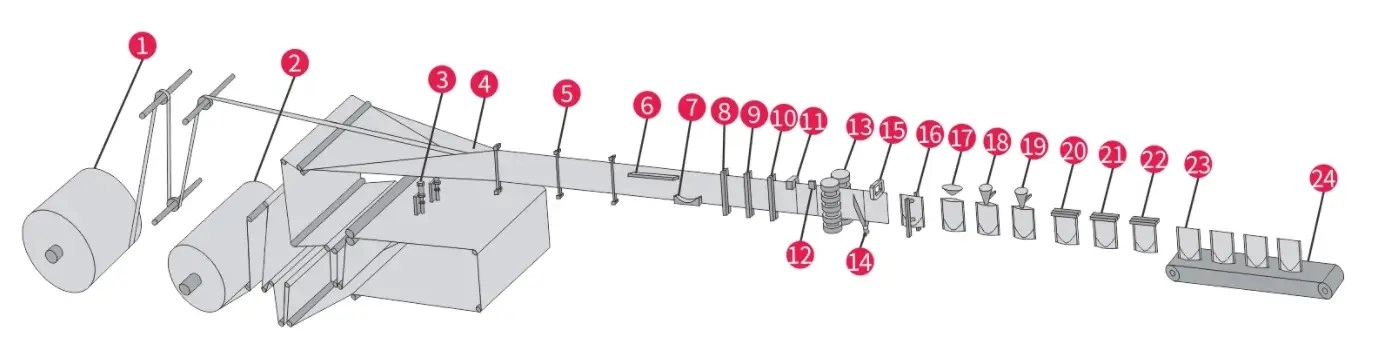

Horizontal Pouch Packing Machine Process Flow Diagram
The horizontal pouch packing machine process:from film feeding and zipper insertion to forming, sealing, filling, and cutting—ensuring efficient, high-speed packaging with precise alignment, secure sealing, and reliable finished product output.
| 1. Zipper Device | 2. Film Device | 3. Bottom Hole Maker | 4. Forming | 5. Film Guider | 6. Horizontal Zipper Sealing |
| 7. Bottom Sealing | 8. Vertical Sealing 1 | 9. Vertical Sealing 2 | 10. Vertical Sealing 3 | 11. Easy Tear Maker | 12. Color Marks Sensor |
| 13. Servo Motor Puller | 14. Cutting | 15. Bag Holder | 16. Bag Opening | 17. Air Blowing | 18. Filling 1 |
| 19. Filling 2 | 20. Ready to Seal | 21. Hot Sealing | 22. Cool Sealing | 23. Finished Product | 24. Finished Product Output |
Application
It is an ideal solution for weighing a variety of products, including granules, slices, rolls, and irregularly shaped items such as candies, seeds, jelly, French fries, coffee beans, peanuts, puffed foods, biscuits, chocolates, nuts, pet food, hardware, and more.

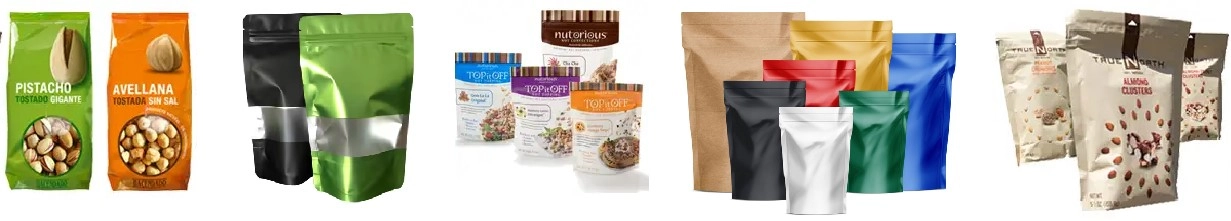

Bag Type
Include: 3-side seal bag, 4-side seal bag, flat bag, flat bag with zipper, stand-up bag with zipper, special flat bag, and special stand-up bag, and more.
Optional Equipment

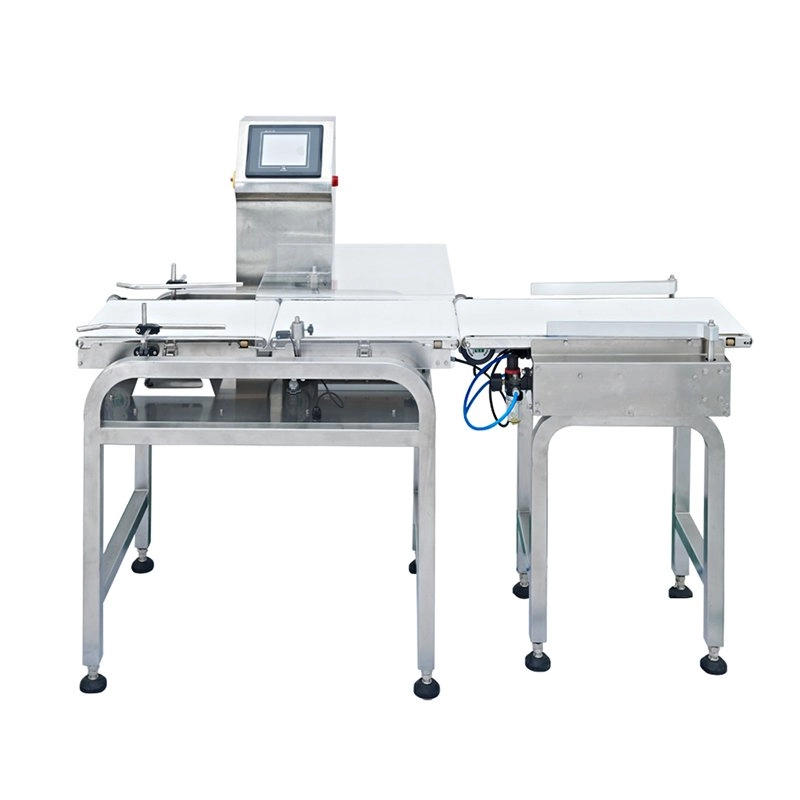

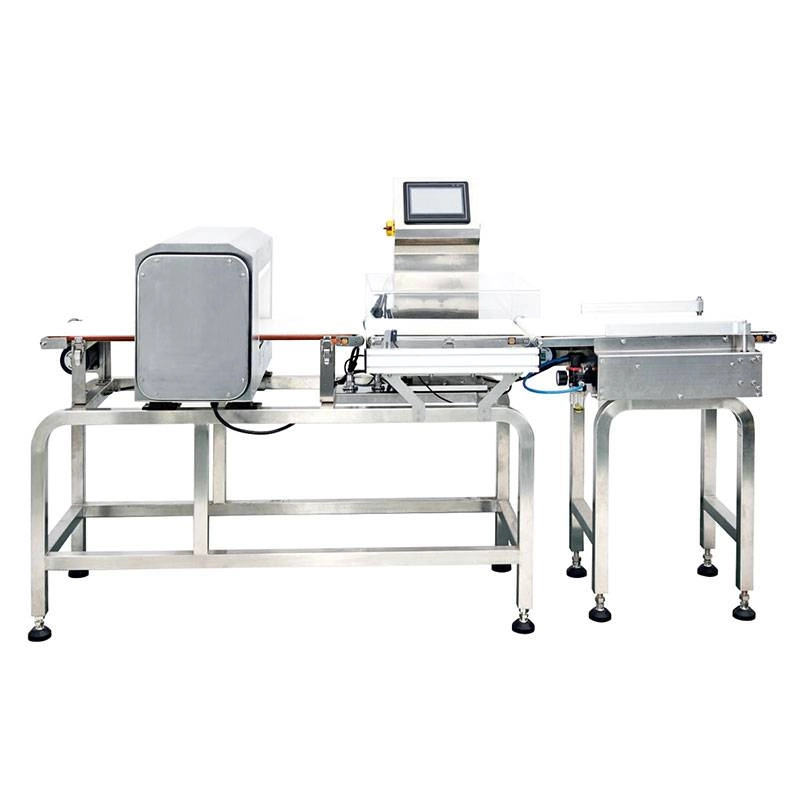

It is designed to inspect the weight of packaged bags and boxes, automatically identifying and rejecting any items that do not meet the preset weight standards using a rejection mechanism.
It is widely applied in industries such as food, pharmaceuticals, chemicals, textiles, apparel, toys, and rubber. It is an ideal solution for meeting HACCP standards in the food industry and GMP compliance in pharmaceutical production.

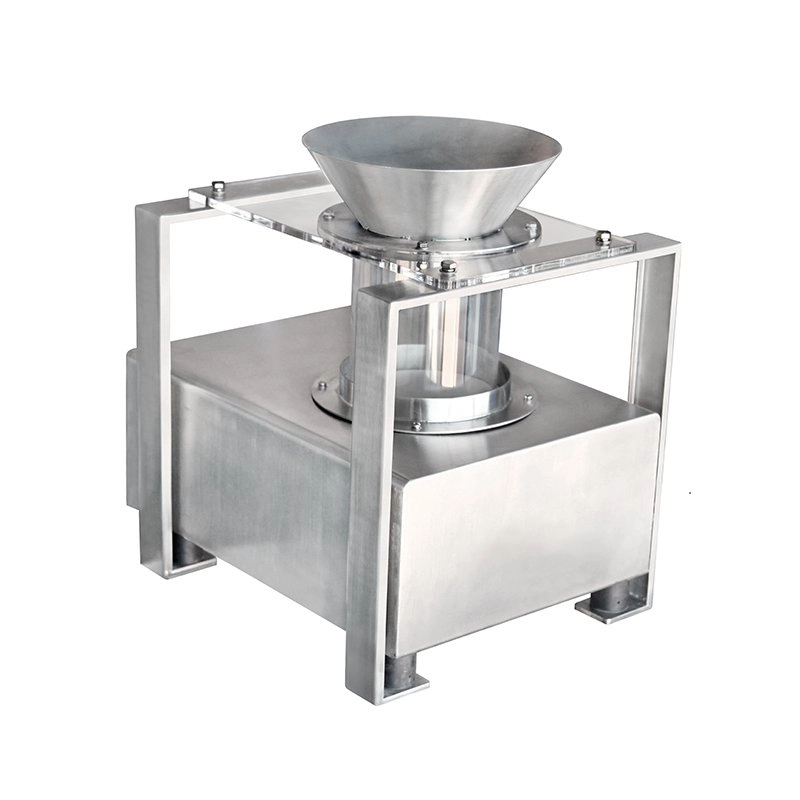

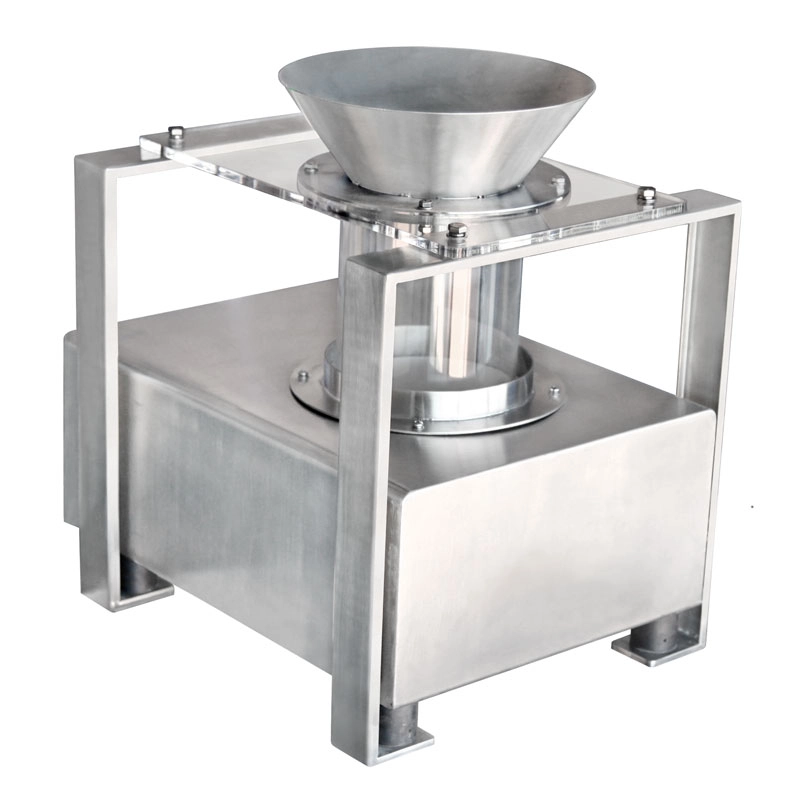

Throat Metal Detector
This equipment is specifically applied for inspecting and detecting powders, granules, and sheet materials. It ensures precise and reliable quality control, making it ideal for use in food, pharmaceutical, chemical, and related industries.
It is widely applied in the food, pharmaceutical, chemical, textile, clothing, toy, and rubber industries. As a top choice for HACCP compliance in the food sector and GMP standards in the pharmaceutical field, it ensures high-level quality control and safety.
Rotary collecting table
Designed for collecting products from the production line, this equipment is ideal for operations requiring manual handling or temporary storage before the next packaging stage. Perfect for improving workflow efficiency in various processing environments.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About After Sales Support
How about the after-sales service?
Warranty :2 years
About Price and payment
How is the price of Kenwei machines determined?
The price of Kenwei machines depends on several factors, including the type of machine, customization requirements, production volume, and any additional features or integrations. We provide tailored quotes based on your specific needs and requirements.
About Solution suggestions
What industries benefit the most from Kenwei solutions?
Kenwei solutions are ideal for a wide range of industries, including:
1）Food Packaging snacks, grains, and powdered beverages.
2）Pharmaceuticals: Precise weighing of tablets, and capsules.
3）Chemicals: Weighing and packaging granular and powdered chemicals.
4）Agriculture: Packaging seeds, grains, and fertilizers.
About Product choice
Can Kenwei's machines be used in my industry?
Kenwei’s equipment is highly versatile and can be used across a wide range of industries, including:Food,Pharmaceuticals,Chemicals,Plastics and Agriculture.
Plastics If you're unsure whether our products are suitable for your industry, please contact us, and we can provide you with specific solutions tailored to your needs.
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
