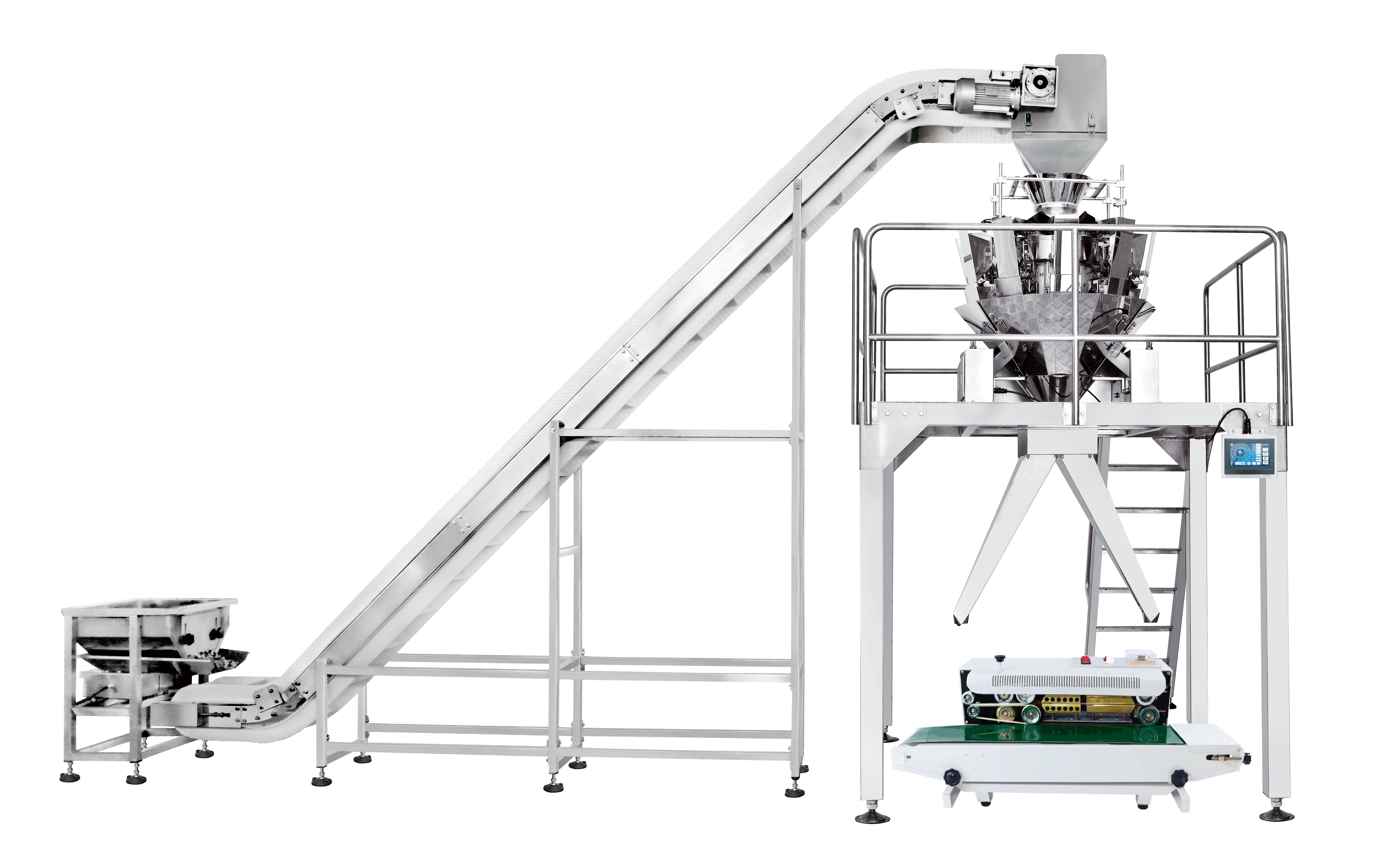

Two-outlet semi-auto weighing and packing system with inclined conveyor JW-B17
The Kenwei JW-B17 Two-Outlet Semi-Auto Weighing and Packing System with Inclined Conveyor offers precise, efficient weighing for granules, slices, and irregular items like candy, peanuts, pet food, and small hardware. Its fully automated operation boosts productivity, while the compact design saves space and reduces costs. Compatible with various bag types, this cost-effective system includes optional chain plate or belt inclined conveyors for flexible material handling.
Model
JW-B17
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Weighing Range
10~7500g
Accuracy
±0.5-1.5g
Hopper Volume
1.6/2.5 L
Control Panel
7" Touch Screen
Driving System
Step Motor
Packing Speed
20bag/min, 25bag/min, 50bag/min
Power
220V/1500W/50/60HZ/10A
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
-
-
● Fully-automatically completes all the process from feeding, weighing and finished products outputting;
● Wide scope of application, Suitable for various materials, High weighing precision and efficiency.
● Save space and input cost.
● cheapness, high price ratio, Suitable for kinds of bag type which cann't made by packaging machine.

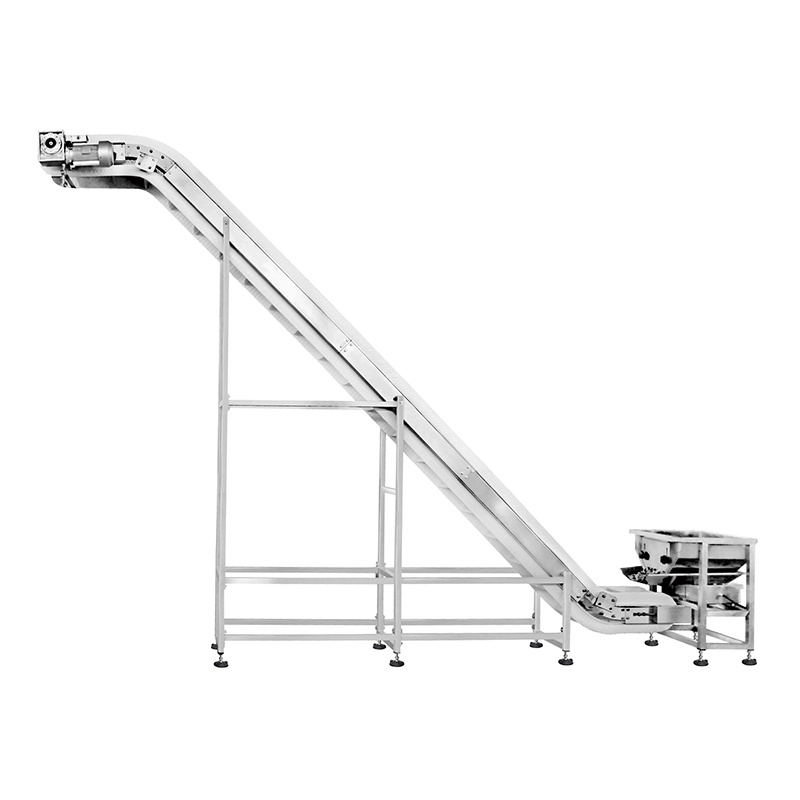

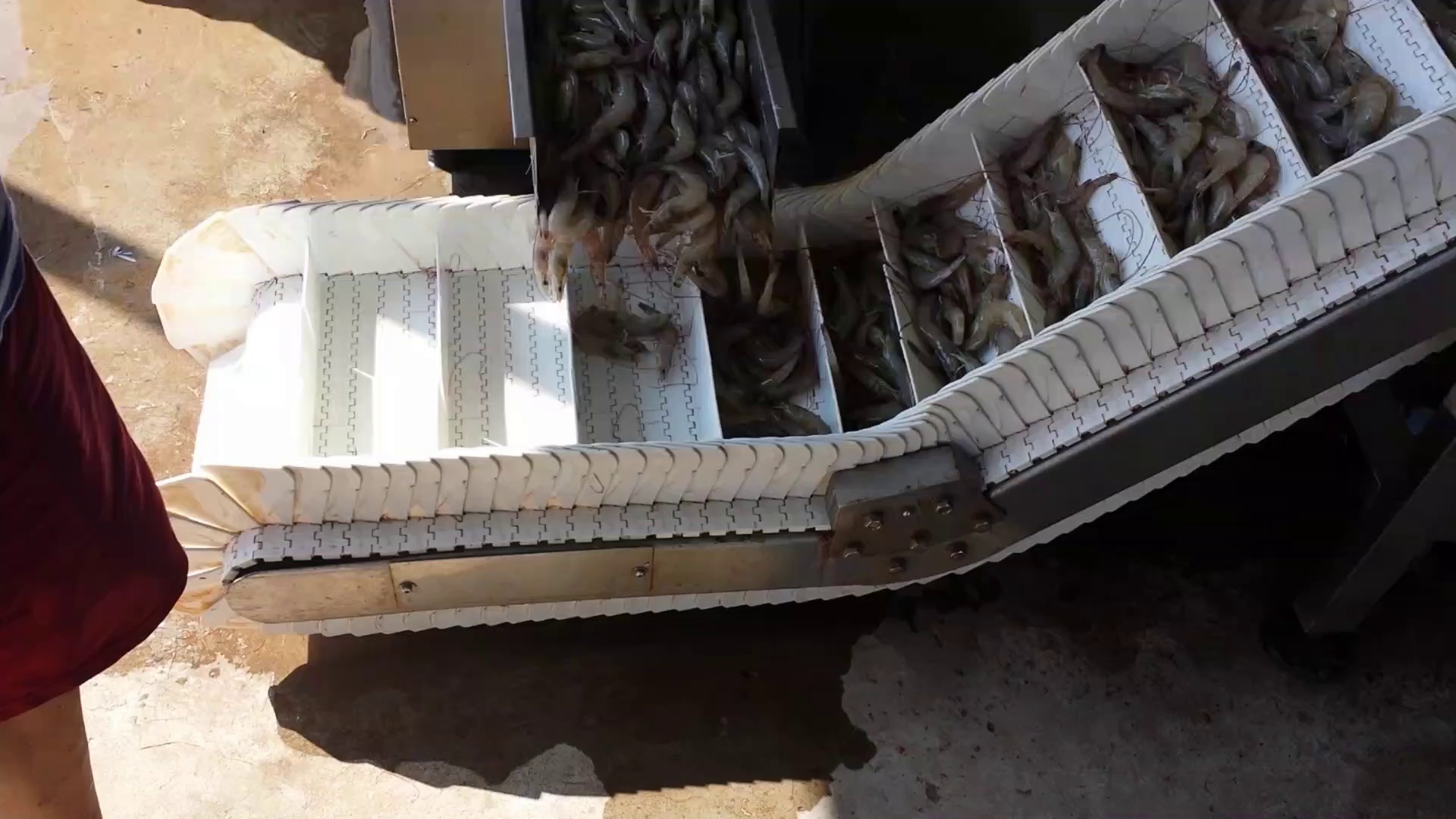

● Chain plate type inclined conveyor: Used to convey large size products; belt type inclined conveyor: used to convey granule, power, etc.
-

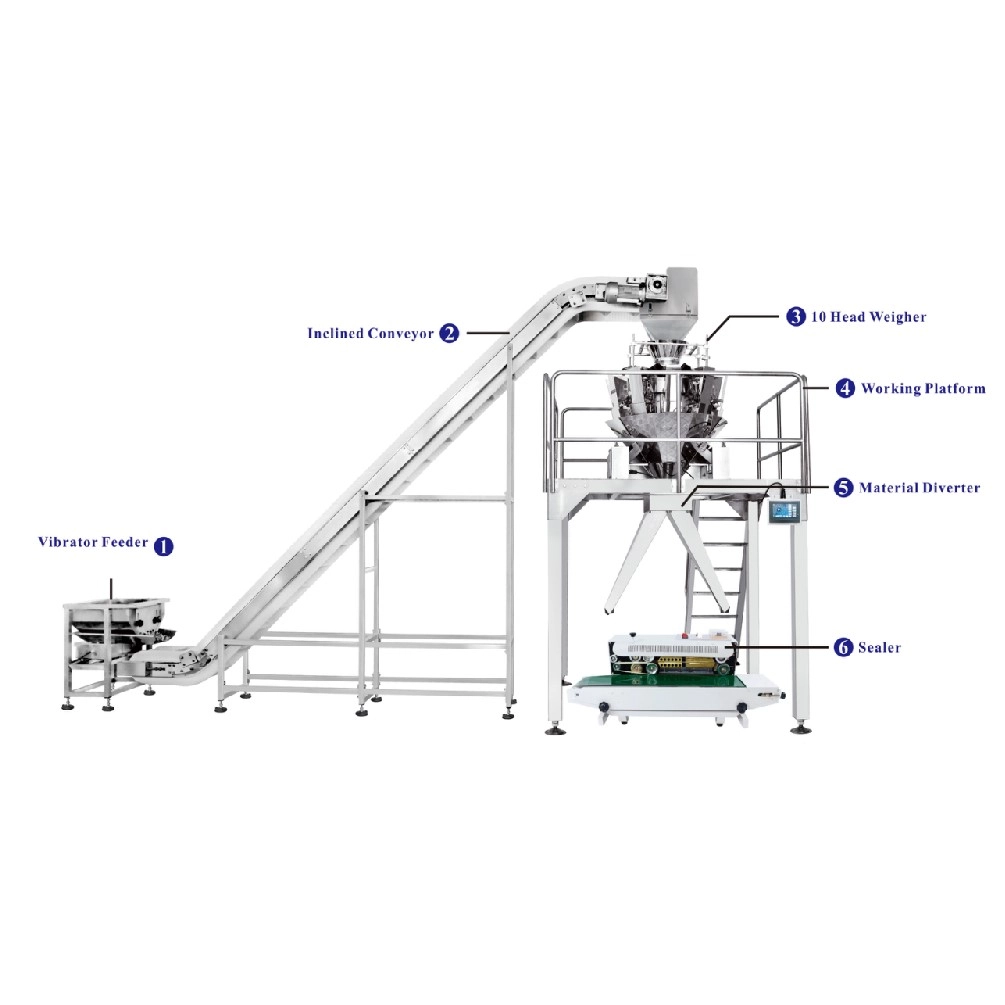

Manual Packing System Process Flow
- The Manual Packing System follows a streamlined process: feeding, weighing, filling, sealing, and output. This setup ensures basic packaging efficiency while allowing flexibility and control, ideal for small-scale or customized production operations.
Series Models
Semi-automatic weighing and packaging system (single output), with a packaging speed of 15-20 packs per minute (low speed, where the multihead weigher operates at a lower load).
Semi-automatic weighing and packaging system (dual output), with a packaging speed of 30-40 packs per minute (requires two operators to collect the products, with the multihead weigher functioning under normal load conditions).
Application
It is suitable for weighing granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, net, pet food, small hardware, etc
Optional Equipment
Check weigher
Eliminates products that don’t meet weight standards, sorts them, and generates statistical data. (if already equipped with other weight detection equipment then no need use this machine)

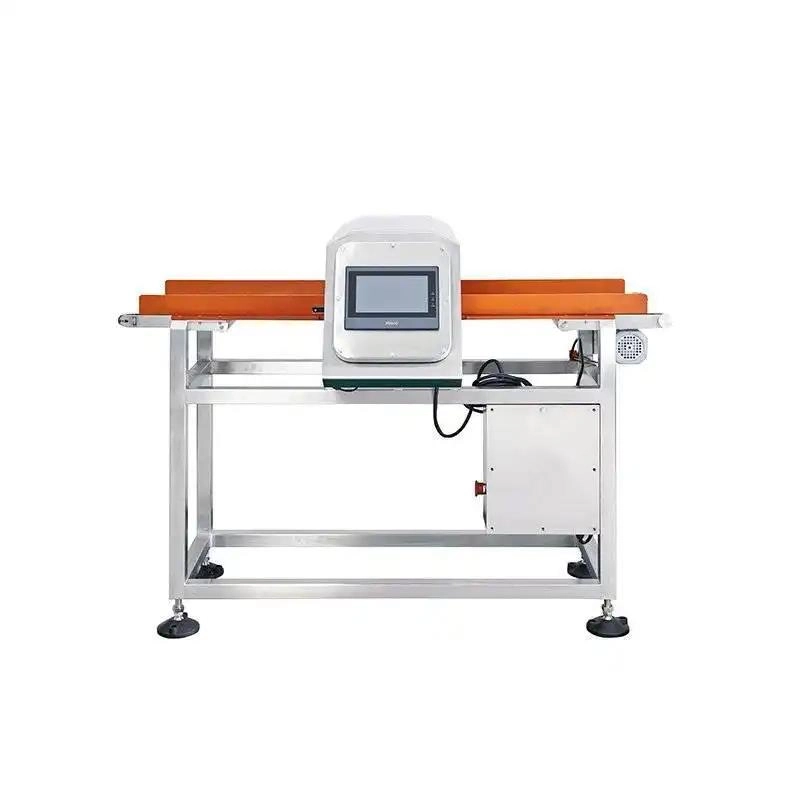

Horizontal Metal Detector
Used to detect any metal contamination that may have occurred during the production process. It is ideally placed after packaging is complete.(if already equipped with other weight detection equipment then no need use this machine)

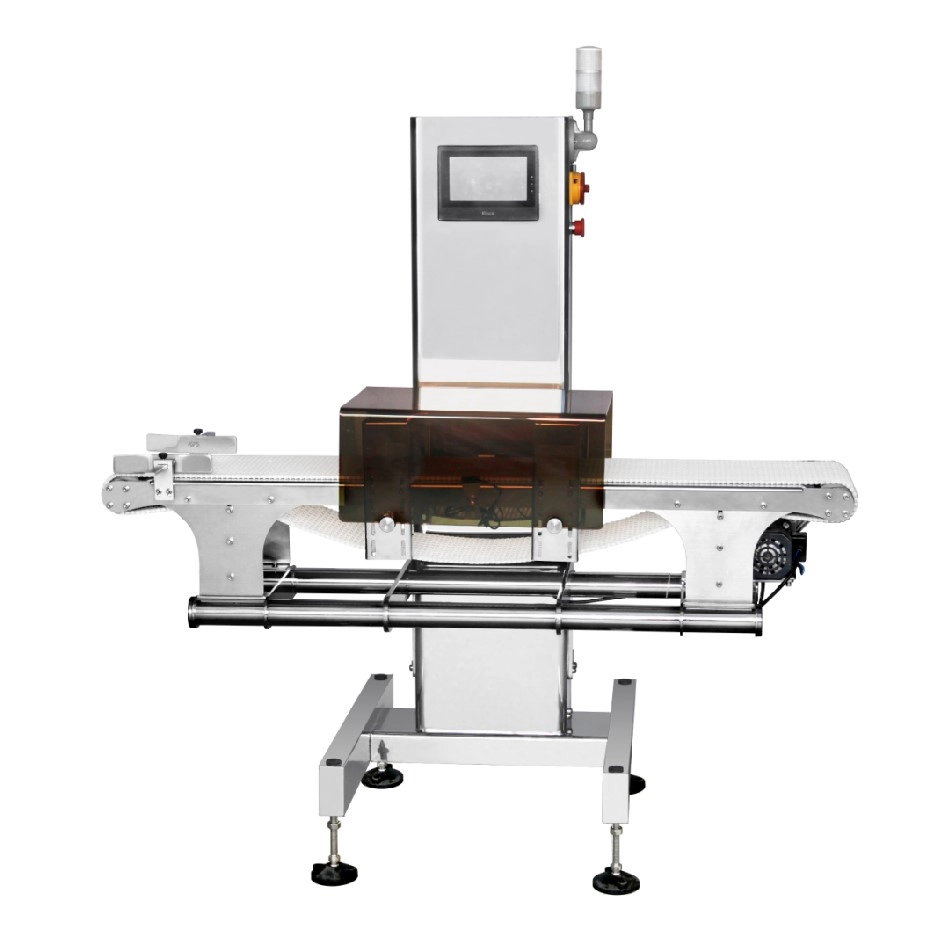

Metal Detector with Check weigher
Combines metal detection and weight checking in one unit, reducing costs and minimizing commissioning and maintenance time.
Z Type Finished Product Conveyor
Raise the product height and transport it to the next process smoothly.
Throat Metal Detector
Detects metal contamination before packaging, installed between the weigher and packaging machine for space efficiency.(if already equipped with other weight detection equipment then no need use this machine)
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About products customization
How do I request a custom-built Kenwei machine?
To request a customized machine, simply contact our sales or engineering team.
About Cooperation Process
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About Solution suggestions
What are Kenwei’s primary solutions for industrial weighing and packaging?
Kenwei provides comprehensive solutions for automated weighing and packaging, including multi-head weighers, linear weighers, check weighers, metal detectors, and packing machines. These solutions are tailored to improve speed, accuracy, and efficiency in various industries such as food, pharmaceuticals, and chemicals.
About Product choice
Can Kenwei's machines be used in my industry?
Kenwei’s equipment is highly versatile and can be used across a wide range of industries, including:Food,Pharmaceuticals,Chemicals,Plastics and Agriculture.
Plastics If you're unsure whether our products are suitable for your industry, please contact us, and we can provide you with specific solutions tailored to your needs.
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
