Multihead Weigher for Frozen food Packing Machine Manufacturers
Kenwei Multihead Weigher is designed for frozen food packing, delivering high speed and precise weighing. Trusted by leading multihead weigher packing machine manufacturers, Kenwei ensures efficiency, reliability, and exceptional performance for your packaging needs.
Model
JW-A10
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A10-1-7
Weighing Range
10-1000g
Accuracy
X(0.5)
Max Speed
65P/M
Hopper Volume
1.6L/2.5L
Control Panel
7'' Touch Screen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1000W/ 50/60Hz /10A
Packing Dimension(mm)
1620(L)X1100(W)X1110(H)
Gross Weight
380kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Special load cell designed for high precision and superior standards.
● The program recovery function minimizes operational failures and supports multi-segment weight calibration.
● The "No Product Auto Pause" function enhances weighing stability and accuracy.
● Independent adjustment of linear amplitude ensures more uniform feeding.
● Available in 15 languages, catering to global markets.
● With a capacity of 100 programs, it meets various weighing requirements, while the user-friendly help menu on the touchscreen simplifies operation.
Mechanical Character

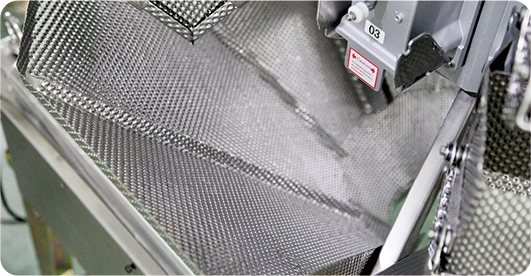

IP65-rated cabinet design with a dimple plate for food-contact parts.
An integrated air pressure system inside the cabinet prevents damage to electronic components caused by humidity.
Uniform design standards ensure better interchangeability of spare parts.

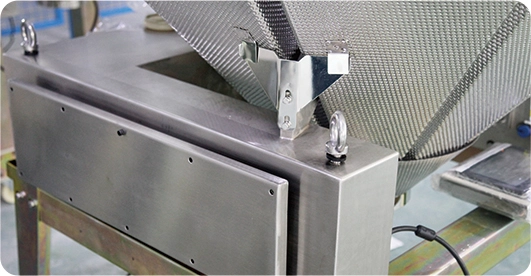

The fully cast aluminum machine case enhances strength and reduces sample stabilization time.
Optional material detection for weighing type, providing precise control over feeding time and material thickness to ensure weighing accuracy.
Technical Specification
|
Model |
JW-A10 |
JW-A14 |
|
Identify Code |
A10-1-7 |
A14-1-7 |
|
Weighing Range |
10-1000g |
10-1500g |
|
Accuracy*1 |
X(0.5) |
X(0.5) |
|
Max Speed*2 |
65P/M |
120P/M |
|
Hopper Volume |
1.6L/2.5L |
|
|
Control Panel |
7”Touch Screen |
|
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|
|
Driving System |
Step Motor |
|
|
Power Requirement |
220V/1000W/50/60Hz/10A |
220V/1500W/50/60Hz/12A |
|
Packing Dimension(mm) |
1620(L)x1100(W)x1110(H) |
1750(L)x1130(W)x1200(H) |
|
Gross Weight |
380kg |
490kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | ||
| *2: Depends on product shape, product density, target weight, etc. | ||
Application

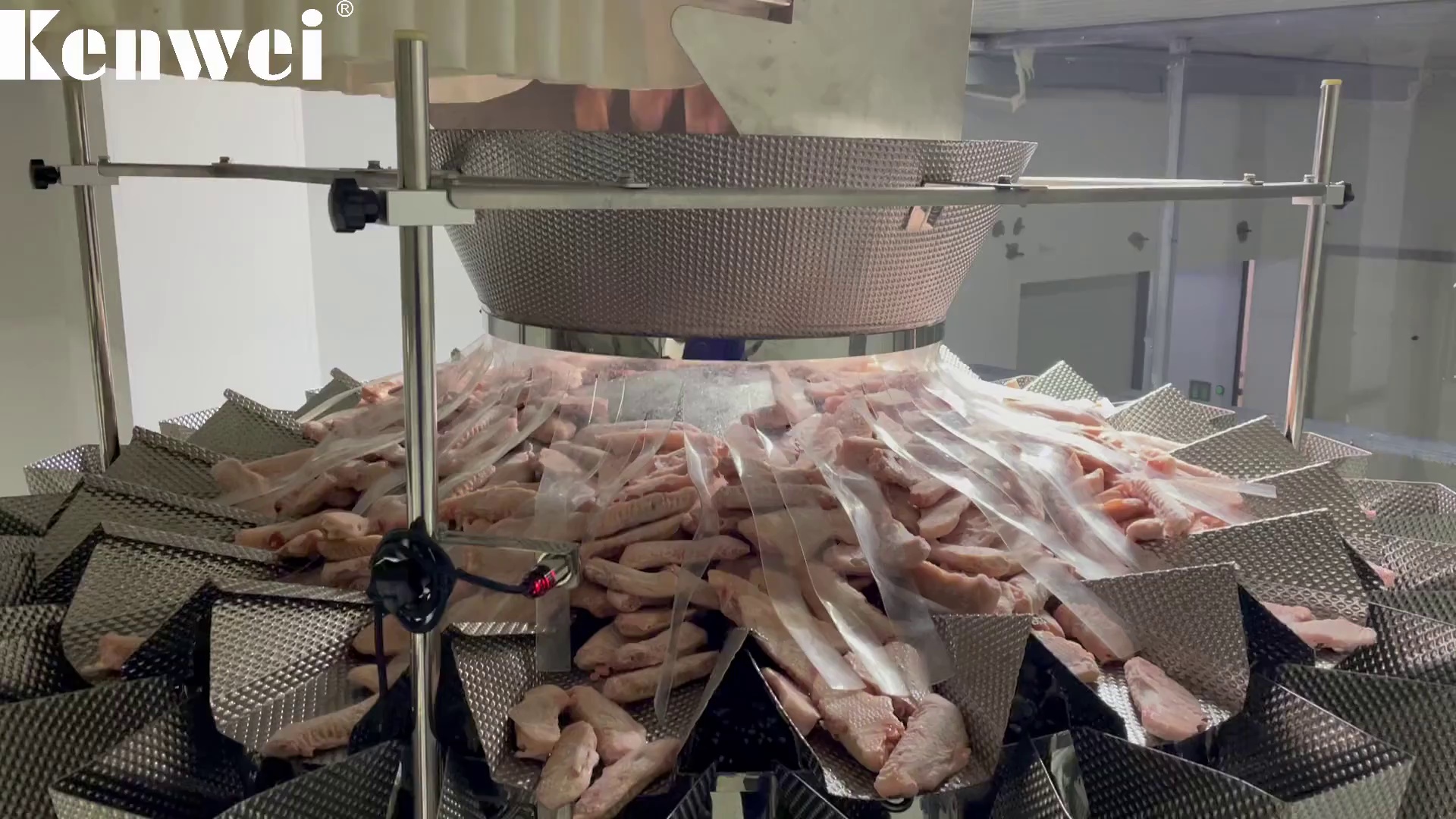

It is ideal for weighing frozen foods, such as frozen fish, fruits, dumplings, rice dumplings, and more
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Cooperation Process
How to operate it?
Many languages are available for global markets. There are not only detailed instructions, but also machine video for reference learning.
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
About Product choice
Can Kenwei's machines be used in my industry?
Kenwei’s equipment is highly versatile and can be used across a wide range of industries, including:Food,Pharmaceuticals,Chemicals,Plastics and Agriculture.
Plastics If you're unsure whether our products are suitable for your industry, please contact us, and we can provide you with specific solutions tailored to your needs.
About Solution suggestions
Can Kenwei solutions be used for both manual and automated packing lines?
Yes, Kenwei machines can be used in both manual and automated packing lines. We can provide integrated systems that work alongside manual labor or fully automated systems depending on your production requirements.
About products customization
Can Kenwei machines be customized for different industries?
Yes,According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on.
