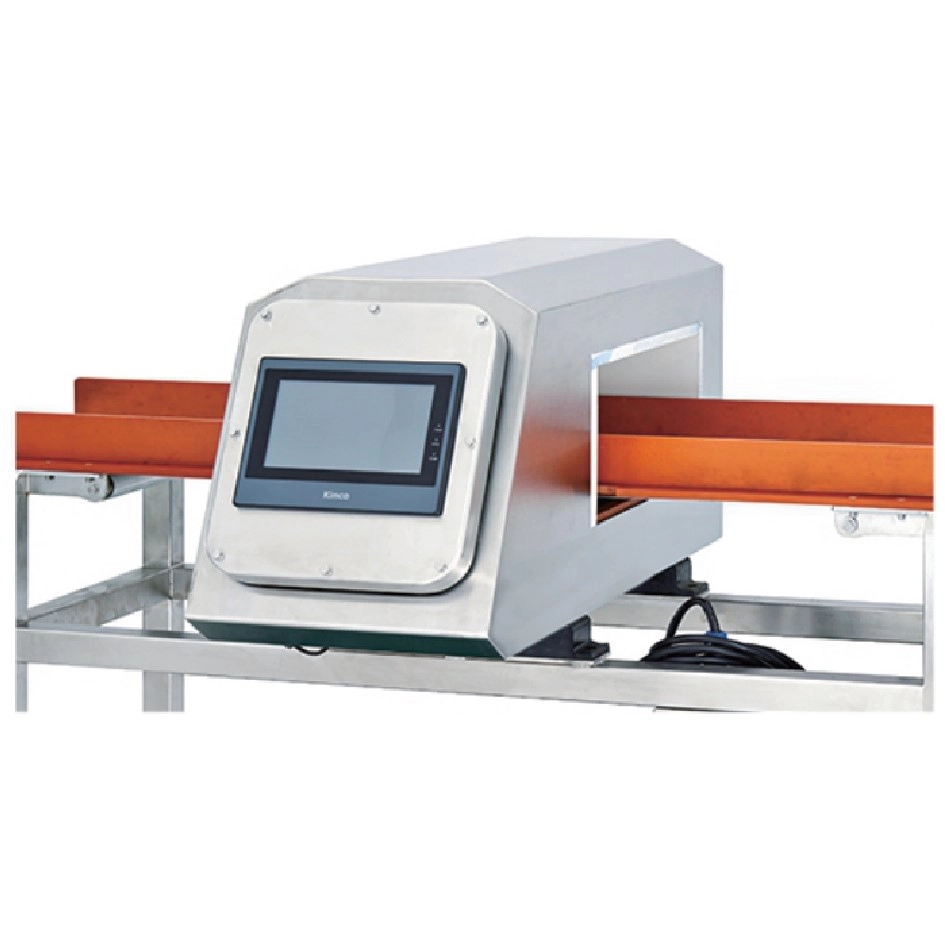

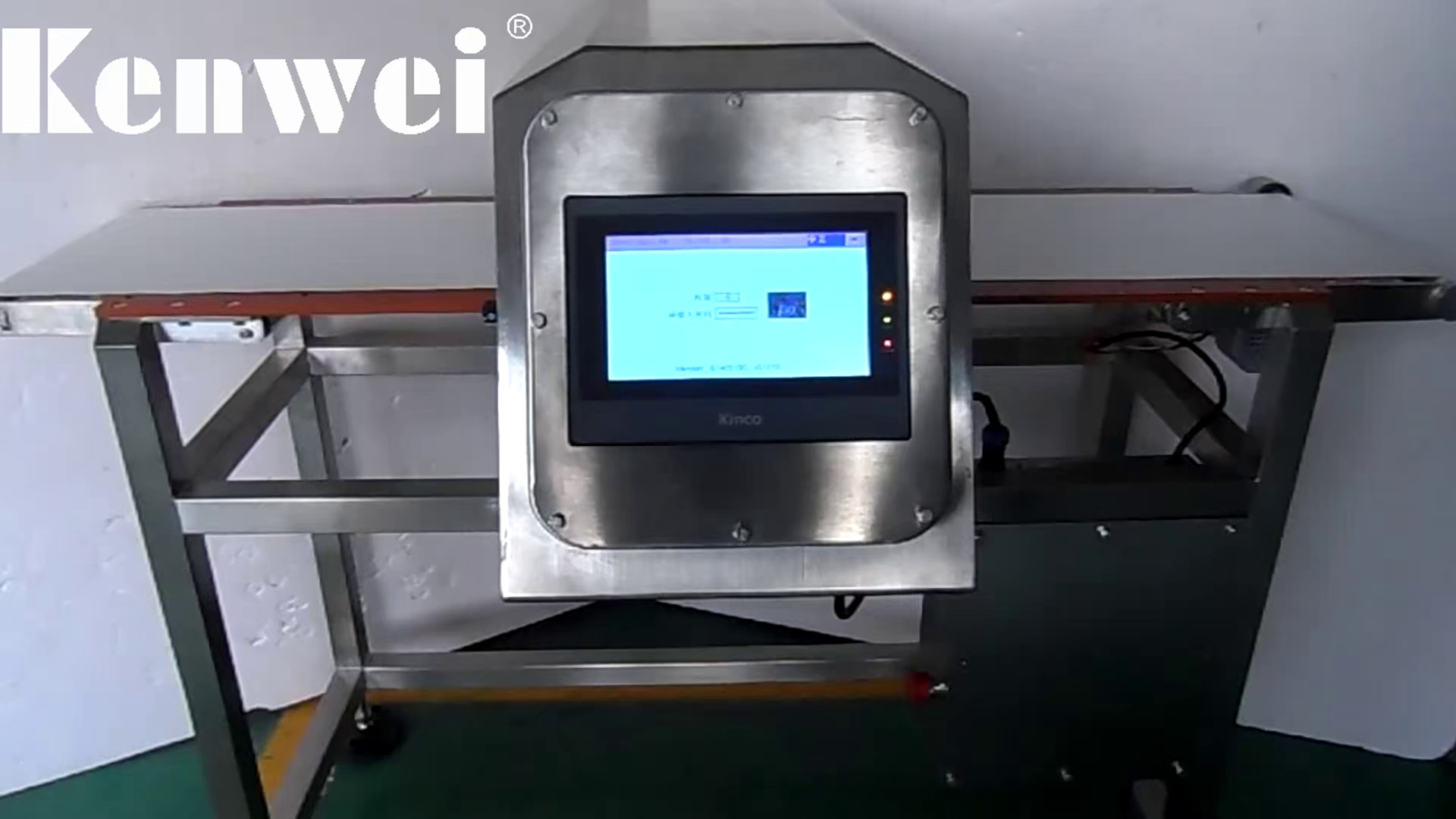

High Sensitivity Horizontal Metal Detector for Food and Pharmaceutical Industries
The Horizontal Metal Detector Series is ideal for detecting both ferrous and non-ferrous metals in food, pharmaceutical, chemical, textile, and rubber products. Equipped with a 7" industrial touch screen and supporting 32 languages, it features high sensitivity, digital signal processing, and intelligent algorithms for stable, precise detection. With stainless steel waterproof construction and multiple rejection options, it's perfect for HACCP and GMP compliance.
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 5000sets/year |
Feature
-
● Supports 32 languages with a 7" industrial-grade touch screen, setting a new standard in user-friendly operation.
-
● Utilizes balanced coil technology to fully cover the detection area with no blind spots.
-
● Incorporates advanced digital signal processing and intelligent algorithms to enhance detection sensitivity and stability.
-
● Equipped with phase adjustment technology to effectively reduce signal interference from the products.
-
● Features a digital control motherboard with stable performance, automatic product calibration, visual signal display, and easy parameter adjustment.
-
● Offers large data storage for saving product settings, production logs, and alarm history.
-
● Multi-level user access control prevents unauthorized parameter changes.
-

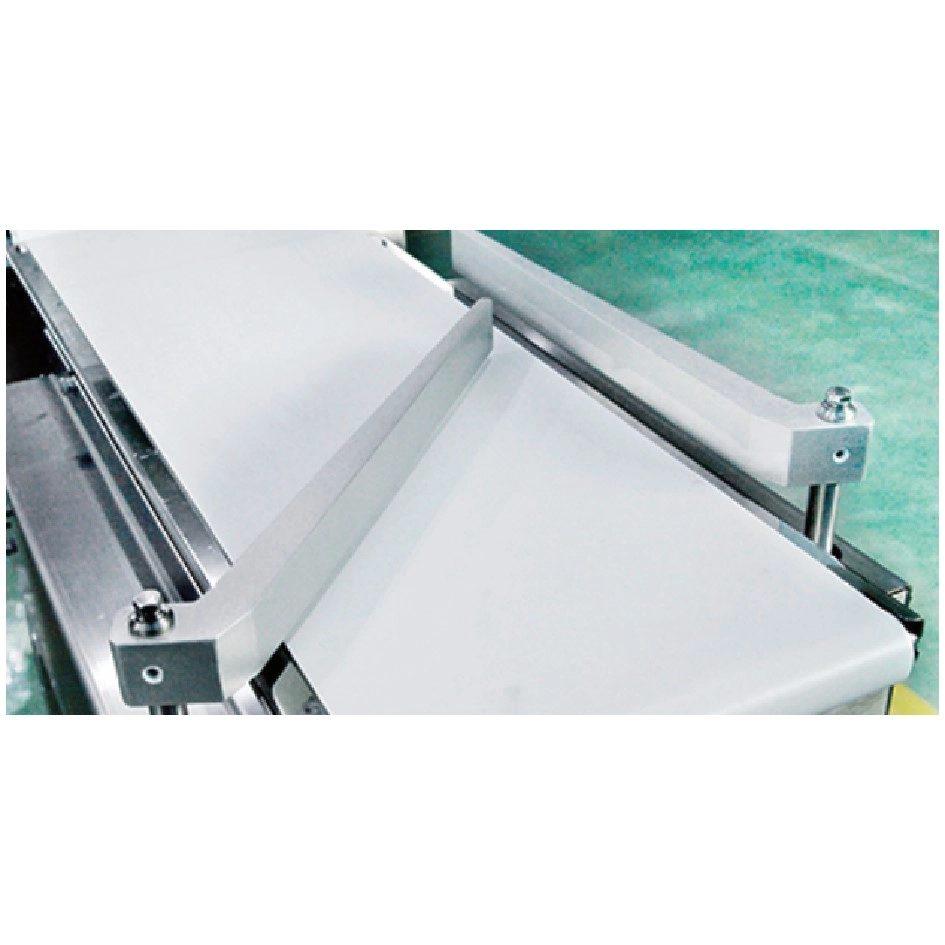

● Constructed from stainless steel with a waterproof and detachable belt design for easy cleaning and maintenance.

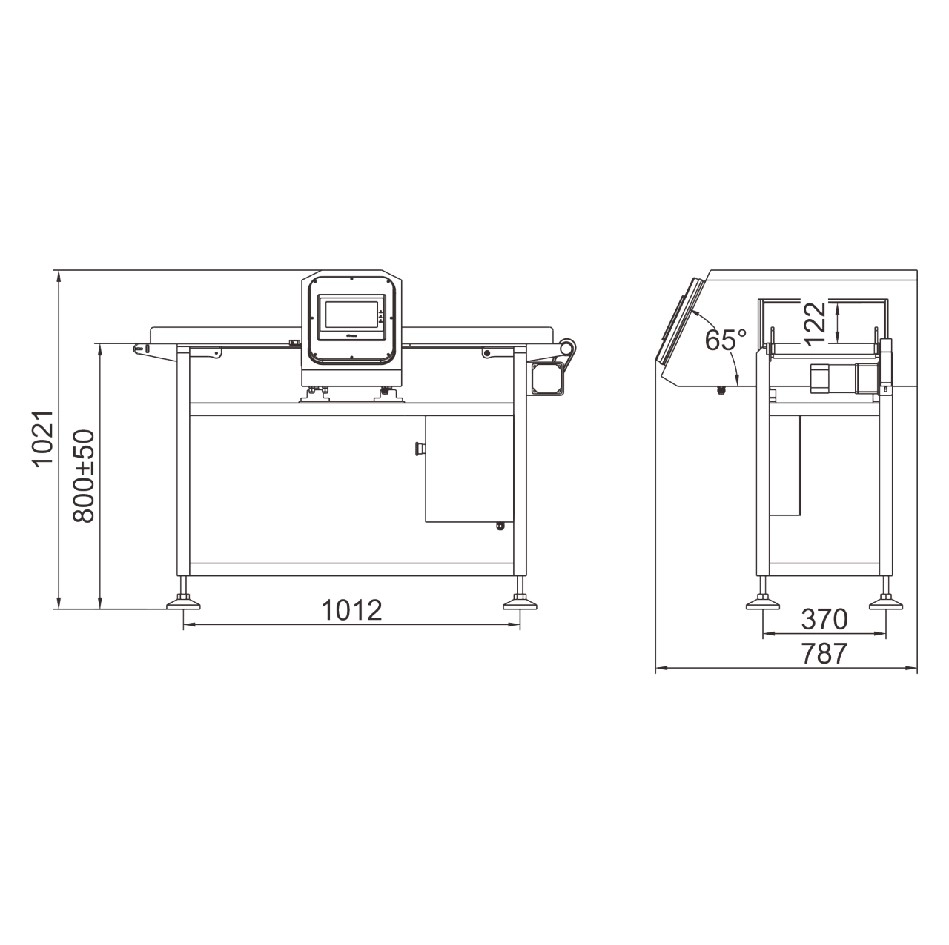

Mechanical Character
Technical Specification
|
Model |
JW-G3012 |
JW-G4015 |
JW-G4025 |
JW-G5020 |
|
Identify Code |
G3012-1-1 |
G4015-1-1 |
G4025-1-1 |
G5020-1-1 |
|
Protection Class |
IP54/IP66 |
|||
|
Speed* |
30m/min |
|||
|
Max Package Size (mm) |
300(W)x120(H) |
400(W)x150(H) |
400(W)x250(H) |
500(W)x200(H) |
|
Sensitivity (mm) |
Fe:φ0.8 Sus:φ1.5 |
Fe: φ1.0 Sus:φ2.0 |
Fe:φ1.5 Sus:φ3.0 |
Fe:φ1.2 Sus:φ2.5 |
|
Power Requirement |
220V/180W/50/60HZ/0.8A |
220V/180W/50/60HZ/0.8A |
220V/180W/50/60HZ/0.8A |
220V/220W/50/60HZ/1A |
|
Packing Dimension (mm) |
1450(L)x890(W)x1080(H) |
1450(L)x1010(W)x1110(H) |
1450(L)x1010(W)x1210(H) |
1450(L)x1110(W)x1160(H) |
|
Gross Weight |
200kg |
230kg |
240kg |
260kg |
|
*: Depends on product shape, product density, target weight etc. |
||||
Application
This metal detector is widely used across the food, pharmaceutical, chemical, textile, apparel, toy, and rubber industries. It is the preferred solution for meeting HACCP standards in the food sector and GMP compliance in the pharmaceutical field. Especially suitable for detecting contaminants in flour-based foods, vegetable products, frozen foods, sugar-based items, and pickled products.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About After Sales Support
How can I get technical support for my Kenwei machine?
You can contact Kenwei's technical support team via email, phone, or through our website.
What do I do if I encounter a malfunction in the machine?
If you encounter a malfunction, first check the user manual and troubleshooting guide for common issues. If the problem persists, contact our technical support team for further assistance.
About Solution suggestions
What are Kenwei’s primary solutions for industrial weighing and packaging?
Kenwei provides comprehensive solutions for automated weighing and packaging, including multi-head weighers, linear weighers, check weighers, metal detectors, and packing machines. These solutions are tailored to improve speed, accuracy, and efficiency in various industries such as food, pharmaceuticals, and chemicals.
About Product choice
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
About Price and payment
Can I get a detailed quote before making a purchase?
Absolutely! We provide detailed quotes that break down the costs for the machines, customization, shipping, and any additional services. Please contact our sales team with your requirements to receive a customized quote.
