6-Head Linear Weigher for Accurate Granule and Powder Weighing
The 6-Head Linear Weigher is designed for accurate quantitative weighing of granules and powders like sugar, salt, seeds, rice, milk powder, coffee, and seasoning powders. It features a modular control system, adjustable amplitude, and stepless feeding for real-time flow control, ensuring precise weighing. Made from food-grade stainless steel, it ensures hygiene and safety. With a pneumatic gate for precise material flow, easy-to-remove parts for cleaning, and custom load cells for accuracy, it's ideal for efficient, high-precision weighing and packing.
Model
JW-AX6
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
X6-2-1
Weighing Range
50-3000G
Accuracy
X(1)
Max Speed
54 P/M
Hopper Volume
3L
Control Panel
7
Options
Dimple Plate / Timing Hopper / Printer / Reject Device
Power Requirement
220V/900W/50/60Hz/4A
Packing Dimension(mm)
1170(L)x1150(W)x990(H)
Gross Weight
220kg
Parameters Press No.
100
Max Mixing Products
6
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Advanced modular control system for enhanced performance.
● Automatic amplitude adjustment for precise operation.
● Capable of weighing six individual materials or two mixed materials simultaneously.
● Stepless feeding mode ensures real-time material flow control for accurate weighing.
● Can be integrated with a bagging machine for fully automated weighing and packing.
● Ideal for various granule and powder materials, offering versatile applications.
Mechanical Character
Constructed from stainless steel food-grade materials to ensure high standards of food hygiene and safety.

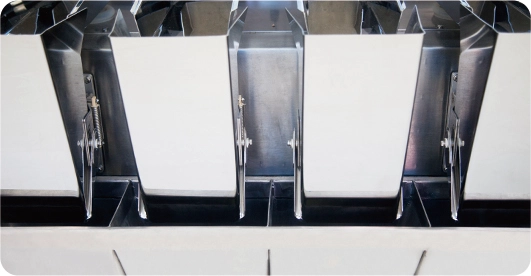

The discharge end of the vibration plate features a pneumatic gate that automatically opens and closes based on signal feedback, enabling precise material flow control and enhancing weighing accuracy.
Easy-to-remove design for convenient maintenance and cleaning.
Customized load cells ensure optimal weighing accuracy.
Material contact parts are easily detachable, making cleaning quick and hassle-free.
Technical Specification
| Model | JW-AX6 |
| Identify Code | X6-2-1 |
| Weighing Range | 50-3000g |
| Accuracy*1 | X(1) |
| Max Speed*2 | 54 P/M |
| Hopper Volume | 3L |
| Control Panel | 7" Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Parameters Press No. | 100 |
| Max Products Mixed | 6 |
| Power Requirement | 220V/900W/50/60HZ/4A |
| Packing Dimension(mm) | 1170(L)X1150(W)X990(H) |
| Gross Weight | 220kg |
| *1: Please refer to national standard GB/T27738-2011 or international recommendation OIML R61 2004 (E) of international Legal Metrological Organization 61. | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
Ideal for accurate weighing of white sugar, salt, seeds, rice, sesame, monosodium glutamate, chicken essence, milk powder, coffee, seasoning powders, and other small, free-flowing particulate materials. Perfect for quantitative weighing of powders and materials with good mobility.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Solution suggestions
Can Kenwei solutions be adapted for different product packaging types?
Yes, Kenwei solutions can handle a variety of packaging types, including bags, boxes, pouches, and bottles. We can customize machines to suit your packaging format, ensuring compatibility with your packaging equipment.
About products customization
Can Kenwei machines support multiple languages?
Yes, we can customize the software interface to support multiple languages, making it easier for operators from different regions to use the machine.
Can I customize the size of Kenwei machines?
Yes, we can tailor the dimensions of our machines to fit your available space and production layout. Whether you need compact machines or larger equipment, we can accommodate your size requirements.
About Cooperation Process
Does Kenwei offer installation and training?
Yes, Kenwei provides installation services and comprehensive training to ensure that your team can operate the machinery efficiently. Our engineers can travel to your facility for on-site installation, and we also offer remote training options if needed.
About Product choice
Are there any additional features available for Kenwei machines?
Yes, we offer a variety of optional features for customization, such as: advanced touchscreen interfaces, multiple language support and so on.
Tags
automatic packing machine
automatic packing machine
linear scale
linear scale
linear weigher
linear weigher
