Automatic 8-Track Electronic Counting and Filling Packaging Machine
This counting machine offers a two-channel, eight-track electronic system with adjustable height, supporting bottle heights from 20 to 100mm. It requires no reset during fast line changes, making it perfect for counting products of various shapes. With a maximum speed of 4,000 particles per minute, it is ideal for pharmaceutical, food, chemical, plastic, healthcare, and other industries, delivering efficient and precise counting.
Model
JW-SL8
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
SL8-1-1
Power Requirement
220V/800W/ 50/60Hz
Packing Dimension(mm)
1350（L）*1400（W）*1790(H)mm
Gross Weight
400kg
Speed(m/min)
4000 pcs/min
| The Number of Tracks | Double Channel 8 Track | Drug Specifications | Φ：5-12mm, L：5-25mm |
| Bottle Diameter | 20-100mm (Special Size Can Be Customized) | Bottle Height | 40-240mm |
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 5000sets/year |
Feature
● 7-inch full-color touchscreen with adjustable integral particle speed for precise control.
● User-friendly man-machine interface ensures convenient operation.
● Track-type, dual-channel design boosts counting speed.
● Stores up to 100 sets of working parameters, eliminating the need to reset during fast line changes.
● Suitable for counting products of various shapes, easy to operate.
● Counting parts feature stepless height adjustment within 50-250mm range.
● Dust protection cover maintains product hygiene.

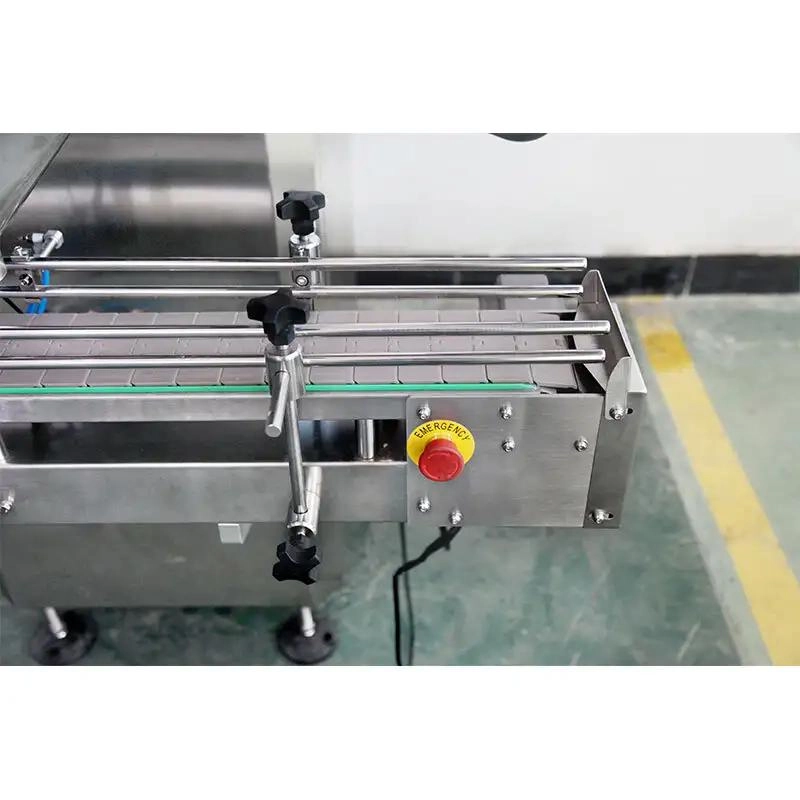

● Equipped with conveyor system for seamless integration with upstream and downstream equipment.
● Infrared electronic sensor automatically detects sensitivity values and material characteristics for easy parameter setup.
● High-speed CAN bus control allows easy expansion of counting channels.
Mechanical Character

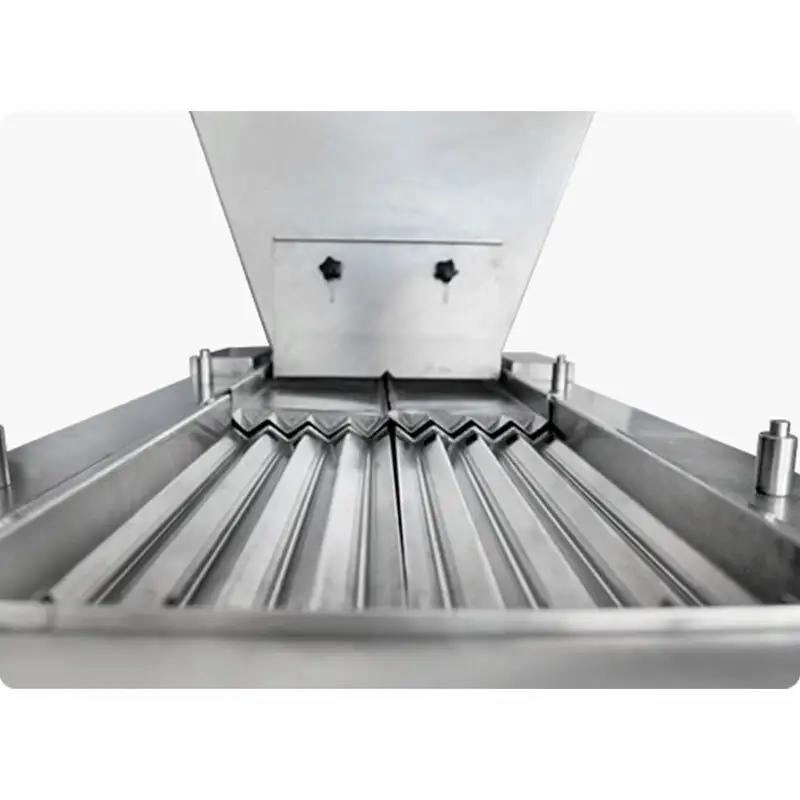

The second-stage vibrating pan feeder efficiently controls material flow and continuity, preventing material buildup.
Dual-channel control unit offers flexible operation with optional switching between dual-outlet and single-outlet modes.
Infrared electronic counting head provides real-time monitoring of material flow, delivering high-speed resolution and fast response.

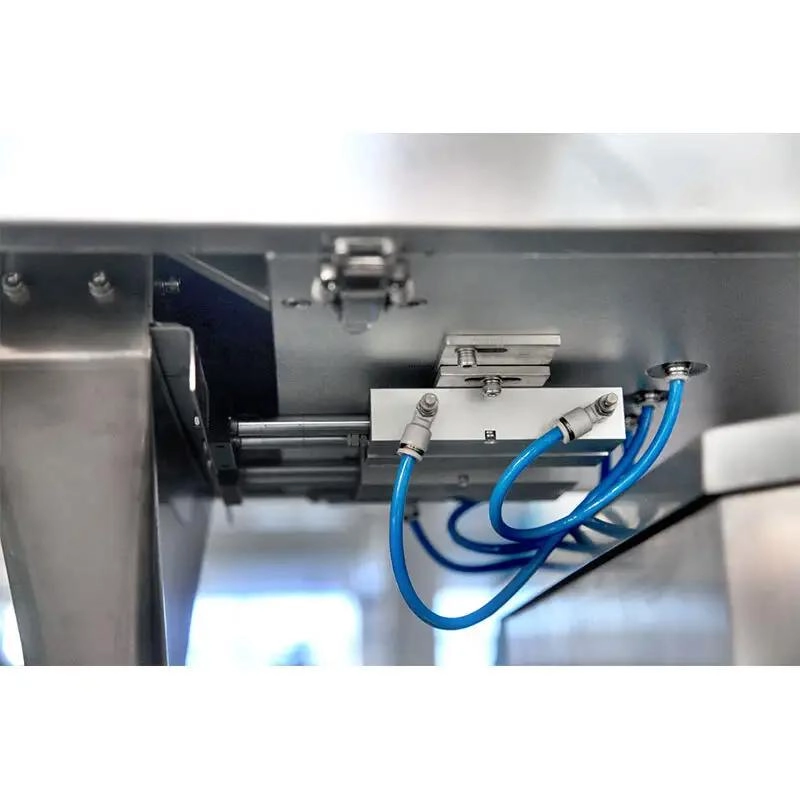

Electric gate enables rapid material interception, ensuring precise counting accuracy.
One-button automatic height adjustment allows seamless adaptation to different bottle heights for smarter operation.
Technical Specification
| Model |
JW-SL8 |
| Identify Code |
SL8-1-1 |
| Number of Vibrating Tracks | 8 |
| Drug Specifications |
Φ：5-12mm, L：5-25mm |
| Bottle Diameter |
20-100mm |
| Bottle Height |
40-240mm |
| Speed(m/min) | 4000pcs/min |
| Bottle Filling Speed | 10-60bottle/min |
| Power Requirement | 220V/800W/ 50/60Hz |

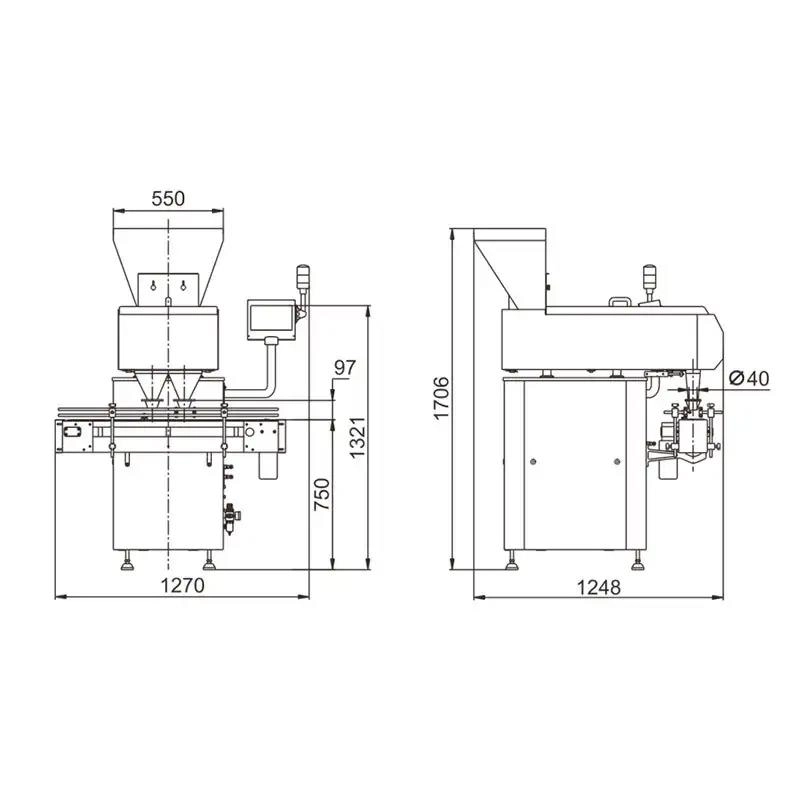

| Machine Dimension | 1350(L)X1400(W)X1790(H) |
| Gross Weight | 400KG |
Application
This counting machine is ideal for pharmaceuticals, food, hardware, chemicals, plastics, health products, and other industries. It accurately counts capsules, tablets, granules, candies, hardware parts, and plastic pieces, ensuring efficient processing across various product types.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Cooperation Process
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About Price and payment
How is the price of Kenwei machines determined?
The price of Kenwei machines depends on several factors, including the type of machine, customization requirements, production volume, and any additional features or integrations. We provide tailored quotes based on your specific needs and requirements.
About Solution suggestions
What are Kenwei’s primary solutions for industrial weighing and packaging?
Kenwei provides comprehensive solutions for automated weighing and packaging, including multi-head weighers, linear weighers, check weighers, metal detectors, and packing machines. These solutions are tailored to improve speed, accuracy, and efficiency in various industries such as food, pharmaceuticals, and chemicals.
How do Kenwei’s machines improve my production efficiency?
Kenwei machines enhance efficiency by automating the weighing, packaging, and quality control processes. Our high-speed, high-precision machines ensure accurate measurements, reduce human error, and increase throughput, leading to faster production times and lower operational costs.
About Product choice
Are Kenwei’s products suitable for small-scale or large-scale operations?
Yes! We offer machines that are scalable to meet the needs of both small and large-scale operations.
