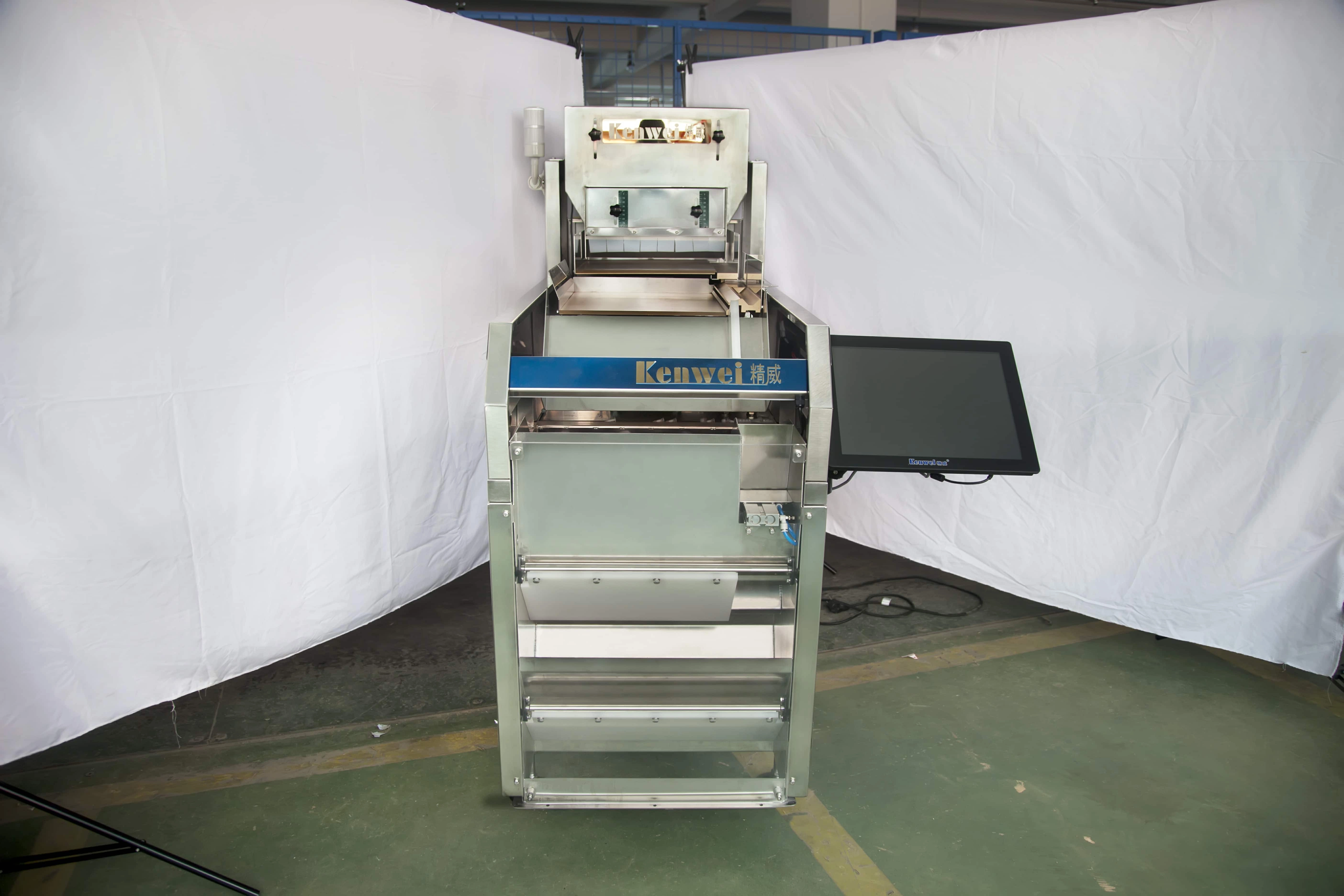

303 Dual-Channel Vision-Based Counting Machine
Kenwei’s 303 Dual-Channel Vision-Based Counting Machine delivers precise, high-speed counting for diverse applications. This advanced visual counting machine features dual-channel technology for improved efficiency and accuracy. Ideal for streamlined operations and reliable inventory management.
Model
JW-SLV303
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
SLV303-2-1
Power Requirement
220V/800W/ 50/60Hz/4A
Packing Dimension(mm)
1400（L）*820（W）*1450(H)mm
Gross Weight
220kg
Speed(m/min)
16000 pcs/min
| The Number of Tracks | 2 |
Materials Specifications |
2.0~30mm |
|
Counting error* |
≤2% |
Max. Speed* | 16000 pcs/min |
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 5000sets/year |
Feature
● Equipped with an industrial-grade tablet computer, the system supports large-capacity program and data storage.
● Features a touch-screen industrial control panel with an intuitive interface for easy and efficient operation.
●Utilizes imported high-speed linear CCD sensors and high-definition optical lenses, enabling accurate counting of materials as small as 2.0 mm.
●Advanced software algorithms effectively identify overlapping items and detect tiny impurities in the product flow.
● A wide flat vibrating plate and dual-layer pneumatic storage hopper significantly enhance counting efficiency for large-volume packaging.
● Intelligent alarm functions include automatic notifications for material shortage, counting abnormalities, and packaging machine errors.
Mechanical Character

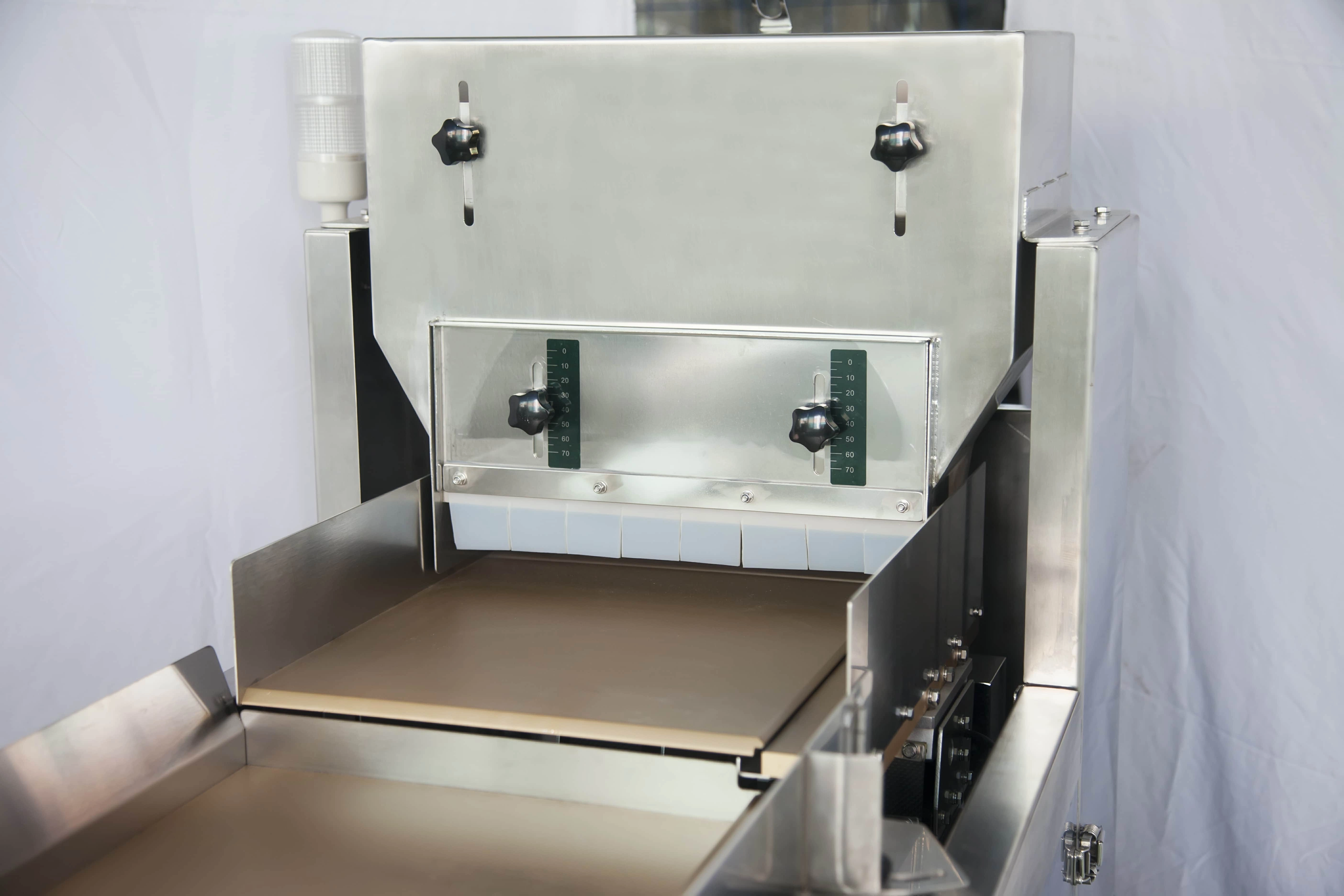

Featuring a dual-vibration plate design with a wide, flat waterfall-style high-speed feeding system and a V-shaped linear vibration plate for precise single-row compensation. The simultaneous operation of both vibration plates significantly enhances working efficiency.
The double-layer pneumatic revolving bucket door, paired with a large-capacity hopper, greatly improves counting efficiency for large-package materials.
The linear vibrator pan is equipped with an independent vertical-insert bucket door that delivers fast material cutoff and higher counting accuracy.
Technical Specification
| Model |
JW-SLV303 |
| Identify Code |
SLV303-2-1 |
| Number of Vibrating Tracks | 2 |
| Materials Specifications |
2.0~30mm |
| Counting Error |
≤2% |
| Max.Speed(m/min)* | 16000pcs/min |
|
Gas Source Requirements |
0.5~0.8 MPa |
| Power Requirement | 220V/800W/ 50/60Hz /4A |
| Packing Dimension | 1400(L)X820(W)X1450(H) |
| Gross Weight | 220KG |
|
*: Depends on product shape, product density, target weight etc. |
|
Application
It is suitable for fast and precise counting of tablets, electronic components, hardware, plastic parts, food, candy, and other uniformly sized materials.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Price and payment
Are the prices for Kenwei machines negotiable?
Prices are generally fixed, but depending on the order volume, long-term partnerships, or special circumstances, we may offer discounts or promotional pricing. Please contact our sales team to discuss your specific situation.
About Solution suggestions
What are Kenwei’s primary solutions for industrial weighing and packaging?
Kenwei provides comprehensive solutions for automated weighing and packaging, including multi-head weighers, linear weighers, check weighers, metal detectors, and packing machines. These solutions are tailored to improve speed, accuracy, and efficiency in various industries such as food, pharmaceuticals, and chemicals.
Can Kenwei provide a solution for mixed-product weighing?
Yes, Kenwei’s multi-head weighers are ideal for mixed-product weighing. They can handle a variety of products in different shapes and sizes, ensuring that the correct portions are weighed and packaged quickly.
About Logistics
How long does logistics delivery take?
Shipping times depend on your location and the shipping method you choose. Generally speaking, international shipping can take anywhere from a few weeks to a few months.
Do I need to prepare my facility for the delivery of large machines?
Yes, large machines often require special preparations for delivery, including ensuring adequate space for unloading and installation.
