Economical 10-Head Multihead Weigher with Carbon Steel and Plastic Hoppers
The Economical 10-Head Multihead Weigher with Carbon Steel and Plastic Hoppers is ideal for precise weighing of small granules such as Chinese medicine tablets, tea, coffee beans, chocolate beans, currants, snack foods, hardware, plastic pellets, and other particulate materials. This multihead weigher offers high weighing accuracy, fast speeds, and excellent cost performance, making it perfect for efficient and reliable quantitative weighing in various industries.
Model
JW-A10
MOQ
1set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A10-1-18TS
Weighing Range
10-1000g
Accuracy
X(0.5)
Max Speed
65P/M
Hopper Volume
2.0L(plastic)
Control Panel
7''TouchScreen
Options
Timing Hopper/Printer/Reject Device
Driving System
StepMotor
Power Requirement
220V/1000W/50/60Hz/8A
Packing Dimension(mm)
1770(L)X1100(W)X1330(H)
Gross Weight
370kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● High-precision special load cell ensures superior accuracy and performance.
● Program recovery function minimizes operational failures and supports multi-segment weight calibration.
● Independent adjustment of linear amplitude for enhanced flexibility.
● Multiple language options available to cater to global markets.
● With a capacity for 100 programs, it meets diverse weighing needs, while the user-friendly help menu simplifies operation.
Mechanical Character
New Ⅱ Series machine design featuring an elegant and modern appearance.

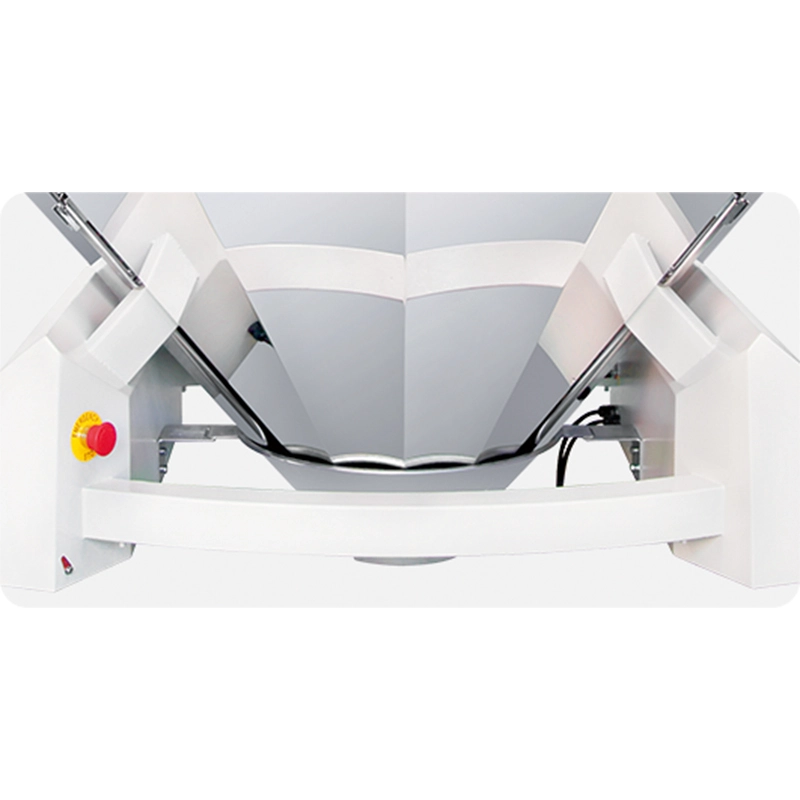

Easily movable in-feed and discharge funnels for convenient cleaning and maintenance.
Mold-making process and standardized design ensure better interchangeability of spare parts.
A wide range of optional accessories to meet various weighing requirements.

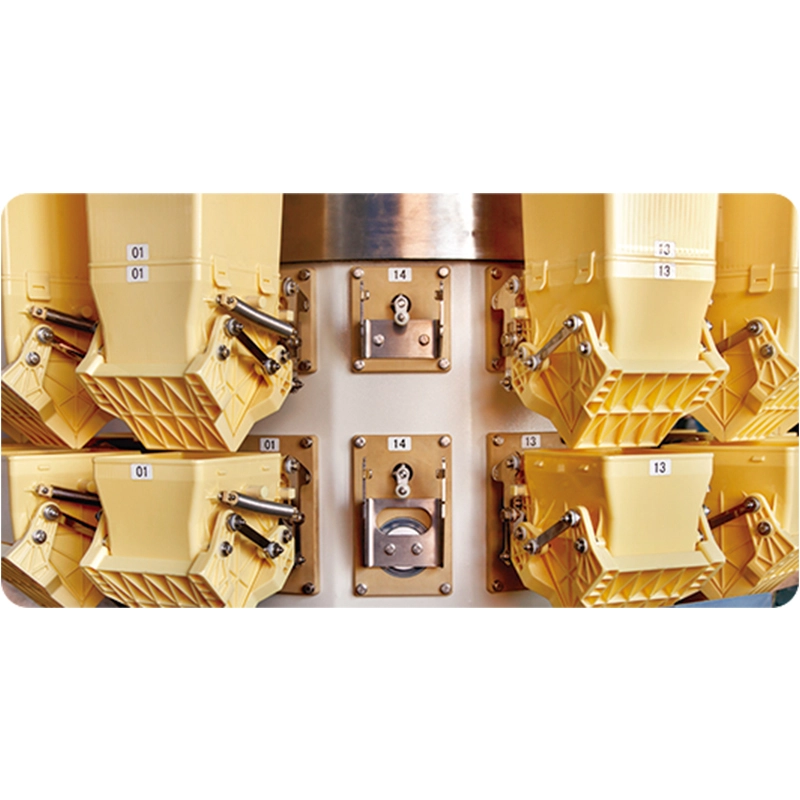

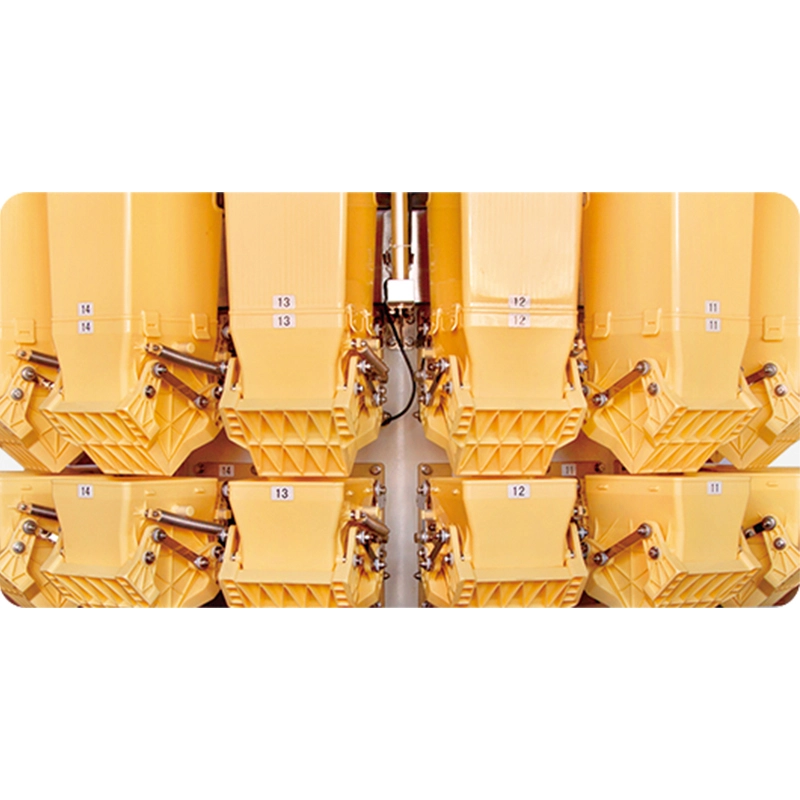

Food-grade plastic hoppers for easy cleaning and enhanced hygiene.
Technical Specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-1-18TS | A14-1-18TS |
| Weighing Range | 10~1000G | 10~1500G |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 65P/M | 120P/M |
| Hopper Volume | 2.L(Plastic) | |
| Control Panel | 7"Touch Screen | |
| Options | Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Powder Requirement | 220V/1000W/50/60Hz/8A | 220V/1200W/50/60Hz/10A |
| Packing Dimension(mm) | 1770(L)X1100(W)X1330(H) | 1770(L)X1100(W)X1330(H) |
| Gross Weight | 370KG | 470KG |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | ||
| *2: Depends on product shape, product density, target weight, etc | ||
Application
Ideal for precise weighing of small granules, including Chinese medicine tablets, tea, coffee beans, chocolate beans, currants, snack foods, hardware, plastic pellets, and other particulate materials, this machine ensures accurate quantitative weighing for a variety of applications.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Product choice
Are there any additional features available for Kenwei machines?
Yes, we offer a variety of optional features for customization, such as: advanced touchscreen interfaces, multiple language support and so on.
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
About Logistics
How are large machines handled during shipping?
Large machines are typically shipped via sea freight using containerized shipping.
About Cooperation Process
How does Kenwei ensure the quality of its machines?
Kenwei has a stringent quality control system in place. Each machine is rigorously tested for precision, speed, and reliability before it is shipped.
About Solution suggestions
How can Kenwei solutions help reduce waste in my production process?
Kenwei solutions improve accuracy in weighing, packaging, and quality control, reducing the chances of overfill or underfill. This leads to less product waste and higher operational efficiency.
