Hardware Multihead Weigher for Small Hardware Parts and Plastic Parts
The hardware combination scale features a specialized sensor with exceptional impact resistance, making it ideal for weighing small components like hardware and plastics. Additionally, it incorporates a noise-reducing PVC device in the material contact area, effectively minimizing noise generated by material collisions during operation, ensuring a smoother and quieter weighing process.
Model
JW-A10
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A10-1-15
Weighing Range
10-2000g
Accuracy
X(0.5)
Max Speed
65P/M
Hopper Volume
1.6L
Control Panel
7'' Touch Screen
Options
Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1000W/50Hz/60Hz/10A
Packing Dimension(mm)
1620（L）X1100(W)X1420(H)
Gross Weight
380kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● High-precision load cells built to rigorous standards ensure reliable performance.
● Program recovery function reduces operational failures and supports multi-segment weight calibration for improved accuracy.
● Auto-pause function when no products are detected enhances weighing stability and precision.
● Independent linear amplitude adjustment enables more uniform material feeding.
● Available in 15 languages to cater to global markets.
● With a capacity to store up to 100 programs, it meets diverse weighing needs, while the user-friendly touch screen interface simplifies operation with an intuitive help menu.
Mechanical Character
Special load cell designed for hardware, offering exceptional impact resistance.
Anti-noise PVC added to material contact parts to reduce operational noise.
Enhanced linear vibrator improves material flow and weighing accuracy.
The thickened cast aluminum machine case increases the overall strength and reduces sample stabilization time.

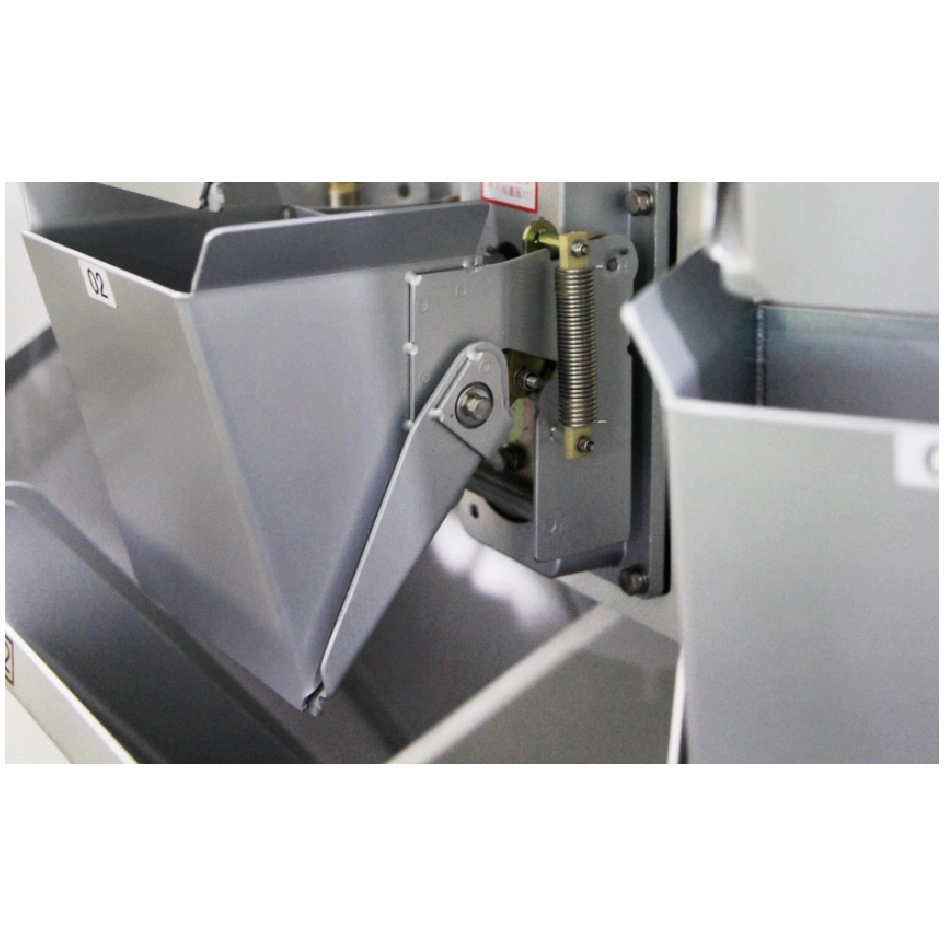

Thicker, more durable buckets ensure improved performance and longevity.
Technical Specification
| Model |
JW-A10 |
JW-A14 |
| Identify Code |
A10-1-15 |
A14-1-15 |
| Weighing Range |
10-2000g |
10-3000g |
| Accuracy*1 |
X(0.5) |
X(0.5) |
| Max Speed*2 |
65P/M |
120P/M |
| Hopper Volume |
1.6L |
|
| Control Panel |
7”Touch Screen |
|
| Options |
Timing Hopper/Printer/Reject Device |
|
| Driving System |
Step Motor |
|
| Power Requirement |
220V/1000W/50Hz/60Hz/10A |
220V/1000W/50Hz/60Hz/10A |
| Packing Dimension(mm) |
1620(L)x1100(W)x1420(H) |
1700(L)x1130(W)x1280(H) |
| Gross Weight |
380kg |
480kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) |
||
| *2: Depends on product shape, product density, target weight, etc. |
||
Application
It is ideal for weighing small hardware and plastic components with a length of less than 80mm and a single piece weight of under 100g.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Cooperation Process
Does Kenwei offer installation and training?
Yes, Kenwei provides installation services and comprehensive training to ensure that your team can operate the machinery efficiently. Our engineers can travel to your facility for on-site installation, and we also offer remote training options if needed.
About products customization
Can Kenwei machines support multiple languages?
Yes, we can customize the software interface to support multiple languages, making it easier for operators from different regions to use the machine.
About Product choice
What is the difference between a multi-head weigher and a linear weigher?
Multi-head Weigher: Ideal for high-speed and high-precision weighing of products with irregular shapes or varying sizes. It provides multiple weighings in parallel for faster processing.
Linear Weigher: It is suitable for powder and granule. It is typically slower than a multi-head weigher but is effective for certain types of applications that require more continuous flow or controlled weighing.
What types of products does Kenwei offer?
Kenwei specializes in high-precision and high-speed automated machinery for weighing, packaging, and quality control. Our main products include: multihead weigher, linear weigher, checkweighers,food metal detector,vertical packing machine and packing machine accessories.
About Price and payment
How is the price of Kenwei machines determined?
The price of Kenwei machines depends on several factors, including the type of machine, customization requirements, production volume, and any additional features or integrations. We provide tailored quotes based on your specific needs and requirements.
