Auto 14 Heads Vertical Single-screw Feeding Pickles Multihead Weigher
Kenwei Auto 14 Heads Vertical Single-Screw Feeding Pickles Multihead Weigher. This high-speed 14 head weigher delivers precise weighing for your pickle production. Ideal for efficient, automated processing, this multihead weigher ensures consistent product weight and reduces waste. Boost your pickle packaging line with Kenwei's reliable technology.
Model
JW-A14
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A14-2-14
Weighing Range
10~500g
Accuracy
X(1)
Max Speed
45P/M
Hopper Volume
1/1.5L

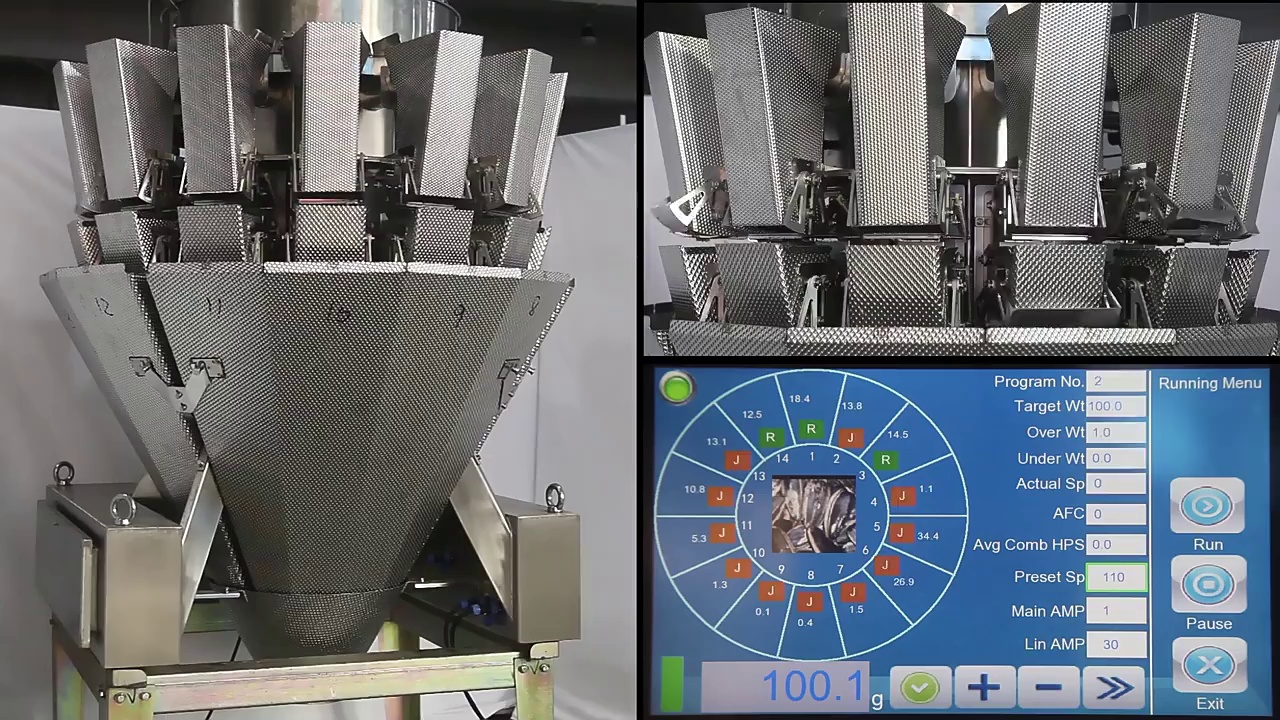

Control Panel
10.1” Touch Screen
Options
Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1200W/50/60Hz/6A
Packing Dimension(mm)
1830(L)X1300(W)X1790(H)
Gross Weight
400kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Employ high-precision, top-tier specialized sensors..
● The modular circuit board enables an intelligent multi-sampling steady mode for more accurate weighing.
● Features an intelligent fault alarm system for easier maintenance.

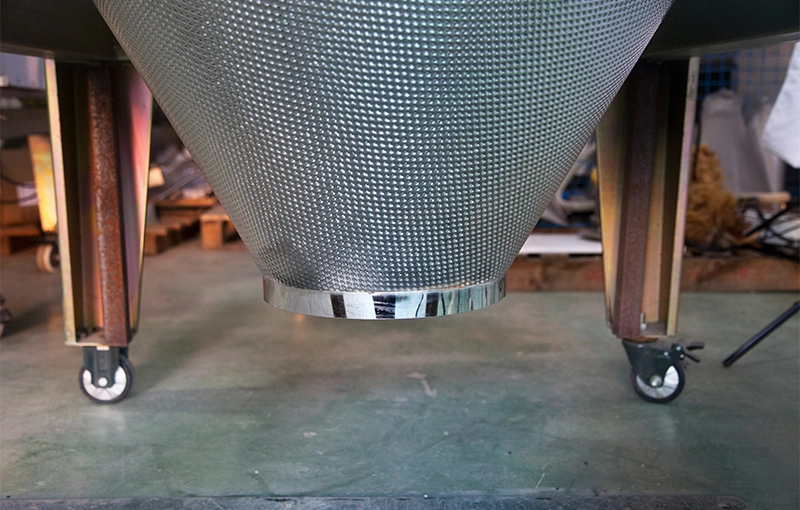

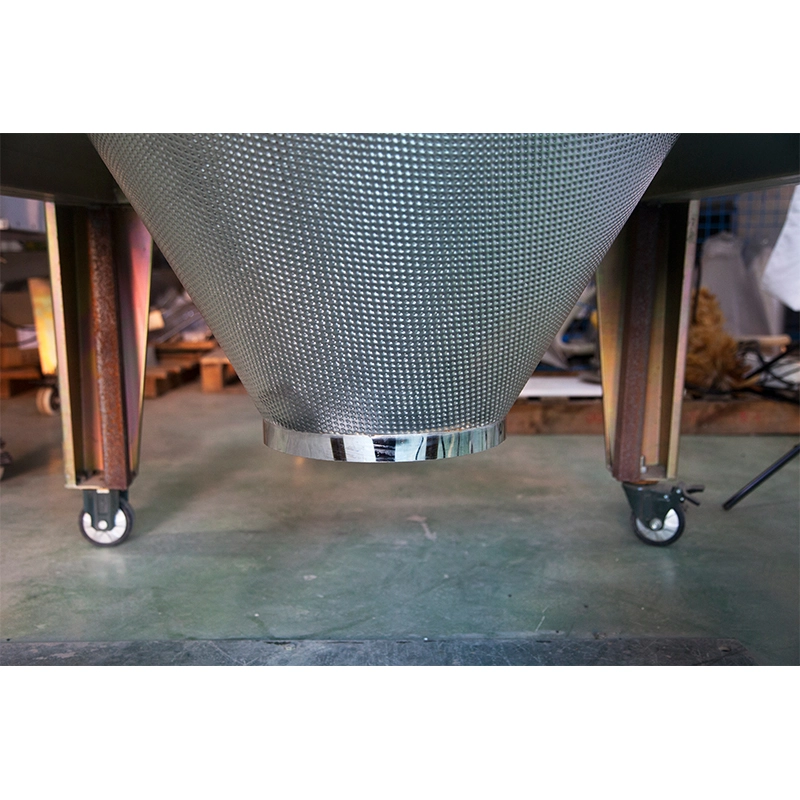

● Centralized unloading system ensures material consistency and boosts overall machine speed.
● Supports multi-stage weight calibration.
● Automatically pauses when material is absent, ensuring more stable weighing performance.
Mechanical Character
Perfect for automatically weighing materials in short strips, medium flat shapes, or small blocks, including pickles, radishes, meat products, and mustard.

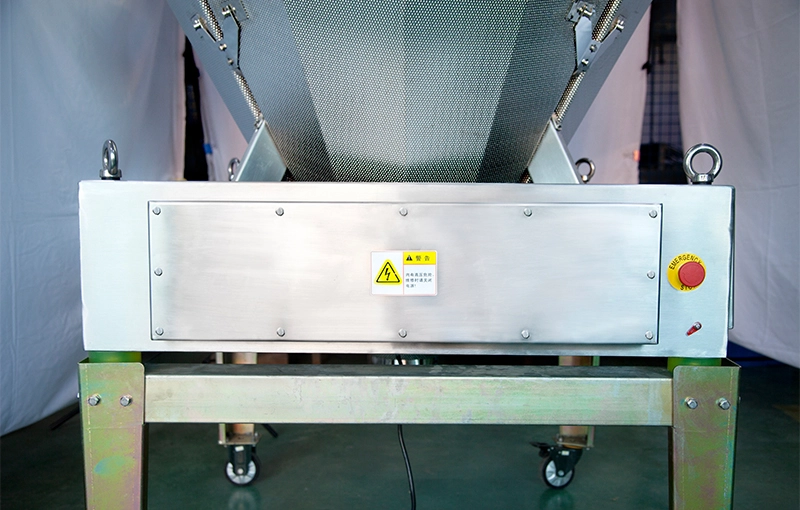

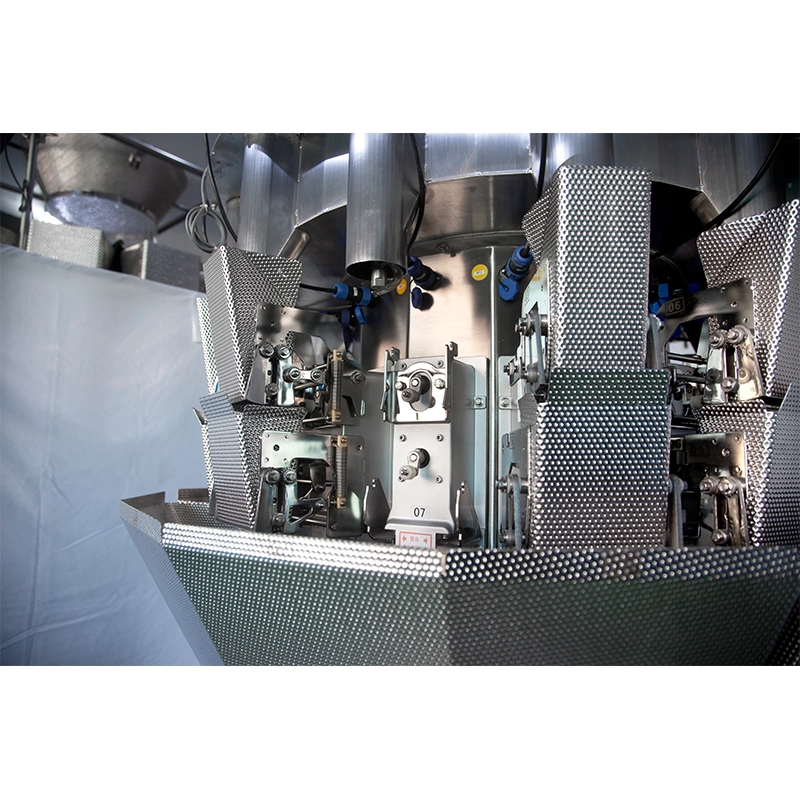

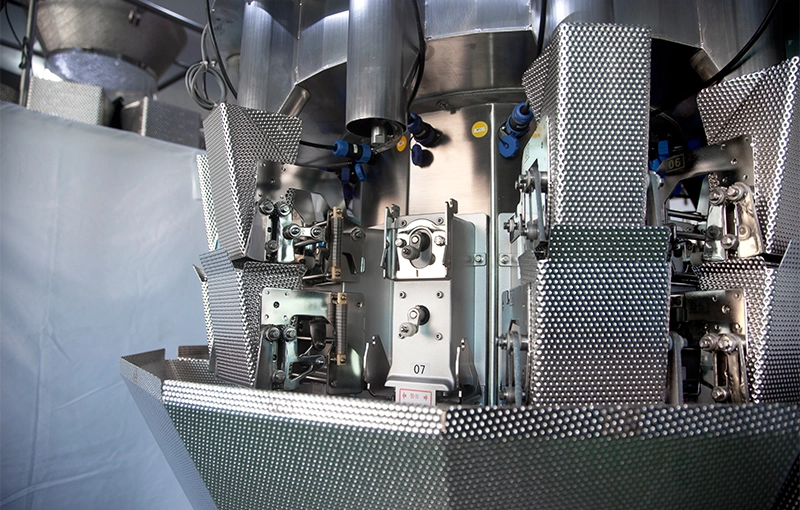

Uses an IP65 waterproof machine frame, with contact surfaces featuring a small dimpled plate.
The scraper-style double-door hopper effectively prevents the sticking and clumping of highly adhesive materials.

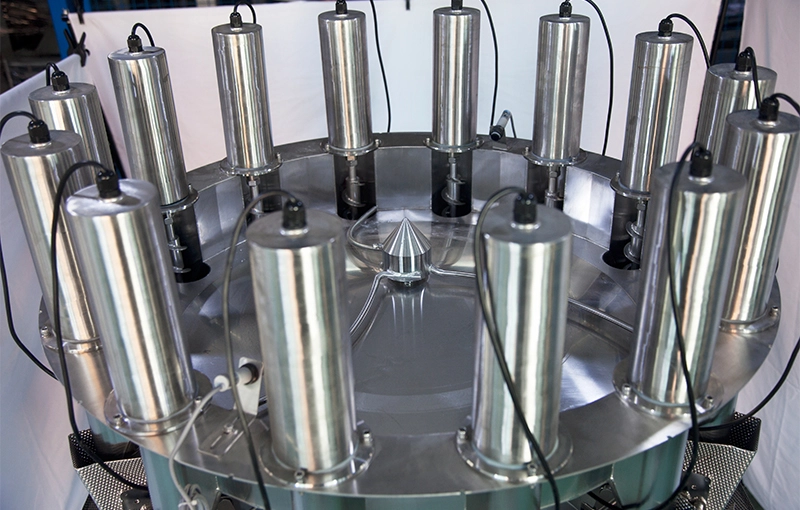

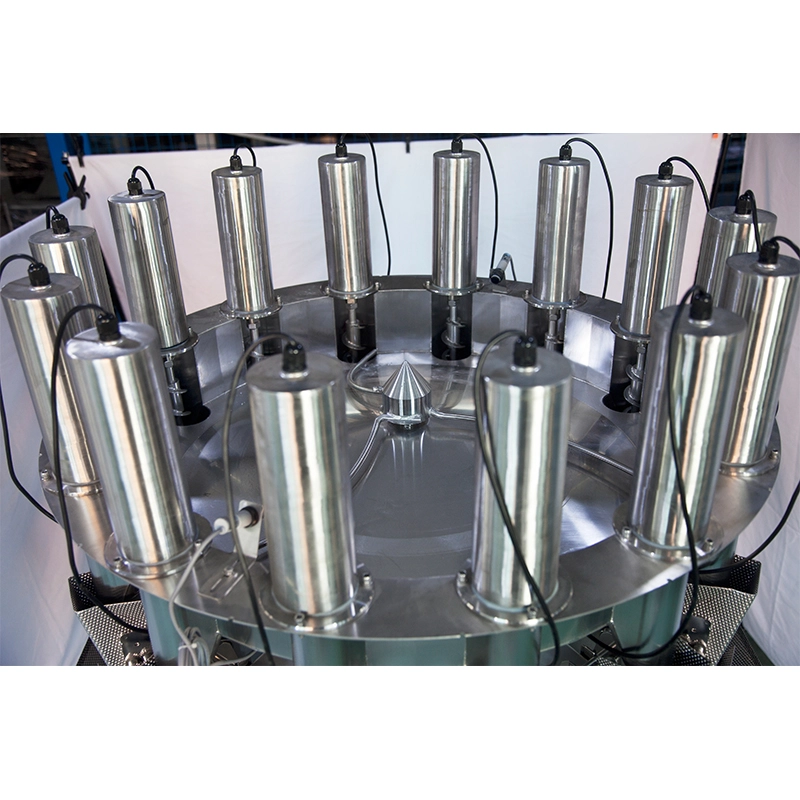

The screw drives the material vertically, allowing precise control of the feeding speed for greater accuracy.
The rotating blades of the main vibrator ensure that the materials are evenly distributed across each hopper.

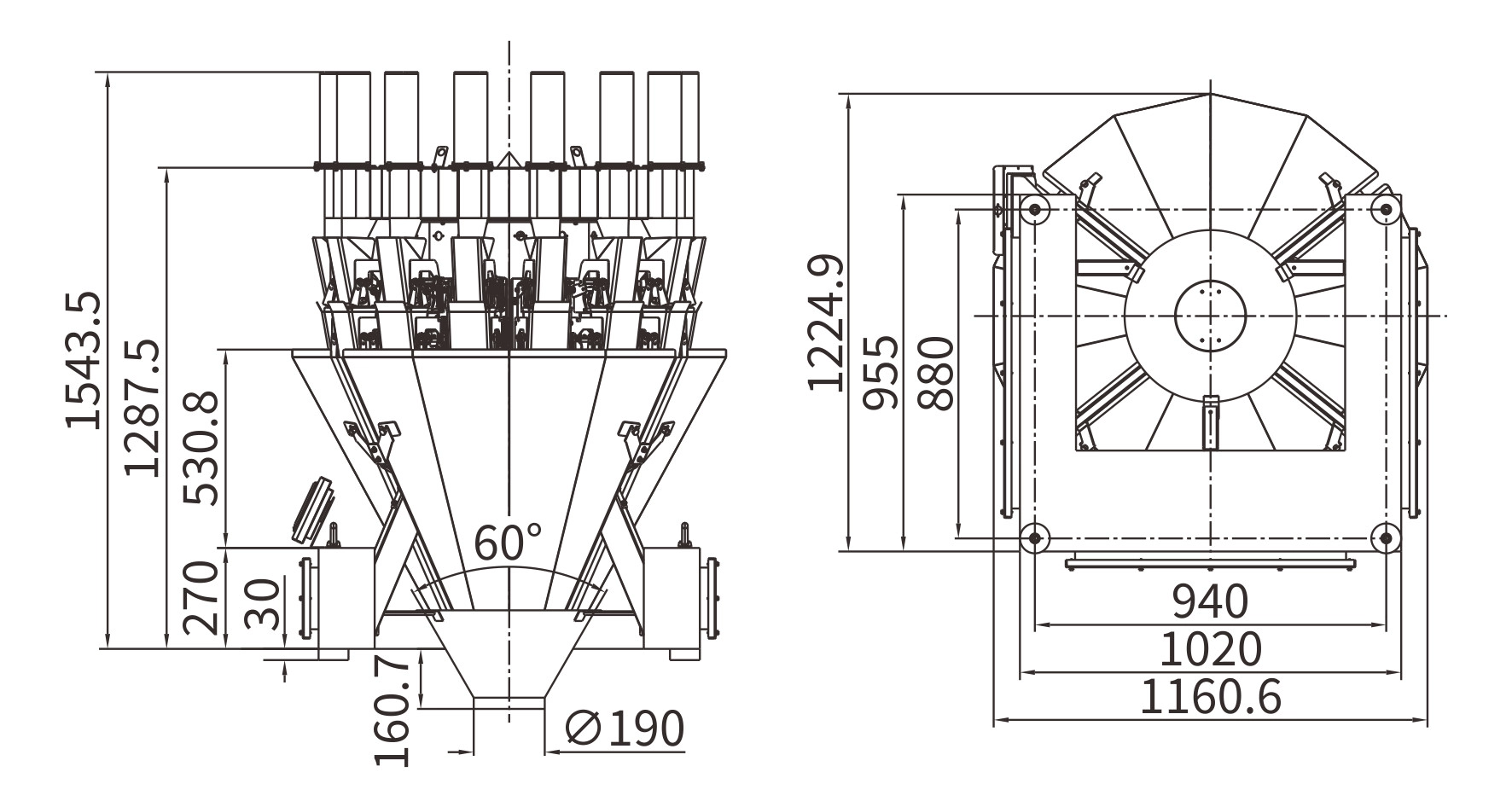

The 60° feeding chute ensures a smooth and steady material flow.
Technical Specification
| Model | JW-A14 |
| Identify Code | A14-2-14 |
| Weighing Range | 10~500g |
| Accuracy*1 | X(1) |
| Max Speed*2 | 45P/M |
| Hopper Volume | 1/1.5L |
| Control Panel | 10.1"Touch Screen |
| Options | Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1200W/50/60Hz/6A |
| Packing Dimension(mm) | 1830(L)X1300(W)X1790(H) |
| Gross Weight | 400kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
It is designed for the automatic weighing of short strip or small block materials, including pickles, radishes, meat products, pickled vegetables, and other low-flow materials with small amounts of oil and water, ensuring accurate measurement.
