Dropped Metal Detector for Powder Granules For Food Industry

Enhance food safety with Kenwei’s Dropped Metal Detector for Powder Granules. This advanced food metal detector ensures precise detection in the food industry, safeguarding products and maintaining high quality standards throughout processing.

Model
JW-GX80
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
GX80-1-1
Control Panel
7
Power Requirement
220V / 50Hz
Sensitivity(Fe)
1.0mm
Sensitivity(SUS)
2.0mm
Checking Speed
Free Falling Speed
Checking Size (diameter )
φ80mm
Machanical Size
800(L)*650(W)*490(H)
Max weight(Kg)
44kg
Get a free quote



Material 304 stainless steel Certification CE, OIML, SGS
Availability OEM/ODM Delivery Time 7-30days
Start Port Zhongshan port Supply Ability 500 sets/year



Feature

● Versatile Installation: Ideal for installation between the bottom of the weigher and the top of the VFFS (Vertical Form Fill Seal) feeding funnel.
●Non-Contact Detection: Operates without direct contact with the product, preserving food hygiene and preventing cross-contamination.
●Automatic Product Rejection: Automatically removes contaminated products from the production line through a rejection mechanism, reducing manual intervention.
●Compact Design: Its compact and space-efficient design allows for easy integration into existing production lines without taking up excessive space.

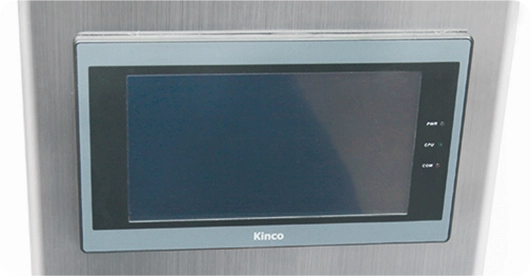

● User-Friendly Control Panel: Equipped with an intuitive control interface for easy operation and quick adjustments.

Dropped Metal Detector for Powder Granules For Food Industry-7 - Kenwei
Dropped Metal Detector for Powder Granules For Food Industry-8 - Kenwei
Dropped Metal Detector for Powder Granules For Food Industry-6 - Kenwei
Dropped Metal Detector for Powder Granules For Food Industry-5 - Kenwei

Mechanical Character

01 - Kenwei
Slim, Space-Saving Design: Its thin, compact body design ensures minimal space usage, making it perfect for installations in confined areas or where space optimization is critical. This feature maximizes the available production floor area.straightforward and convenient.and mustard.
02 - Kenwei
Separated Detector Head and Controller for Easy Operation: The design of having the detector head and controller separated makes installation and operation much simpler. This configuration also reduces the risk of signal interference, leading to more accurate detection results.
03 - Kenwei
Easy Maintenance and Cleaning: The modular design makes it easy to access both the detector head and controller for maintenance and cleaning.
04 - Kenwei
Versatile Product Compatibility: It is designed to work effectively with a wide variety of powdered and granular food products, including spices, grains, flour, and sugar, making it a versatile solution for different production environments.
05 - Kenwei
Automatic Rejection System: Contaminated products are automatically rejected by a built-in rejection system, preventing any metal-tainted items from continuing along the production line, thus maintaining product quality.
06 - Kenwei
Rapid Response Time: Designed for high-speed production lines, the system provides rapid detection and rejection, minimizing downtime and ensuring consistent throughput without sacrificing accuracy.

Technical Specification

Model

JW-GX80

JW-GX120

JW-GX150

JW-GX200

JW-GX250

Identify Code

GX80-1-1

GX120-1-1

GX150-1-1

GX200-1-1

GX250-1-1

Protection Class

IP54/IP66

Speed

Free Falling Speed

Checking Size (diameter )

φ80mm

φ120mm

φ150mm

φ200mm

φ250mm

Sensitivity(mm)

Fe:φ0.8  Sus:φ2.0

Fe:φ1.2  Sus:φ2.5

Fe:φ1.5  Sus:φ3.0

Fe:φ2.0  Sus:φ3.5

Fe:φ2.5  Sus:φ3.5

Power Requirement

220V/1200W/50/60Hz/0.6A

Packing Dimension(mm)

800(L)x650(W)x490(H)

800(L)x700(W)x530(H)

850(L)x750(W)x520(H)

860(L)x900(W)x590(H)

1000(L)x1000(W)x650(H)

Gross Weight

44kg

46kg

54kg

65kg

75kg



Application

Dropped Metal Detector for Powder Granules For Food Industry-11 - Kenwei

It is specifically designed for checking a wide range of materials, including powders, granules, and sheet materials. It ensures the detection of metal contaminants in various forms, making it ideal for use in industries such as food processing, pharmaceuticals, and packaging.

Frequently Asked Questions

We've Got Answers

Browse some answers to our most common questions, or you can drop us a line to ask something else.

About Logistics
How are large machines handled during shipping?

Large machines are typically shipped via sea freight using containerized shipping.

Do I need to prepare my facility for the delivery of large machines?

Yes, large machines often require special preparations for delivery, including ensuring adequate space for unloading and installation.

About Product choice
Are there any additional features available for Kenwei machines?

Yes, we offer a variety of optional features for customization, such as: advanced touchscreen interfaces, multiple language support and so on.

About Solution suggestions
How can Kenwei solutions help reduce waste in my production process?

Kenwei solutions improve accuracy in weighing, packaging, and quality control, reducing the chances of overfill or underfill. This leads to less product waste and higher operational efficiency.

About products customization
How long does it take to deliver a customized Kenwei machine?

The lead time for customized machines can vary based on the complexity of the customization, as well as production schedules. Generally, it takes 4-6 weeks to deliver a fully customized machine after design approval.
