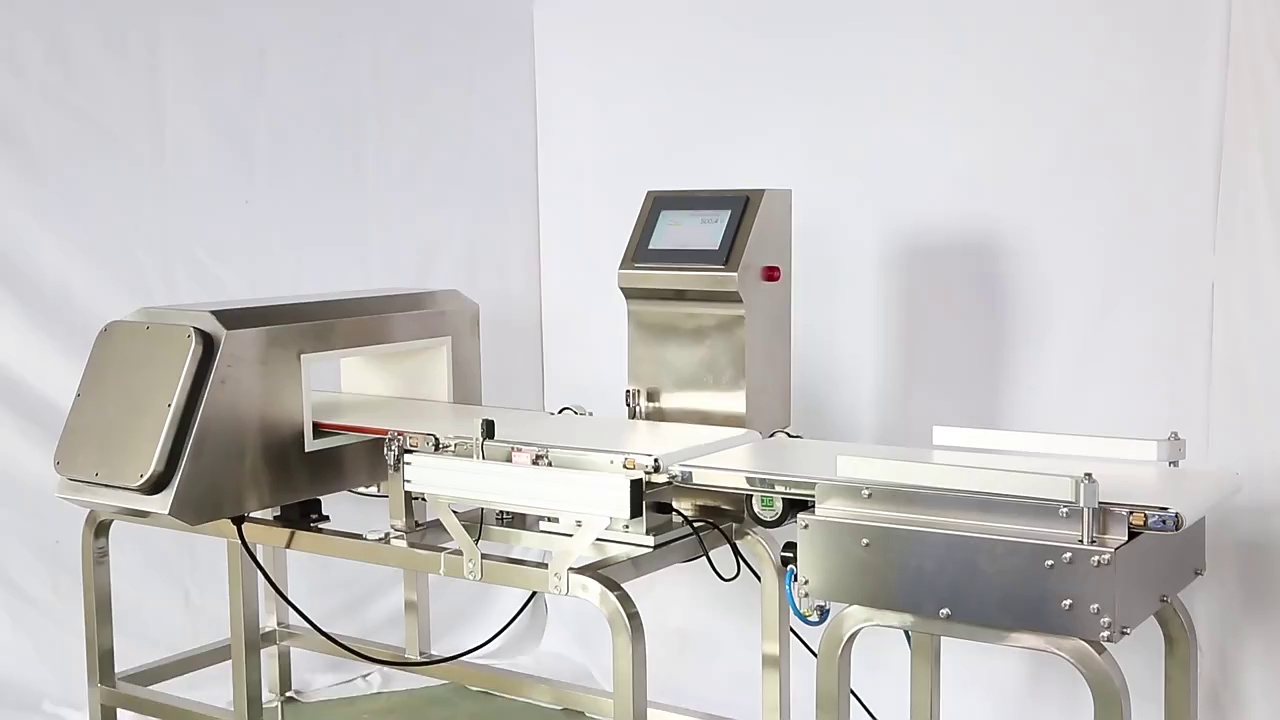

Combined Check Weigher and Metal Detector for Food Industrial Weighing and Sorting
Kenwei’s Combined Checkweigher and Metal Detector for food industrial weighing and sorting ensures precise weight control and superior safety. This advanced food metal detector integrates high-speed check weighing, delivering accuracy and reliability for quality assurance.
Model
JW-GC212
MOQ
1Set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwie
Identify Code
GC212-1-1
Power Requirement
220V/440W/50/60Hz/2A
Gross Weight
270kg

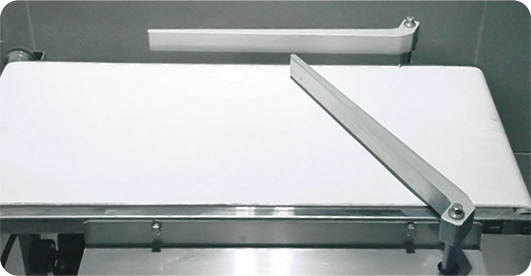

Reject Method
Air Blowing/Arm-reject/Pneumatic Pusher/Slide Type
Speed(m/min)
32~52m/min
Max package size(Width)
300mm
Max package size(Height)
120mm
Sensitivity(Fe)
0.8mm
Sensitivity(SUS)
1.5mm
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 3000 sets/year |
Feature
● Choose from 32 languages, featuring a 7" standard industrial touch screen that displays weight and metal detection results. It’s user-friendly and sets a new industry standard.
● The touch screen offers three adjustable speed levels, making it compatible with various packaging lines that have different packaging speeds.

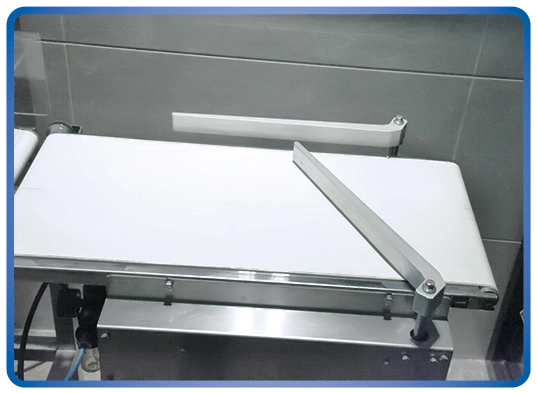

● Includes an independent automatic rejection system for both weight and metal detection.
● The detachable belt design makes cleaning and maintenance simple and efficient.
Mechanical Character

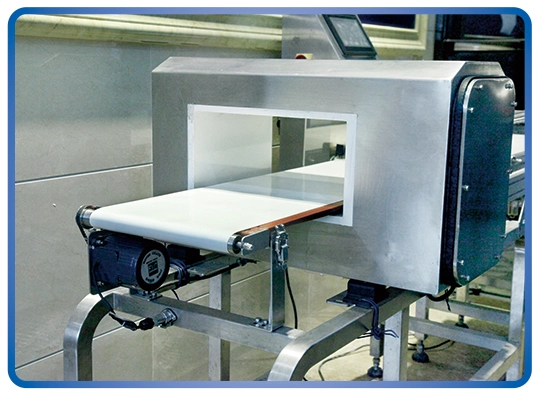

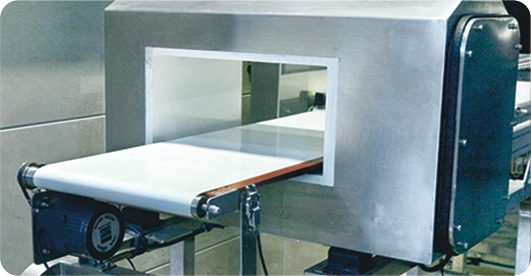

The metal detector and check weigher are integrated to detect metal and verify weight in the final internal packaging step, enhancing production safety, reliability, and space efficiency.
Technical Specification
| Model | JW-GC212 | JW-GC215 | JW-GC315 | JW-GC320 |
| Identify Code | GC212-1-1 | GC215-1-1 | GC315-1-1 | GC320-1-1 |
| Protection Class | IP54 / IP65 | |||
| Speed* | 32-52m/min |
|||
| Reject Method | Air Blowing/Arm-reject/Pneumatic Pusher/Slide Type |
Pneumatic Pusher/Slide Type | ||
| Max Package Size(mm) | 300(W)x120(H) | 300(W)x150(H) | 400(W)x150(H) | 400(W)x200(H) |
| Sensitivity(mm) | Fe: φ0.8 Sus: φ1.5 | Fe: φ1.0 Sus: φ2.0 | Fe: φ1.0 Sus: φ2.0 | Fe: φ1.2 Sus: φ2.5 |
| Power Requirement | 220V/440W/50/60HZ/2A | 220V/440W/50/60HZ/2A | 220V/660W/50/60HZ/3A | 220V/660W/50/60HZ/3A |
| Packing Dimension(mm) | 1460(L)x1140(W)x1280(H) | 1460(L)x1200(W)x1280(H) | 1940(L)x1540(W)x1360(H) | 2080(L)x1480(W)x1360(H) |
| Gross Weight | 270kg | 290kg | 380kg | 390kg |
| *: Depends on product shape, product density, target weight, etc. | ||||
Application
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About After Sales Support
What do I do if I encounter a malfunction in the machine?
If you encounter a malfunction, first check the user manual and troubleshooting guide for common issues. If the problem persists, contact our technical support team for further assistance.
About products customization
How do I request a custom-built Kenwei machine?
To request a customized machine, simply contact our sales or engineering team.
About Cooperation Process
How does Kenwei ensure the quality of its machines?
Kenwei has a stringent quality control system in place. Each machine is rigorously tested for precision, speed, and reliability before it is shipped.
About Price and payment
How do I make a payment for Kenwei machines?
We accept several payment methods: T/T, Letter of Credit (L/C)
About Product choice
What types of products does Kenwei offer?
Kenwei specializes in high-precision and high-speed automated machinery for weighing, packaging, and quality control. Our main products include: multihead weigher, linear weigher, checkweighers,food metal detector,vertical packing machine and packing machine accessories.
Tags
food metal detector
food metal detector
You may also like

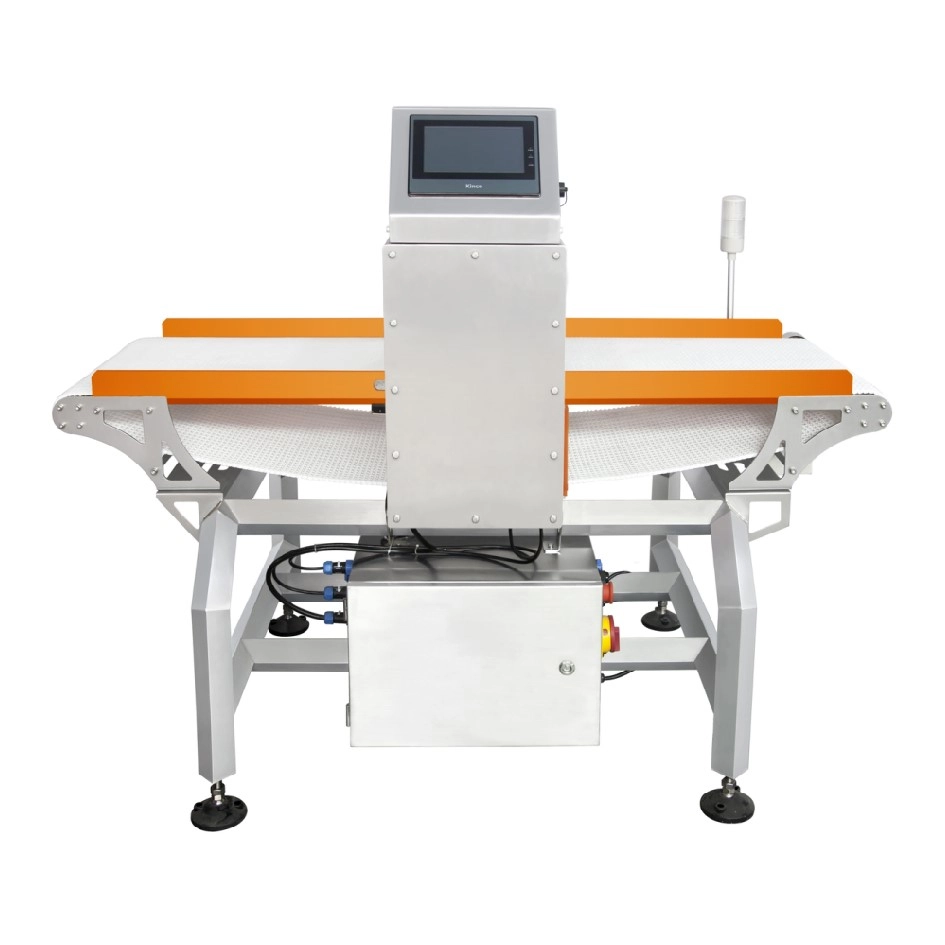

Food Metal Detector Manufacturer For Reject Defective Products G5020
