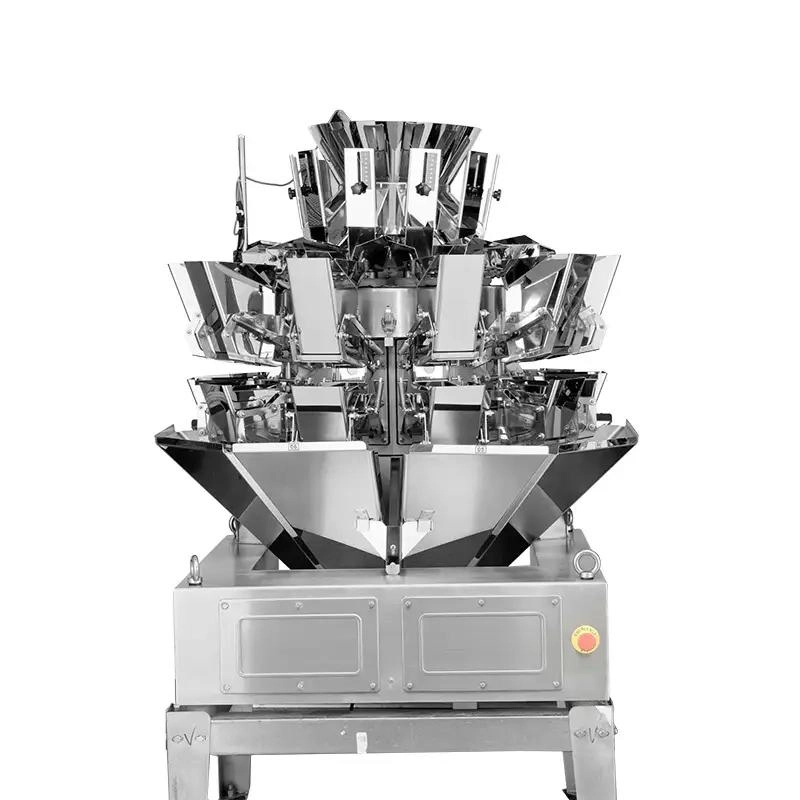

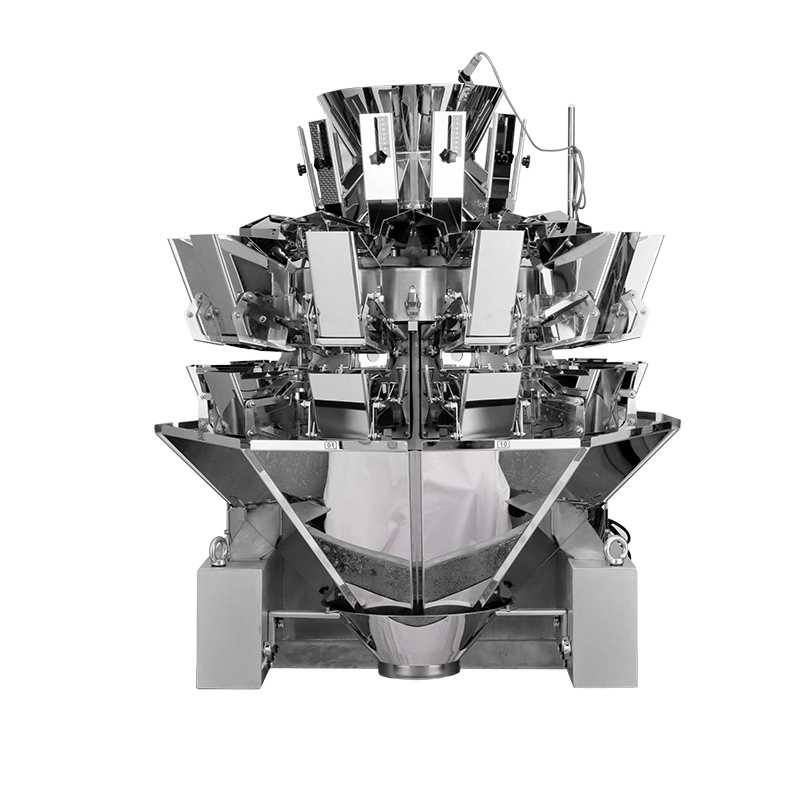

10 Heads Leak Proof Multihead Weigher With 3L Hoppers
The 10-head multihead weigher features a leak-proof design that prevents material leakage and ensures optimal hygiene. Equipped with 3L hoppers, it accurately weighs a wide range of products, including powders and granules. The high-speed multihead weigher delivers fast, precise weighing to improve production efficiency. With a user-friendly interface for easy operation and adjustments, and a durable stainless steel frame, it offers long-lasting reliability and performance.
Model
JW-A10
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A10-1-21
Weighing Range
10~1000g
Accuracy
X(0.5)
Max Speed
60P/M
Hopper Volume
3.0L
Control Panel
7
Options
Dimple Plate/ Timing Hopper/ Printer/ Reject Device
Power Requirement
220V / 900W / 50/60Hz / 8A
Packing Dimension(mm)
1620(L)x1100(W)x1110(H)
Gross Weight
380kg
| Material | 304 stainless steel | Certification | CE, OIML |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 4000 sets/year |
Mechanical Character
Suitable for automatically weighing short strips/ medium flat/ small block materials, such as pickles, radish meat products, and mustard.
Adopt IP65 waterproof machine frmae, contact material with small dimple plate.
The scraper-type double-door hopper can effectively solve the sticky impact phenomenon of super-sticky materials.
The screw pushes the material in the vertical direction to control the feeding speed and make it more precise.
The rotating blades of the main vibrator make the materials for each hopper average.
The 60° feeding chute allows the material to fall smoothly.
Feature
● Equipped with a high-precision sensor and high-resolution standard for accurate weighing.
● Factory parameter setting recovery feature supports multi-segment weight calibration for flexibility.
● Automatically pauses when no material is detected, ensuring stable weighing.
● Independent amplitude adjustment for each line during operation, promoting even material feeding.
● Supports multiple languages, offering ease of use and suitability for global markets.
● Stores up to 100 sets of parameter settings to accommodate various material requirements, with built-in help menus for easy learning and operation.
Mechanical Character

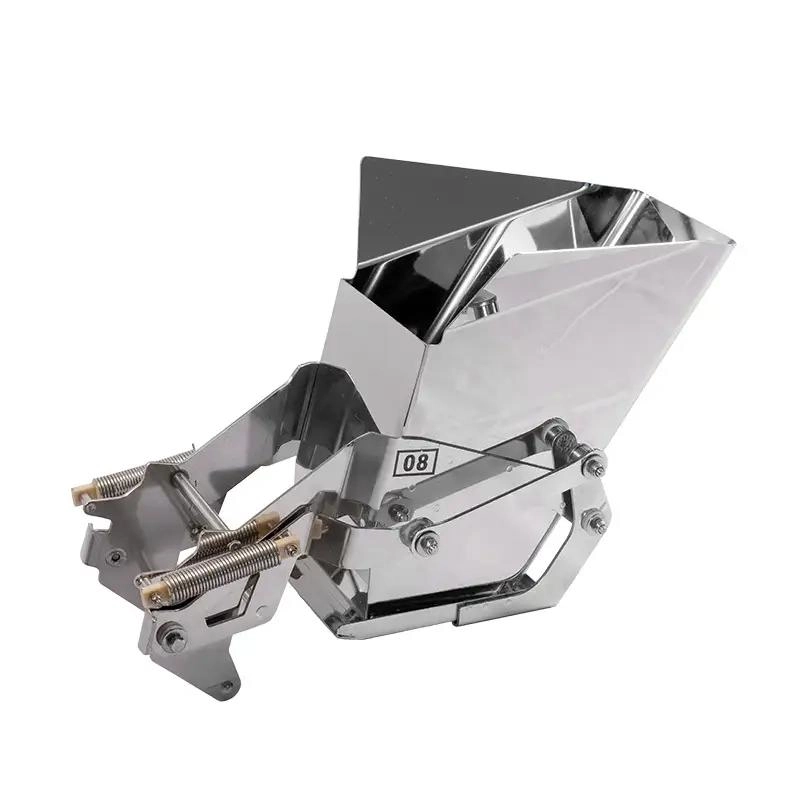

Custom-designed 3.0L hopper with a leak-proof feature, ideal for fine materials and providing enhanced weighing accuracy.

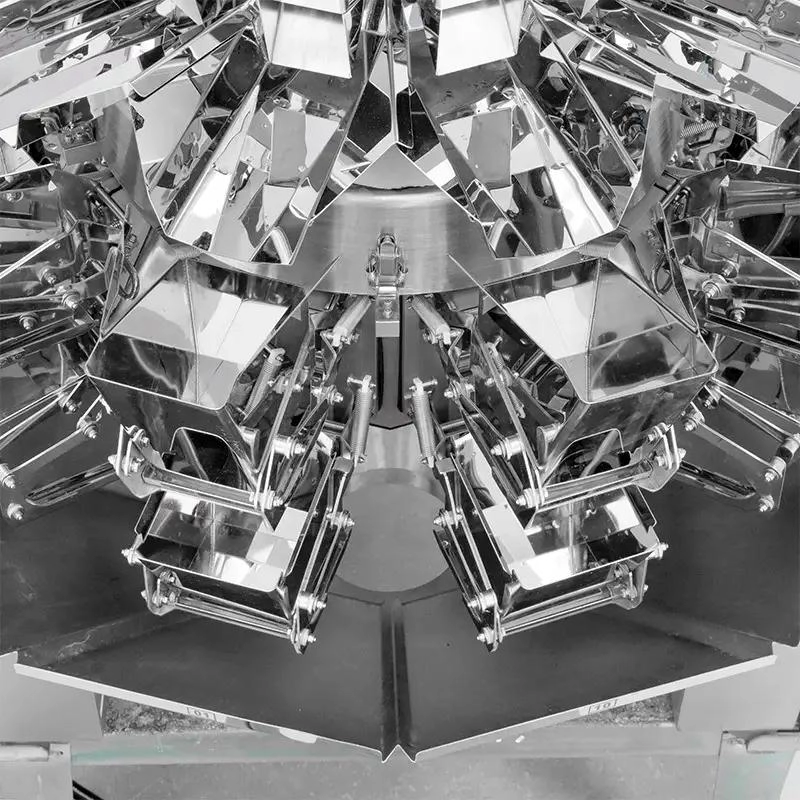

The multi-angle dividing hopper efficiently distributes materials to the vibrating plate of each line for uniform feeding.
A specially designed deep U-shaped vibrating plate prevents material leakage from both sides.
The reinforced cast aluminum middle seat increases the machine's strength, reducing the time required for weighing stabilization.
Technical Specification
|
Model |
JW-A10 |
JW-A14 |
|
Identify Code |
A10-1-21 |
A14-1-21 |
|
Weighing Range |
10~1000g |
10~1500g |
|
Accuracy *1 |
X(0.5) |
X(0.5) |
|
Max. Speed *2 |
60P/M |
120P/M |
|
Hopper Volume |
3.0L |
|
|
Control Panel |
7" Touch Screen |
|
|
Options |
Dimple Plate/ Timing Hopper/ Printer/ Reject Device |
|
|
Driving System |
Step Motor |
|
|
Power Requirement |
220V / 900W / 50/60Hz / 8A |
220V / 1100W / 50/60Hz / 10A |
|
Packing Dimension (mm) |
1620(L)x1100(W)x1110(H) |
1700(L)x1100(W)x1265(H) |
|
Gross Weight |
380kg |
490kg |
| *1: Please refer to national standard GB/T27738-2011 or international recommendation OIML R61 2004 (E) of international Legal Metrological Organization 61. |
||
| *2: Depends on product shape, product density, target weight, etc. |
||
Advantages
-
● Leak-Proof Design: Prevents material leakage, ensuring hygiene and minimizing waste in packaging operations.
-
● 10-Head Configuration: Delivers precise weighing through advanced combination calculations for accurate results.
-
● 3L Hoppers: Offers ample capacity to handle various products, including powders and granules.
-
● High-Speed Weighing: Enables rapid weighing processes, boosting production efficiency.
-
● User-Friendly Interface: Simplifies operation and parameter adjustments for ease of use.
-
● Stainless Steel Construction: Guarantees long-lasting durability and reliable performance.
-
● Versatile Applications: Ideal for use in the food, pharmaceutical, and chemical industries.
-
● Easy Maintenance: Designed for simple cleaning and routine upkeep, ensuring consistent performance.
-
● Multi-Functional: Easily integrates into automated production lines for enhanced workflow.
Application
This 10-head leak-proof multihead weigher accurately weighs and packages products in the food, chemical, and pharmaceutical industries. It handles items like powdered milk, flour, sugar, coffee beans, nuts, pigments, additives, medicines, and supplements. Ideal for granular products like rice, beans, and grains, it ensures product quality, boosts production efficiency, reduces labor costs, and enhances production line automation.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About After Sales Support
What do I do if I encounter a malfunction in the machine?
If you encounter a malfunction, first check the user manual and troubleshooting guide for common issues. If the problem persists, contact our technical support team for further assistance.
How about the after-sales service?
Warranty :2 years
About products customization
Can Kenwei machines be customized for different industries?
Yes,According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on.
Can I customize the size of Kenwei machines?
Yes, we can tailor the dimensions of our machines to fit your available space and production layout. Whether you need compact machines or larger equipment, we can accommodate your size requirements.
About Solution suggestions
Can Kenwei provide a solution for mixed-product weighing?
Yes, Kenwei’s multi-head weighers are ideal for mixed-product weighing. They can handle a variety of products in different shapes and sizes, ensuring that the correct portions are weighed and packaged quickly.
