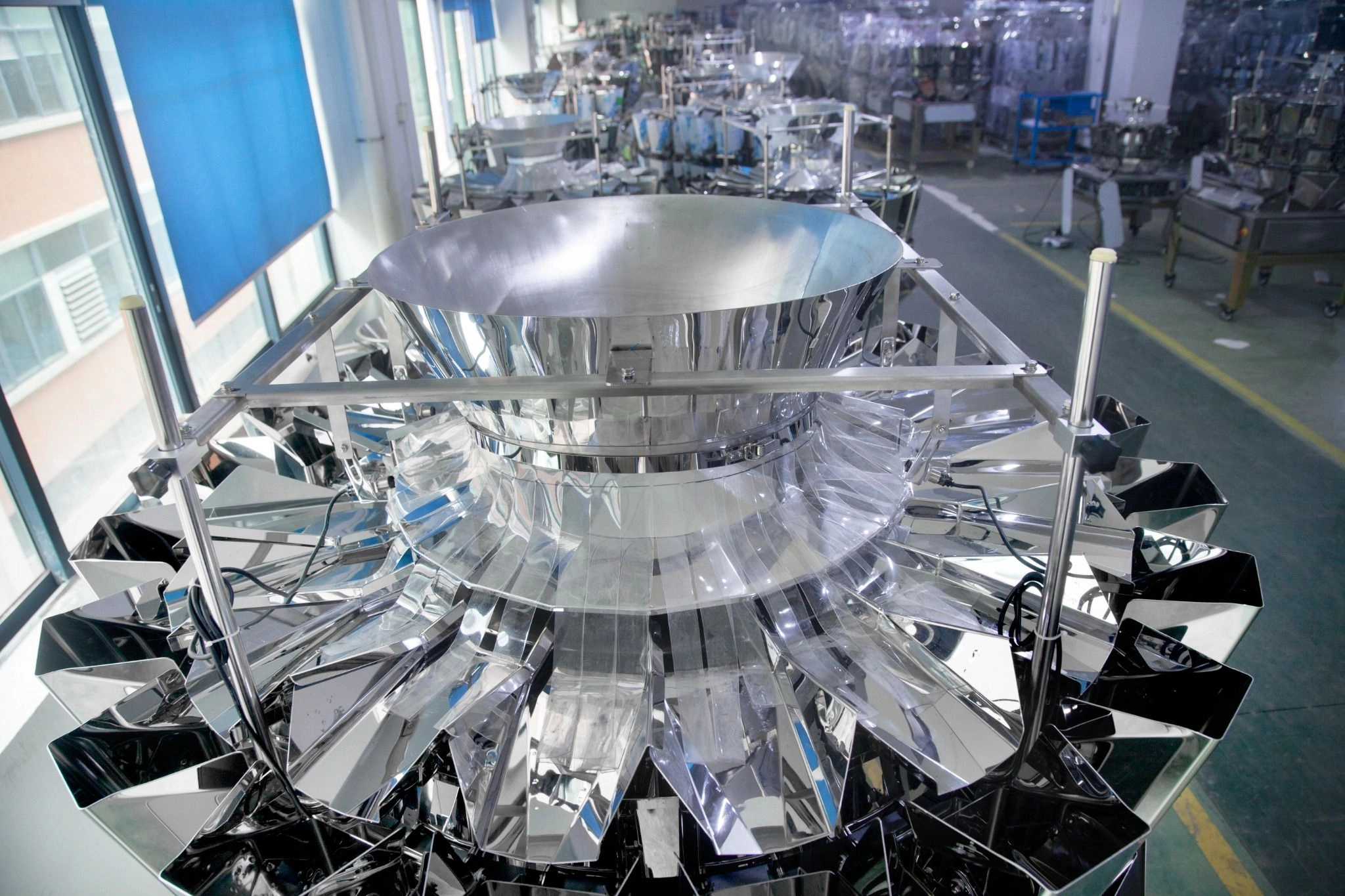

High-Speed 20 Heads Multihead Weigher with Dual Outlets for Mixed and Multi-Material Weighing
Kenwei's High-Speed 20 Heads Multihead Weigher with Dual Outlets delivers precise, efficient mixed and multi-material weighing. This advanced Multihead Weigher Packing Machine boosts packing speed and accuracy, ideal for diverse products. Perfect choice among 20 head weighers for industrial use.
Model
JW-A20
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A20-2-1
Weighing Range
20~2000g
Accuracy
X(0.5)
Max Speed
65P/M
Hopper Volume
1.6L
Control Panel
10.1”Touch Screen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/2000W/50/60Hz/16A
Packing Dimension(mm)
1700(L)x1450(W)x1450(H)
Gross Weight
850kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● High-speed mode is available when weighing a single product.
● The system can automatically compensate the mixing weight based on the previous discharge.
●Equipped with high-precision, high-standard load cells.
●Intelligent alarm and diagnostic functions.
● High-speed staggered dumping for faster operation.
● New modular design with CAN-bus technology for greater efficiency and stability.
● Supports Modbus industrial communication protocol.
Mechanical Character

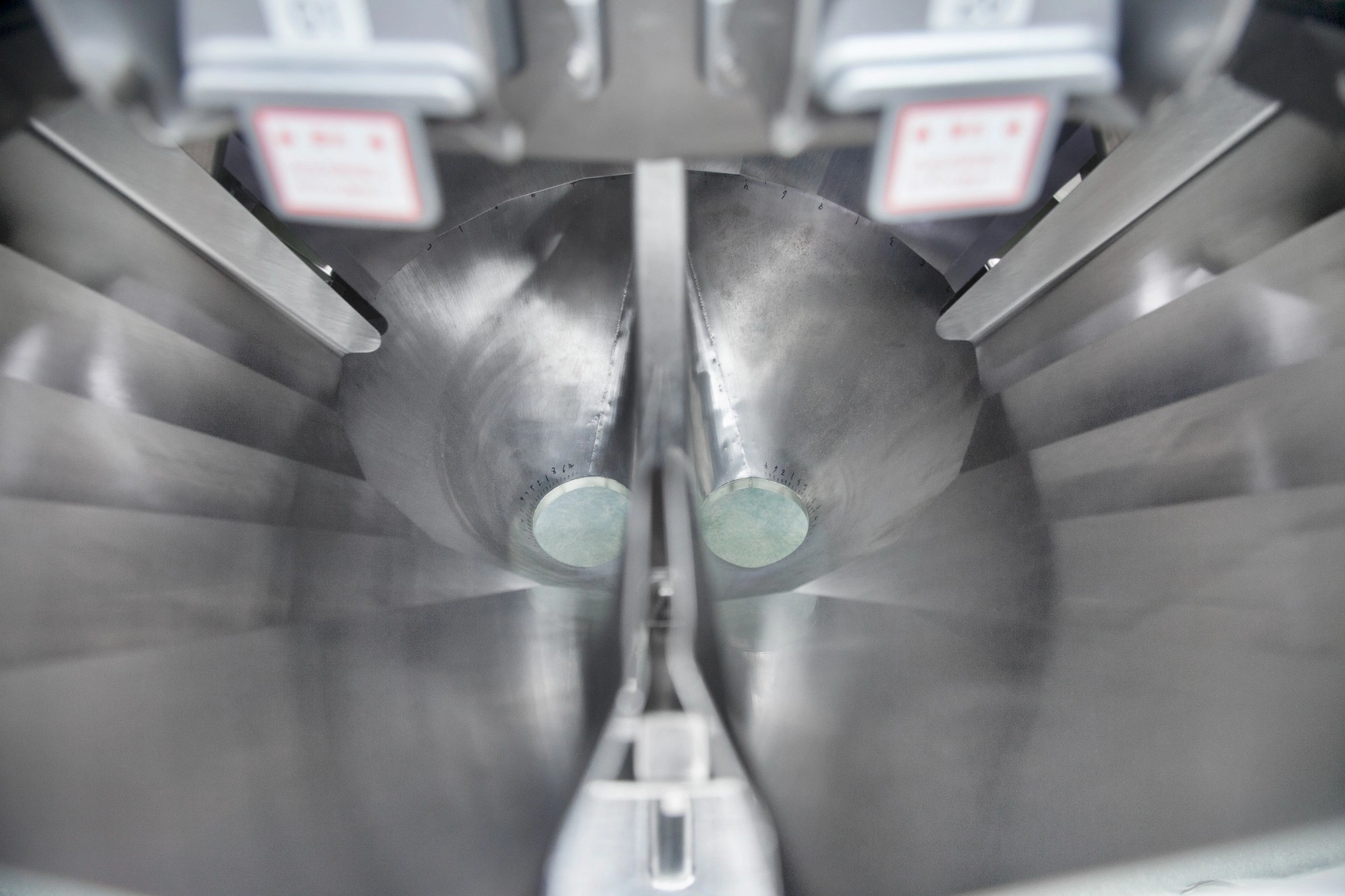

The upper storage funnel is divided to weigh two different products simultaneously.Independent main vibrators allow separate control of product thickness.

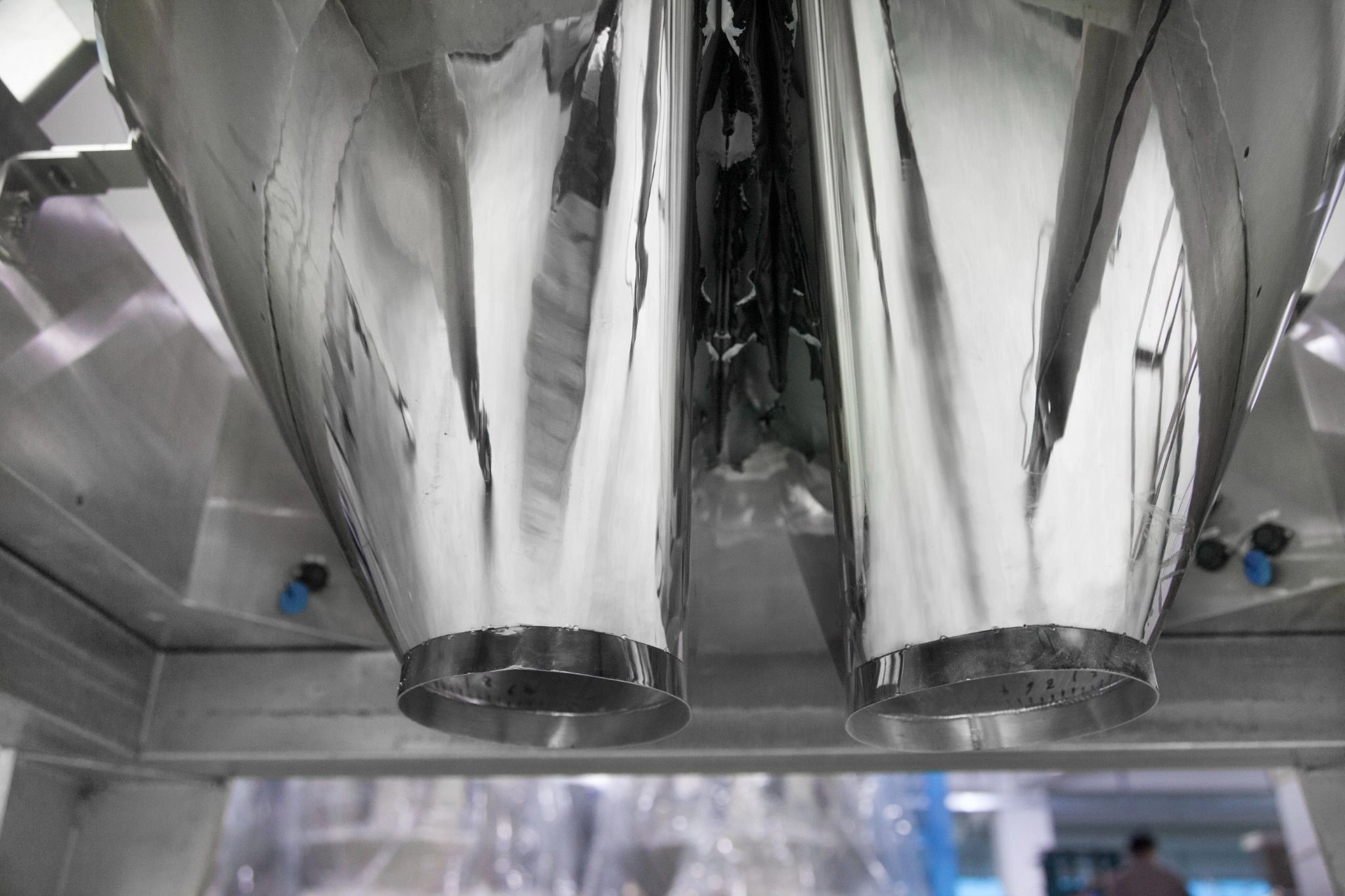

Optional: dual-output model.
The integrated machine frame and cabinet provide greater stability and higher accuracy.
The compatible machine frame and discharge chute design allow the single discharge gate to be converted into a double gate when paired with a twin packaging machine for single-product applications.
Unified design standards and mold processing improve spare-parts interchangeability.

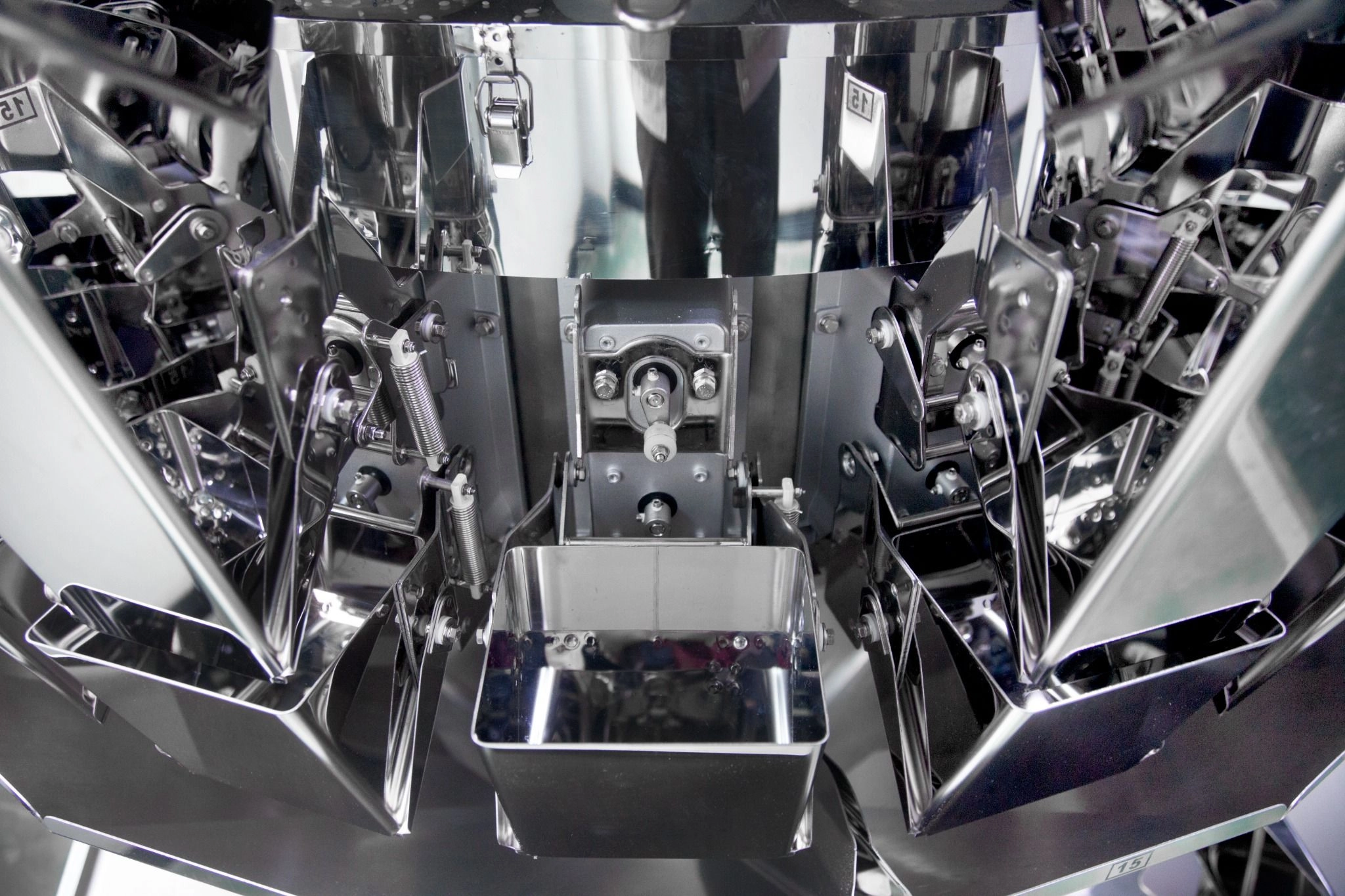

A stable actuator design reduces mechanical vibration and enhances load-cell accuracy.
Technical Specification
|
Model |
JW-A20 |
JW-A20 |
JW-A20 |
JW-A20 |
JW-A20 |
|
Identify Code |
A20-2-1（O type） |
A20-2-1 (O type) |
A20-2-3 (8 type) |
A20-2-2 (O type) |
A20-2-4 (8 type) |
|
Weghing Range |
20-2000g (Mixing Mode)/10-1000g (Single Mode) |
10-1000g |
|||
|
Accuracy *1 |
X(0.5) |
||||
|
Max. Speed *2 |
2x65P/M (Twin Packing Machine Mode) |
||||
|
Hopper Volume |
1.6L |
2.5L |
1.6L/2.5L |
||
|
Control Panel |
10." Touch Screen |
||||
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
||||
|
Driving System |
Step Motor |
||||
|
Power Requirement |
220V/2000W/50/60Hz/16A |
||||
|
Packing Dimension(mm) |
1700(L)x1450(W)x1450(H) |
1920(L)x1650(W)x1620(H) |
1880(L)x1600(W)x1240(H) |
1950(L)x1650(W)x1620(H) |
1880(L)x1600(W)x1240(H) |
|
Gross Weight |
850kg |
||||
*1: Can refer to the national standard GB / T27738-2011 or the International Legal Organization No. 61 International
Recommendation OIML R61 2004 (E).
*2: Depends on product shape, product density, target weight etc.
Application
It is suitable for high-speed weighing of a single product or for weighing various mixed products, such as oatmeal, mixed nuts, and more.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About After Sales Support
What after-sales support does Kenwei offer?
Kenwei provides comprehensive after-sales support, including product installation, training, maintenance, troubleshooting, and technical assistance. Our team is dedicated to ensuring your machines operate at their best throughout their lifecycle.
About Cooperation Process
Can Kenwei customize equipment to meet my specific needs?
Yes! We offer customized solutions for all of our machines. Our team will work closely with you to understand your specific requirements and create a solution that meets your needs in terms of size, functionality, speed, and other factors.
About Product choice
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
About products customization
How do I request a custom-built Kenwei machine?
To request a customized machine, simply contact our sales or engineering team.
Can Kenwei machines support multiple languages?
Yes, we can customize the software interface to support multiple languages, making it easier for operators from different regions to use the machine.
