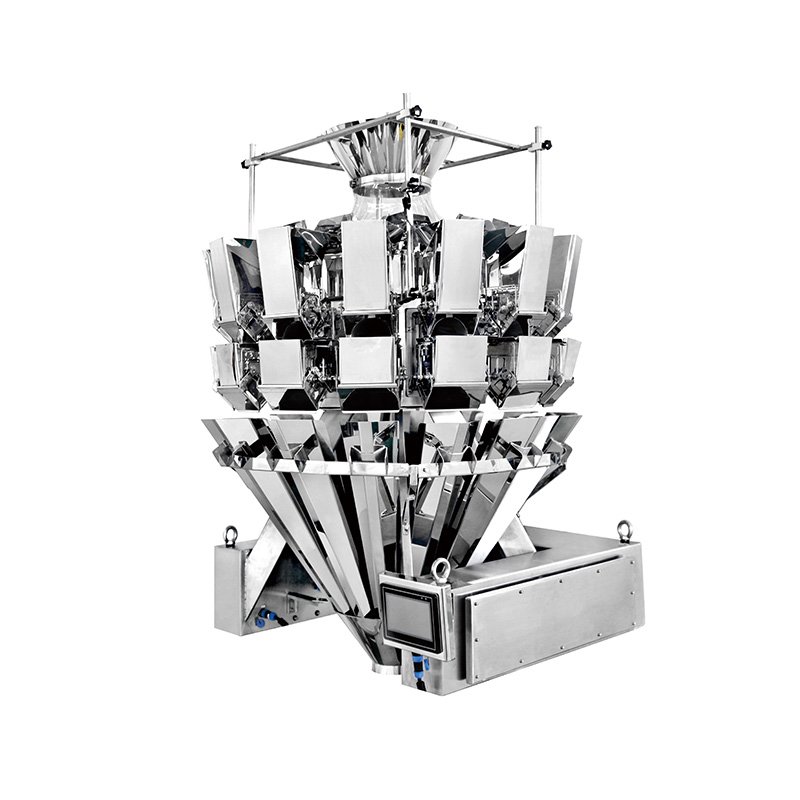

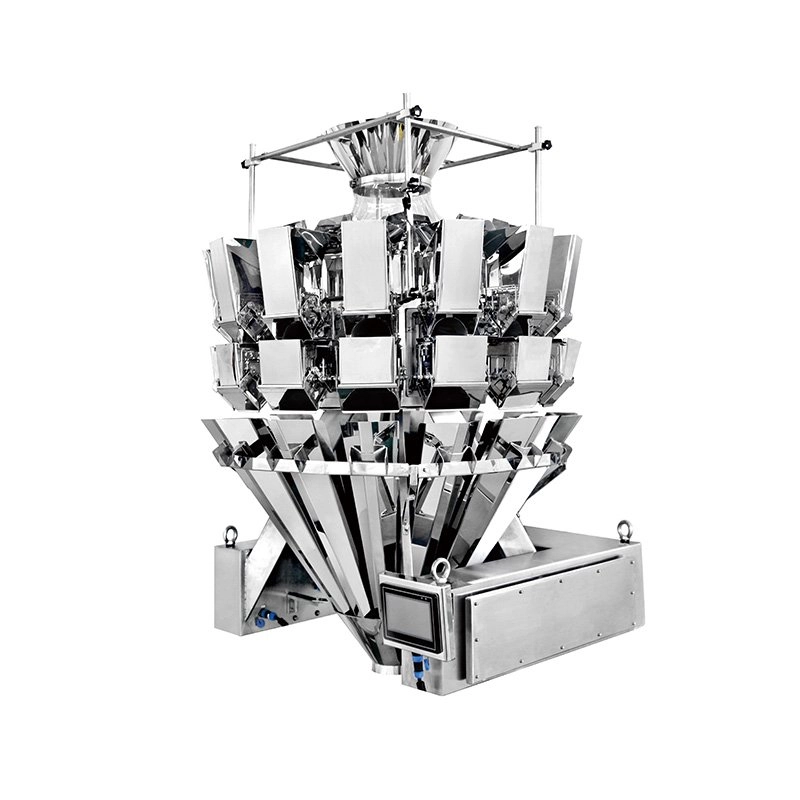

Automatic Multihead Weigher for Stick and Bar-Shaped Materials
Kenwei’s Automatic Multihead Weigher for Stick and Bar-Shaped Materials ensures precise, fast, and efficient weighing. This advanced automatic multihead weighing machine is ideal for accurate portioning of various stick and bar-shaped products, enhancing productivity and reducing waste.
Model
JW-A10
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A10-1-9
Weighing Range
10-1000g
Accuracy
X(0.5)
Max Speed
30P/M
Hopper Volume
2.5L
Control Panel
7'' Touch Screen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/2000W/ 50/60Hz /12A
Packing Dimension(mm)
1620(L)*1100(W)*1420(H)
Gross Weight
380kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Equipped with a high-precision, high-standard load cell for superior weighing accuracy.
● Program recovery function minimizes operational errors and supports multi-segment weight calibration.
● Auto-pause function when no product is detected ensures stable and accurate weighing.
● Independent linear amplitude adjustment allows for more uniform and consistent feeding.
●Supports 15 languages to meet the needs of global users.
● Memory capacity for 100 preset programs meets diverse weighing requirements, while a user-friendly touchscreen interface with an intuitive help menu ensures easy operation.
Mechanical Character

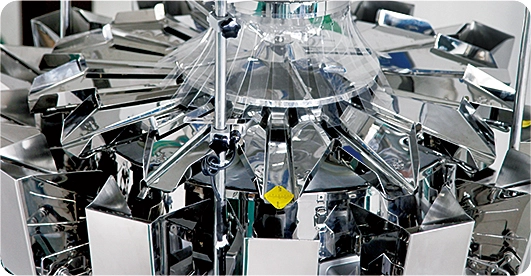

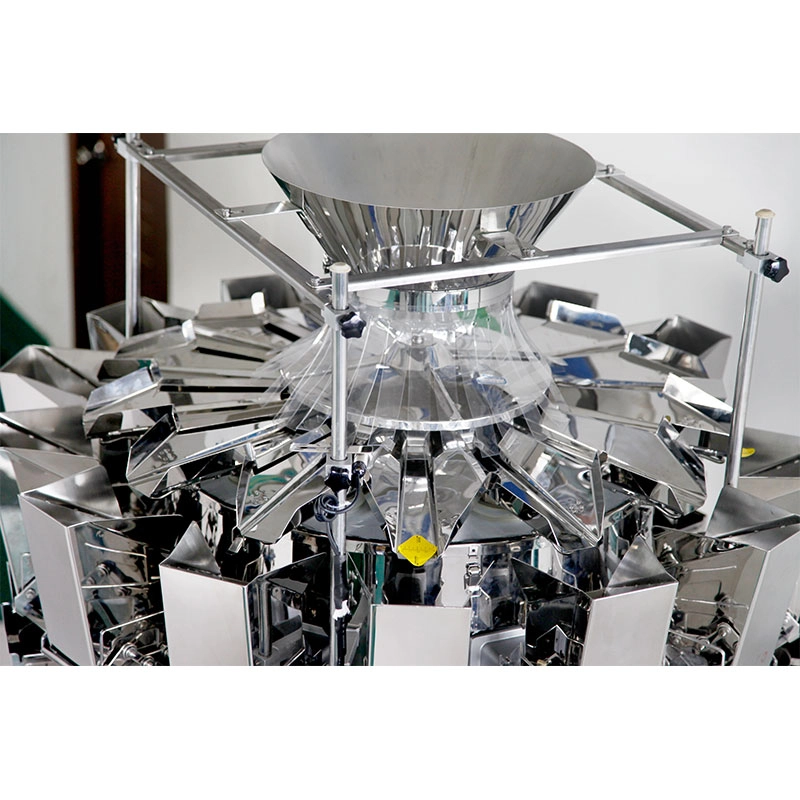

Special rotary top cone ensures even distribution of products to each linear feeder pan.and mustard.
Customized linear feeder pans guarantee a smooth and consistent feeding process.

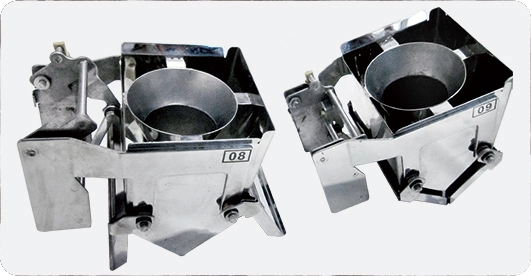

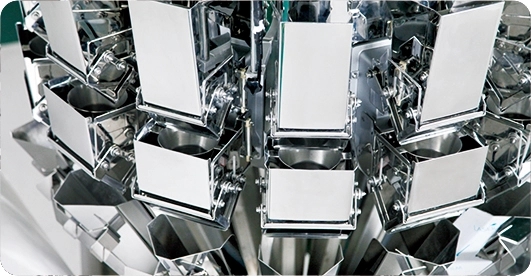

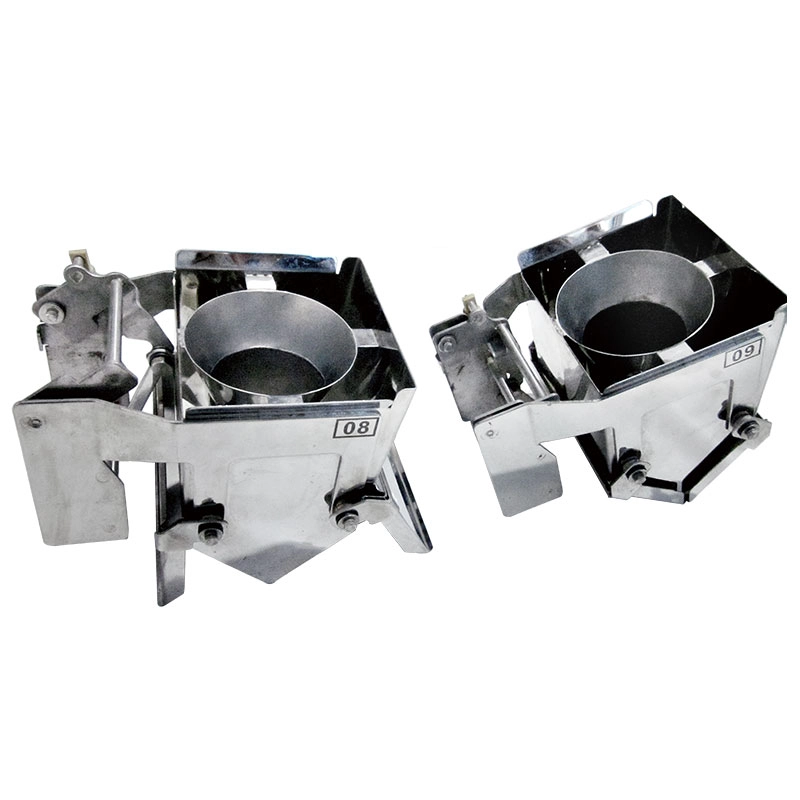

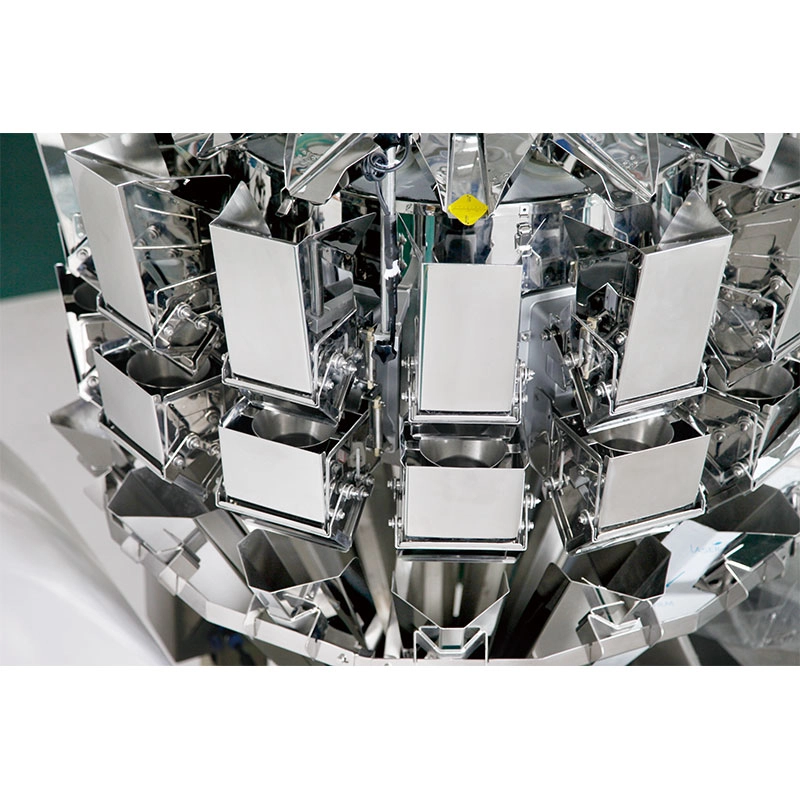

Optimized hopper design keeps materials in a stable vertical position for precise weighing.

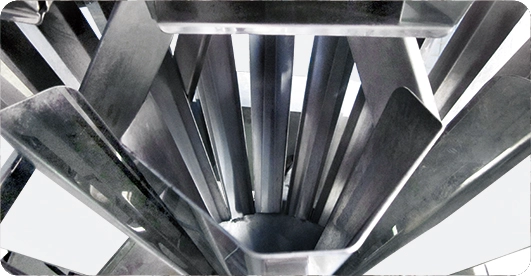

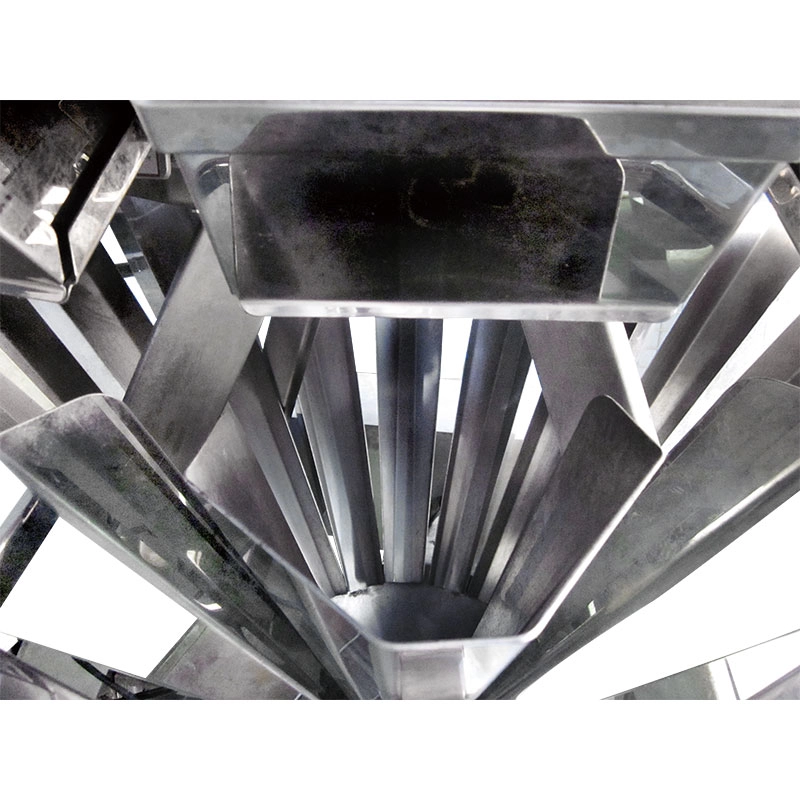

Independent discharge chutes ensure materials drop vertically into the packaging machine without deviation.
Thickened cast-aluminum machine frame enhances overall strength and reduces sample stabilization time.
Optional weighing-type material detection allows accurate control of feeding time and material thickness, ensuring exceptional weighing accuracy.
Technical Specification
|
Model |
JW-AS14 |
JW-A10 |
JW-A14 |
JW-AM14 |
|
Identify Code |
AS14-1-9 |
A10-1-9 |
A14-1-9 |
AM14-1-9 |
|
Weighing Range |
3-200g |
10-1000g |
10-1500g |
10-3000g |
|
Accuracy *1 |
X(0.5) |
X(0.5) |
X(0.5) |
X(1) |
|
Max. Speed *2 |
60P/M |
30P/M |
60P/M |
60P/M |
|
Hopper Volume |
0.5L |
2.5L |
2.5L |
5L |
|
Control Panel |
7”Touch Screen |
|||
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|||
|
Driving System |
Step Motor |
|||
|
Power Requirement |
220V/1100W/50/60Hz/10A |
220V/2000W/50/60Hz/12A |
220V/2000W/50/60Hz/12A |
220V/2000W/50/60Hz/12A |
|
Packing Dimension (mm) |
1190(L)x970(W)x950(H) |
1620(L)x1100(W)x1420(H) |
1750(L)x1130(W)x1420(H) |
2195(L)x1380(W)x2060(H) |
|
Gross Weight |
240kg |
380kg |
490kg |
750kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | ||||
| *2: Depends on product shape, product density, target weight, etc. | ||||
Application
It is suitable for weighing stick-shaped products such as sausages, salty sticks, chopsticks, pencils, and other similar items with a maximum length of 200 mm.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Solution suggestions
Can Kenwei provide a solution for mixed-product weighing?
Yes, Kenwei’s multi-head weighers are ideal for mixed-product weighing. They can handle a variety of products in different shapes and sizes, ensuring that the correct portions are weighed and packaged quickly.
About Cooperation Process
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
About Logistics
How are large machines handled during shipping?
Large machines are typically shipped via sea freight using containerized shipping.
About Price and payment
How is the price of Kenwei machines determined?
The price of Kenwei machines depends on several factors, including the type of machine, customization requirements, production volume, and any additional features or integrations. We provide tailored quotes based on your specific needs and requirements.
About products customization
Can Kenwei machines be customized for different industries?
Yes,According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on.
