Multi-Level Checkweigher for Agricultural Sorting Applications
Kenwei’s Multi-Level Checkweigher for Agricultural Sorting Applications ensures precise weight sorting with advanced checkweigher machine technology. This reliable weight sorting machine optimizes productivity and accuracy in agricultural processing, making it the ideal check weigher machine for your needs.
Model
JW-C1000
MOQ
1 SET
Payment
L/C
Place of Origin
China
Brand
Kenwei
Identify Code
C1000-1-2
Weighing Range
100-1000g
Accuracy
XIII(1)
Max Speed
100P/M
Control Panel
7" Touch Screen
Power Requirement
220V/400W/50/60Hz/2A
Packing Dimension(mm)
1820(L)x1300(W)x1290(H)
Gross Weight
250kg
Max.Belt Speed
62m/min
Belt Size
450(L)X220(W)
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Intelligent design with automatic parameter adjustment for effortless operation.
● Material density alarm and automatic generation of production column reports.
● Detachable conveyor structure for easy disassembly and thorough cleaning.
● PLC control system with standard industrial touchscreen, supporting easy integration of value-added functions such as multi-stage weight sorting and weight feedback.

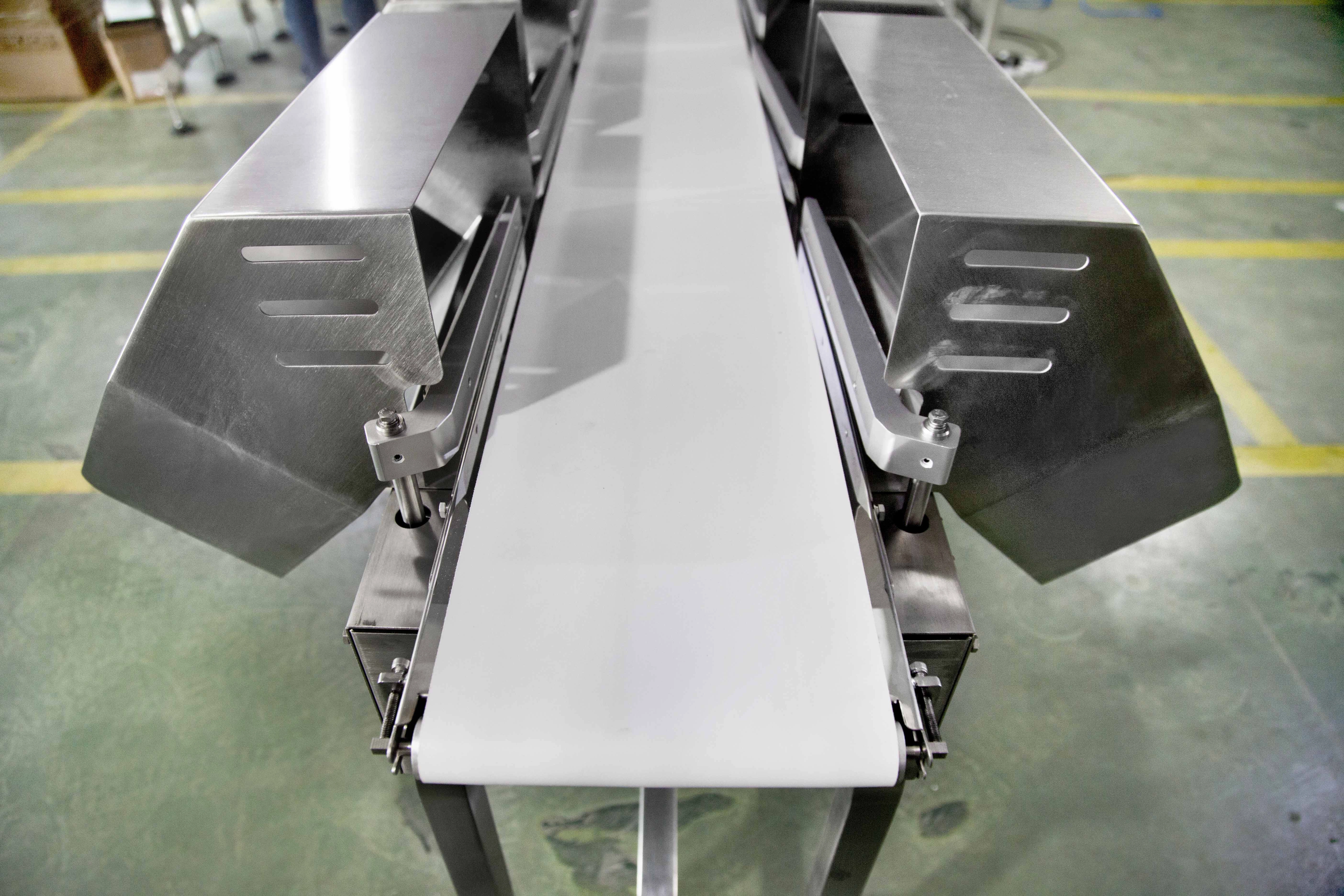

Mechanical Character

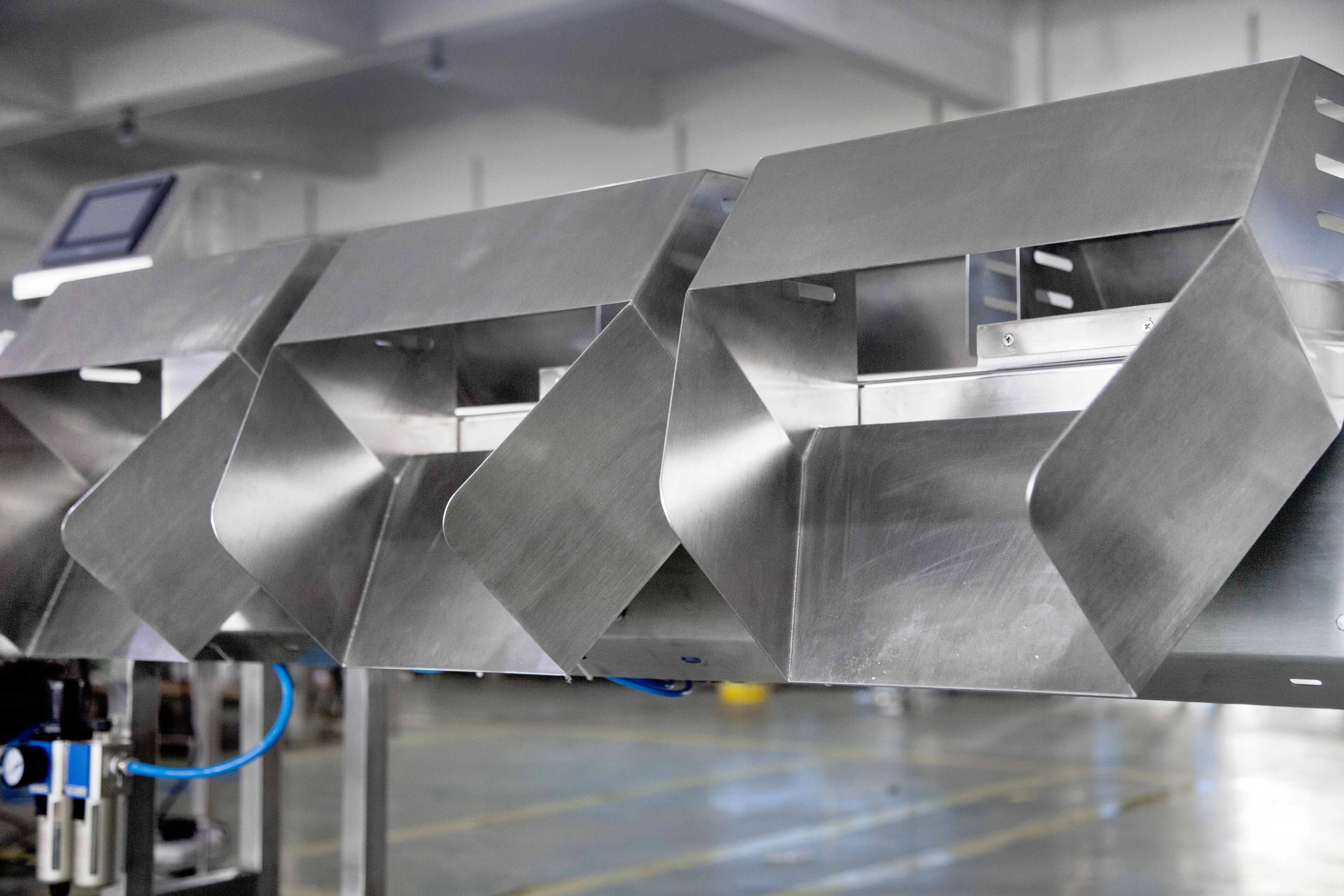

The sorting section is designed with six independent grading levels.
This configuration efficiently accommodates materials across a wide range of weight categories, ensuring precise and flexible sorting.
Technical Specification
|
Model |
JW-C1000 |
|
Identify Code |
C1000-1-2 |
|
Weighing Range |
10-1000g |
|
Accuracy*1 |
XIII(1) |
|
Max.Speed*2 |
100P/M |
|
Max.Belt Speed |
62m/min |
|
Belt Size (mm) |
450(L)X220(W) |
|
Control Panel |
7”Touch Screen |
|
Reject Method |
Air blowing/Air-reject/Pneumatic pusher/Slide type |
|
Power Requirement |
220V/400W/50/60Hz/2A |
|
Packing Dimension (mm) |
1820(L)x1300(W)x1290(H) |
|
Gross Weight |
250kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
It is suitable for weighing and sorting materials in the agricultural, aquatic, industrial, and other related sectors. The materials can be processed in various packaging formats, including bags, boxes, and more.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Product choice
What is the difference between a multi-head weigher and a linear weigher?
Multi-head Weigher: Ideal for high-speed and high-precision weighing of products with irregular shapes or varying sizes. It provides multiple weighings in parallel for faster processing.
Linear Weigher: It is suitable for powder and granule. It is typically slower than a multi-head weigher but is effective for certain types of applications that require more continuous flow or controlled weighing.
About Cooperation Process
Does Kenwei offer installation and training?
Yes, Kenwei provides installation services and comprehensive training to ensure that your team can operate the machinery efficiently. Our engineers can travel to your facility for on-site installation, and we also offer remote training options if needed.
How to operate it?
Many languages are available for global markets. There are not only detailed instructions, but also machine video for reference learning.
What is the lead time for product delivery?
The lead time depends on the complexity of the order and the level of customization required. Typically, our products are shipped within 4-8 weeks after receiving the order confirmation. However, this can vary, and we will provide an estimated delivery date when you place your order.
About Solution suggestions
Can Kenwei machines handle products with irregular shapes or sizes?
Yes, multi-head weighers are particularly effective for handling products with irregular shapes and sizes.
