200g High Precision Food Checkweigher in Food Packaging and Processing
Discover the Kenwei 200g High Precision Food Checkweigher—ideal for accurate weight inspection in food packaging and processing. Our checkweigher ensures reliable results and efficiency. Choose Kenwei checkweighers for advanced quality control solutions.
Model
JW-C200
Payment
L/C, T/T
Identify Code
C200-2-1
Weighing Range
5-200g
Accuracy
XIII(1)
Max Speed
150 PCS
Power Requirement
220V / 400W / 50/60Hz
Packing Dimension(mm)
1450(L)*570(W)*1280(H)

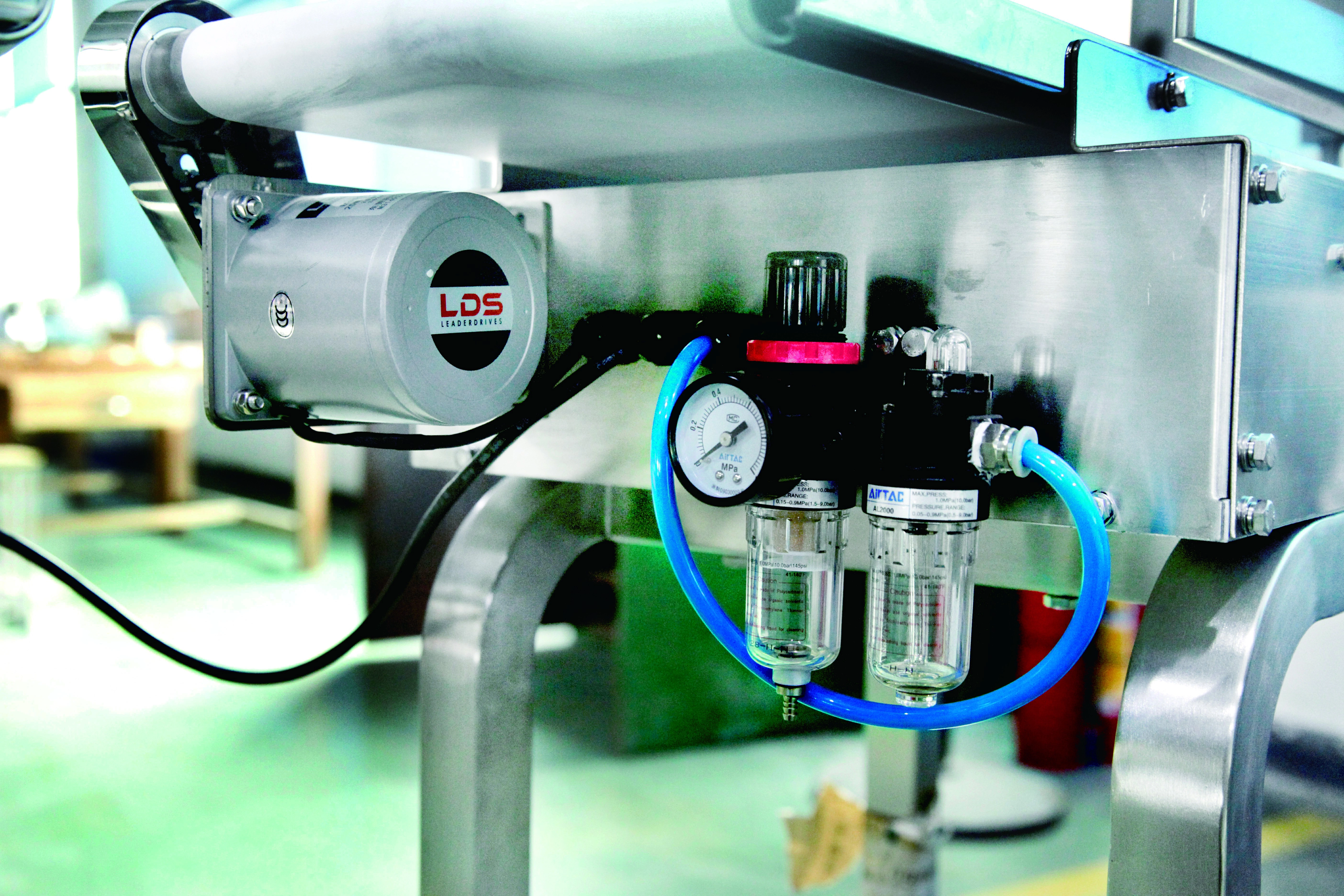

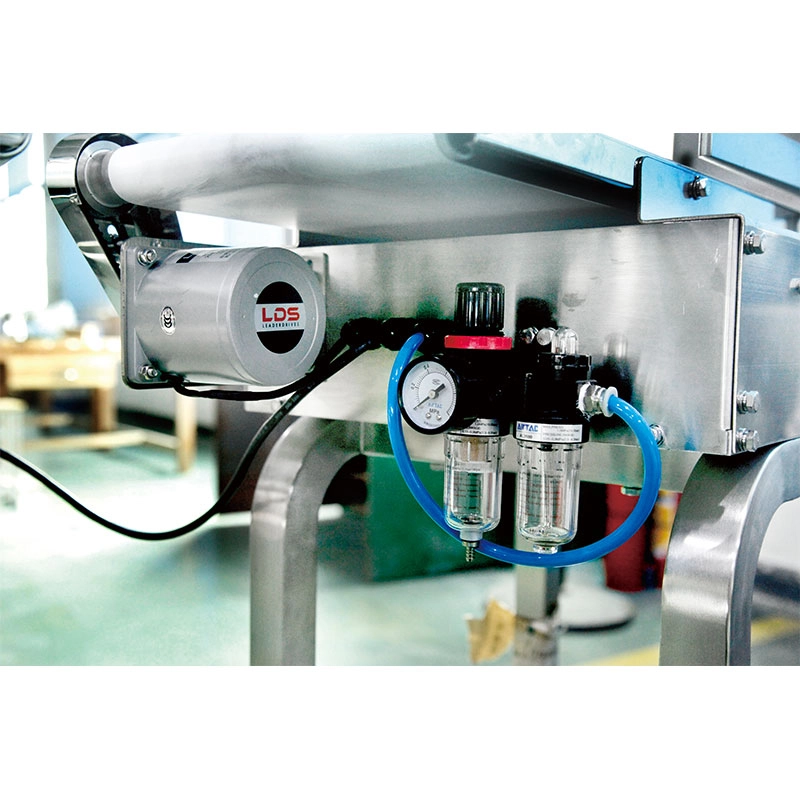

Reject Method
Air blowing
Max.Belt Speed
80m/min
Belt Size
450(L)*100(W)mm
Belt width
100mm
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Brand New, Highly Integrated Modular Control System.
● Fault Alarm Information Displayed Directly in Text.
-

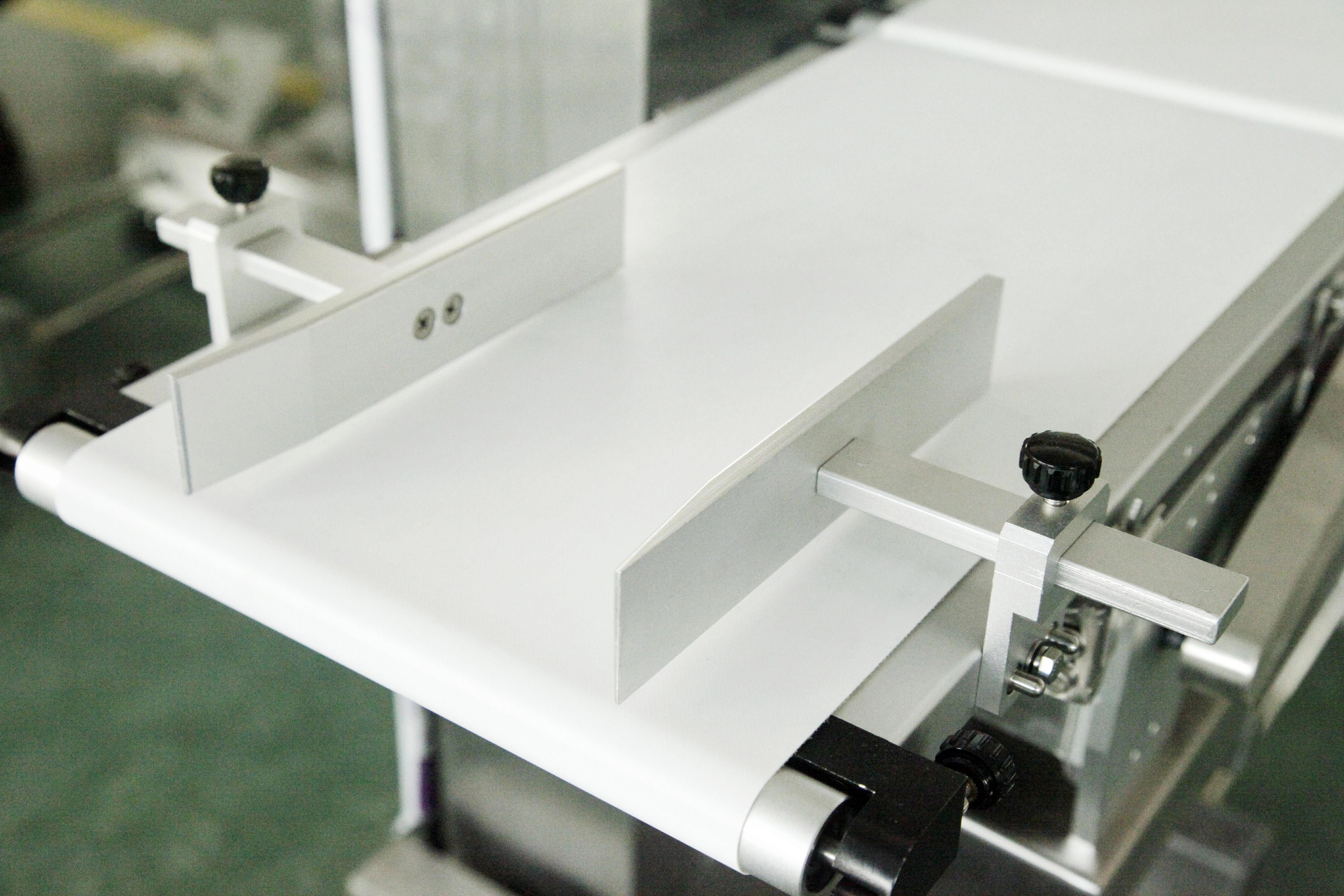

● Conveyor Belt Features an Easy-Disassembly Design for Convenient Assembly and Cleaning.
- ● “Self-Learning” Parameter Adjustment Function Simplifies the Setting Process.
● Comprehensive Production Quality Data, Including Weight Distribution Histogram, Total Production Weight, Number of Qualified Packages, Pass Rate, Number of Non-Qualified Packages, Actual Weight of Defective Products, and Production Time.
Mechanical Character

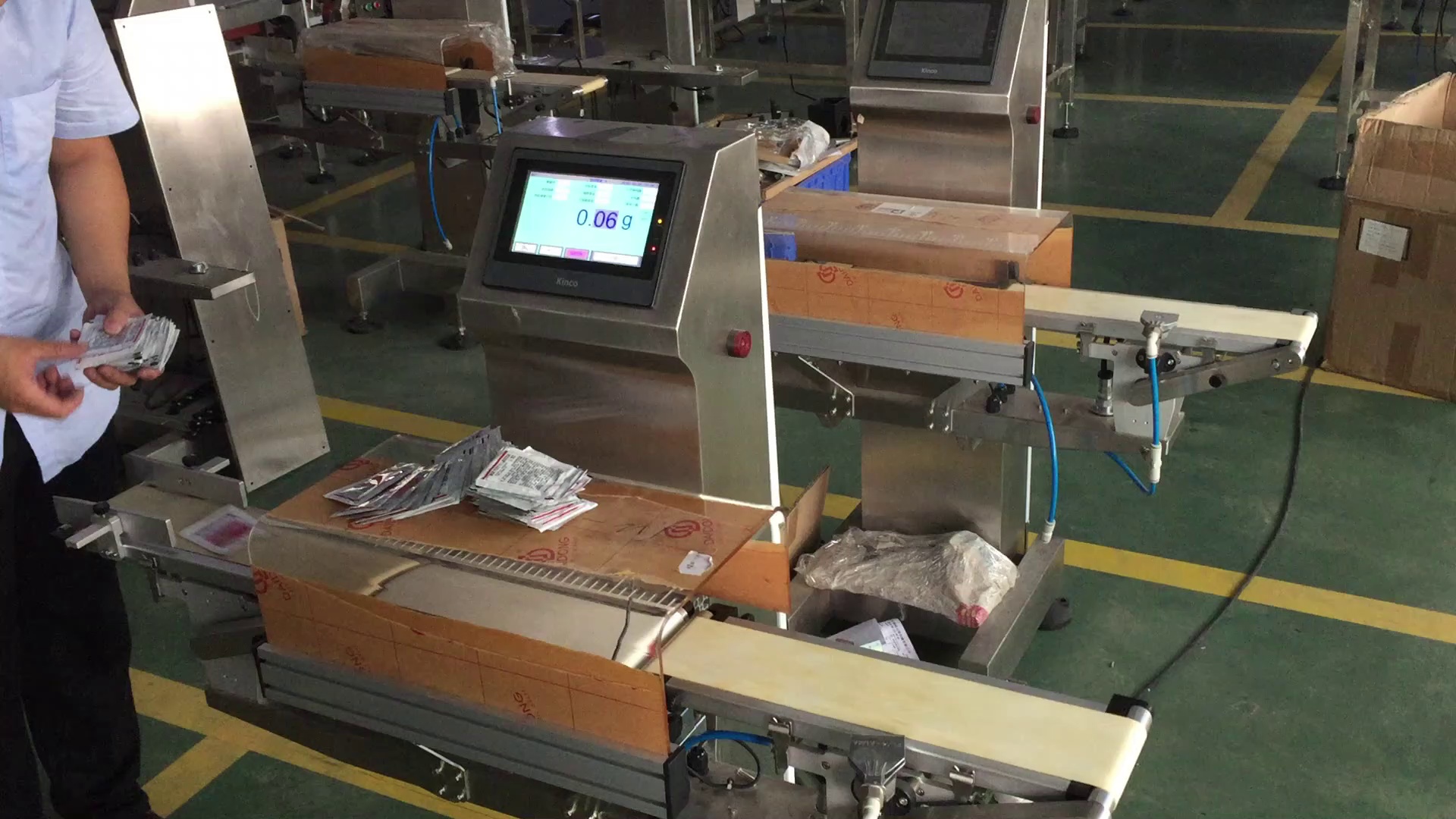

It is designed to detect the weight of packaged bags and boxes. It automatically identifies unqualified items and removes them through a rejection mechanism.and mustard.
Fast Weighing Speed: Designed to provide quick results, this checkweigher can measure items at high speeds, making it ideal for high-volume food production lines.
Compact Design: The lightweight and space-efficient design allows it to be easily integrated into existing packaging and processing lines without taking up too much room.
User-Friendly Interface: Equipped with an intuitive touchscreen interface, the checkweigher is simple to operate, reducing training time for operators.
Low Maintenance Requirements: Designed for easy cleaning and minimal upkeep, which is crucial in food processing environments where cleanliness is paramount.
Technical Specification
|
Model |
JW-C200 |
JW-C200 |
|
Identify Code |
C200-2-1 |
C200-2-2 |
|
Weighing Range |
5-200g |
2-200g |
|
Accuracy*1 |
XIII(1) |
XIII(1) |
|
Max.Belt Speed |
80m/min |
70m/min |
|
Max Speed*2 |
150PCS |
130PCS |
|
Belt Size(mm) |
450(L)x100(W) |
330(L)x100(W) |
|
Control Panel |
7”Touch Screen |
|
|
Reject Method |
Air blowing |
|
|
Power Requirement |
220V/400W/50/60Hz/2A |
220V/400W/50/60Hz/2A |
|

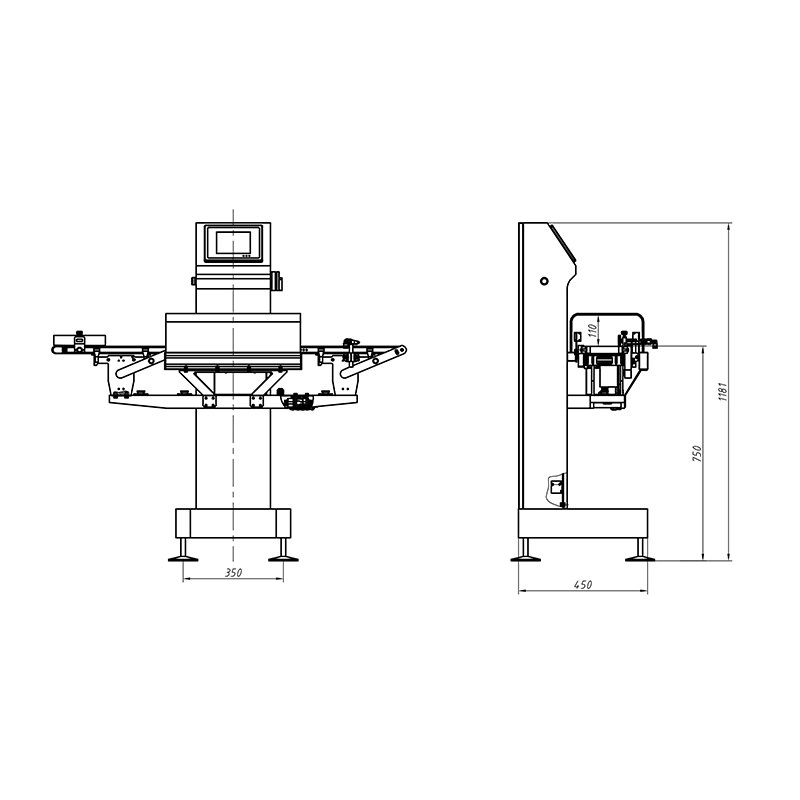

Packing Dimension(mm) |
1450(L)x570(W)x1280(H) |
1450(L)x570(W)x1280(H) |
|
Gross Weight |
100kg |
100kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | ||
| *2: Depends on product shape, product density, target weight, etc. | ||
Application
The 200g High Precision Food Checkweigher is specifically designed to ensure the accuracy and consistency of packed food products, including bags, boxes, and other packaged goods. Its primary function is to check the weight of each package during the packaging process to ensure it meets the required weight specifications.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Price and payment
How is the price of Kenwei machines determined?
The price of Kenwei machines depends on several factors, including the type of machine, customization requirements, production volume, and any additional features or integrations. We provide tailored quotes based on your specific needs and requirements.
About After Sales Support
How can I get technical support for my Kenwei machine?
You can contact Kenwei's technical support team via email, phone, or through our website.
About Cooperation Process
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About Solution suggestions
How do Kenwei’s machines improve my production efficiency?
Kenwei machines enhance efficiency by automating the weighing, packaging, and quality control processes. Our high-speed, high-precision machines ensure accurate measurements, reduce human error, and increase throughput, leading to faster production times and lower operational costs.
