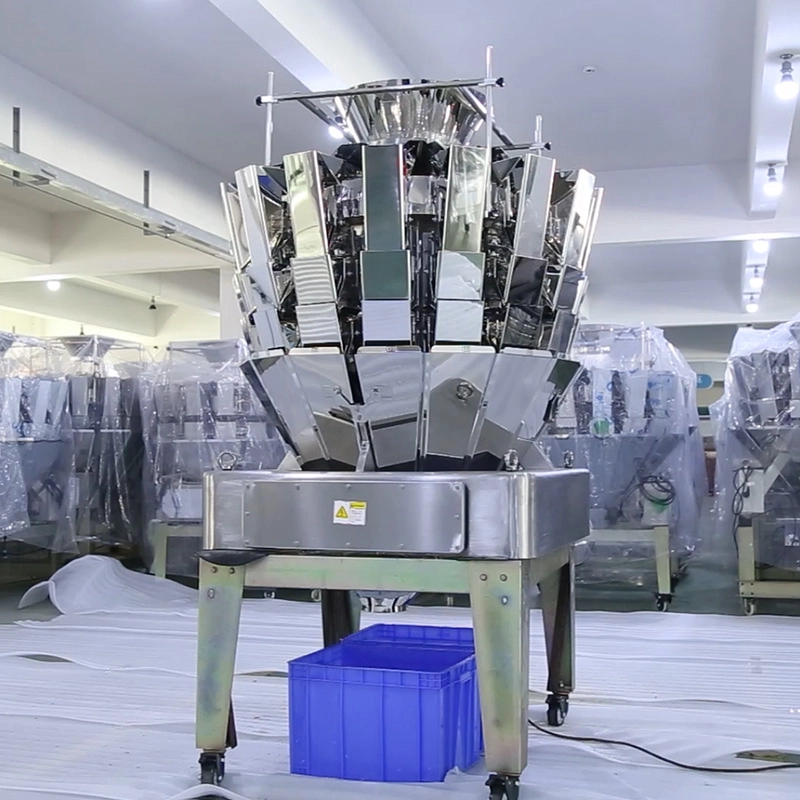

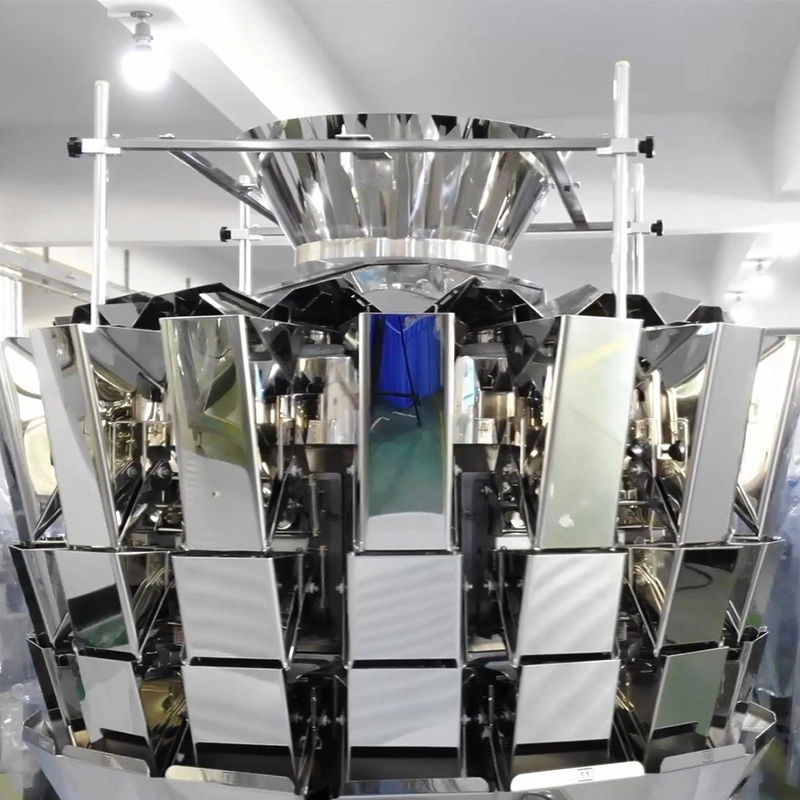

16 Head Three Layer Multihead Weigher for Granular and Irregular Materials
Kenwei’s 16 Head Three Layer Multihead Weigher ensures precise weighing of granular and irregular materials. This multihead weighing machine offers efficient, high-speed performance, ideal for various packaging needs. Trust our 16 head weigher for accuracy and reliability in your production line.
Model
JW-A16
MOQ
1set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A16-4-2
Weighing Range
10-1000g
Accuracy
X(0.5)
Max Speed
120X2P/M
Hopper Volume
1.6L
Control Panel
10.1
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/2300W/50/60Hz/11A
Packing Dimension(mm)
1860(L)x1200(W)x1540(H)
Gross Weight
650kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Equipped with high-precision, high-standard load cells to ensure exceptional weighing accuracy.
●Modular electronic boards with intelligent multi-sampling stabilization algorithms deliver more consistent and precise weighing performance.
● Smart fault alarm system for quick diagnostics and easier maintenance.
●High-speed staggered discharge function effectively prevents material blockage and ensures smooth product flow.
● New, highly integrated modular structure utilizing advanced CAN-bus communication technology.
● Supports Modbus industrial communication protocol, enabling seamless integration between the multihead weigher and packaging machines.
Mechanical Character
The main vibrating pan supports two types of mixed materials, providing flexible feeding for multi-material applications.
An independent main vibrator allows separate control of material thickness, ensuring stable, consistent, and precise feeding for different product types.
The newly designed memory hopper increases material buffer capacity, enhances combination possibilities, and significantly improves weighing accuracy.
The machine frame and middle base are integrally welded, greatly strengthening overall structural rigidity and reducing hopper stabilization time for faster, more reliable operation.
Technical Specification
|
Model |
JW-A16 |
|
Identify Code |
A16-4-2 |
|
Weighing Range |
10-1000g |
|
Accuracy *1 |
X(0.5) |
|
Max. Speed *2 |
100x2P/M |
|
Hopper Volume |
1.6L |
|
Control Panel |
10.1”Touch Screen |
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|
Driving System |
Step Motor |
|
Power Requirement |
220V/2300W/50/60Hz/11A |
|
Packing Dimension(mm) |
1860(L)x1200(W)x1540(H) |
|
Gross Weight |
650kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | |
| *2: Depends on product shape, product density, target weight, etc. | |
Application
It is suitable for weighing a wide range of materials, including granular, flaky, round, irregular products, and various hardware items.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Price and payment
Can I get a detailed quote before making a purchase?
Absolutely! We provide detailed quotes that break down the costs for the machines, customization, shipping, and any additional services. Please contact our sales team with your requirements to receive a customized quote.
About Cooperation Process
How does Kenwei ensure the quality of its machines?
Kenwei has a stringent quality control system in place. Each machine is rigorously tested for precision, speed, and reliability before it is shipped.
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
What information is needed to get a quote from Kenwei?
For us to provide an accurate quote, please provide the following details:
Type of machinery you are interested in (e.g., multi-head weighers, metal detectors, etc.)
Specifications and customization requirements (e.g., capacity, speed, size, etc.)
Your intended application and industry
Quantity of machines required
Delivery location
About Solution suggestions
How do Kenwei’s machines improve my production efficiency?
Kenwei machines enhance efficiency by automating the weighing, packaging, and quality control processes. Our high-speed, high-precision machines ensure accurate measurements, reduce human error, and increase throughput, leading to faster production times and lower operational costs.
