Finished Product Belt Conveyor for Packing Machine in Packaging Line
Kenwei Finished Product Belt Conveyor offers efficient and stable transport for packed goods in your packaging line. This durable Finished Product Conveyor integrates seamlessly with packing machines, ensuring smooth delivery and boosting productivity in industrial operations.
Model
JW-D3
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
D3-1L
Max Speed
25m/min
Power Requirement
220V / 120W / 50/60Hz / 0.55A
Packing Dimension(mm)
2100(L)x650(W)x540(H)
Gross Weight
75kg
Packing dimension
1700（L）x 500（W）x 700（H）
Convey Height
1200-1500 mm
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Strong power, stable and efficient conveying, improving production line efficiency.
● Easily adjust the conveying speed according to demand,meeting diverse production processes.
materials and improve the running speed of the whole machine.
● Strong carrying capacity, smooth and reliable transportation, ensuring smooth production.
● Low noise, creating a peaceful working environment.
Mechanical Character
Equipped with 120W motor, stable and efficient, improving the efficiency of the production line.
Integrated speed controller, with a maximum speed of 25m/min, can easily adjust the conveying speed according to needs, meeting diverse production processes.
Equipped with an emergency stop switch, it can quickly respond in case of emergency, ensuring worry free production safety.

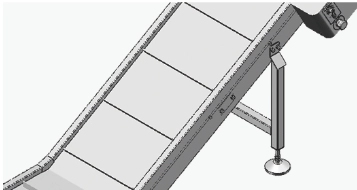

220/400mm wide polymer engineering plastic chain plate design, small spacing between chain plates, occupying less space for rotation.
Technical Specification
|
Model |
JW-D3 |
|
|
Identify Code |
D3-1L |
D3-2L |
|
Effective width of chain plate |
220mm |
400mm |
|
Chain plate spacing |
250mm |
|
|
Access height |
210mm |
|
|
Discharge Chute Height#1 |
850mm |
|
|
Max Speed#2 |
25m/min |
|
|
Power Requirement |
220V / 120W / 50/60Hz / 0.55A |
|
|
Packing Dimension(mm) |
2100(L)x650(W)x540(H) |
2100(L)x830(W)x540(H) |
|
Gross Weight |
75kg |
90kg |
|
#1: The discharge chute height can be customized according to customer needs with standard increments of 100mm. |
||
|
#2: Speed variable frequency adjustable. |
||
Application
Suitable for lifting and conveying materials in the later stage of packaging machines, including bagged and boxed food, hardware, and plastic parts.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Cooperation Process
Does Kenwei offer installation and training?
Yes, Kenwei provides installation services and comprehensive training to ensure that your team can operate the machinery efficiently. Our engineers can travel to your facility for on-site installation, and we also offer remote training options if needed.
About After Sales Support
How can I get technical support for my Kenwei machine?
You can contact Kenwei's technical support team via email, phone, or through our website.
About Product choice
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
Are Kenwei’s products suitable for small-scale or large-scale operations?
Yes! We offer machines that are scalable to meet the needs of both small and large-scale operations.
About products customization
How long does it take to deliver a customized Kenwei machine?
The lead time for customized machines can vary based on the complexity of the customization, as well as production schedules. Generally, it takes 4-6 weeks to deliver a fully customized machine after design approval.
