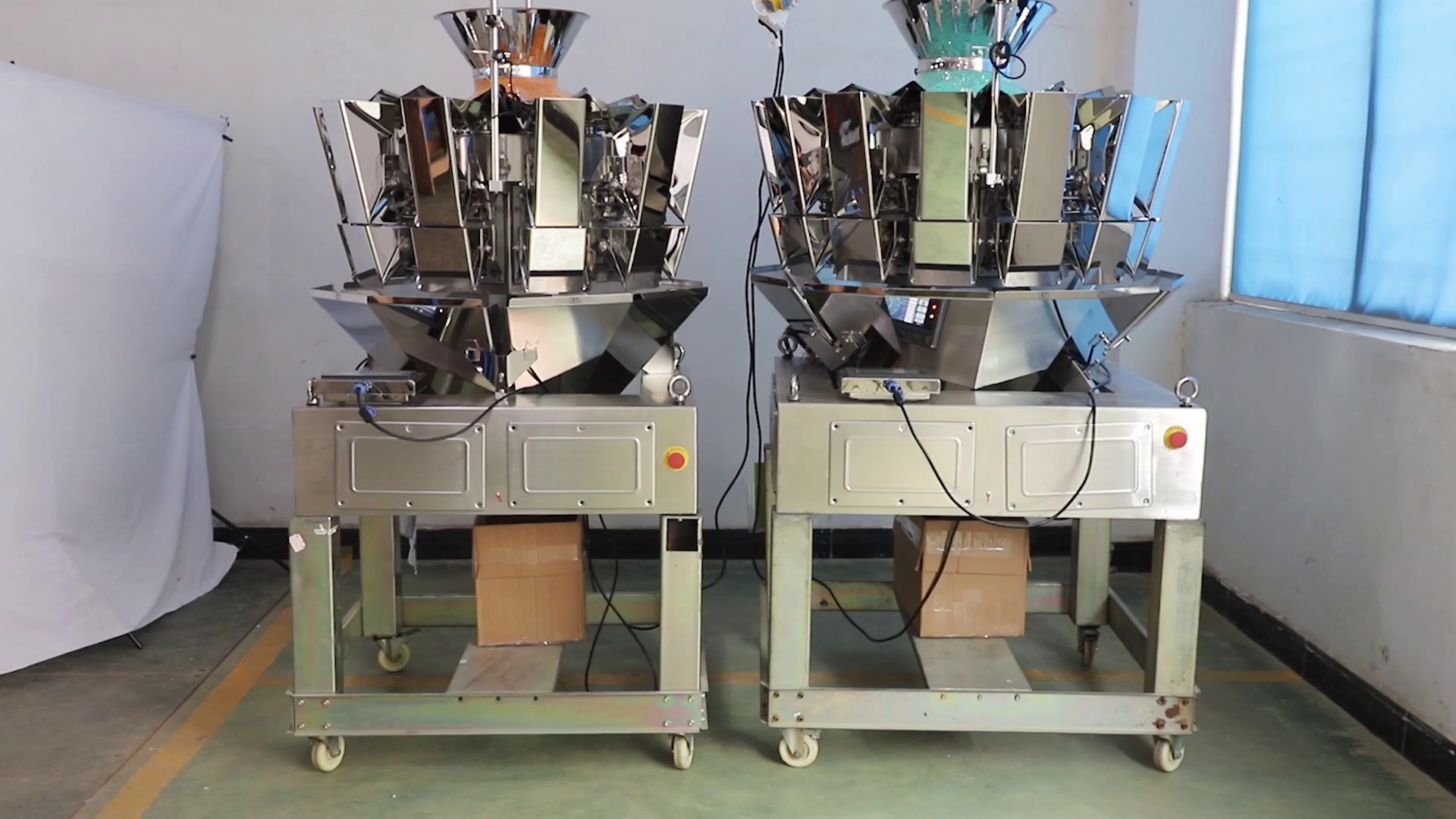

10 Heads Automatic Standard Multihead Combination Weigher 2G
The Kenwei 10 Heads Automatic Standard Multihead Combination Weigher offers precise, efficient weighing for various products. This automatic combination weigher improves productivity and accuracy, making it your ideal 10 heads combination weigher for modern packaging lines.
Model
JW-A14
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
A14-2-1D
Weighing Range
10-1500g
Accuracy
X(0.5)
Max Speed
120P/M
Hopper Volume
1.6/2.5L
Control Panel
7'' Touch Screen
Options
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System
Step Motor
Power Requirement
220V/1000W/ 50/60Hz /10A
Packing Dimension(mm)
1700(L)x1080(W)x1210(H)
Gross Weight
500kg
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |
Feature
● Special high-precision load cell with high standards.
● Intelligent multi-sampling stable mode for enhanced accuracy.
● Advanced intelligent alarm diagnostics.
●High-speed staggered dump function.
● Modular design with CAN bus technology for improved efficiency and stability.
● IModbus industrial communication protocol.

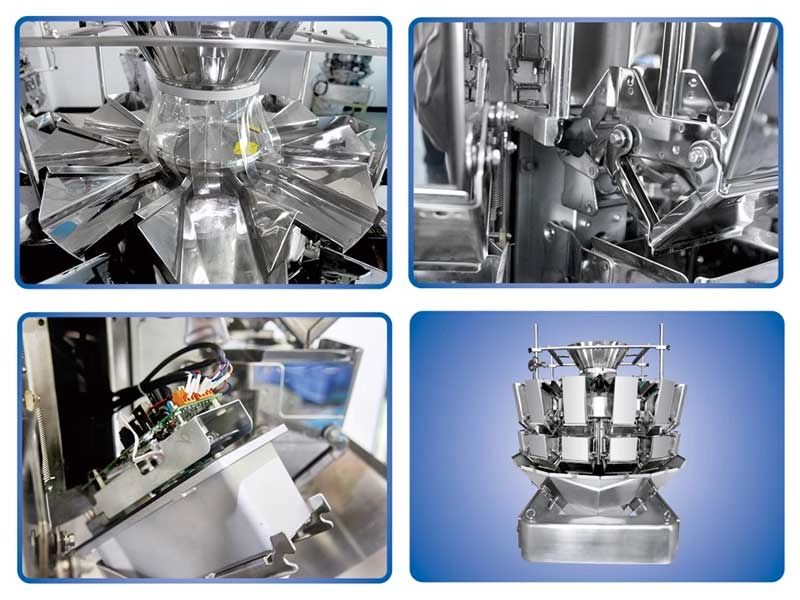

Mechanical Character

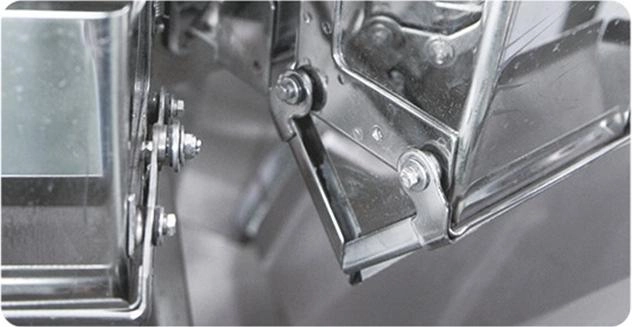

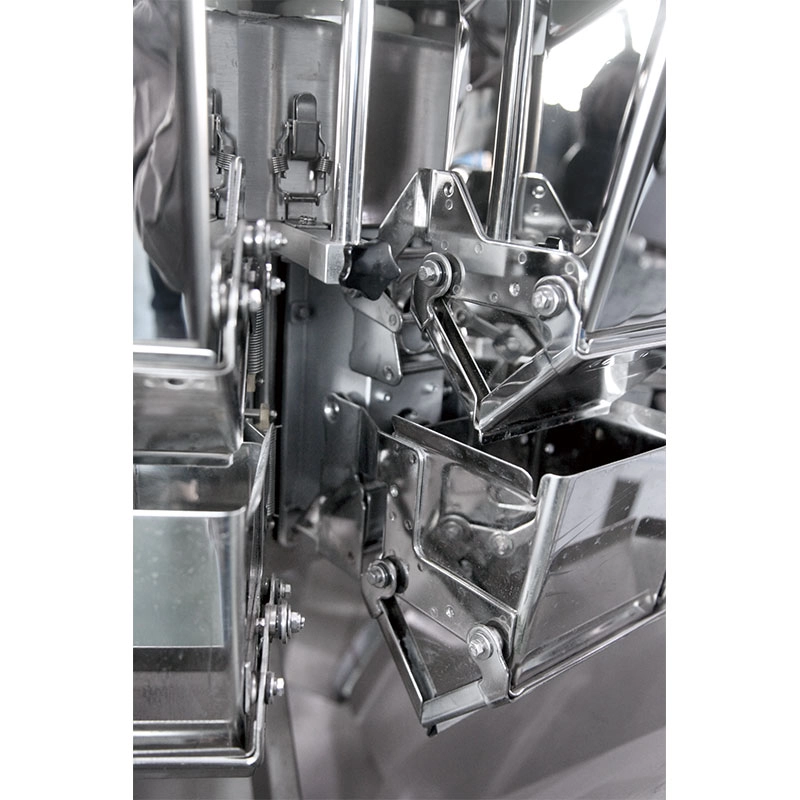

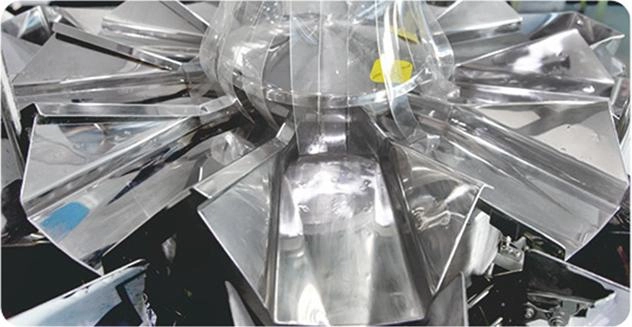

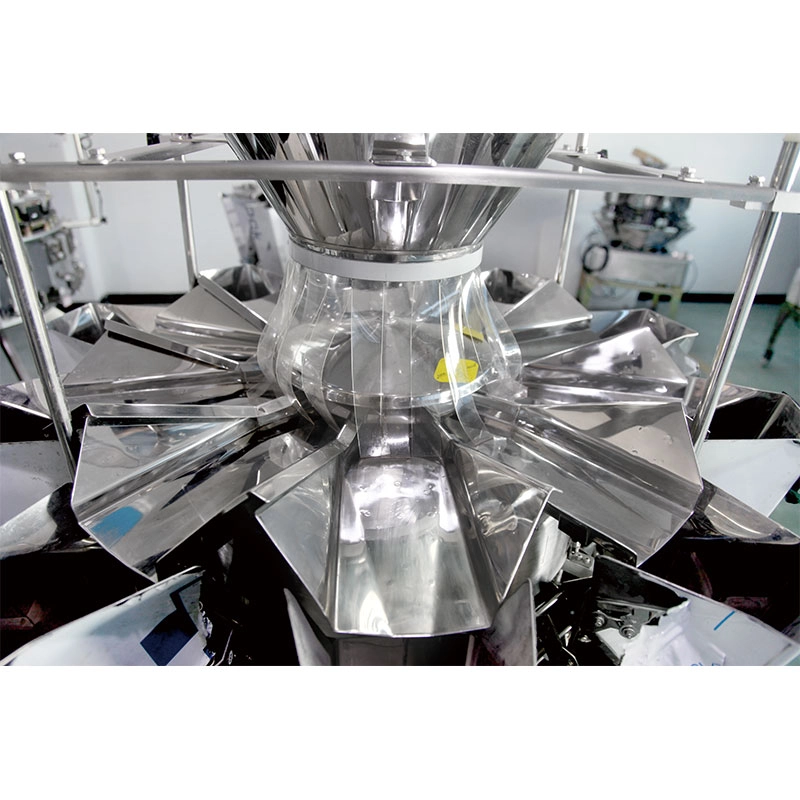

1.6L/2.5L hopper, offering a wide range of applications for various products.Optional: Springless buckets for simplicity.
7" touch screen designed to meet user requirements.

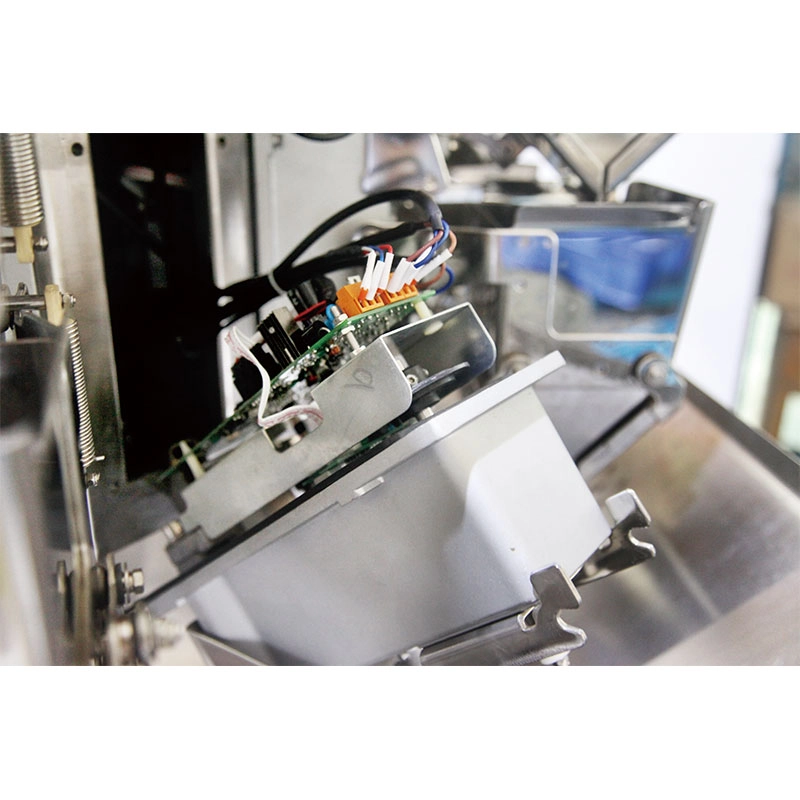

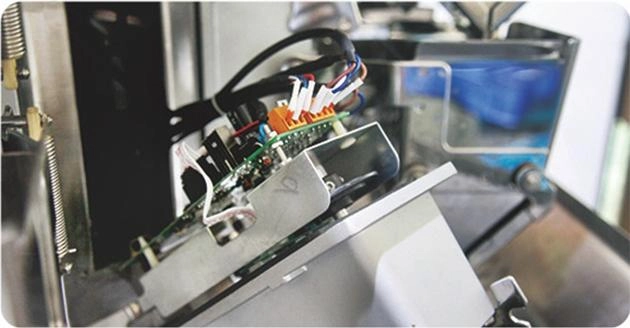

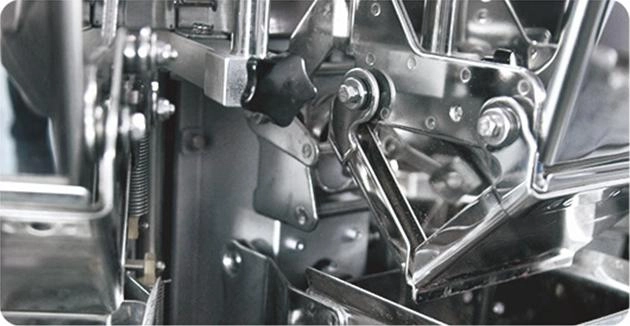

New actuator design reduces mechanical vibration and enhances load cell accuracy.
Arc-shaped machine body with large O treatment improves both stability and aesthetics.
Uniform design standards and molded components ensure better interchangeability of spare parts.
Integrated machine frame and cabinet provide greater stability and higher accuracy.
Technical Specification
|
Model |
JW-A10 |
JW-A14 |
JW-A10 |
JW-A14 |
|
Identify Code |
A10-2-1D |
A14-2-1D |
A10-2-1DW |
A14-2-1DW |
|
Weighing Range |
10-1000g |
10-1500g |
10-1000g |
10-1500g |
|
Accuracy*1 |
X(0.5) |
X(0.5) |
X(0.5) |
X(0.5) |
|
Max Speed*2 |
65 P/M |
120 P/M |
65 P/M |
120 P/M |
|
Hopper Volume |
1.6L/2.5L |
1.6L(No-spring) |
||
|
Control Panel |
||||
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|||
|
Driving System |
Step Motor |
|||
|
Power Requirement |
220V/1000W/50/60Hz/10A |
220V/1000W/50/60Hz/10A |
220V/1000W/50/60Hz/10A |
220V/1000W/50/60Hz/10A |
|

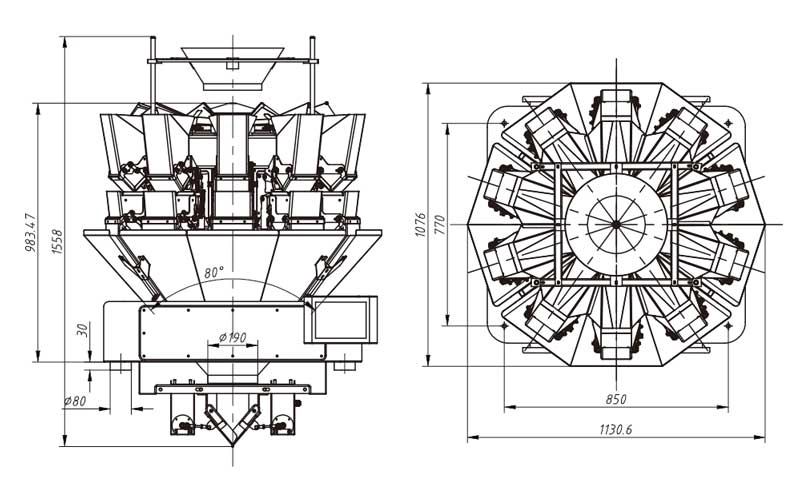

Packing Dimension(mm) |
1620(L)x1080(W)x1120(H) |
1700(L)x1080(W)x1210(H) |
1620(L)x1080(W)x1120(H) |
1700(L)x1080(W)x1210(H) |
|
Gross Weight |
400kg |
500kg |
400kg |
500kg |
| *1: Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004(E) | ||||
| *2: Depends on product shape, product density, target weight, etc. | ||||
Application
It is suitable for weighing a variety of products, including candy, seeds, jelly, pet food, puffy snacks, pistachios, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardware, meatballs, and more.
