High-Speed Combination Weigher and Dual-Lane Packaging Solution for Food Manufacturers JW-B2
High-Speed Combination Weigher and Packaging Solution by Kenwei offers precise multi-head weighing and efficient dual-lane packing for food manufacturers seeking reliable speed and accuracy. This Combination Weigher integrates seamlessly into production lines to optimize throughput and reduce waste.
Model
JW-B2
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Weighing Range
60~6000g
Accuracy
±0.5-1.5g
Max Speed
45x2P/M
Hopper Volume
1.6/2.5 L
Control Panel
7.0'' Touch Screen
Driving System
Step Motor
Packing Speed
15~70 bags/min
| Material | 304 stainless steel | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | Supply Ability | 500 sets/year |

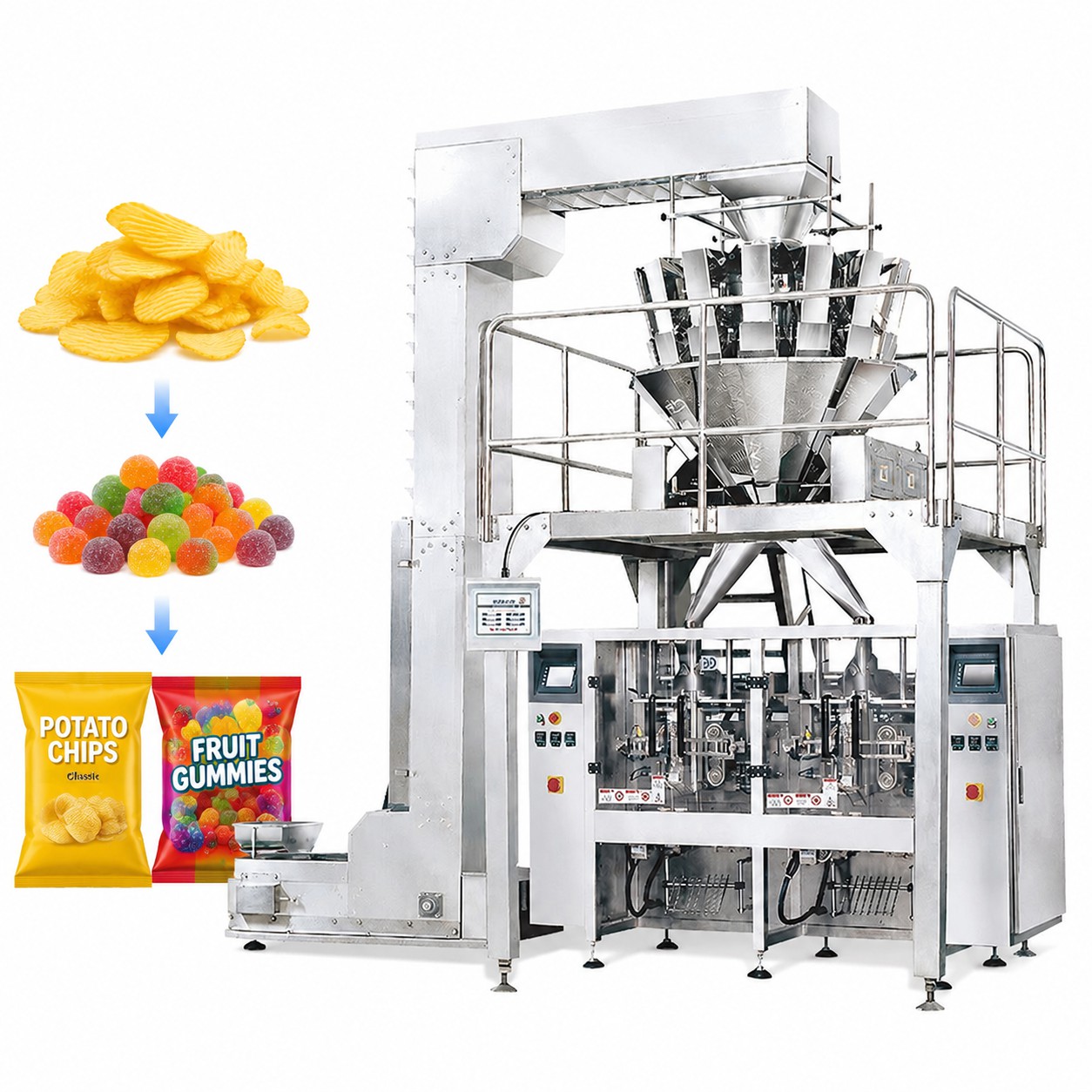

System Components
The system includes a vibrator feeder, double Z bucket conveyor, high speed combination weigher and dual-Lane packaging machine, working platform providing a complete automated packaging solution.

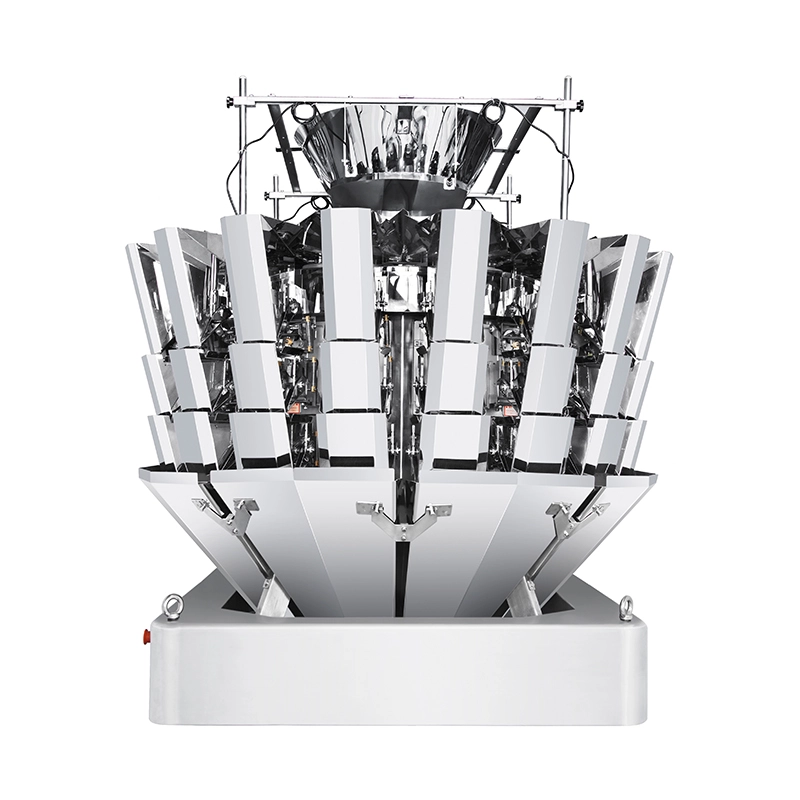

High-Speed Combination Weigher
The high-speed multihead weigher is the core weighing unit of the JW-B2 system, using advanced combination weighing technology to achieve fast and accurate product measurement. It automatically calculates the optimal hopper combination according to the target weight, reducing product giveaway while maintaining stable weighing performance. With a stainless steel structure and intelligent control system, it is suitable for continuous high-speed production of snacks, candy, nuts, frozen foods, and other free-flowing products.

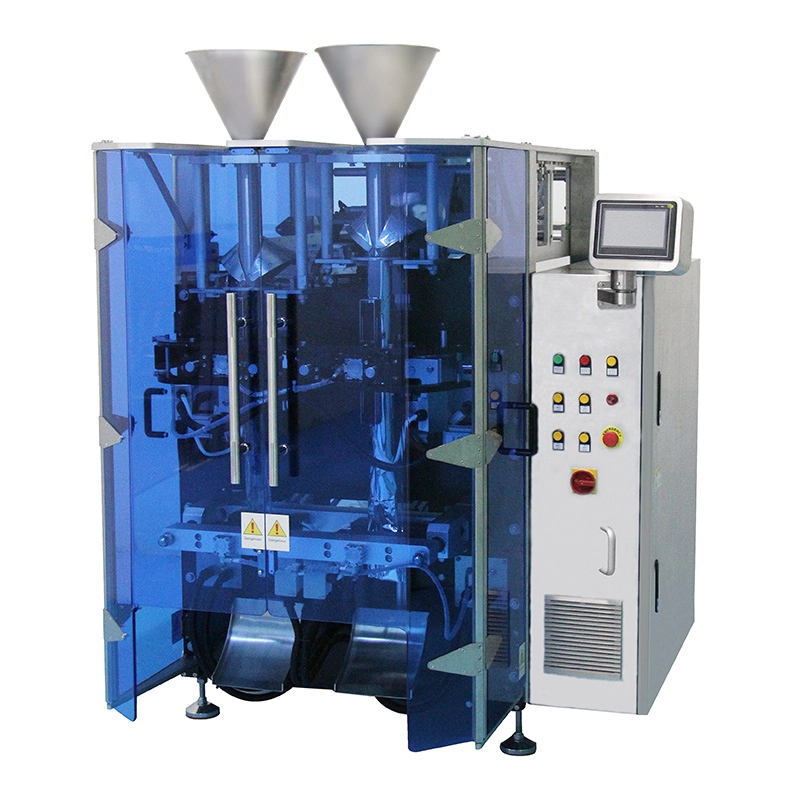

Dual-lane Vertical Form Fill Seal (VFFS) Packaging Machine
The twin packing machine is a dual-lane vertical form fill seal (VFFS) packaging machine designed for high-output food packaging applications. Two independent packing lanes operate simultaneously to increase production capacity while saving installation space. The machine integrates automatic film pulling, bag forming, product filling, sealing, and cutting processes, providing efficient and reliable pouch packaging performance for various food products.

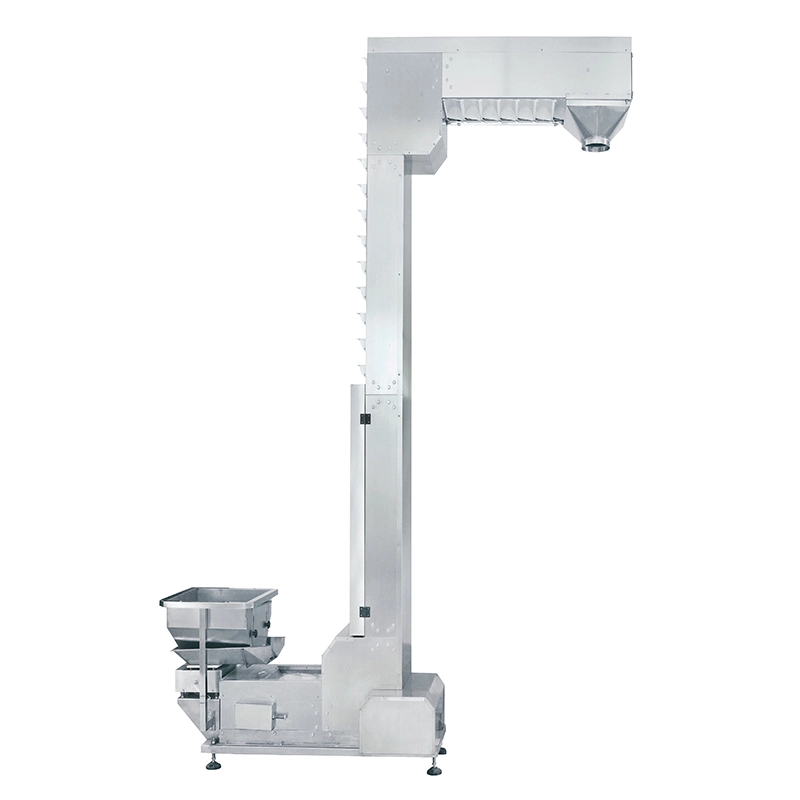

Z Conveyor with Vibrator Feeder
The Z conveyor with vibrator feeder provides smooth and continuous product feeding from the ground level to the high-speed multihead weigher. The inclined conveyor lifts materials efficiently, while the vibration feeder evenly distributes products into the weighing hoppers to ensure stable feeding and accurate weighing. Its stainless steel food-grade design makes it suitable for hygienic food production environments.

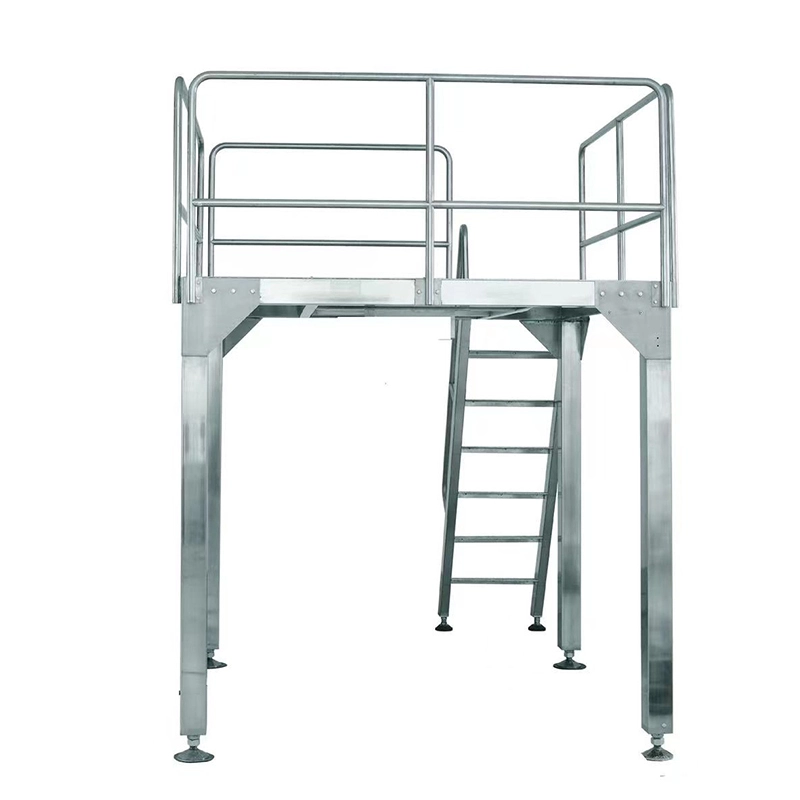

Working Platform
The working platform provides a stable and safe operating environment for the weighing and packaging system. Made of durable stainless steel, it supports the multihead weigher and allows operators easy access for machine operation, cleaning, and maintenance. The platform is designed with safety railings and an anti-slip surface to ensure reliable operation during long-term industrial production.
Feature
● Integrated Weighing and Packaging:
The complete system integrates:Material Feeding → Accurate Weighing → Product Filling → Bag Forming → Heat Sealing → Finished Product Output.
● Accurate Combination Weighing:
Advanced combination weighing technology automatically selects the optimal hopper combination to achieve high weighing accuracy and reduce product giveaway.
● High-Speed Packaging Performance: The twin packing system combines high-speed weighing and efficient VFFS packaging technology to deliver fast and stable packaging performance. Its dual-lane design optimizes production efficiency, helping food manufacturers increase output while maintaining consistent packaging quality.
Application
It is widely used in food processing industries that require fast, accurate, and automatic weighing and packaging solutions. It is suitable for a variety of free-flowing products, including potato chips, snacks, nuts, seeds, candy, gummies, frozen vegetables, dried fruits, and other granular food products. With its high-speed weighing technology and integrated packaging system, the JW-B2 helps manufacturers improve production efficiency, reduce labor costs, and achieve consistent package quality for retail and industrial food production.
Pouch
The JW-B2 supports multiple pouch formats to meet different product presentation and market requirements. It is compatible with common pillow bags widely used for snack packaging due to their high production efficiency, as well as gusset bags that provide larger package volume and improved shelf appearance. For premium retail applications, the system can support quad seal bags for nuts and snacks, and stand-up pouches that offer an attractive display effect and enhanced product presentation.

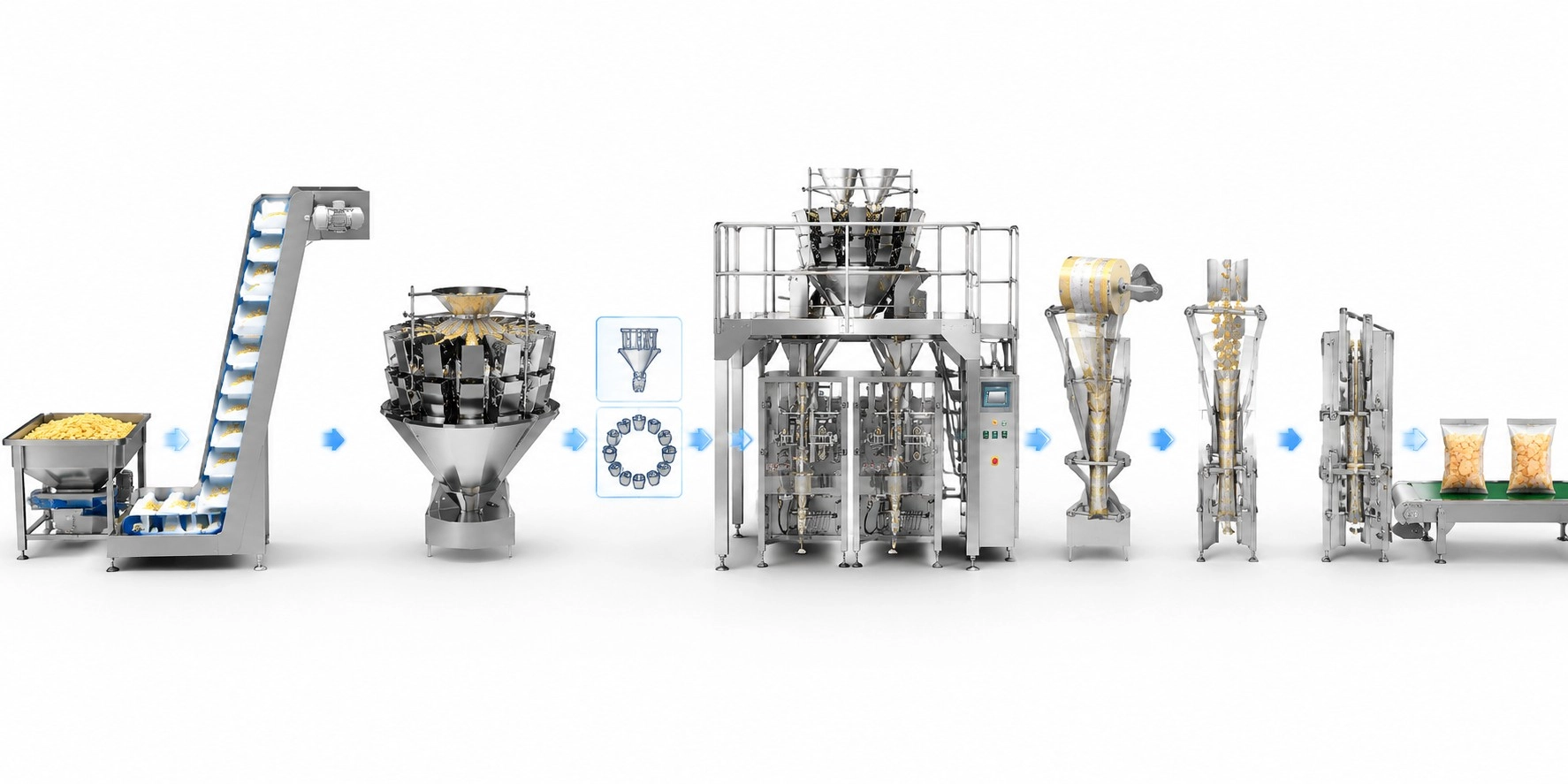

Integrated Weighing and Packaging Process Flow
The JW-B2 integrated weighing and packaging system completes the entire automatic production process from material feeding to finished product output. Products are first delivered through the feeding system and transferred by the Z conveyor with vibrator feeder to ensure stable and continuous supply. The high-speed multihead weigher then performs precise weighing through advanced combination calculation technology to achieve the target weight. After weighing, products are automatically discharged into the twin packing machine, where the film is pulled, bags are formed, products are filled, and bags are sealed and cut. Finally, the finished packages are transported for collection, completing the fully automatic weighing and packaging operation.
Optional Equipment
Check weigher: Rejects unqualified products, sorts items, and compiles statistics. (Note: If other weight detection equipment is available, this machine may not be necessary.)
Horizontal metal detector: Detects metals mixed during the production process, ideal for post-packaging use. (Note: If other metal detectors are already in place, this machine may be redundant.)
Metal detector combined with check weigher:
to verify product weight, detect metal contamination, and remove unqualified products, offering cost savings, as well as reducing setup and maintenance time.
Rotary Collecting Table:
Designed for collecting finished products from the production line, this rotary table is ideal for operations requiring manual handling or temporary storage before further packaging.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Solution suggestions
Can Kenwei solutions be used for both manual and automated packing lines?
Yes, Kenwei machines can be used in both manual and automated packing lines. We can provide integrated systems that work alongside manual labor or fully automated systems depending on your production requirements.
Can Kenwei provide solutions for high-volume production?
Yes, Kenwei specializes in high-speed, high-throughput machines designed for large-scale operations. Our multi-head weighers, packing machines, and check weighers.
About Product choice
How do I choose the right product for my business?
Choosing the right machine depends on several factors:
Product Type: Different machines are suited for different products (e.g., powder, granules, etc.).
Production Capacity: Consider the volume of products you need to process and the speed requirements.
Customization: If you have specific needs, such as the need for unique features or sizes, we offer customization options.
About Cooperation Process
How can I start a cooperation with Kenwei?
To begin a cooperation, simply contact our sales or customer service team via email or phone. You can also fill out the inquiry form on our website. Once we receive your request, a representative will get in touch with you to discuss your specific needs and provide you with a tailored solution.
About After Sales Support
How do I claim warranty service?
To claim warranty service, please contact our customer support team with your machine’s product code and a description of the issue. If applicable, we may request photos or videos of the issue to facilitate troubleshooting.
