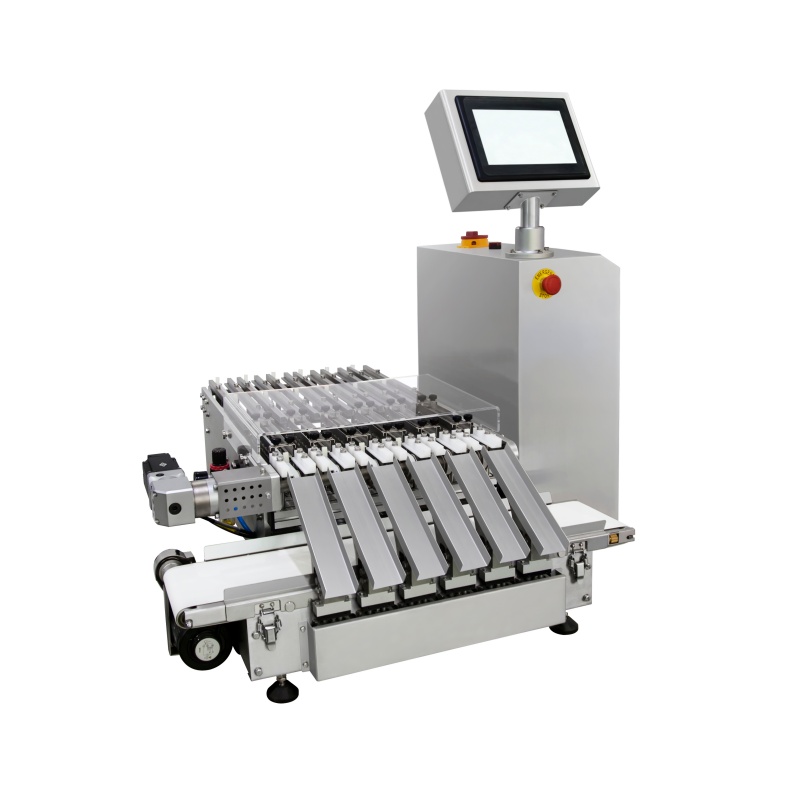

6 Head Checkweigher for 50g Small Package Inspection
Checkweigher for 50g Small Package Inspection by Kenwei offers precise weight verification with six heads, ensuring fast and accurate sorting of small packages. Designed for consistent quality control in production lines, it minimizes errors and optimizes efficiency.
Model
JW-C50
MOQ
1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Kenwei
Identify Code
CDL650-2-1
Weighing Range
1-50g
Accuracy
±8/±15mg
Max Speed
55 cuts/min
Control Panel
10.1”Touch Screen
Power Requirement
220V/ 600W/ 50/60Hz/ 3A
Gross Weight
100kg
Reject Method
Slide Type
Packing dimension
1650(L)x1100(W)x650(H)
| Supply Ability | 500 sets/year | Certification | CE, OIML, SGS |
| Availability | OEM/ODM | Delivery Time | 7-30days |
| Start Port | Zhongshan port | ||
Feature
● Equipped with a 10.1-inch touchscreen HMI featuring an intuitive interface and multi-language switching, helping improve operational convenience.
● Designed for high-speed static weighing with stable accuracy, while each lane’s parameters can be displayed independently to simplify setup and adjustment.
● Supports USB data backup and software upgrades, making daily maintenance and system management more convenient.

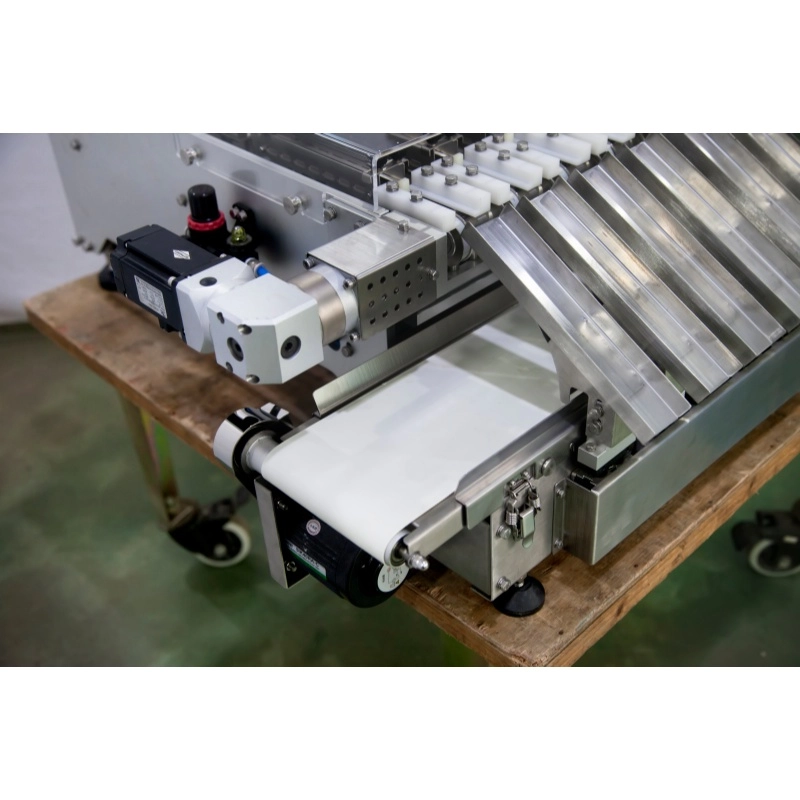

● The combination of servo-driven start-stop control and precision sensors helps provide highly accurate weighing performance, with accuracy reaching the milligram level under suitable conditions.

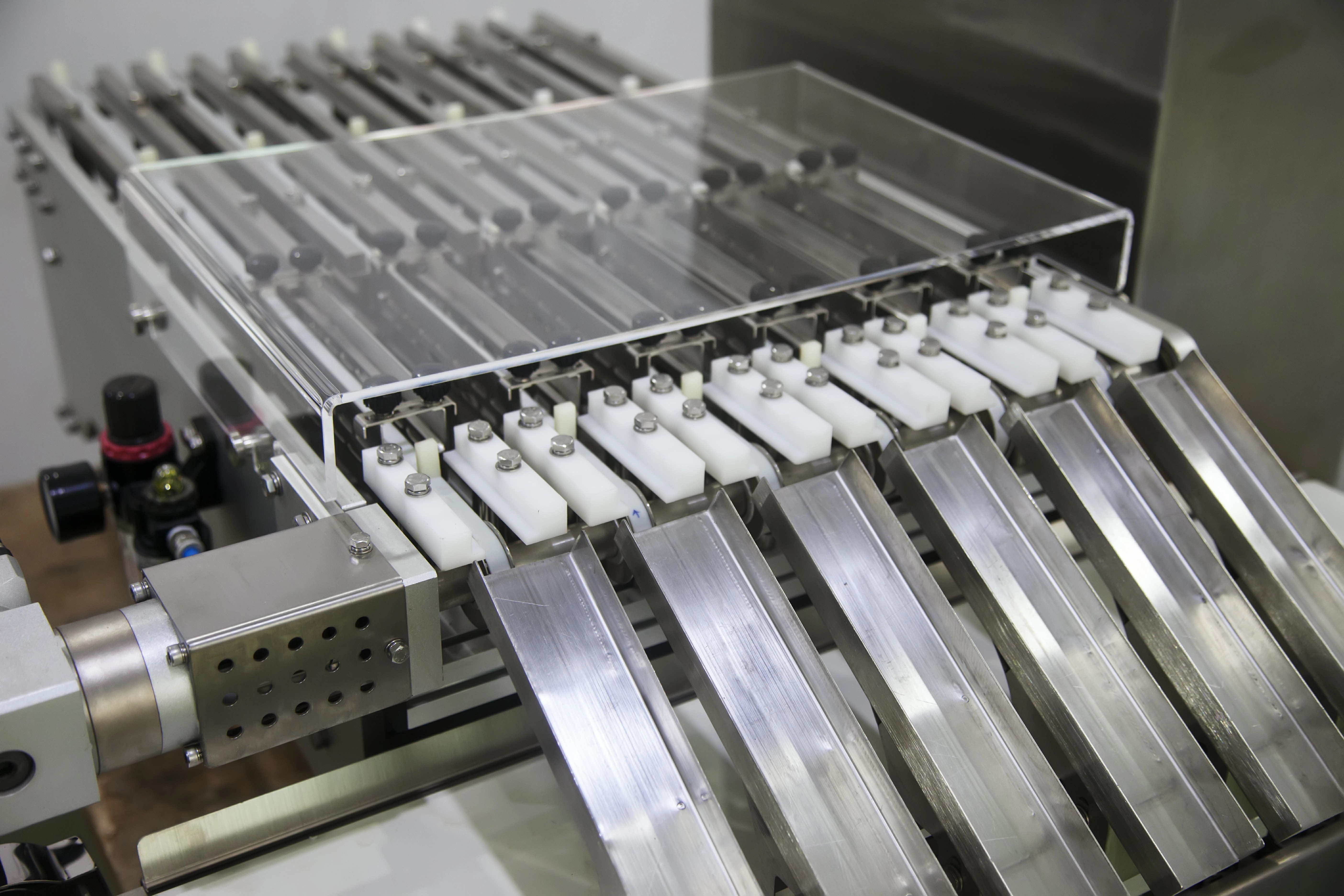

Mechanical Character

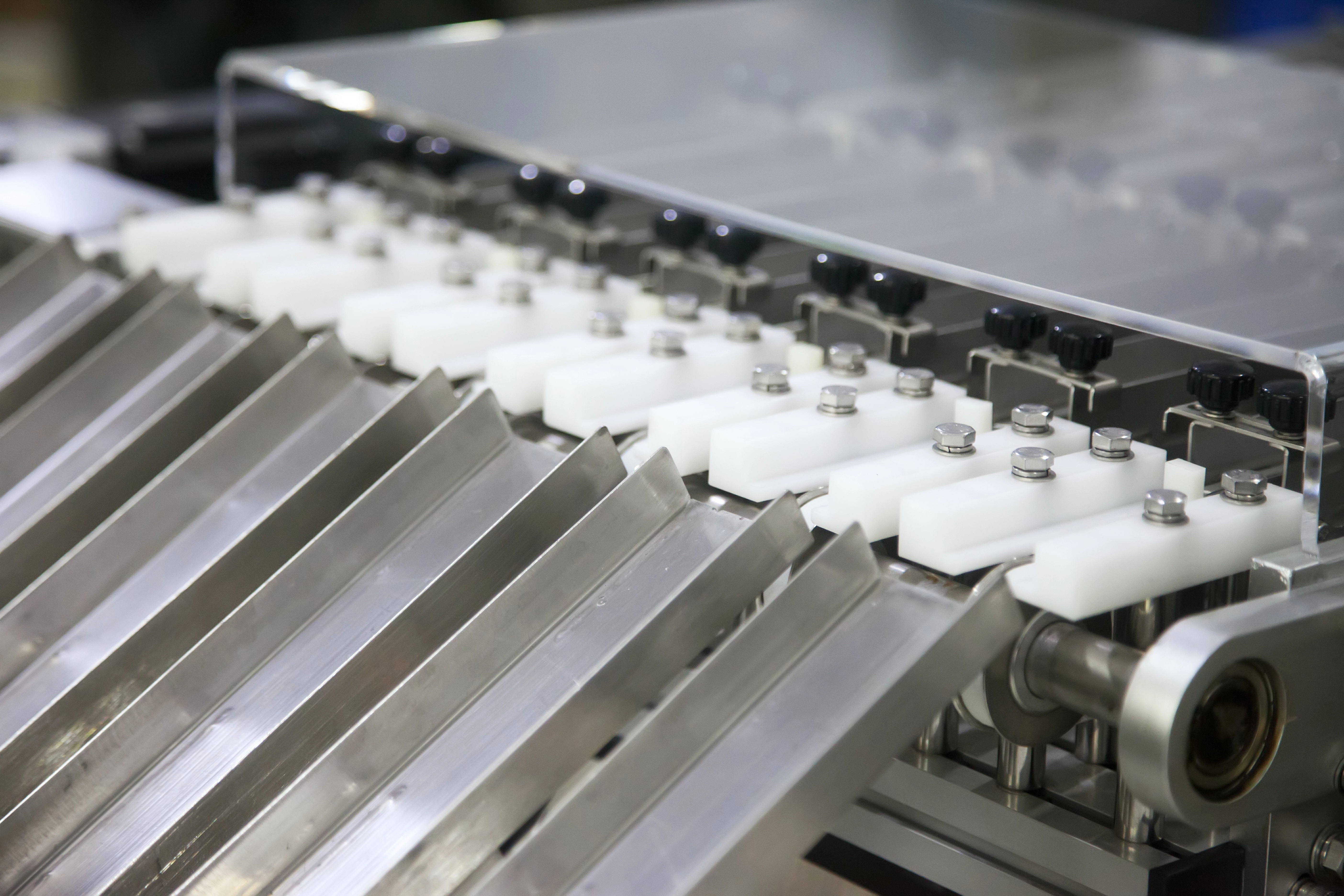

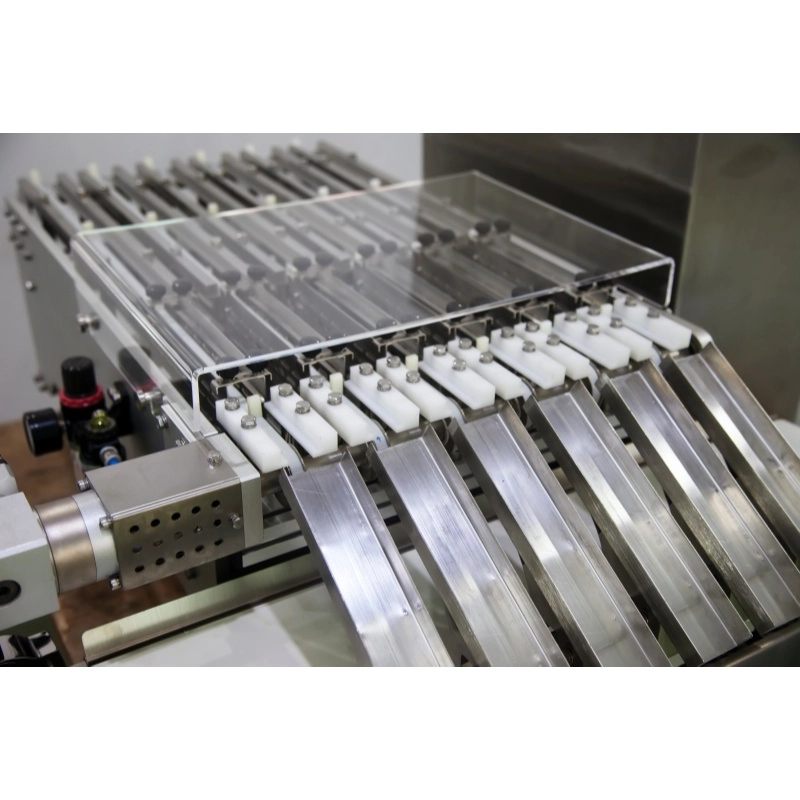

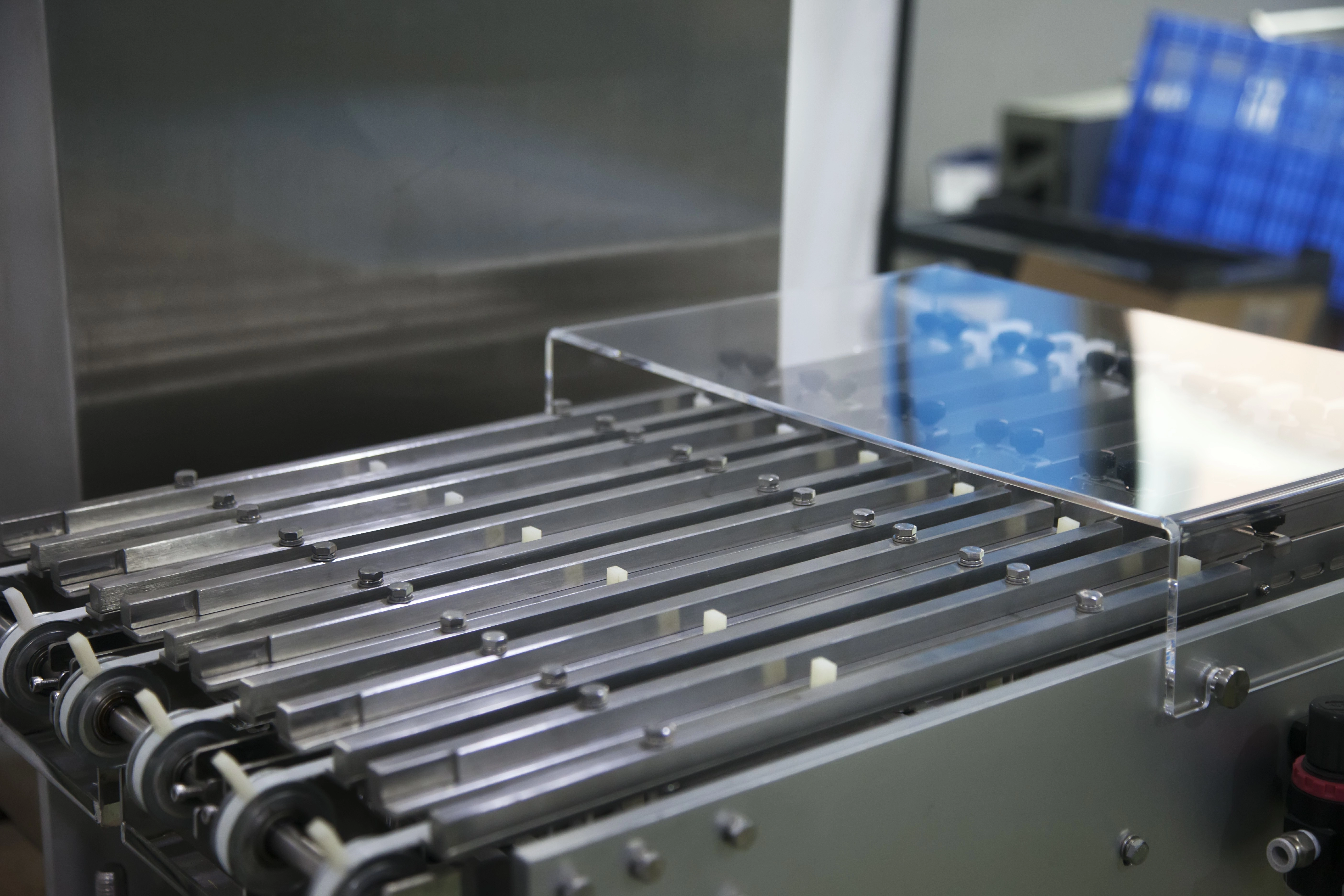

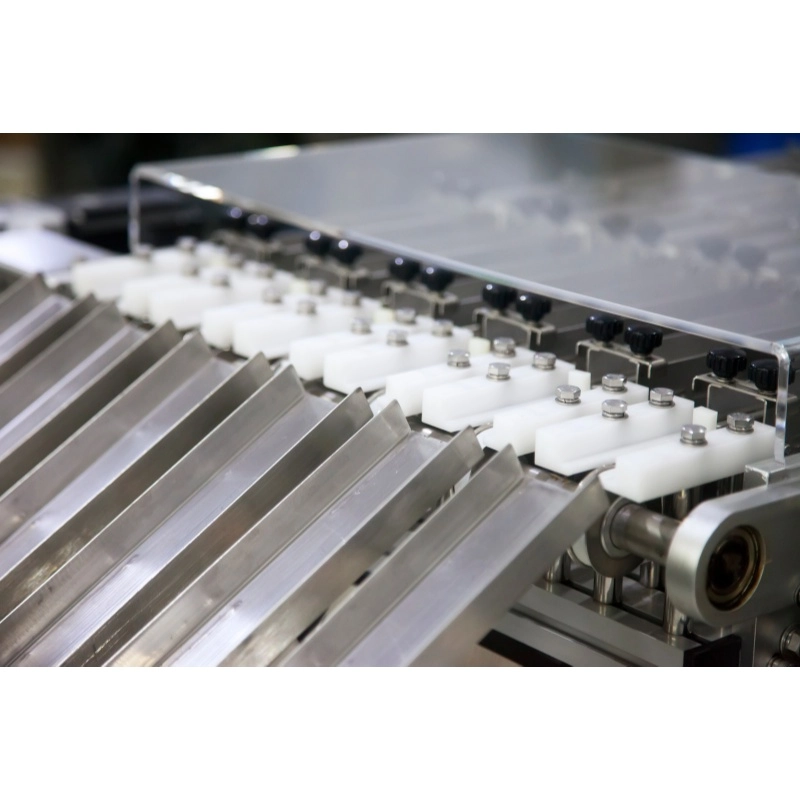

Features a multi-channel weighing structure, allowing each channel’s parameters to be adjusted independently for more flexible operation.
Designed with an approximate height of 350mm, making it suitable for use with various multi-lane packaging machines while helping optimize integration space.
The independent frame and compact design help reduce installation space requirements and support flexible layout arrangements.

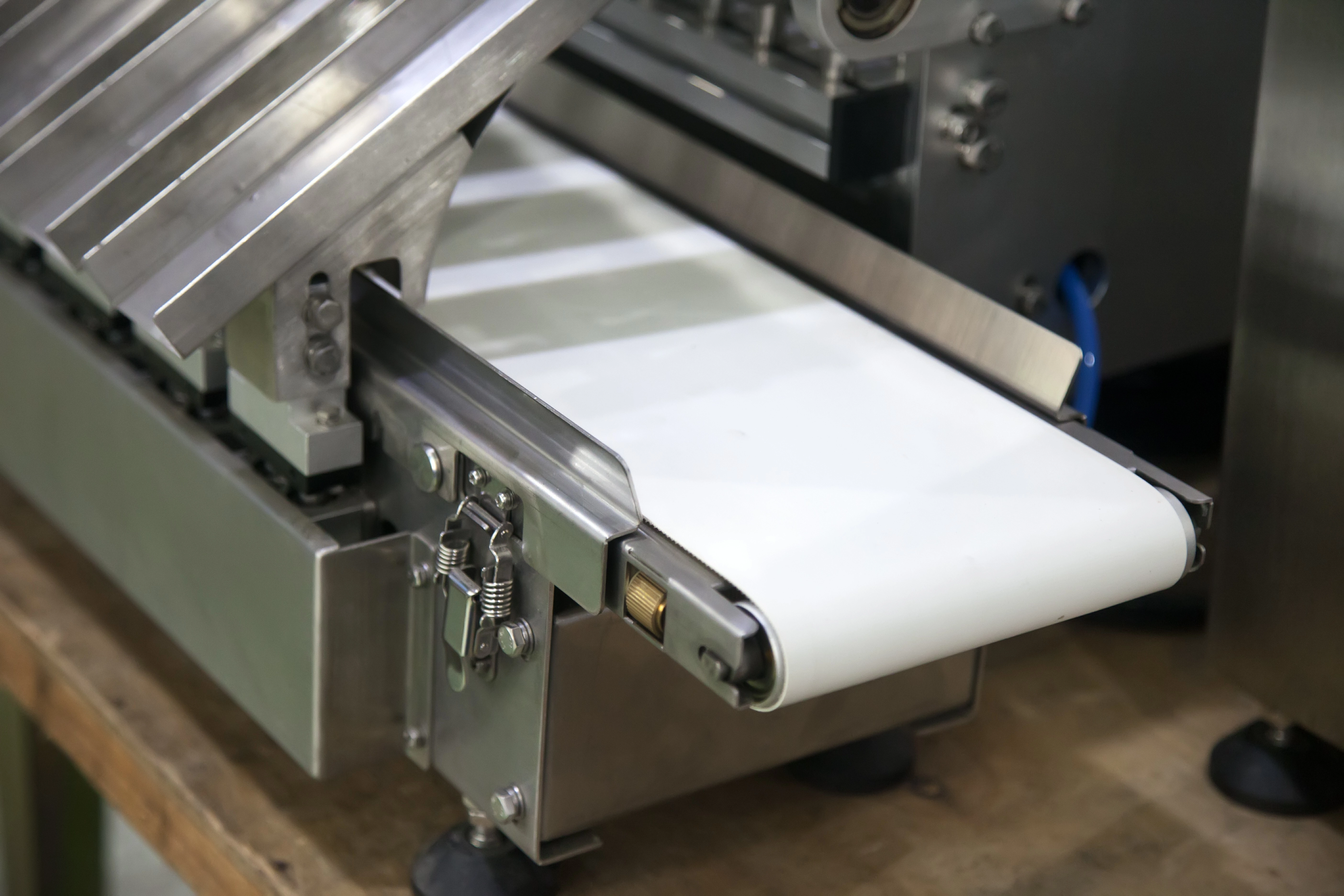

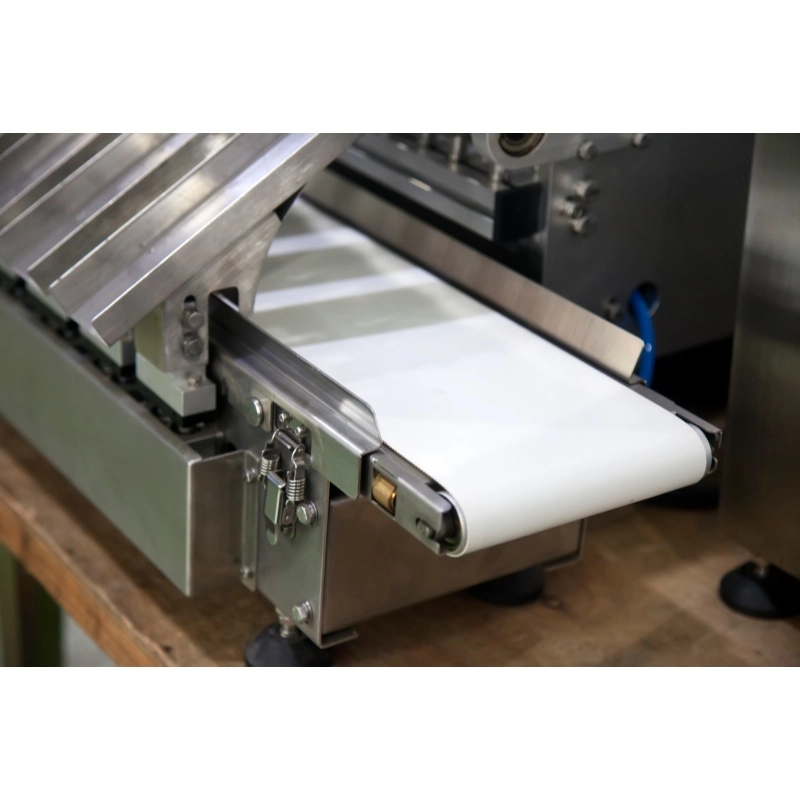

Integrated with a rejection and sorting function, enabling qualified and unqualified products to be conveyed separately for improved production management
Technical Specification
| Model | JW-C50 |
| Identify Code | CDL650-2-1 |
| Weighing Range | 1-50g |
| Accuracy*1 | ±8/±15mg |
| Max Speed | 55cuts/min |
| Weighing Lanes | 6 lanes |
| Material Size Range(mm) | 50-170(L)X25-35(W)X5-15(H) |
| Control Panel | 10.1” Touch Screen |
| Reject Method | Slide Type |
| Power Requirement | 220V/600W/50/600Hz/3A |
| Packing Dimension(mm) | 1650(L)X1100(W)X650(H) |
| Gross Weight | 100kg |
| *1: Depends on the speed, product length and option loadcell model. | |
Application

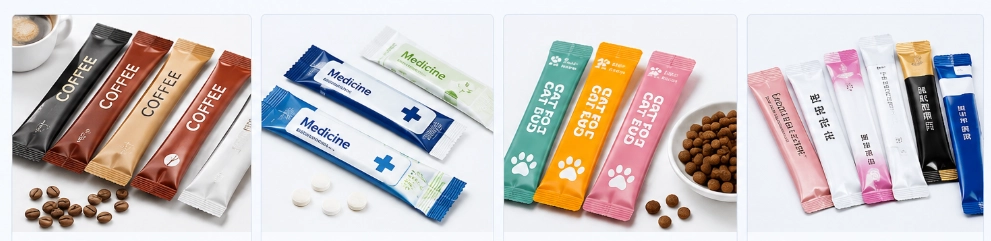

Suitable for use with multi-lane packaging machine products such as coffee sticks, pharmaceuticals, cat food, and other strip-packed materials. Widely applicable in industries including pharmaceutical, food, beverage, and daily chemical production.
Frequently Asked Questions
We've Got Answers
Browse some answers to our most common questions, or you can drop us a line to ask something else.
About Logistics
Do I need to prepare my facility for the delivery of large machines?
Yes, large machines often require special preparations for delivery, including ensuring adequate space for unloading and installation.
About Cooperation Process
How to operate it?
Many languages are available for global markets. There are not only detailed instructions, but also machine video for reference learning.
What is the lead time for product delivery?
The lead time depends on the complexity of the order and the level of customization required. Typically, our products are shipped within 4-8 weeks after receiving the order confirmation. However, this can vary, and we will provide an estimated delivery date when you place your order.
How does Kenwei ensure the quality of its machines?
Kenwei has a stringent quality control system in place. Each machine is rigorously tested for precision, speed, and reliability before it is shipped.
About Solution suggestions
What industries benefit the most from Kenwei solutions?
Kenwei solutions are ideal for a wide range of industries, including:
1）Food Packaging snacks, grains, and powdered beverages.
2）Pharmaceuticals: Precise weighing of tablets, and capsules.
3）Chemicals: Weighing and packaging granular and powdered chemicals.
4）Agriculture: Packaging seeds, grains, and fertilizers.
